Eldorado 75 Knee Type GUN DRILLS & DEEP HOLE DRILLS

Price on Request

Make:
Eldorado
Model:
75 Knee Type
Year:
1989
Ref #:
161123

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

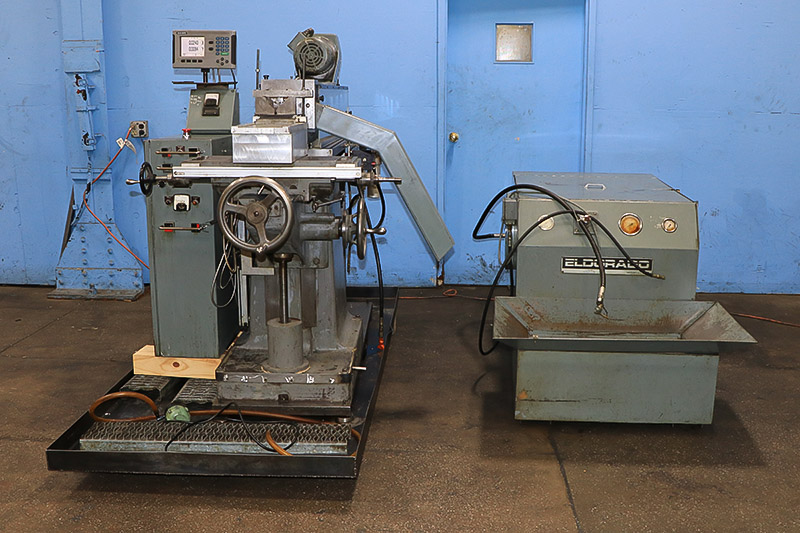

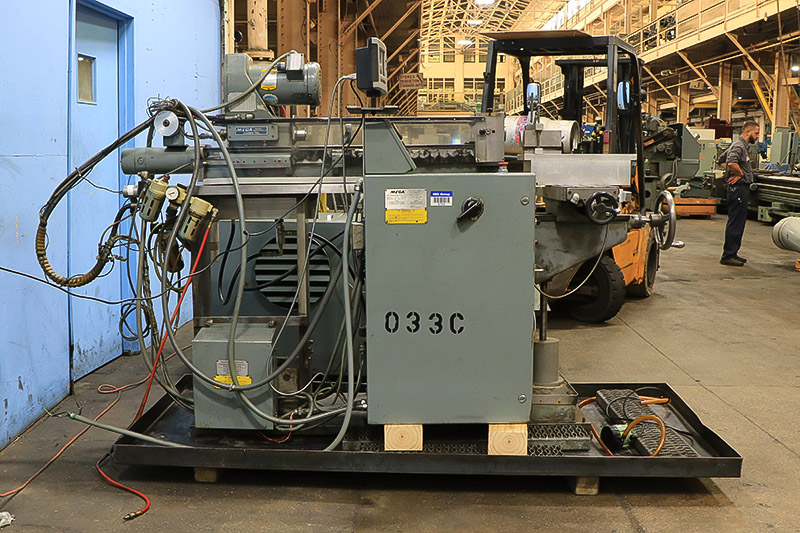

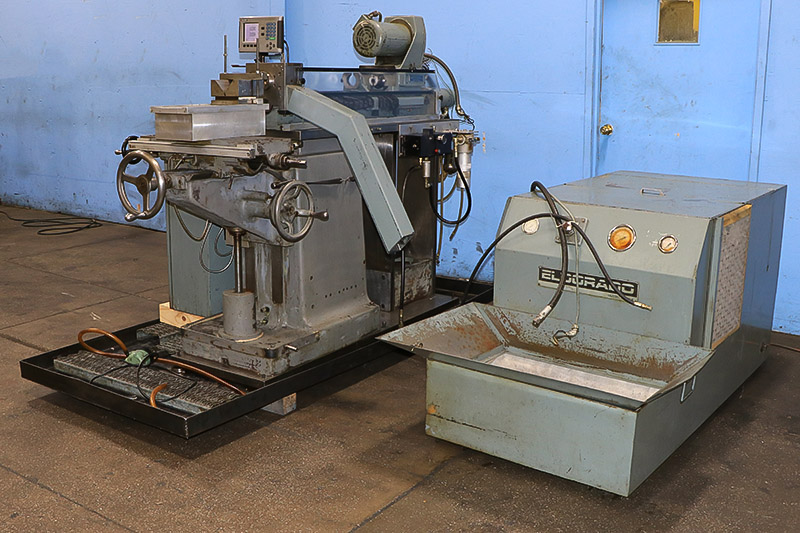

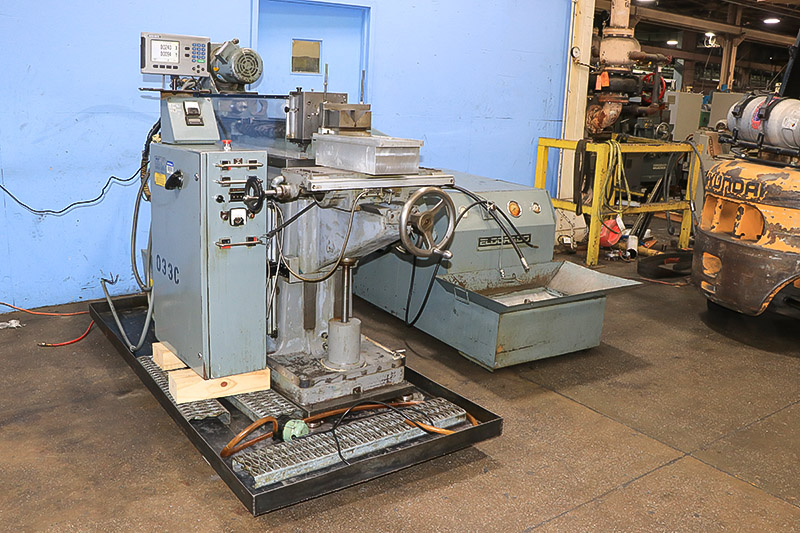

1" X 30" ELDORADO SINGLE SPINDLE KNEE TYPE
DEEP HOLE DRILLING MACHINE

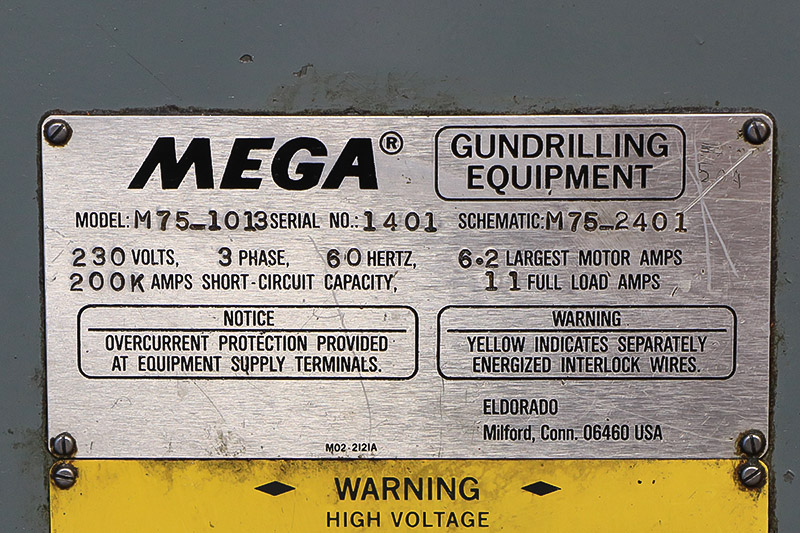

MODEL: 75 KNEE TYPE, S/N: 1401, NEW: 1989

SPECIFICATIONS:

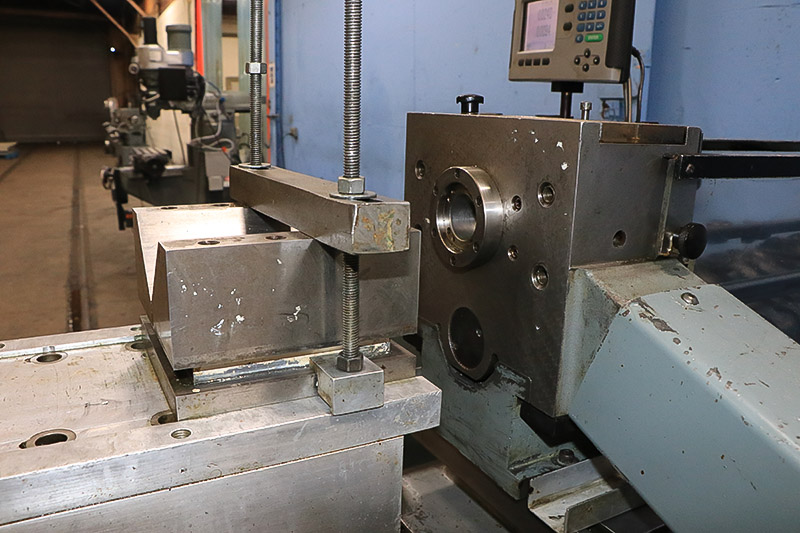

WORKING SURFACE OF TABLE ................. 12" x 24"
DRILLING CAPACITY ........................ 0.055" TO 1" (IN MOST MATERIALS)
SPINDLE TRAVEL BALL SCREW FEED ........... 24"
TABLE CROSS TRAVEL ....................... 24"
TABLE IN & OUT TRAVEL .................... 12"
KNEE UP & DOWN TRAVEL .................... 14"
VARIABLE SPINDLE SPEEDS .................. 1440 TO 11,740 RPM
VARIABLE SPINDLE FEED RATE ............... .1 TO 99.9
RAPID TRAVERSE AND RETURN RATE ........... 200

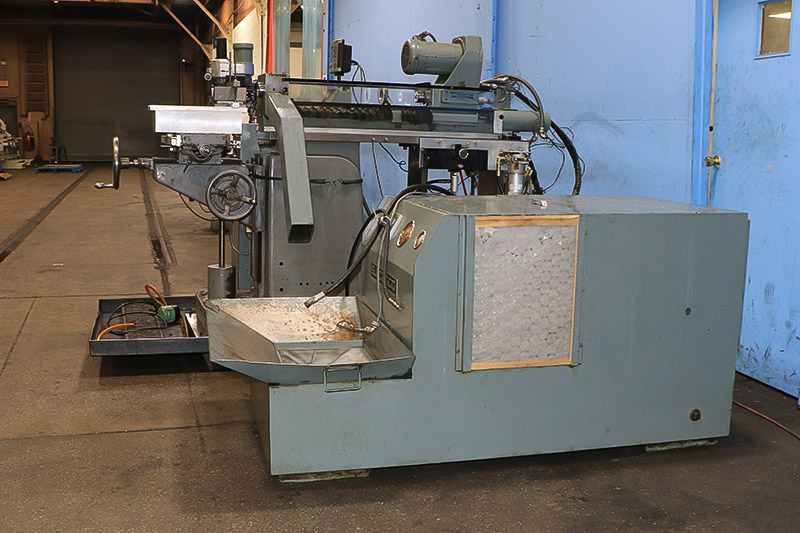

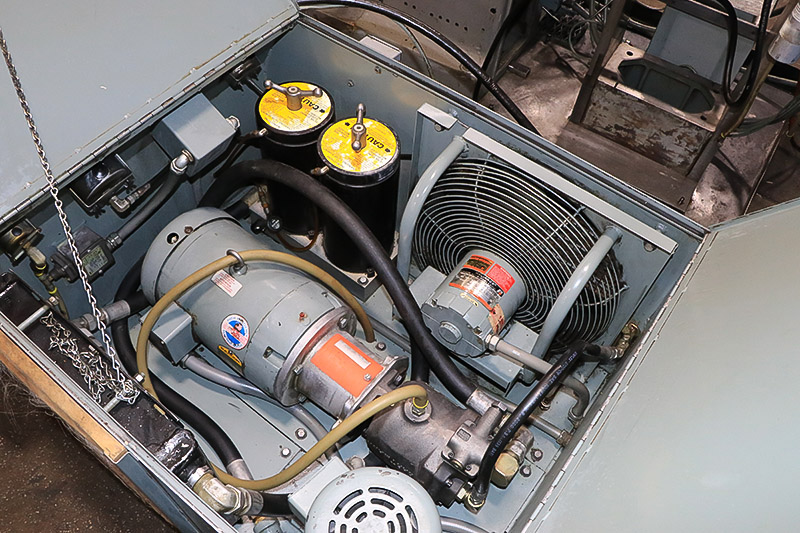

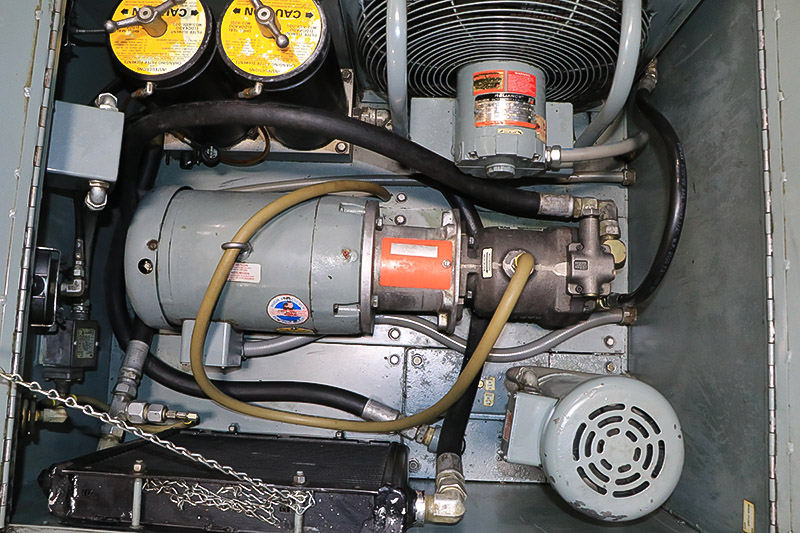

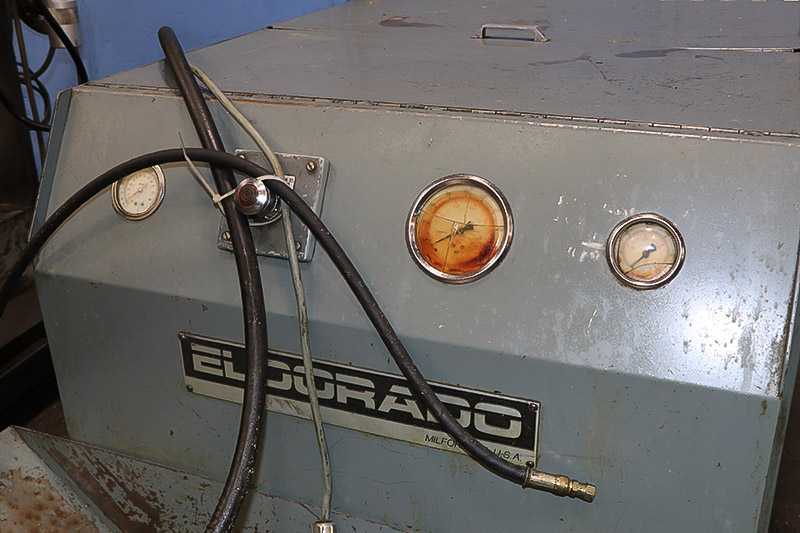

F-18 HIGH PRESSURE COOLANT SYSTEM ........ 1500 PSI
18 GPM, 90 GALLON TANK, 7.5 H.P. PUMP MOTOR

MACHINE DIMENSIONS ....................... 74"W X 8'L X 5'H
HIGH PRESSURE COOLANT SYSTEM ............. 3' X 8' 5'H
WEIGHT APPROXIMATELY ..................... 5,000 LBS

EQUIPPED WITH:

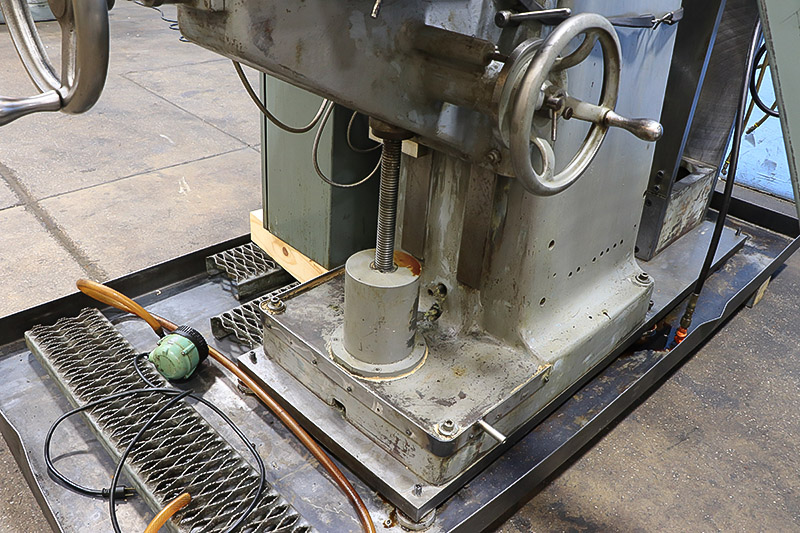

ADJUSTABLE KNEE

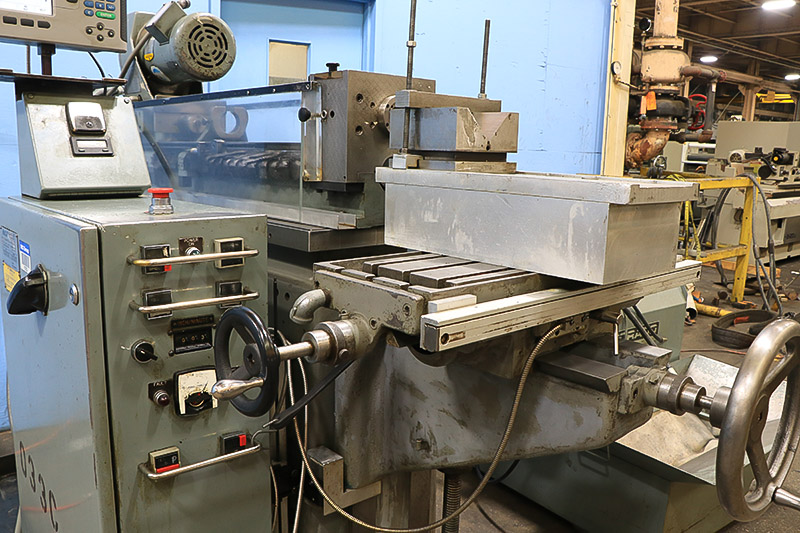

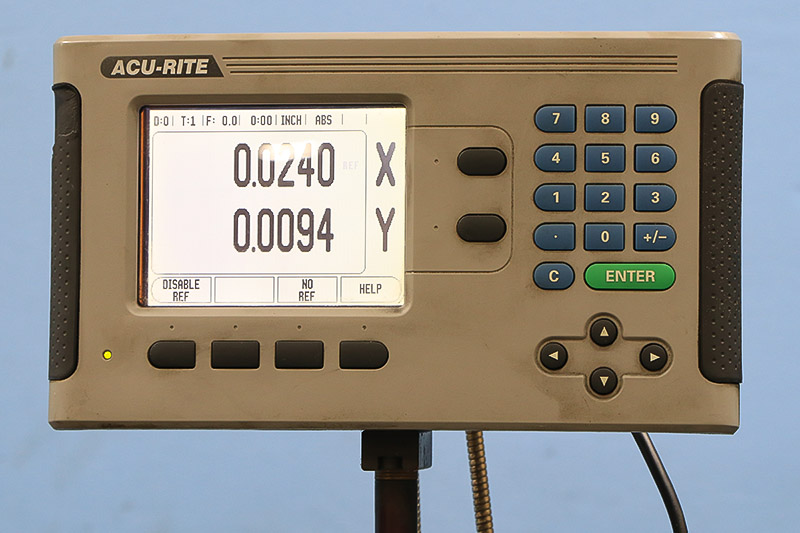

ACU-RITE DIGITAL READOUT
FLO-MINDER
WHIP GUIDE

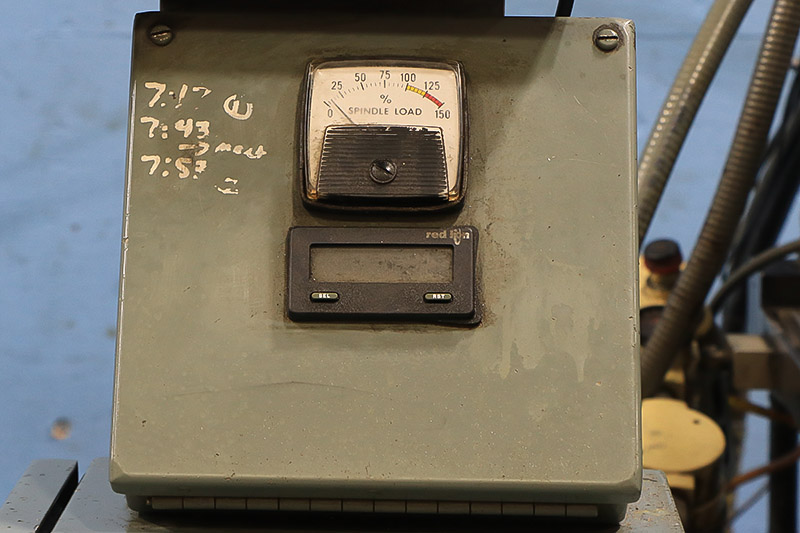

FEED THRUST METER
AUTOMATIC LUBRICATION SYSTEM

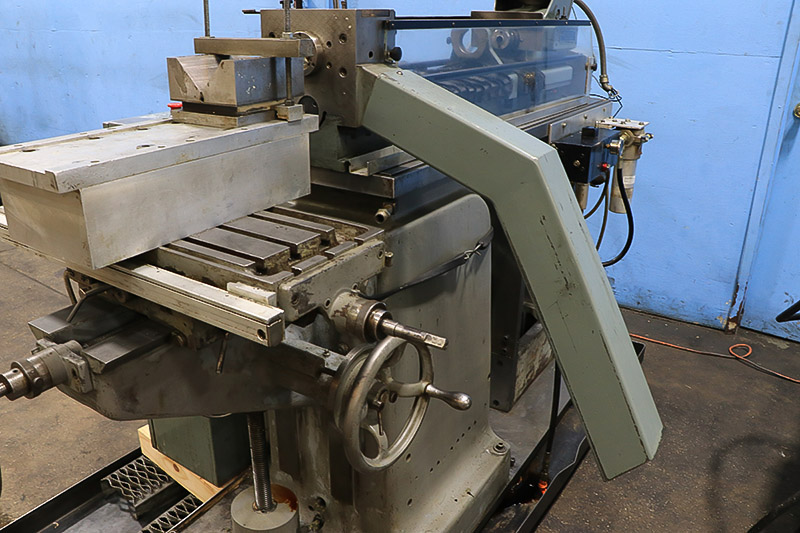

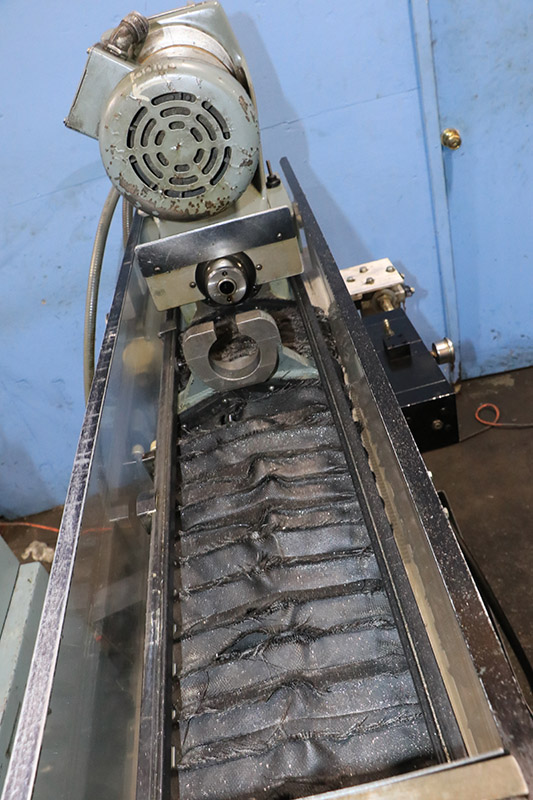

BELLOWS AND PLEXIGLASS GUARDS

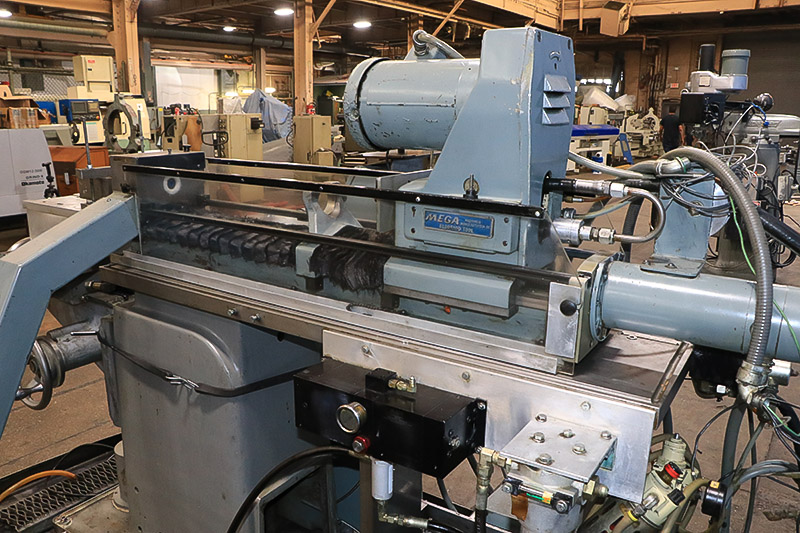

2 HORSE POWER MOTOR ON DRILLING HEAD

INSPECT IN OUR NEW JERSEY WAREHOUSE
