Eldorado M75-10131 GUN DRILLS & DEEP HOLE DRILLS

Price on Request

Make:: Eldorado

Model:: M75-10131

Year:: 1981

Ref #:: 162291

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

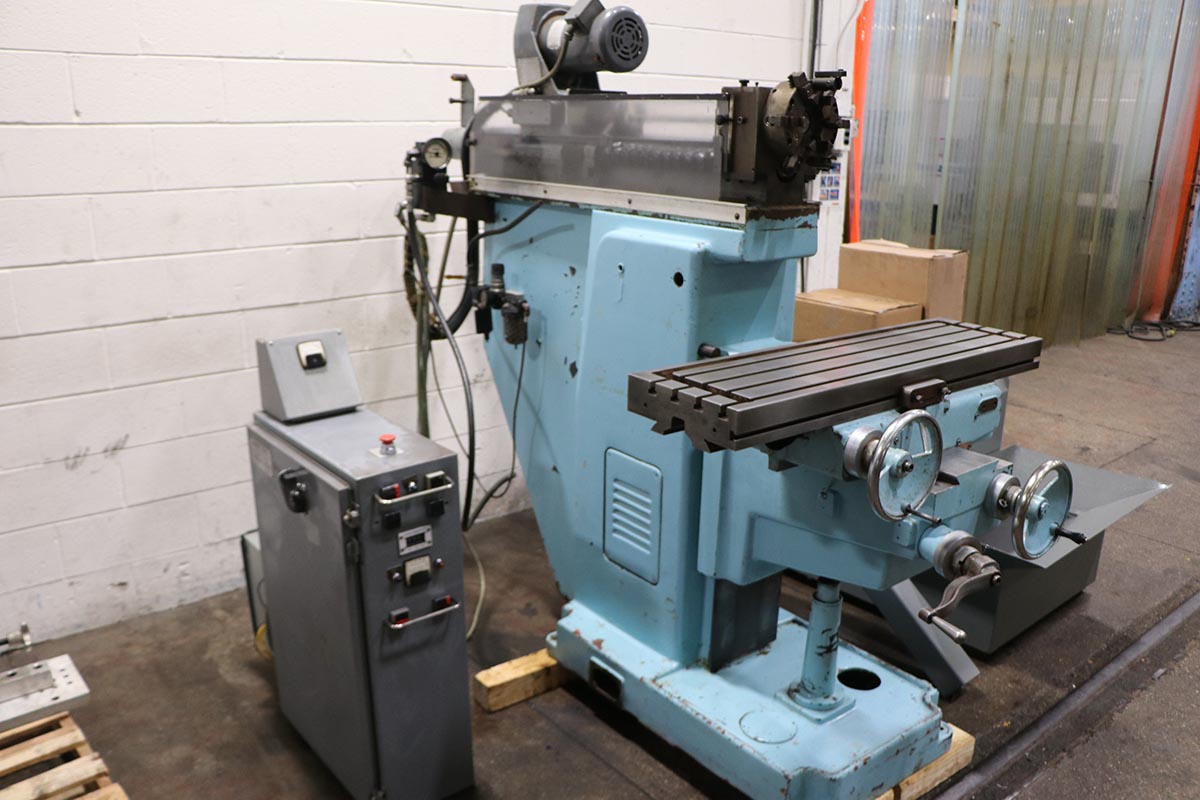

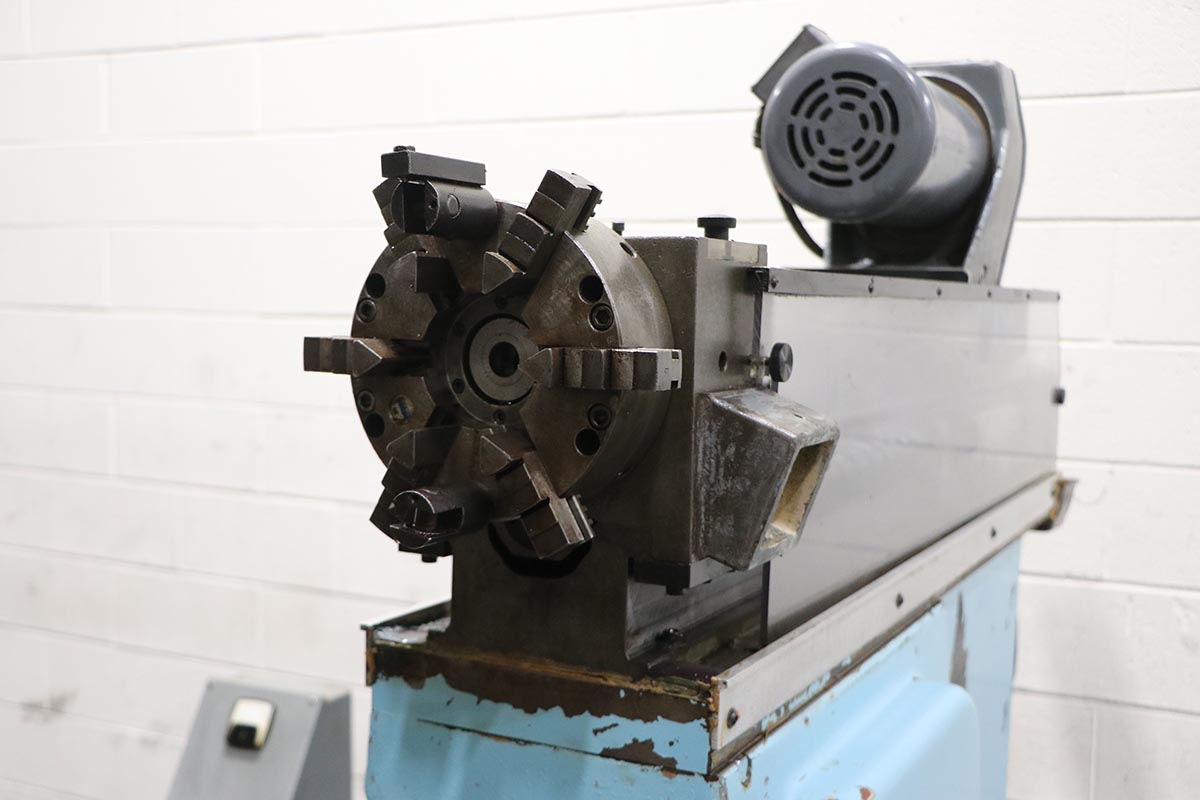

1" X 30" ELDORADO SINGLE SPINDLE KNEE TYPE
DEEP HOLE DRILLING MACHINE
MODEL: M75 10131,  S/N: 938, NEW: 1981

SPECIFICATIONS:

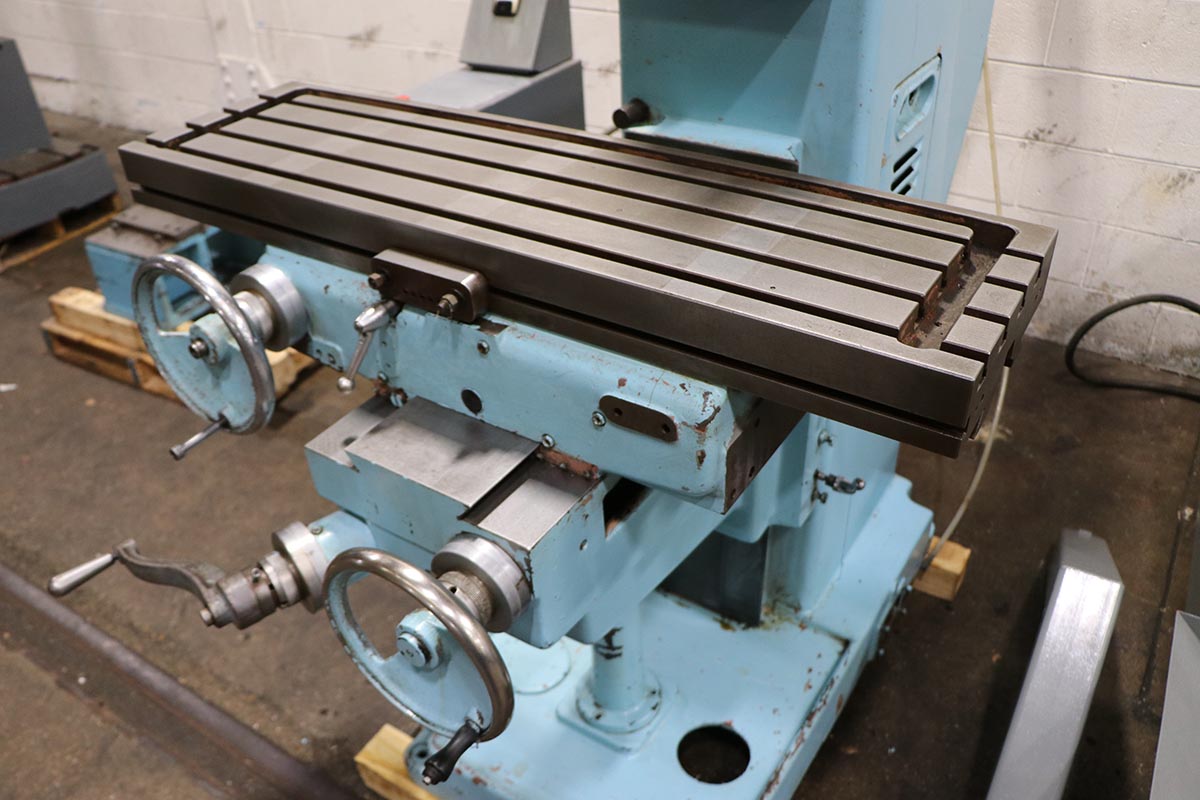

WORKING SURFACE OF TABLE ................. 12" x 42"
DRILLING CAPACITY ........................ 0.055" TO 1" (IN MOST MATERIALS)
SPINDLE TRAVEL BALL SCREW FEED ........... 30"
TABLE CROSS TRAVEL ....................... 18"
TABLE IN & OUT TRAVEL .................... 10"
KNEE UP & DOWN TRAVEL .................... 16"
SPINDLE SPEED RANGE ...................... 725 TO 5860 RPM
SPINDLE HORSE POWER ...................... 3 HP
VARIABLE SPINDLE FEED RATE ............... .1 TO 99.9
RAPID TRAVERSE AND RETURN RATE ........... 200

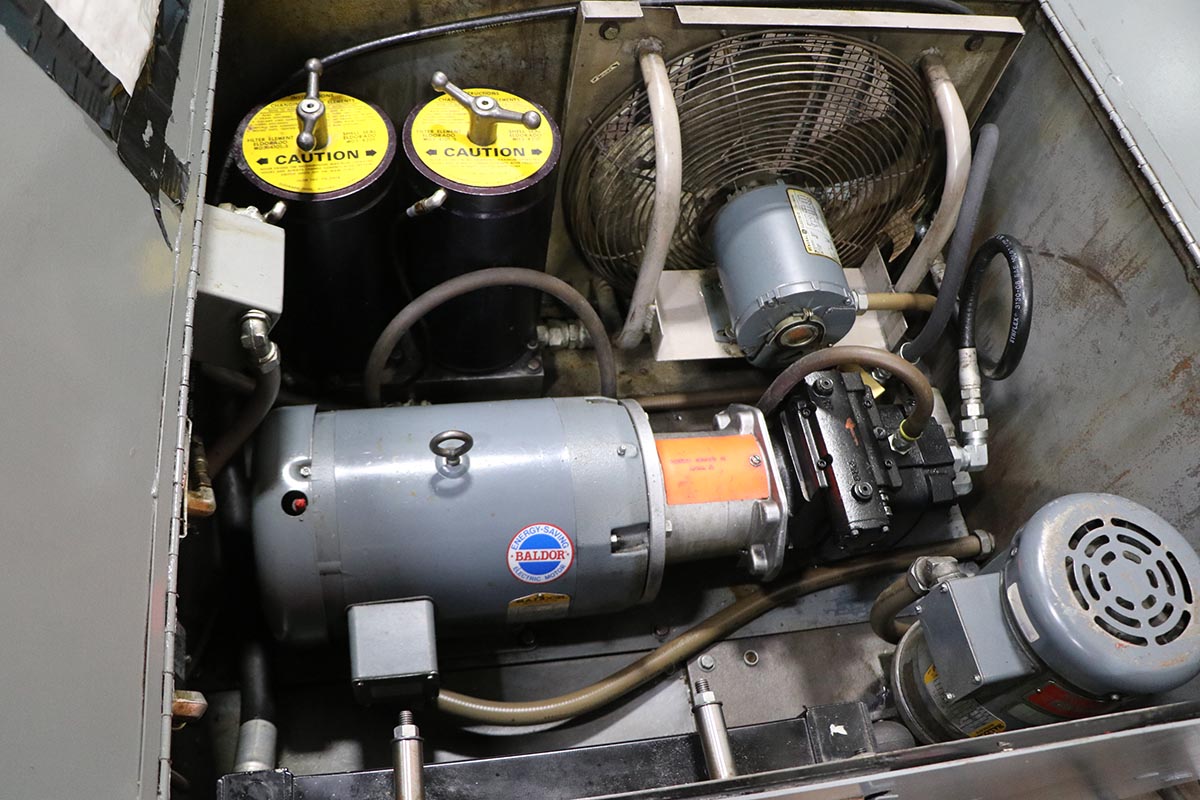

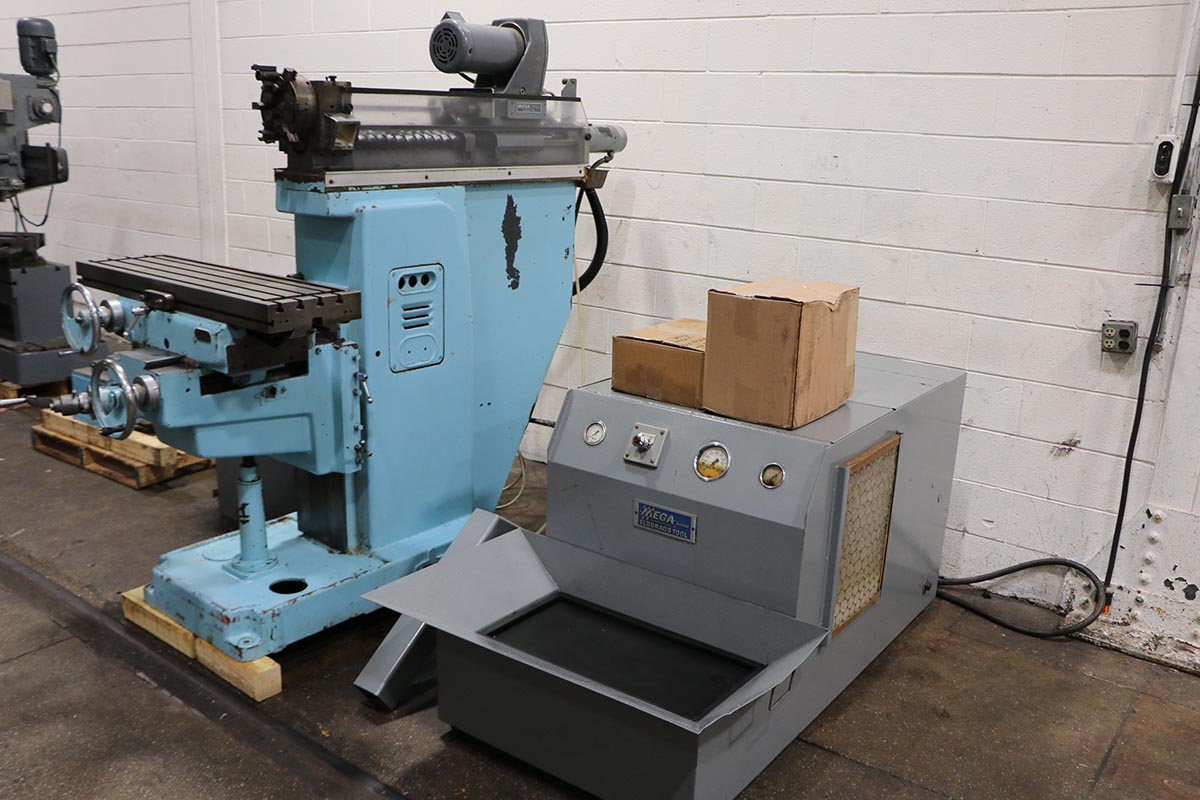

F-18 HIGH PRESSURE COOLANT SYSTEM ........ 1500 PSI
18 GPM, 90 GALLON TANK, 7.5 H.P. PUMP MOTOR

MACHINE DIMENSIONS ....................... 48"W X 96"L X 80"H
HIGH PRESSURE COOLANT SYSTEM ............. 3' X 72" 3'H
WEIGHT APPROXIMATELY ..................... 5,000 LBS

EQUIPPED WITH:
ADJUSTABLE KNEE BASE WITH A VERY SUBSTANTIAL STEEL GUSSET
   WELDED TO PROVIDE SUPPORT FOR THE GUNDRILLING HEAD

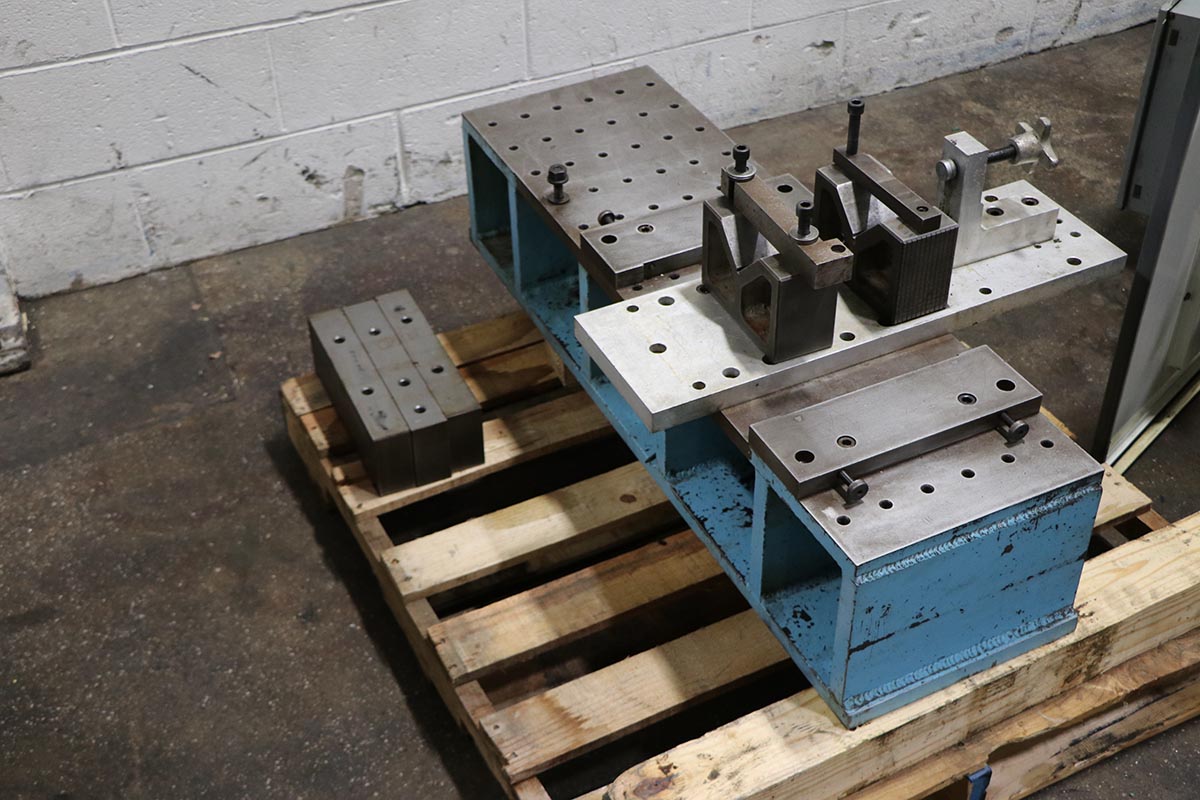

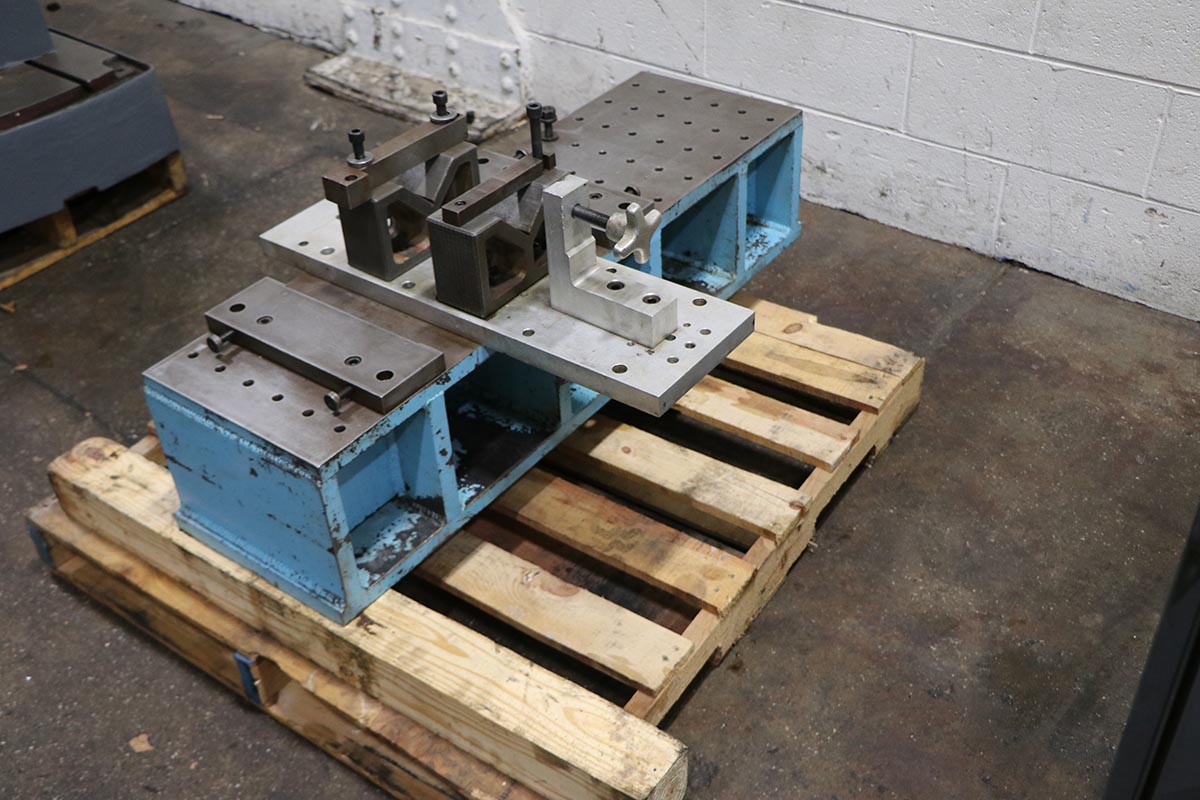

12"W x 42"W x 13"H RISER FIXTURE
FLO-MINDER

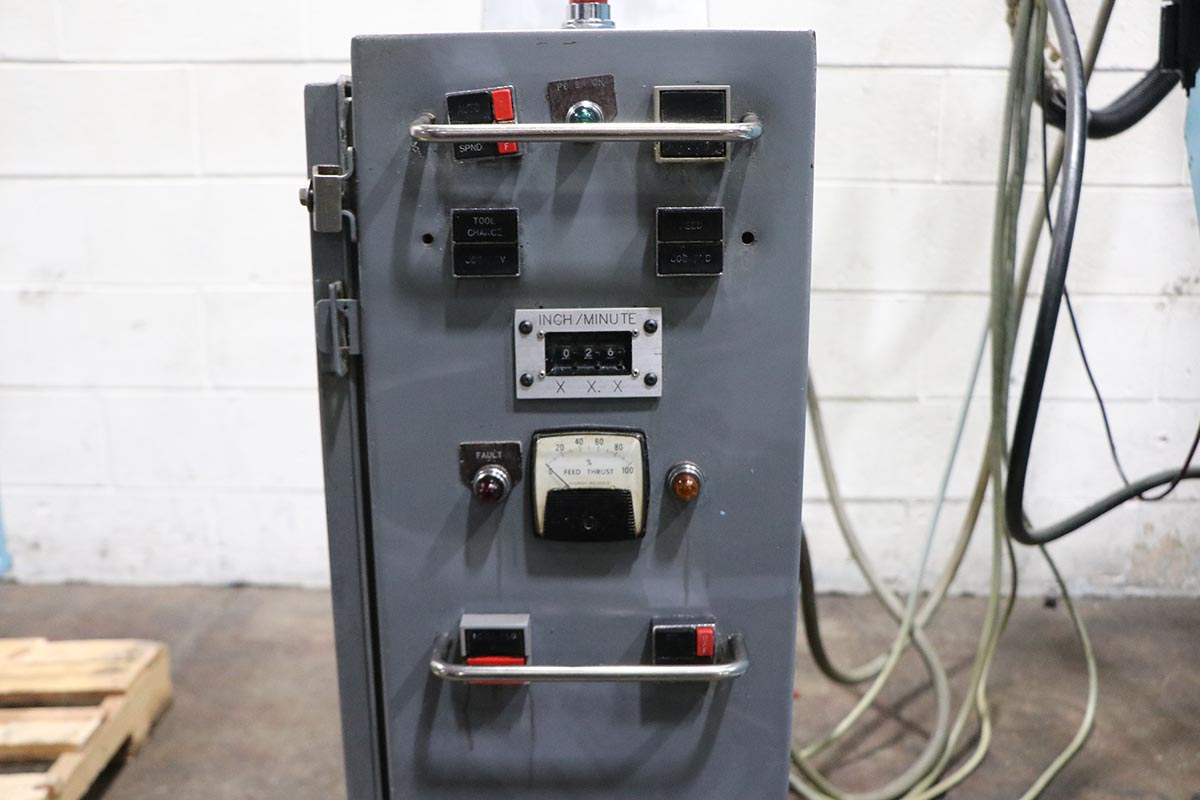

FEED THRUST METER
AUTOMATIC LUBRICATION SYSTEM

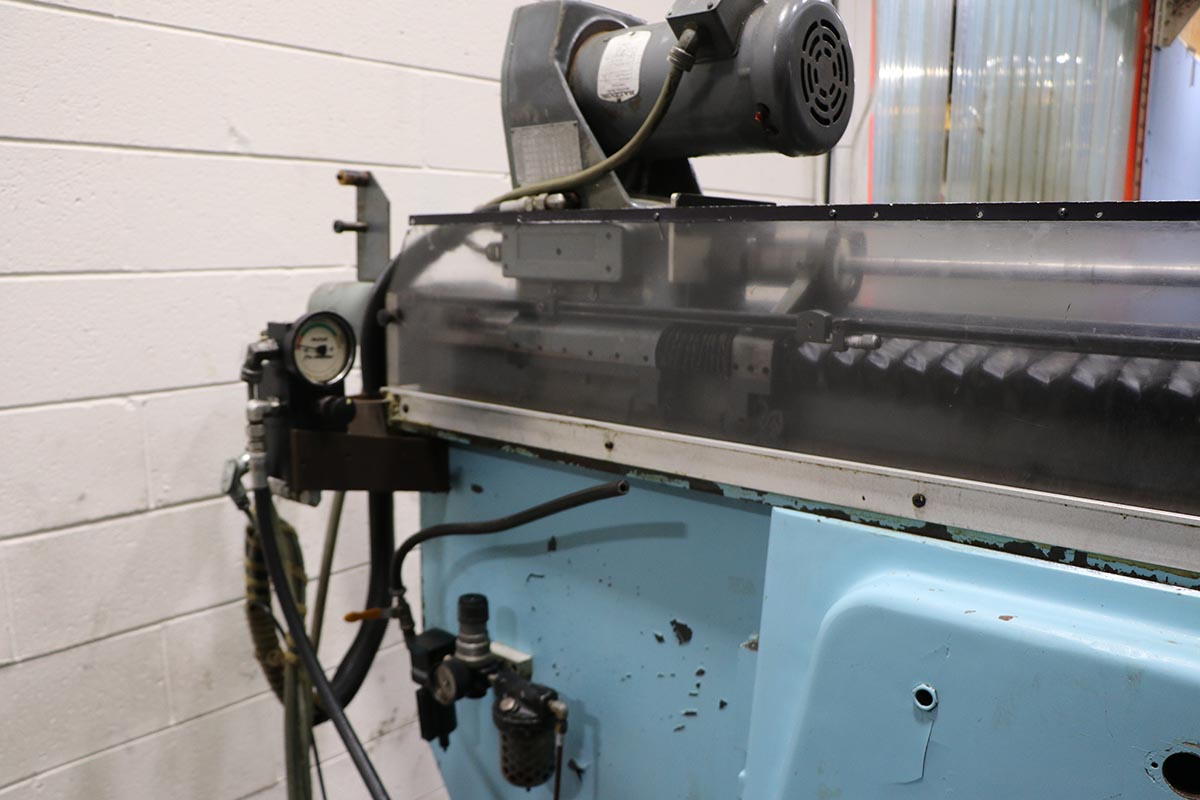

BELLOWS AND PLEXIGLASS GUARDS
AEROTECH SERVO FEED DRIVE
3 HORSE POWER MOTOR ON DRILLING HEAD

INSPECT IN OUR NEW JERSEY WAREHOUSE
