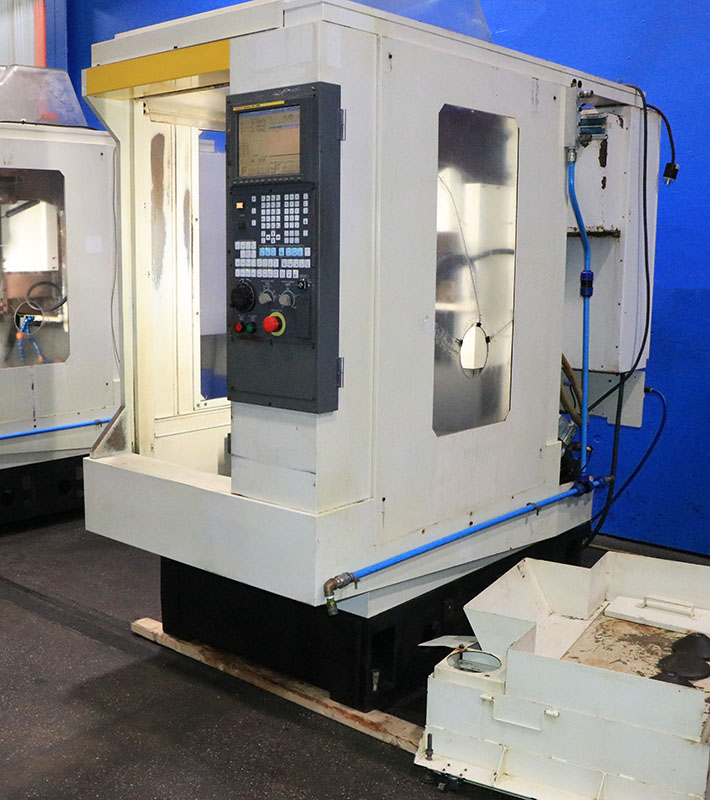

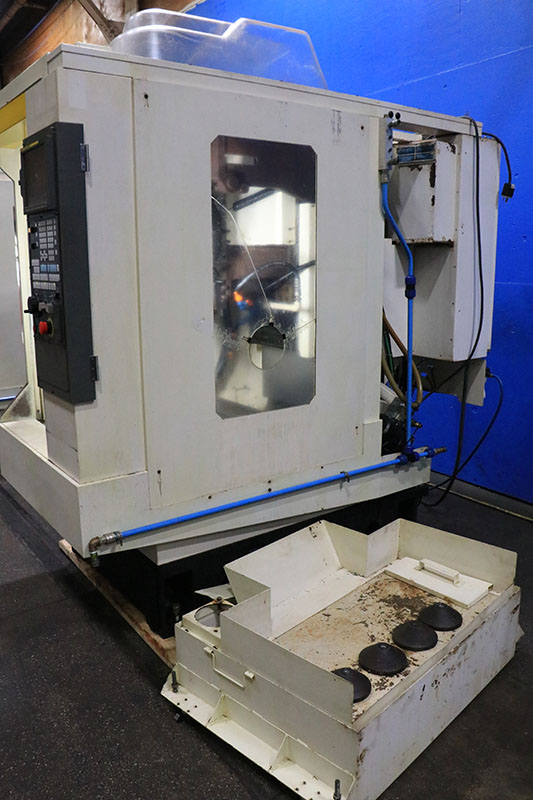

Fanuc ROBODRILL Alpha T14-iDs VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Fanuc

Model:: ROBODRILL Alpha T14-iDs

Year:: 2004

Ref #:: 178192

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

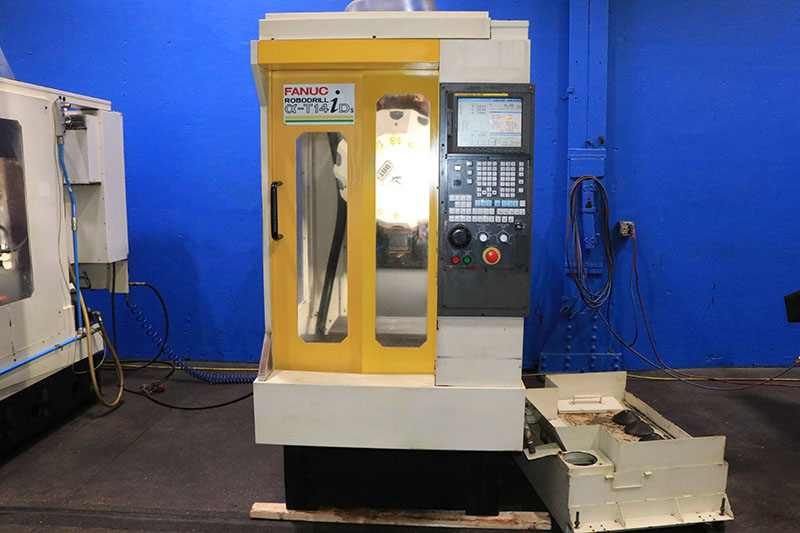

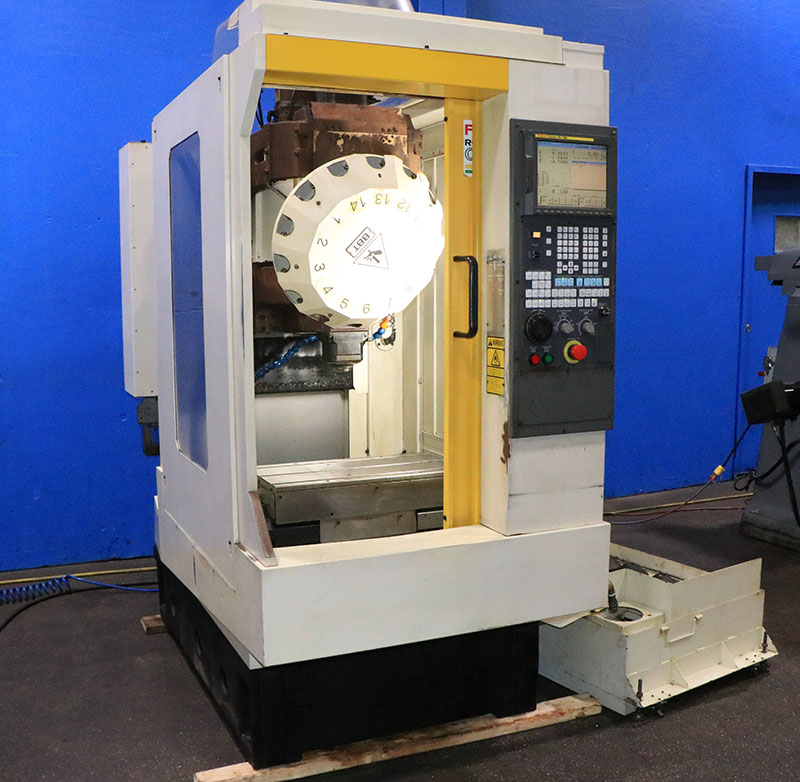

FANUC ROBODRILL MACHINING CENTER
MODEL: a-T14iDs,  MFG: 2004

SPECIFICATIONS:

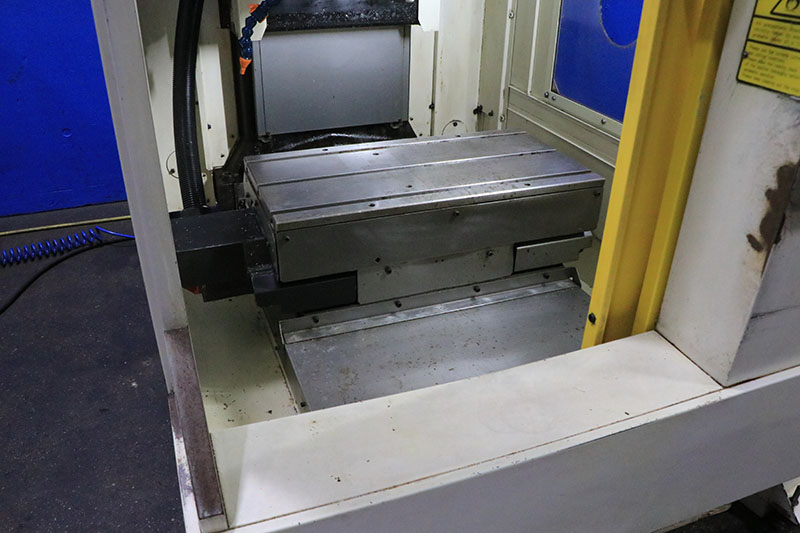

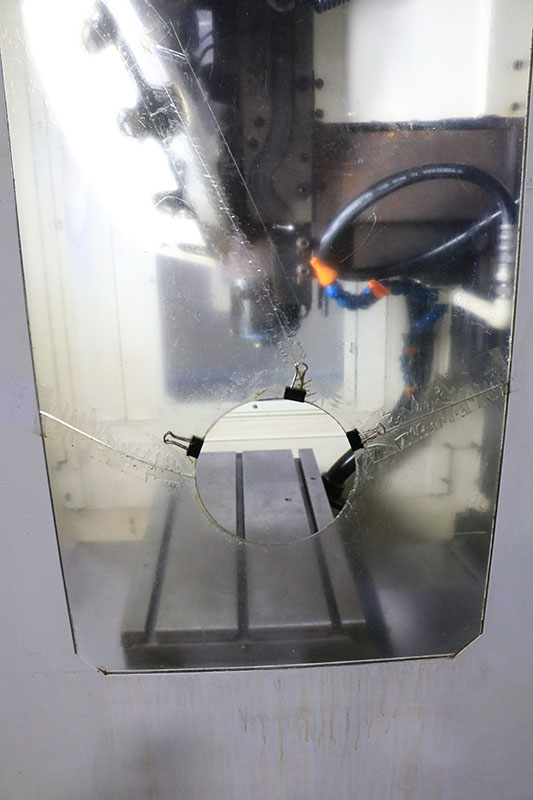

TABLE SIZE ............................... 24.8" x 13"
X - AXIS TRAVEL .......................... 11.8" / 300mm
Y - AXIS TRAVEL .......................... 11.8" / 300mm
Z - AXIS TRAVEL .......................... 12.99" / 330mm
TABLE CAPACITY ........................... 440 LBS.
SPINDLE TAPER ............................ BT30
SPINDLE SPEED ............................ 20,000 RPM

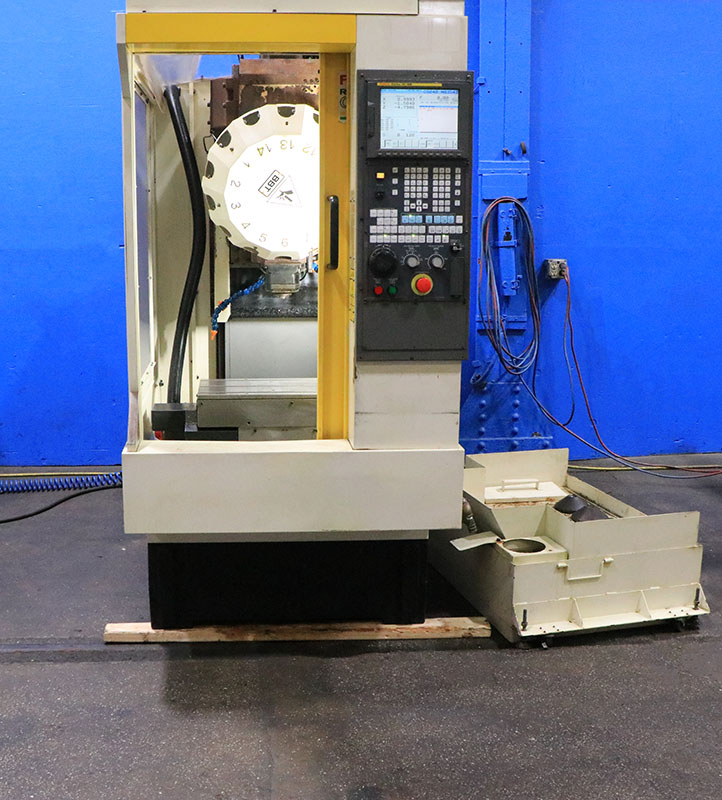

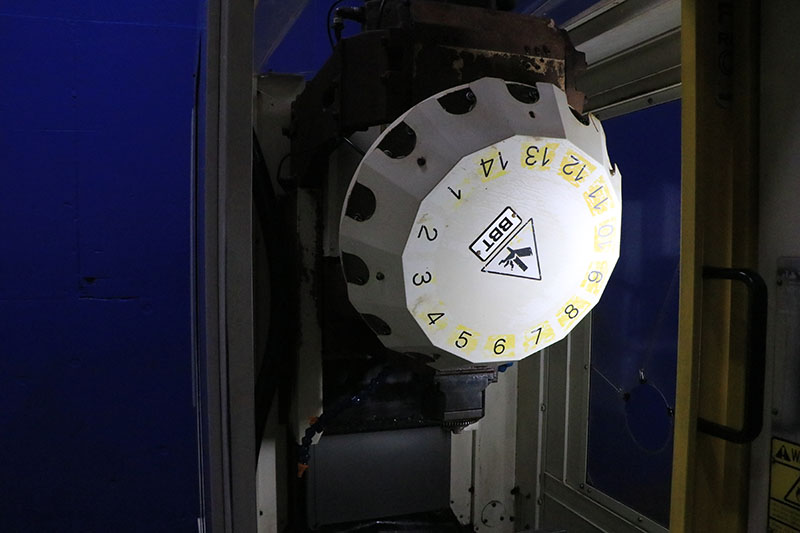

TOOL STORAGE CAPACITY .................... 14 ATC
TOOL CHANGE TIME ......................... .9 SECS
RAPID TRAVERSE X,Y,Z ..................... 2,125 IPM
FLOOR SPACE WITH PALLET CHANGER .......... 40" x 86" x 90"
MACHINE WEIGHT ........................... 4500 LBS.

EQUIPPED WITH:

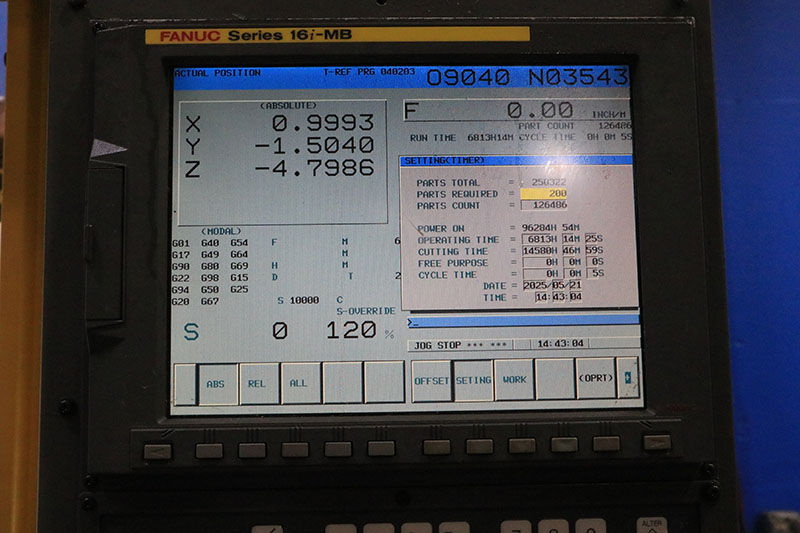

FANUC MODEL: 16i-MB CONTROL
RIGID TAPPING

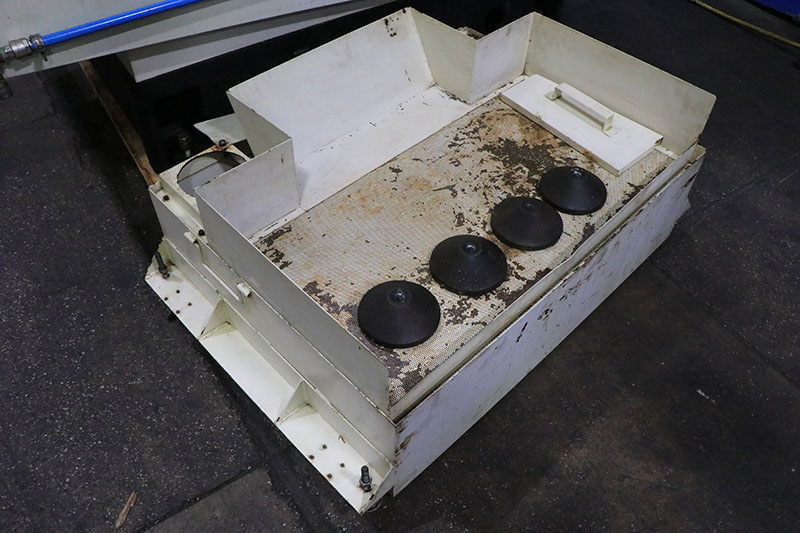

COOLANT SYSTEM

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
