Gildemeister MF Sprint 42 CNC TURNING CENTERS - CNC LATHES

$32,500

Make:
Gildemeister
Model:
MF Sprint 42
Year:
2000
Ref #:
153550

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

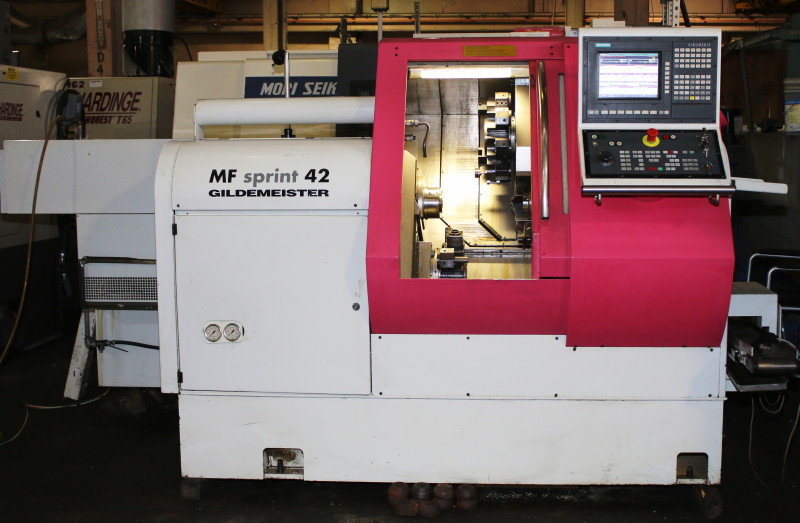

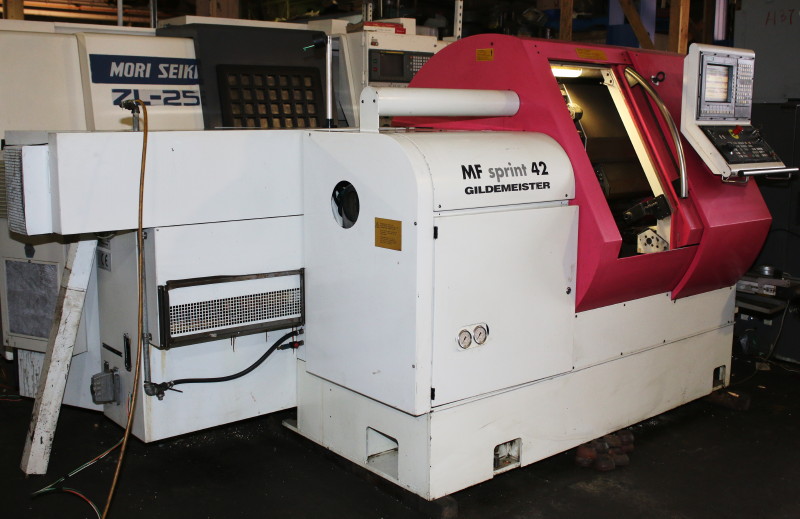

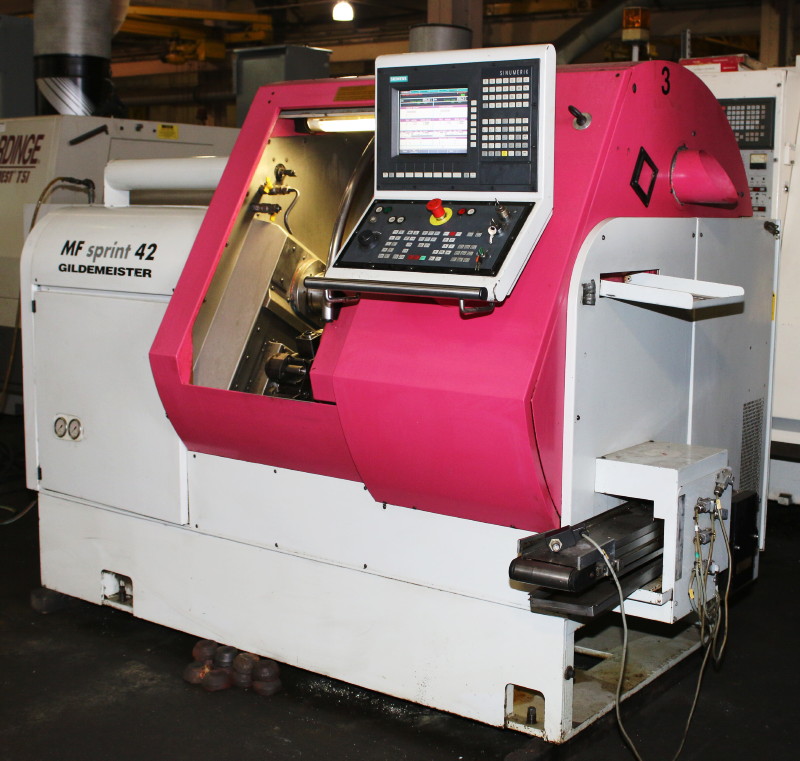

GILDEMEISTER MF SPRINT 42 MULTI-AXIS CNC TURNING CENTER
NEW: 2000

SPECIFICATIONS:
MAIN SPINDLE:
BAR DIAMETER ................... 1.654" (42mm)
SPINDLE HOLE DIAMETER .......... 2.205"
MAIN DRIVE:
MAX. DRIVE RATING .............. 25.5/18.8 HP
ROTATIONAL SPEED RANGE ......... 31-6300 RPM
MAX. TORQUE .................... 133/99 ft-lbf
SPEED OF C-AXIS ................ 120 RPM
C-AXIS TORQUE .................. 133 ft/lbf
SLIDE 1:
X-AXIS TRAVEL .................. 6.102"
Z-AXIS TRAVEL .................. 11.024"
RAPID TRAVERSE RATE X/Z ........ 73.82 ft/min
SLIDE 2:
X-AXIS TRAVEL .................. 3.228"
Z-AXIS TRAVEL .................. 5.118"
RAPID TRAVERSE RATE X/Z ........ 73.82 ft/min
TOOL HOLDER:
NUMBER OF TOOLS ................ 8
SHANK DIAMETER ................. 1.181"
NUMBER OF DRIVEN STATIONS ...... 4

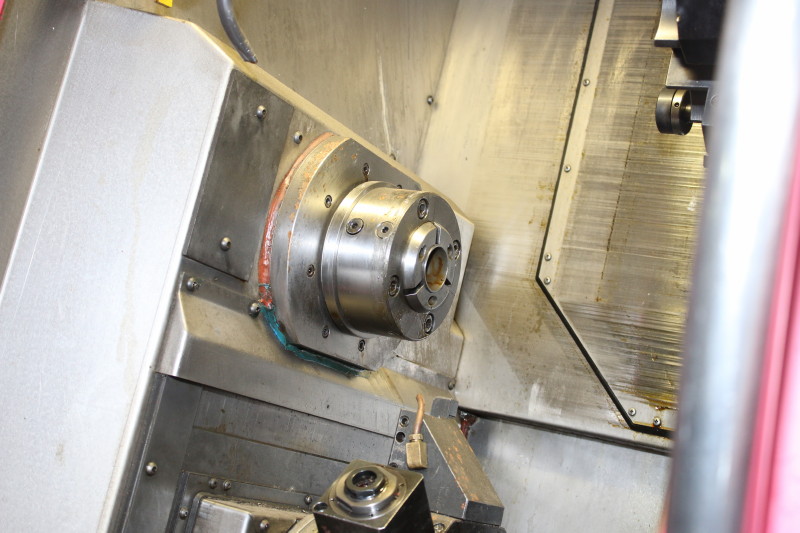

COUNTER SPINDLE:
CLAMPING DIA. WITH COLLET ...... 1.654" (42mm)
CLAMPING DIA. WITH 3 JAW CHUCK . 1.654"
MAX. DRIVE RATING .............. 10.2/6.2 HP
MAX. ROTATIONAL SPEED .......... 5000 RPM
DIMENSIONS AND WEIGHT:
TOTAL LENGTH w/CHIP CONVEYOR ... 138"

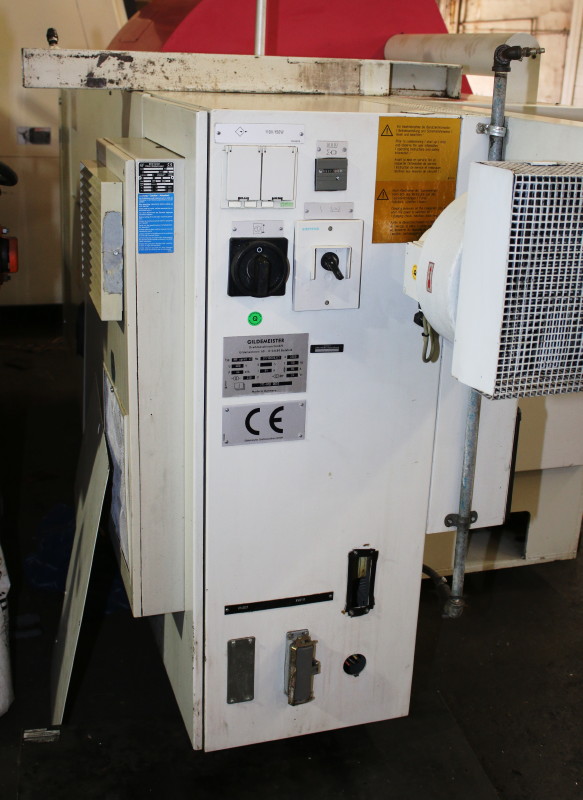

TOTAL DEPTH w/SWITCH CABINET ... 65"
APPROX WEIGHT .................. 11,025 LBS


EQUIPPED WITH:

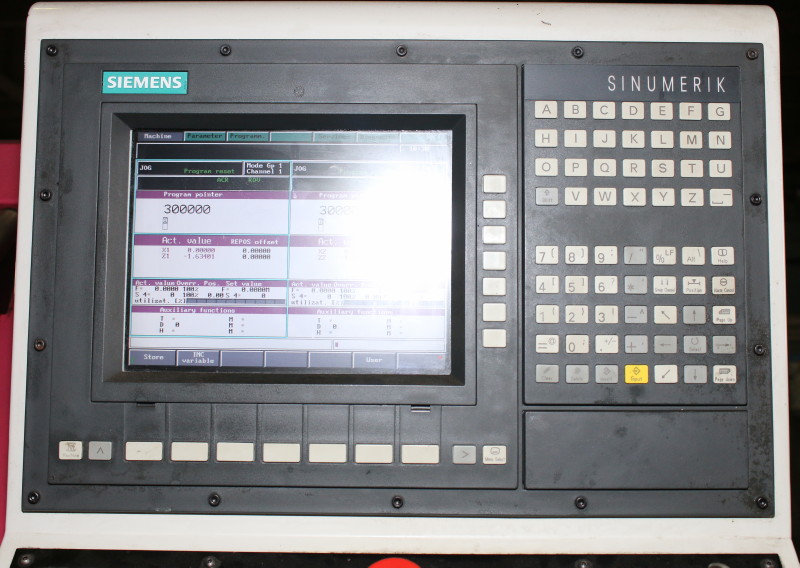

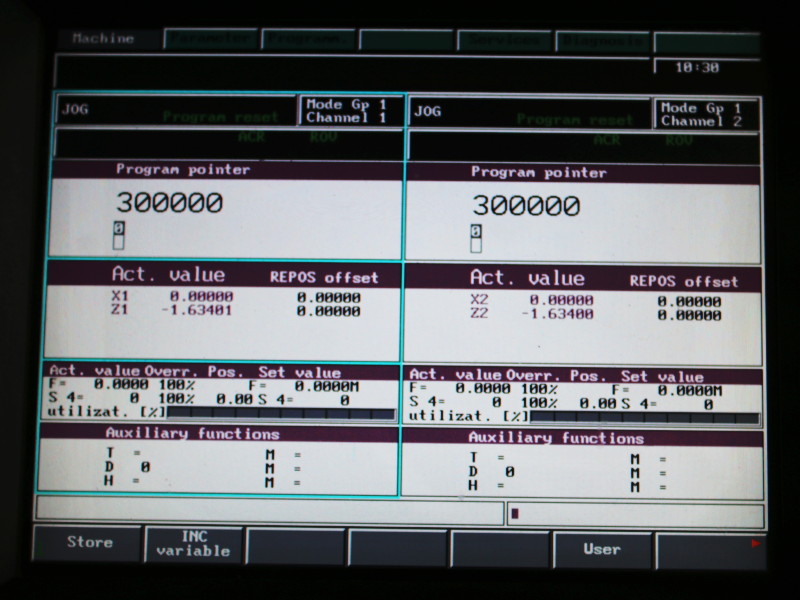

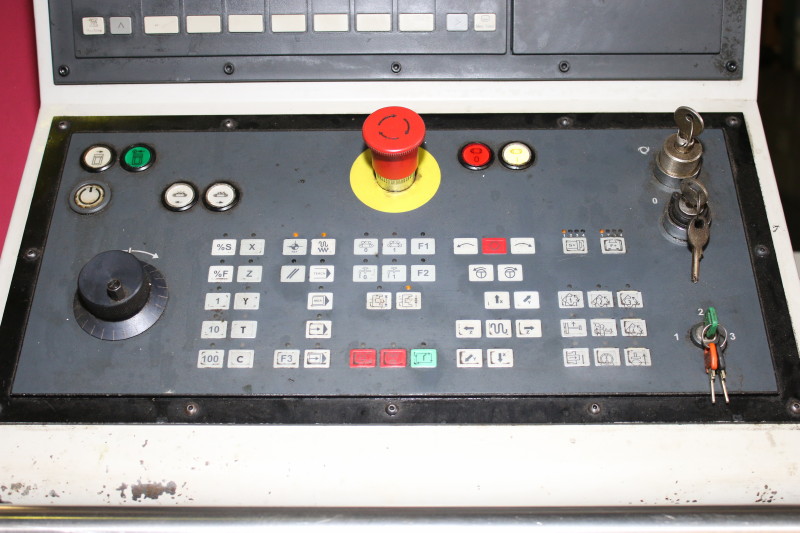

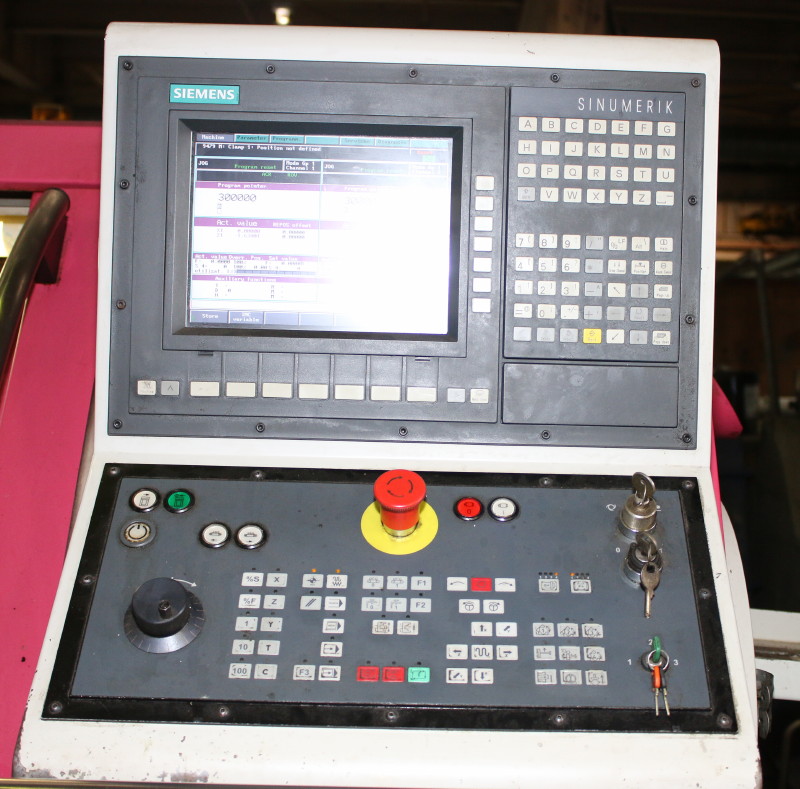

 - SIEMENS SINUMERIK 840C CNC CONTROL
 - FMB TURBO MAGAZINE BARLOADER

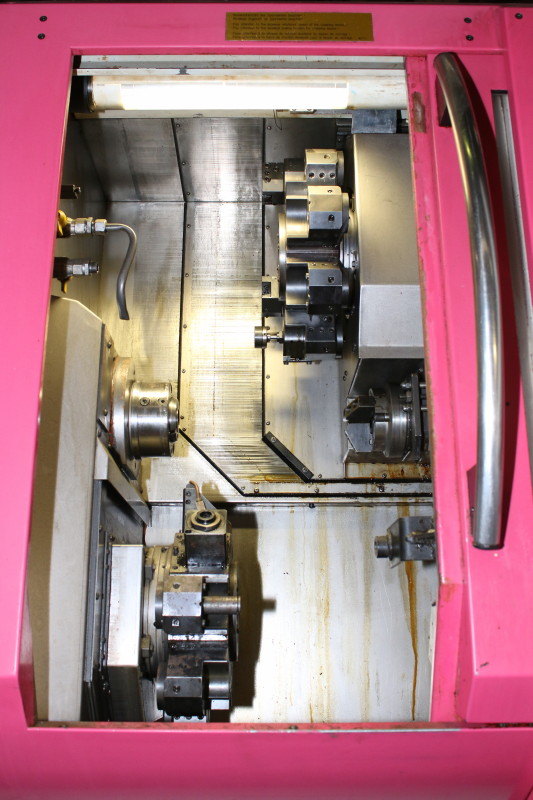

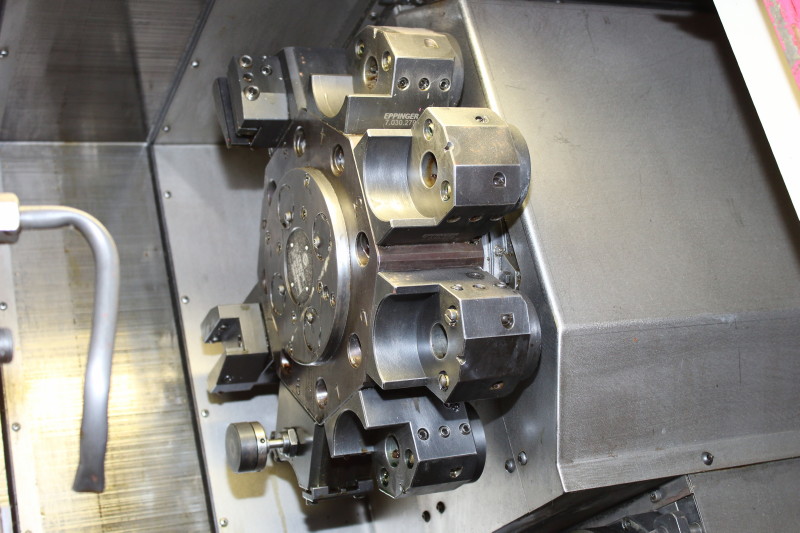

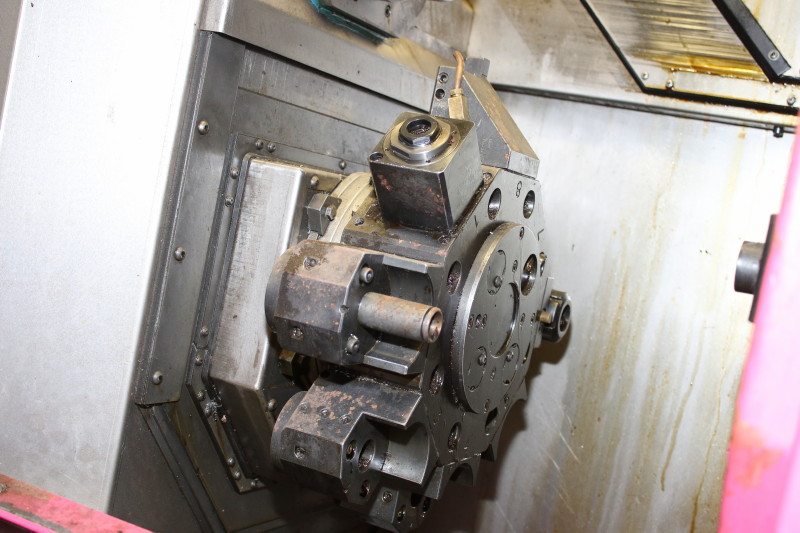

 - 8 POSITION UPPER AND LOWER TURRETS w/4 LIVE STATIONS EACH
 - PARTS CONVEYOR
 - CHIP CONVEYOR
 - ALL AVAILABLE LIVE AND STATIC TOOLHOLDERS
 - ALL AVAILABLE MANUALS
