Hardinge SR-200MSY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hardinge

Model:: SR-200MSY

Year:: 2008

Ref #:: 177969

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

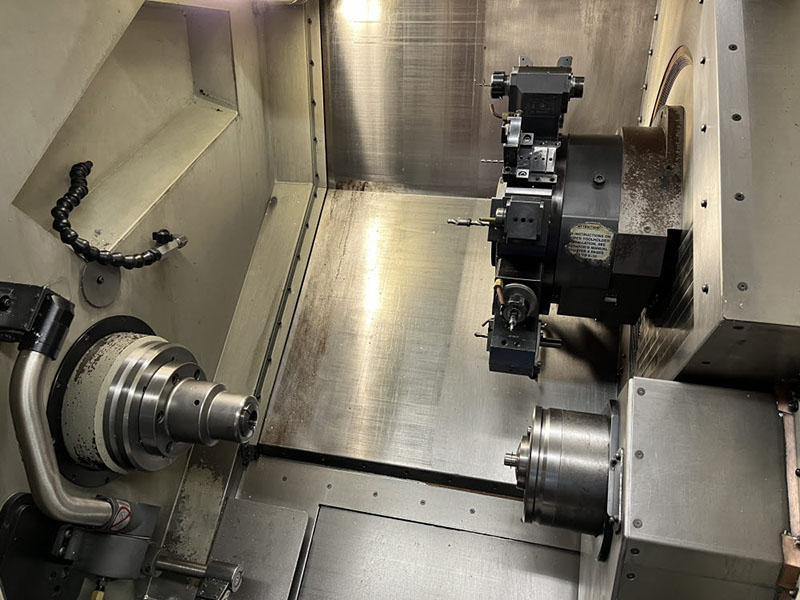

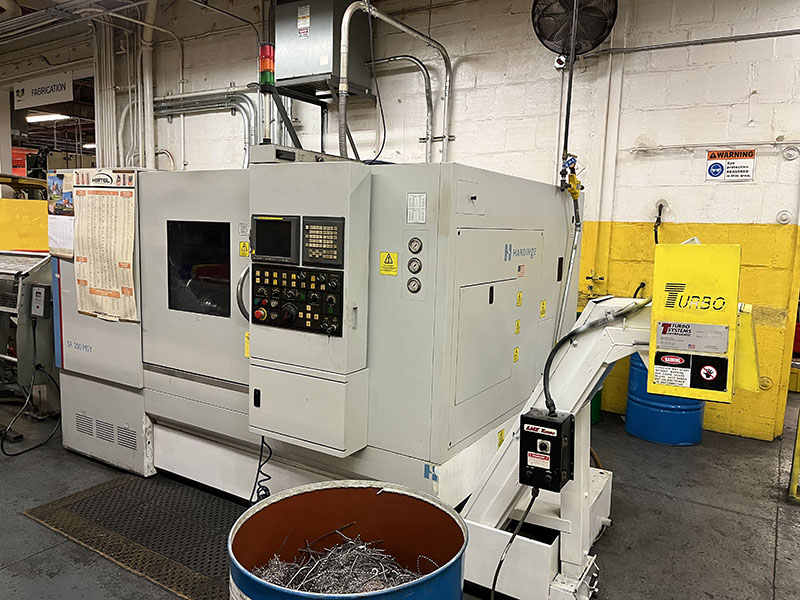

HARDINGE SR-200BB/MSY MULTI AXIS CNC TURNING CENTER
NEW: 2008

SPECIFICATIONS:
SWING DIAMETER OVER WAY COVER ....... 20.44"
TURNING DIAMETER MAX ................ 12.28"
MAX. TURNING LENGTH ................. 17.2"
X-AXIS TRAVEL ....................... 7.45"
Z-AXIS TRAVEL ....................... 21.54"
Y-AXIS TRAVEL ....................... 3.377"
SPINDLE NOSE ........................ A2-6
SPINDLE THROUGH-HOLE ................ 3.15"
BAR CAPACITY ........................ 2.5"
SPINDLE SPEED RANGE ................. 45-4500 RPM
POWER RATING AT BASE SPEED .......... 30 HP
RAPID TRAVERSE X/Z .................. 1100/1500 IPM
TURRET TYPE ......................... 12 STATION VDI 30
ROTARY TOOL MOTOR ................... 5HP
ROTARY TOOL SPEED ................... 8000 RPM
SUBSPINDLE NOSE ..................... A2-5, 16C
ROUND 16C THROUGH CAPACITY .......... 1.625"
SPINDLE SPEED RANGE ................. 60 TO 6000 RPM
POWER RATING AT BASE SPEED .......... 10 HP
SUBSPINDLE TRAVEL ................... 17.90"
APPROX. MACHINE LENGTH W/CONVEYOR ... 165"
APPROX. WEIGHT ...................... 15,500 LBS.

EQUIPPED WITH:
 - FANUC "i" SERIES SR CNC CONTROL
 - TOOL SETTER
 - PROGRAMMABLE RESOLUTION - .00010"

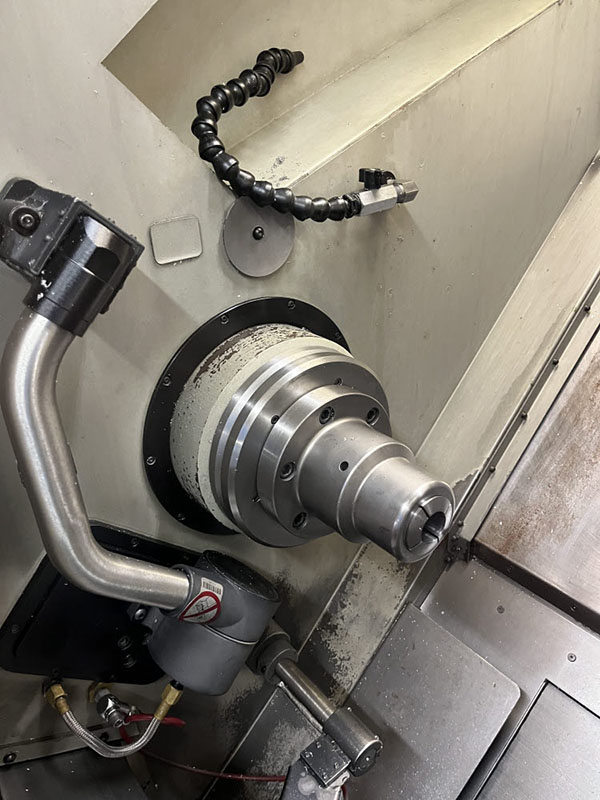

 - HYDRAULIC COLLET CHUCK ON MAINSPINDLE

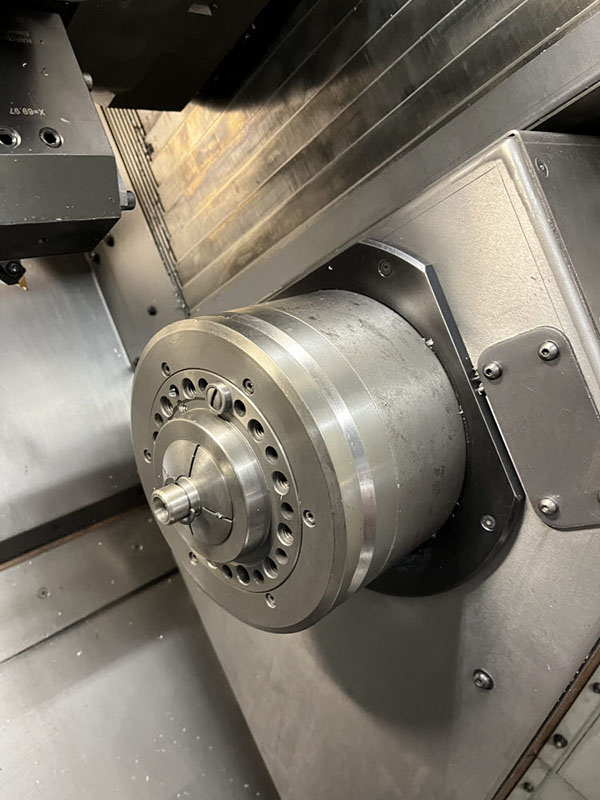

 - 16C COLLET SUBSPINDLE
 - FULL C-AXIS ON BOTH MAIN AND SUBSPINDLES
 - Y-AXIS

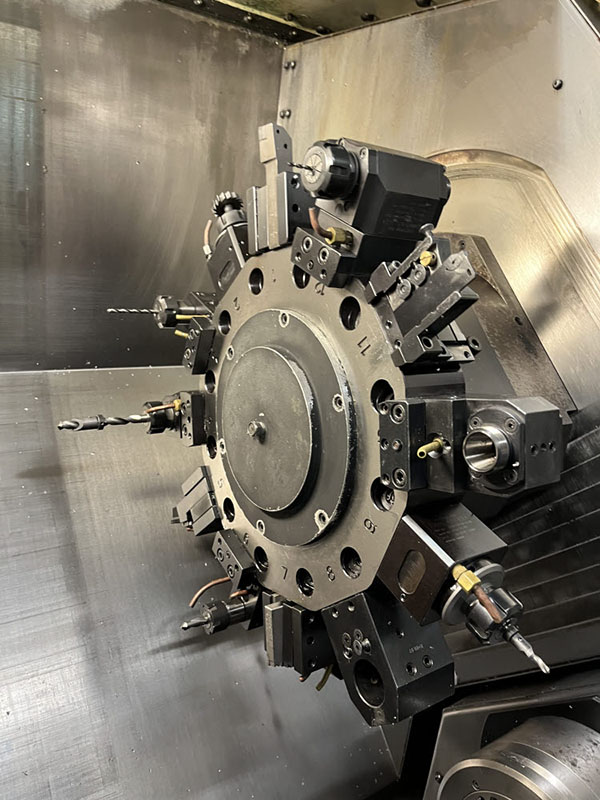

 - 12 STATION VDI 30 TURRET (ALL STATIONS CAN BE LIVE)
 - PARTS CATCHER
 - CHIP CONVEYOR

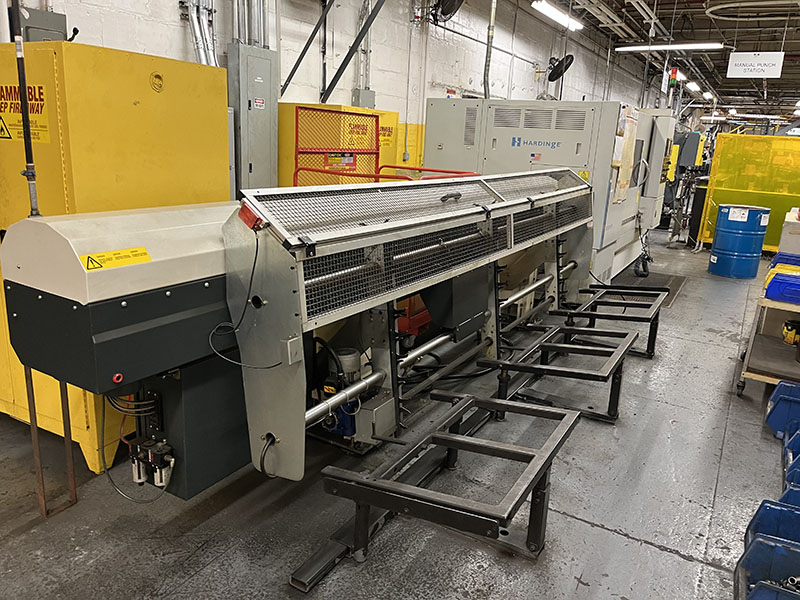

 - LNS SPRINT 565 MAGAZINE BARFEED
 - ALL AVAILABLE STANDARD TOOL HOLDERS
 - ALL AVAILABLE MANUALS
