Hyundai-Wia L150LMA - Live Tool CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hyundai-Wia

Model:: L150LMA - Live Tool

Year:: 2015

Ref #:: 178095

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

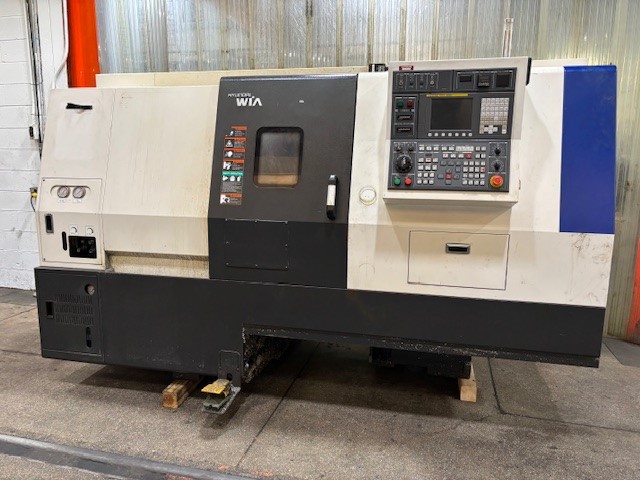

HYUNDAI-WIA L150LMA CNC TURNING CENTER
NEW: 2015

SPECIFICATIONS:
SWING OVER BED .................... 21.7"
SWING OVER CARRIAGE ............... 13.8"
MAX. TURNING DIA. ................. 10"
MAX. TURNING LENGTH ............... 20.9"
BAR CAPACITY ...................... 1.8"
SPINDLE SPEED MAX. ................ 6000 RPM
SPINDLE MOTOR (MAX./CONT.) ........ 15/10 HP
SPINDLE NOSE ...................... A2-5
C-AXIS INDEXING ................... 0.001 Degree
X-AXIS TRAVEL ..................... 8.7"
Z-AXIS TRAVEL ..................... 21.7"
NUMBER OF TURRET STATIONS ......... 12
TOOL SIZE OD ...................... 1" X 1"
TOOL SIZE ID ...................... 1.3"
LIVE TOOL MOTOR ................... 5/3 HP
MILLING TOOL SPEED ................ 4000 RPM
COLLET SIZE ....................... ER32

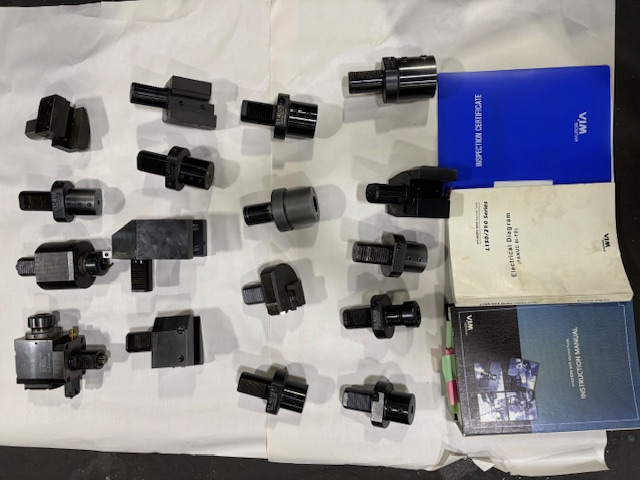

TOOL TYPE ......................... VDI 40
TAILSTOCK TAPER ................... MT#4
TAILSTOCK QUILL DIA. .............. 2.2"
TAILSTOCK TRAVEL .................. 28.3"
APPROX. MACHINE WEIGHT ............ 9,300 LBS

EQUIPPED WITH:

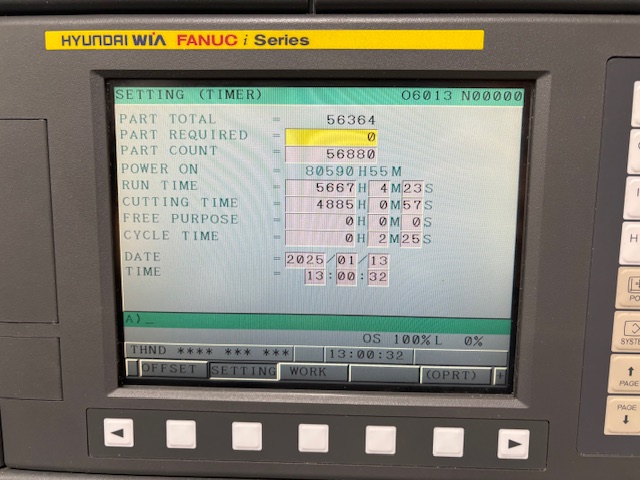

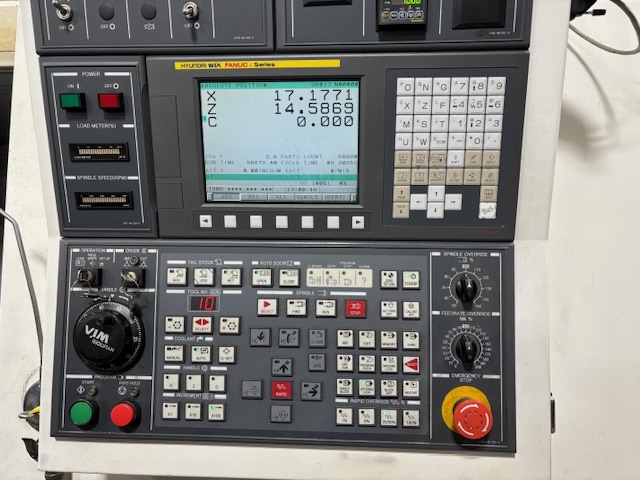

 - FANUC "i" SERIES CONTROL

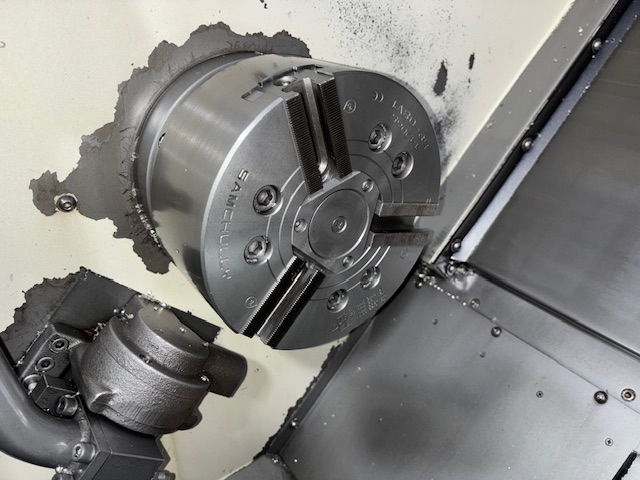

 - 6" 3-JAW HYDRAULIC CHUCK
 - TOOLSETTER

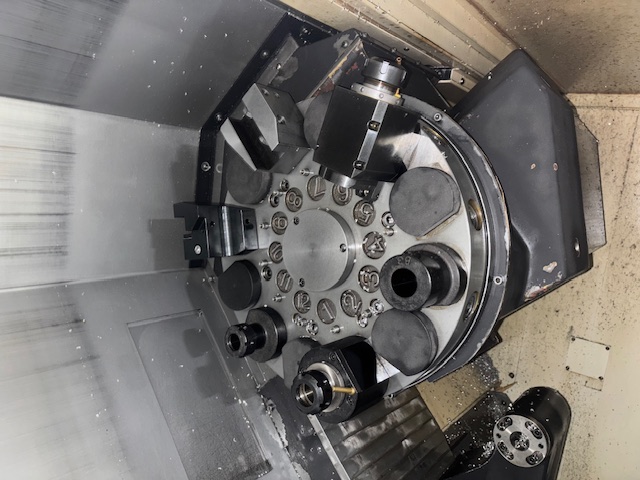

 - 12 POSITION TURRET
 - TAILSTOCK
 - CHIP CONVEYOR
