GMC HPB-4504 CNC NEW PRESS BRAKES

Price on Request

Make:: GMC

Model:: HPB-4504 CNC

Year:

Ref #:: 157486

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

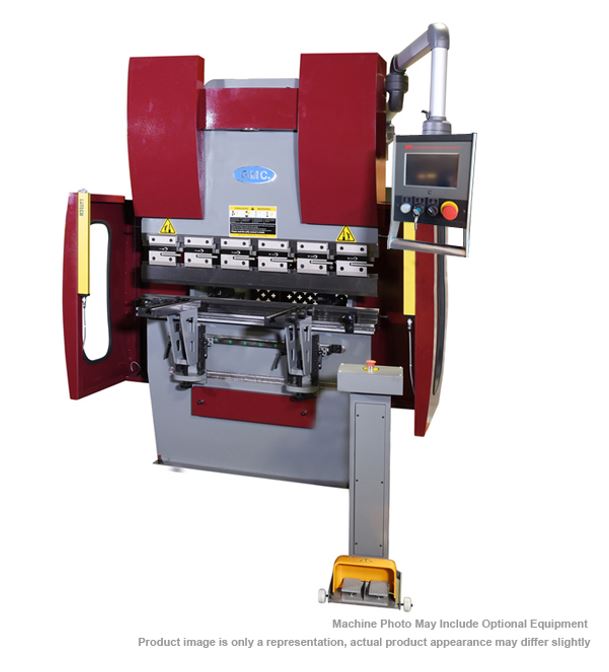

NEW GMC 45 Ton x 4' HYDRAULIC PRESS BRAKES
MODEL: HPB-4504CNC

FEATURES:

 ISO 9001 certified
Meet OSHA and CE safety standard.

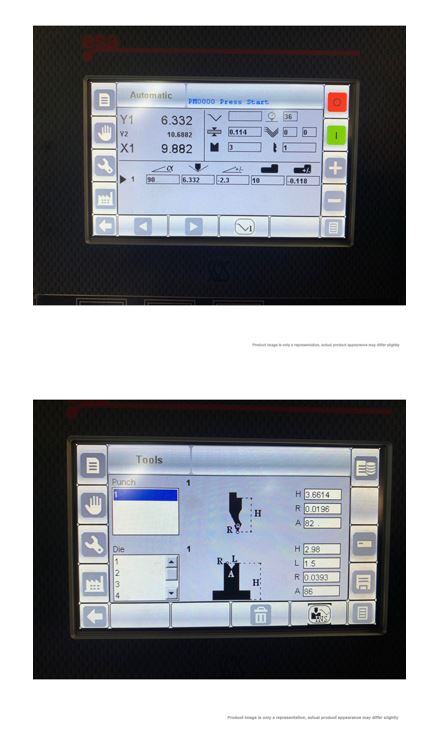

ESA (Italy) Model 625, 2 Axis CNC Controller: die library, offlne programming, stores thousands of programs
Programmable Angle/Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts

Note: Warranty for Rotary Phase Convertor Users: Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only

STANDARD EQUIPMENT:

 ESA (Italy) Model 625 CNC Controller
(2) 24” front support arms, Quick Release for easy positioning

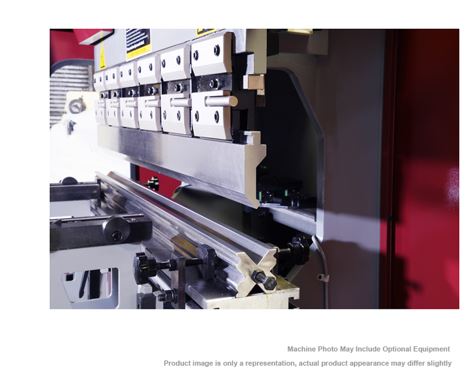

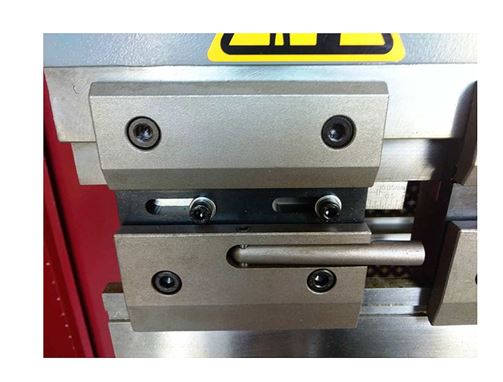

Quick release segmented (American Style Tooling) punch holder
Full Length Gooseneck Punch (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
Full Length Vee Die with 6 assorted sizes HRC 50
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop meet OSHA safety standard

OPTIONS:

 Custom Tooling, Made in USA… Call for quote
On Site Training: $3,995.00
CNC Training: $595 includes 2 hours of FaceTime or Google Duo Live Video Training and (1) 30 minute follow after training of needed for additional support. GMC will provide follow up Support Video.


SPECIFICATIONS:
Maximum pressure:  45 Tons
Bending length capacity:  59-1/4" (4' 1")
Distance between uprights (housing):  33-1/2"
Ram Stroke travel:  6"
Cylinder travel adjustment, max:  2"
Table width:  6"
Distance between table and ram:  13"
Throat Depth:  8-1/2"

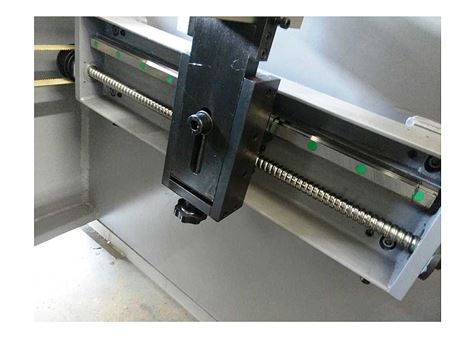

Back Gauge Distance:  24"
Back Gauge Repeatability:  .0039"
Y Axis Repeatability:  .0039"
Approach speed, inch / second:  3.54"
Working speed , inch / second:  0.78"
Return speed , inch / second:  2.75"
Main motor:  5-1/2 HP 220V, 3phase  (208V available )
Servo motor for back gauge:  1 HP, 220V, 3-phase
Servo motor for bending angle setting:  1/2 HP, 220V, 3-phase
Hydraulic oil tank capacity:  25 Gal.
Machine weight:  6,150 lbs.
Machine size: L x W x H  71" x 56" x 81”

Specifications are subject to change without notice.
