Hardinge Conquest GT Gang Tool CNC TURNING CENTERS - CNC LATHES

$10,500

Make:: Hardinge

Model:: Conquest GT Gang Tool

Year:: 1992

Ref #:: 163904

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

HARDINGE CONQUEST GT-SP SUPER PRECISION GANG TOOL CNC LATHE
NEW: 1992

SPECIFICATIONS:
Spindle capacity (5C)............................ 1-1/16"
Swing over way cover.............................. 11.76"
Swing over tool slide top plate................... 2.654"
X-axis travel.................................... 11.968"
Z-axis travel.................................... 11.062"
Spindle face to top plate........................ 11.259"
Spindle nose....................................... A-2-4
Max. spindle speed............................. 6,000 rpm
Max. square tool shank size......................... 0.5"
Max. round tool shank size......................... 0.75"
Spindle motor....................................... 5 Hp
Electrics................. 3/50/60/230V/10.5KW/ FLA 45/41
Dimensions (approx.)................. 120"L x 60"D x 65"H
Weight (approx.)............................... 6,500 lb.
SPECIFICATIONS:
Spindle capacity (5C)............................ 1-1/16"
Swing over way cover.............................. 11.76"
Swing over tool slide top plate................... 2.654"
X-axis travel.................................... 11.968"
Z-axis travel.................................... 11.062"
Spindle face to top plate........................ 11.259"
Spindle nose....................................... A-2-4
Max. spindle speed............................. 6,000 rpm
Max. square tool shank size......................... 0.5"
Max. round tool shank size......................... 0.75"
Spindle motor....................................... 5 Hp
Electrics................. 3/50/60/230V/10.5KW/ FLA 45/41
Dimensions (approx.)................. 120"L x 60"D x 65"H
Weight (approx.)............................... 6,500 lbs.

EQUIPPED WITH

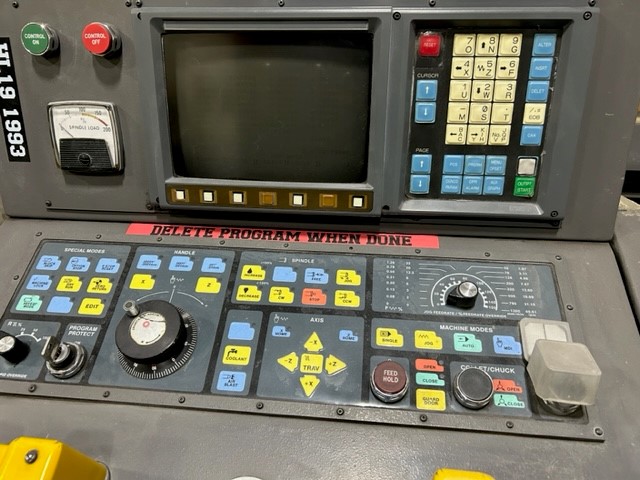

 - FANUC 0T CNC CONTROL
 -(1)PNEUMATIC LIVE TOOL HOLDER
 - ALL AVAILABLE STATIC TOOL HOLDERS
