Hardinge ELITE 51 MS Live Tool, Subpindle CNC TURNING CENTERS - CNC LATHES

$39,500

Make:: Hardinge

Model:: ELITE 51 MS Live Tool, Subpindle

Year:: 2007

Ref #:: 170421

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

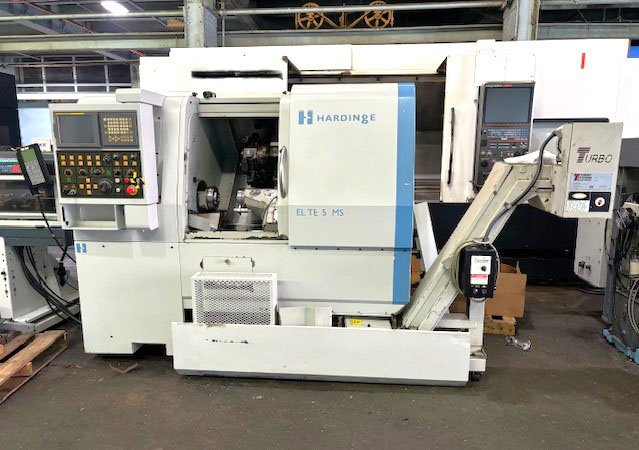

HARDINGE ELITE 51MS MULTI-AXIS CNC TURNING CENTER
NEW: 2007

SPECIFICATIONS:

SWING OVER BED	                   18"
MAX CUTTING DIAMETER	             11.1"
DISTANCE BETWEEN CENTERS	       16"
X-AXIS TRAVEL	                   5.74"
Z-AXIS TRAVEL	                   15.98"
C-AXIS INDEXING	                   0.001 DEGREES
BAR CAPACITY	                   2"
SPINDLE NOSE	                   A2-6
SPINDLE MOTOR	                   25 hp
SPINDLE SPEED	                   5,000 RPM
RAPID TRAVERSE RATE - X-AXIS	       945 in/min.
RAPID TRAVERSE RATE - Z-AXIS	       945 in/min.
SUB SPINDLE - SPINDLE SPEED	       6,000 RPM
TURRET CAPACITY	                   12 STATIONS
LIVE MILLING SPEED	             5,000 RPM
LIVE MILLING MOTOR	             5 hp
APPROX. WEIGHT	                   7500 LBS

EQUIPPED WITH:
 - FANUC 18i-TB CNC CONTROL

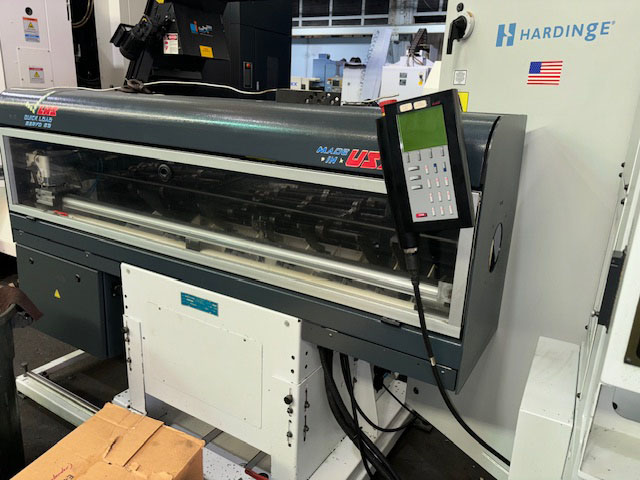

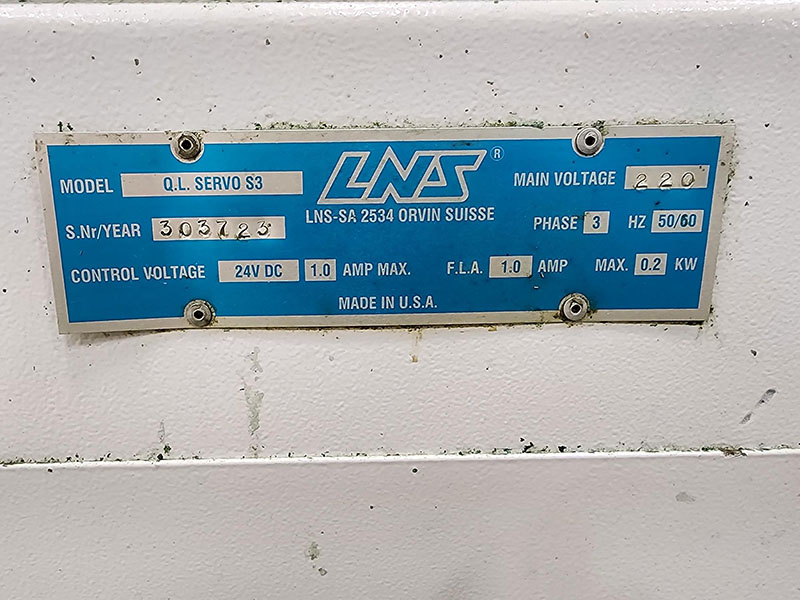

 - LNS QUICKLOAD SERVO S3 SHORT MAGAZINE BARLOADER
 - PARTS CATCHER
 - 20C COLLET READY MAIN SPINDLE

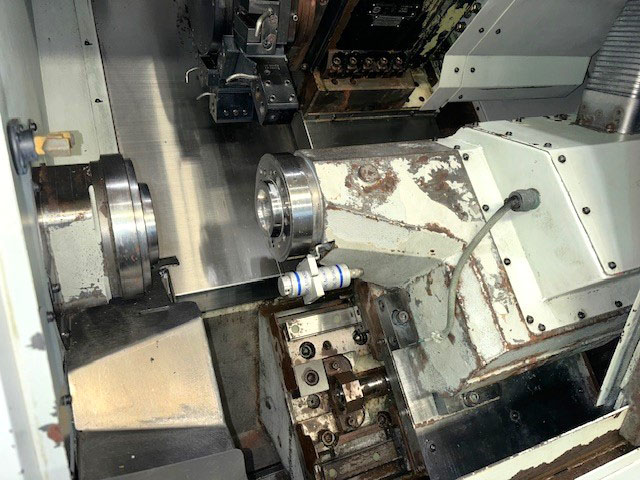

 - 16C COLLET READY SUBSPINDLE
 - FULL C-AXIS
 - 12 POSITION TURRET
 - CHIP CONVEYOR
 - LARGE ASSORTMENT OF STATIC AND LIVE TOOLHOLDERS
