Hyundai-Kia SKT-2100SY CNC TURNING CENTERS - CNC LATHES

$54,500

Make:
Hyundai-Kia
Model:
SKT-2100SY
Year:
Ref #:
169118

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


HYUNDAI-KIA SKT-2100SY MULTI-AXIS CNC TURNING CENTER

SPECIFICATIONS:
MAX. SWING ..................... 24.80"
SWING OVER CROSS SLIDE ......... 15.35"
MAX. MACHINING DIA. ............ 13.19"
MAX. TURNING LENGTH ............ 17.91"
BAR CAPACITY ................... 2.56"
SPINDLE SPEED, MAIN ............ 45-4500 RPM
SPINDLE NOSE, MAIN ............. A2-6
MAIN SPINDLE MOTOR ............. 20HP
C-AXIS INDEXING, MAIN .......... 0.001 Deg.
SUBSPINDLE SPEED ............... 60-6000 RPM
SUBSPINDLE NOSE ................ A2-5
SUBSPINDLE BAR CAPACITY ........ 1.38"
SUBSPINDLE MOTOR ............... 10HP
NUMBER OF TOOL POSITIONS ....... 12
TOOL SIZE, OD .................. 1"
TOOL SIZE, ID .................. 2"
ROTARY TOOL SPEED .............. 5,000 RPM
ROTATING TOOL TYPE ............. BMT 65
APPROX. MACHINE WEIGHT ......... 10,000 LBS.

EQUIPPED WITH:

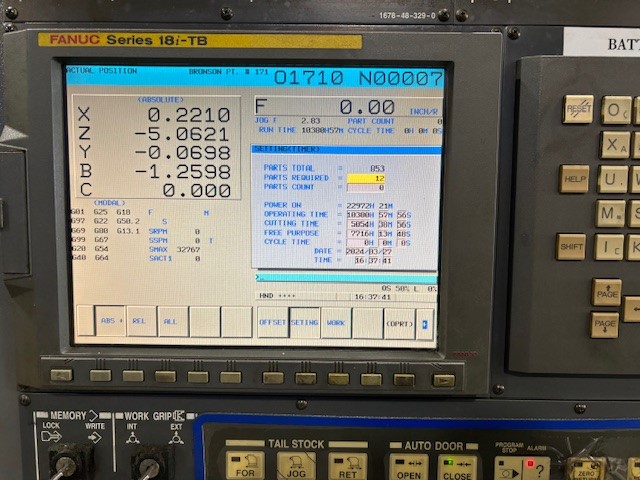

 - FANUC 18iTB CNC CONTROL
 - TOOLSETTER
 - COLLET CHUCK ON MAINSPINDLE
 - 12 POSITION TURRET
 - SUBSPINDLE
 - Y-AXIS
 - ALL AVAILABLE STATIC AND LIVE TOOLHOLDERS

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
