Hyundai-Wia L2100SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hyundai-Wia

Model:: L2100SY

Year:: 2018

Ref #:: 178164

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

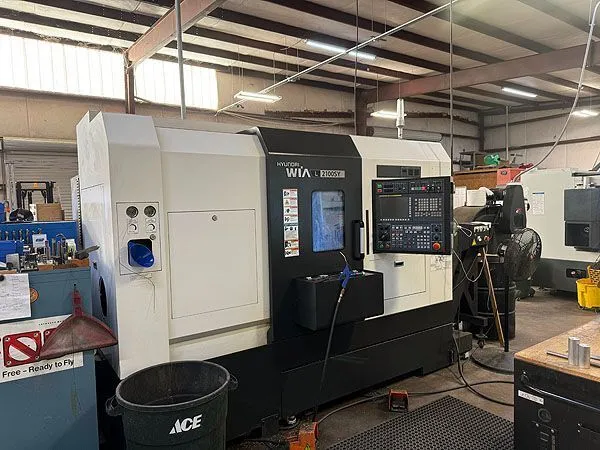

HYUNDAI WIA MODEL: L2100SY CNC TURNING CENTER w/SUB SPINDLE
NEW: 2018

Description:
Main spindle: 4,000 rpm built in spindle
20 HP
Main Torque 187.5
2.6” (Ø65mm) bar capacity
Max. turning diameter 13.2”
Max. turning length 17.9”
Sub spindle: 6,000 rpm built in spindle
10 HP on the sub spindle
1.4” bar capacity
Live Tool: 5,000 rpm
7.4HP (5 min) / 26 lbf.ft torque

X/Y-axis Travel 8.3” / 3.9”
Box guideways
Rapid Speed
X/Y Axis Travel 8.3” / 3.9”
X/Y Axis Rapids 18/12m/ min
Z/ZB Axis Travel 22.8/ 19.7”
Z/ZB Axis Rapids 945 (24m/min)

BMT 65 12 station turret
Auto Tool setter
Tool size: □ 1.”/Ø 2” (□25mm/Ø50mm)
87 PSI coolant system (290 PSI-opt)
Double Pre-Tensioned Ball screws
Chip Conveyor (47” discharge height)
1 color tower signal light
X/Y Ball Screws 1.1”
Z/ZB Ball Screws 1.57”
Machine approx. dimensions 10’ x 6’ without chip conveyor
Machine Chip conveyor approx. 4’ 5” long

Equipped with
Chip Conveyor
parts catcher
8” 3 Jaw chuck,

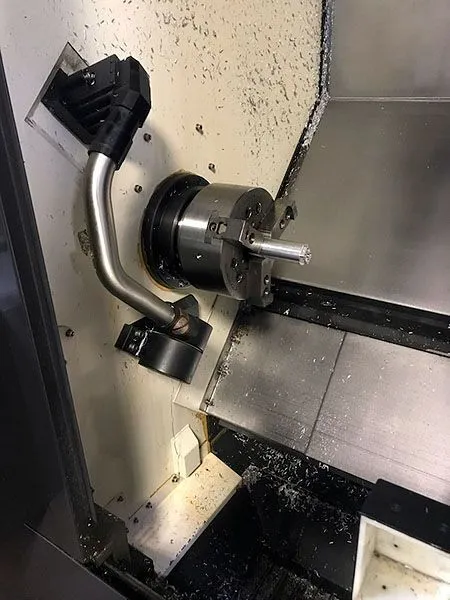

6” 3 Jaw chuck-sub spindle
Tool setter,
Approx. 6 Live Toolholders
Assorted Toolholders in the turret ( Drills & Inserts not included)
Fanuc 32-I Model B Control

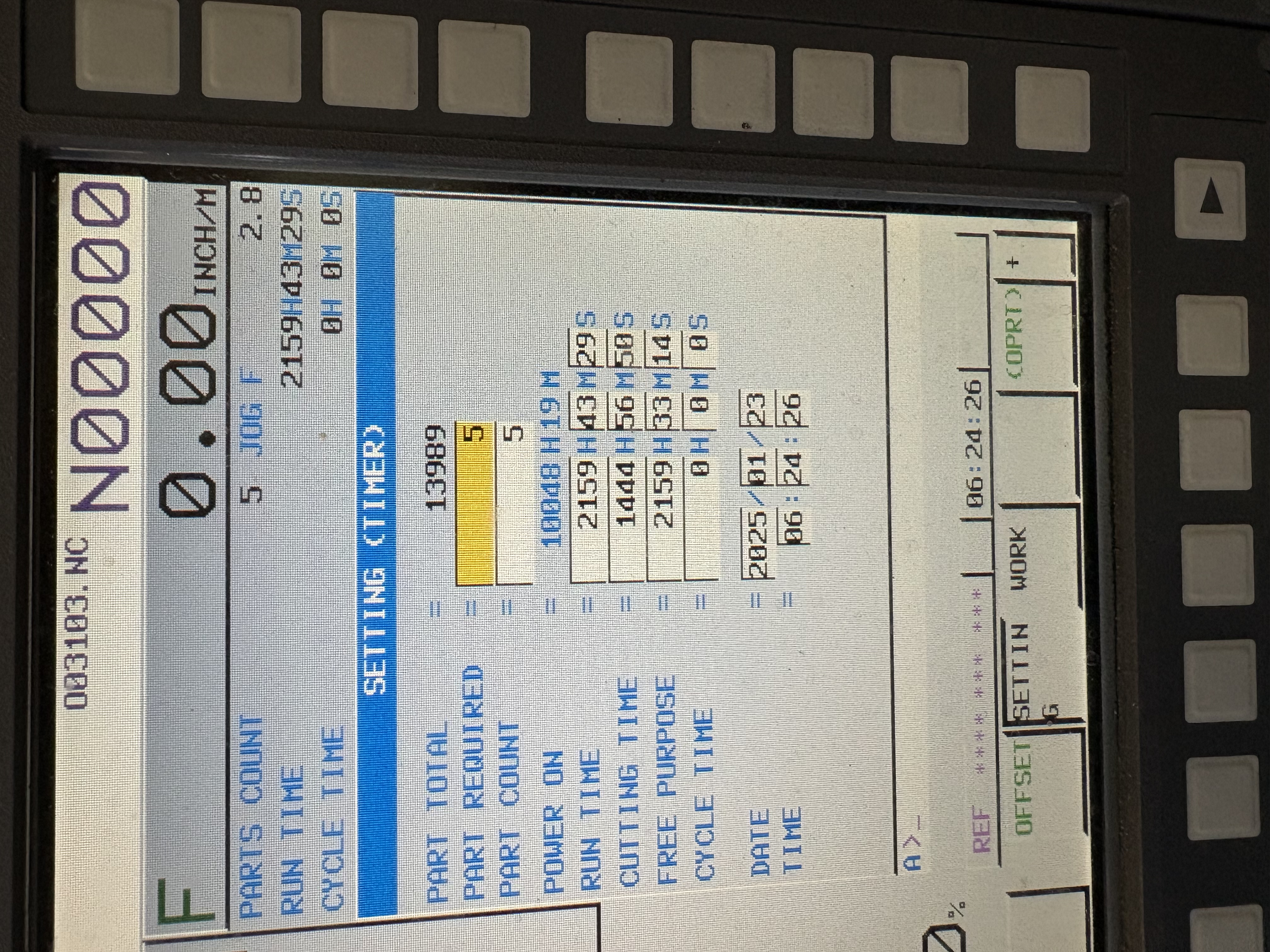

Approx. 3000 Cutting hours ( Only 1 year & Half use in 7 Years)
