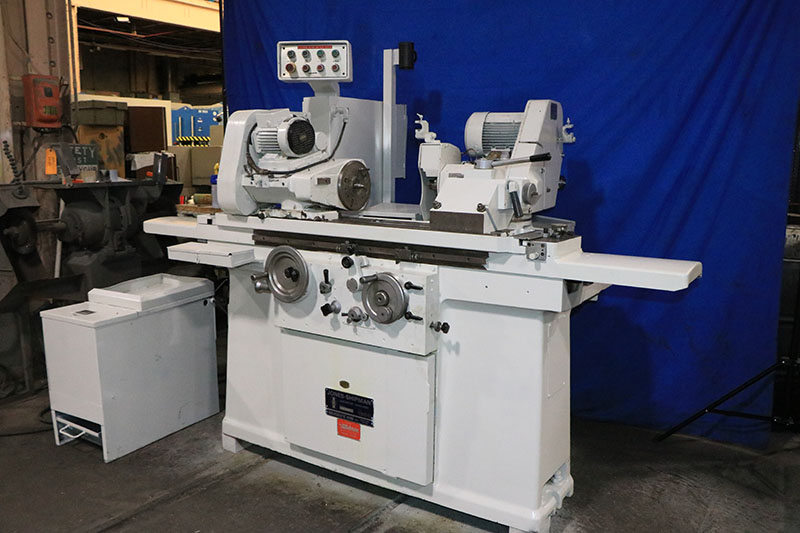

Jones & Shipman 1300 -EIT, NEW 1984, SWING AROUND I.D., UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Jones & Shipman

Model:: 1300 -EIT, NEW 1984, SWING AROUND I.D.,

Year:: 1984

Ref #:: 164095

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

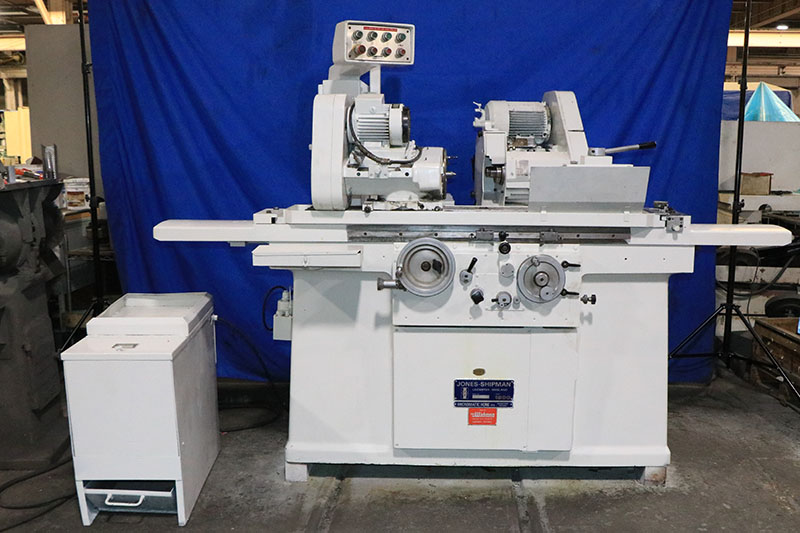

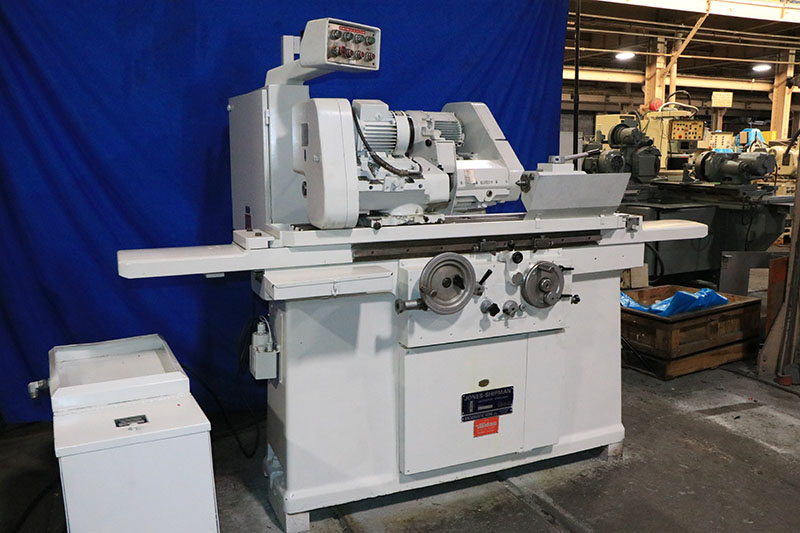

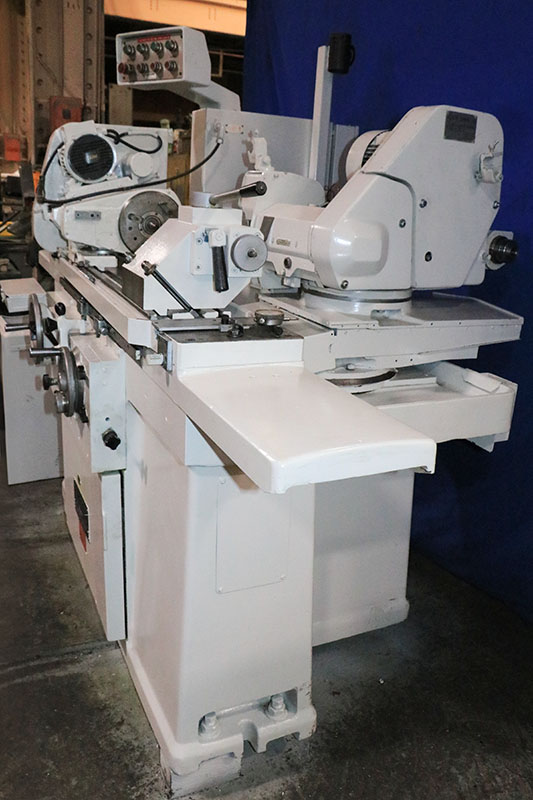

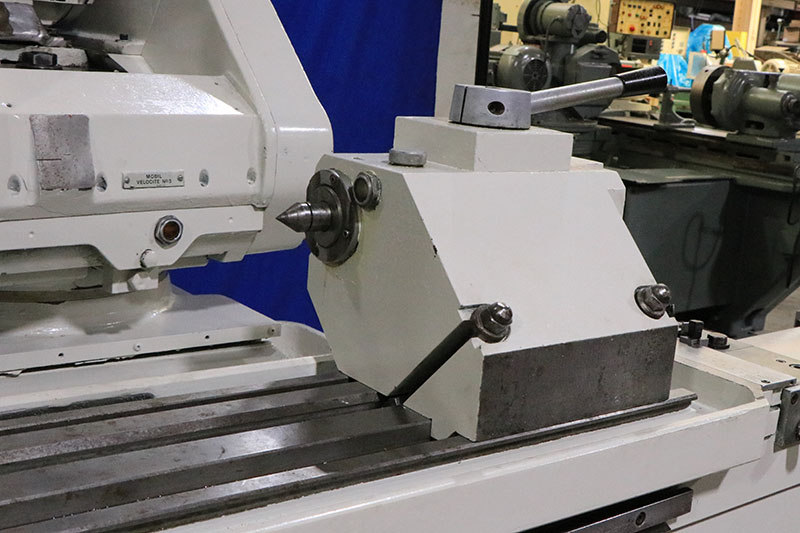

 10" X 27" JONES & SHIPMAN "HIGH PRECISION"
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** EIT DOUBLE SWIVEL WHEELHEAD DESIGN

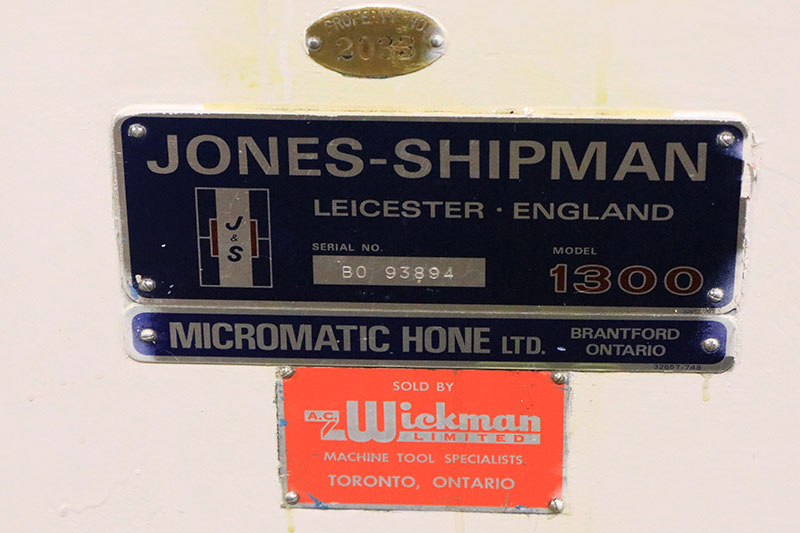

MODEL: 1300-EIT    S/N: BO-93894     NEW: 1984

MAXIMUM SWING ........................... 10"
DISTANCE BETWEEN CENTERS ................ 27"

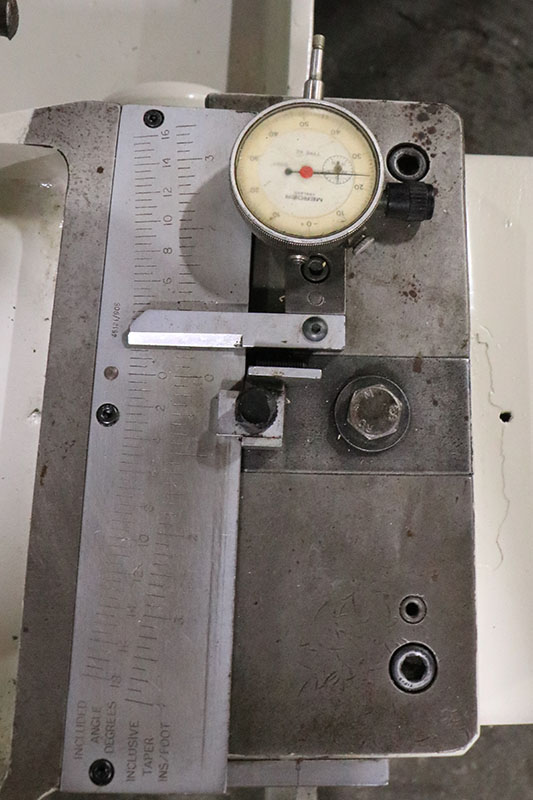

ADJUTMENT OF TABLE, INCLUDED ANGLE ...... 17°
LONGITUDINAL TABLE SPEED (HYDRAULIC) .... 3" TO 180" IPM
MANUAL TRAVERSE, HANDWHEEL PER REV. ..... 0.50"
FINE HAND TRAVERSE KNOB GRAD. ........... 0.0005"

WHEELHEAD:
CROSS FEED HANDWHEEL GRAD. .............. 0.0002"
ONE DEPRESSION OF FINE FEED LEVER KNOB .. 0.0001"
AUTO INFEED @ TABLE REVERSALS ........... 0.0001" TO .0006"
FEED @ REVERSAL OF TABLE,
REDUCTION IN DIAMETER ................... 0.0002" TO .0012"
TOP SLIDE ADJUSTMENT .................... 4- 1/8"
CROSS TRAVERSE OF WHEELHEAD ............. 7"
WHEELHEAD, UPPER SWIVEL ADJUSTMENT,
 EACH SIDE OF NORMAL POSITION ........... 180°
SWIVELLING BASE ADJUSTMENT, CLOCKWISE ... 90°
                                          75° CCW
WHEEL SIZE .............................. 12" X 1" X 5"

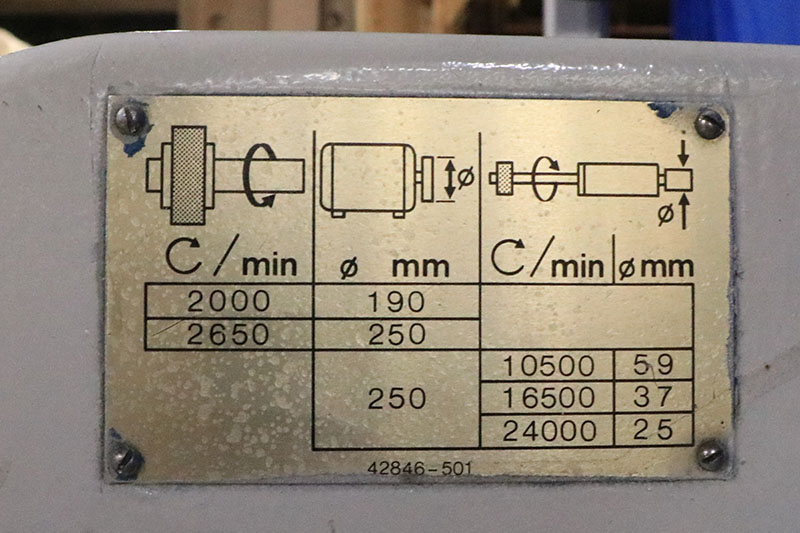

WHEEL SPEEDS (2) ........................ 2,000 & 2,650 RPM
WHEELHEAD MOTOR ......................... 5.5 HP

WORKHEAD SPINDLE SPEEDS ....... 40, 60, 90, 140, 210 & 320 RPM
WORKHEAD SPINDLE TAPER .................. #3MT

APPROX. FLOOR SPACE REQUIRED ............ 103"L-R x 58" x 69"H
APPROX. MACHINE WEIGHT .................. 5,376 LBS

MACHINE FEATURES:

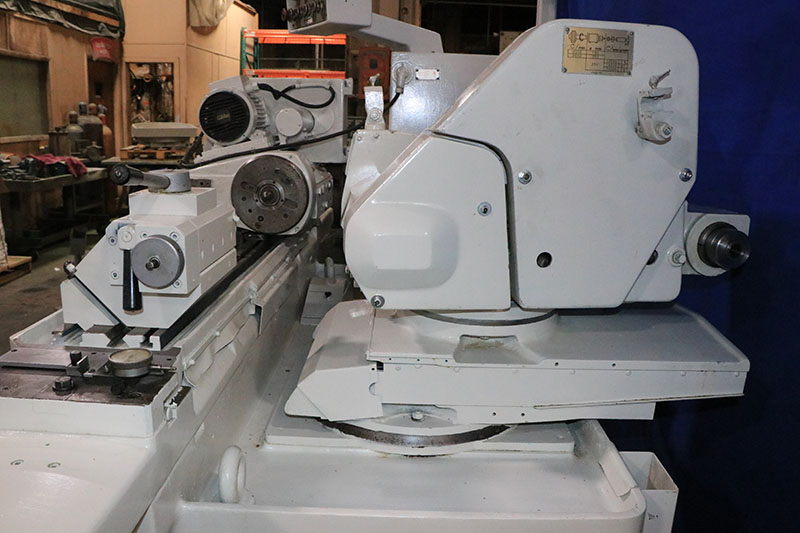

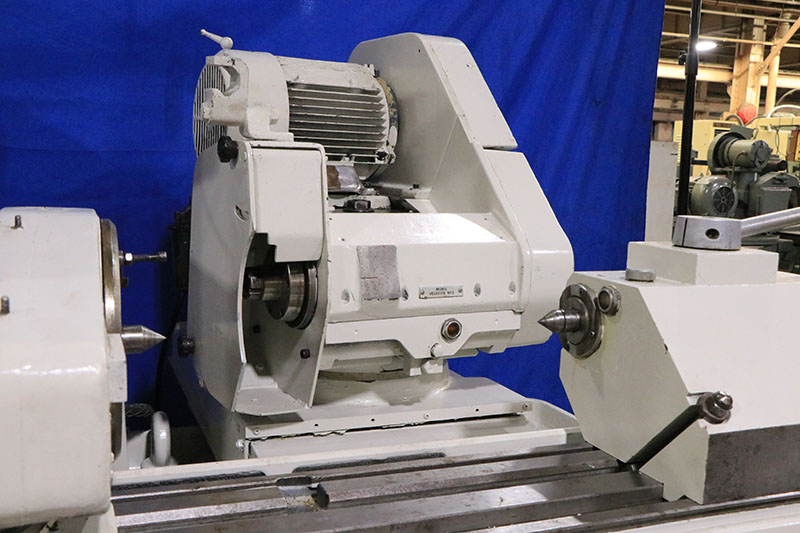

JONES & SHIPMAN TYPE "EIT" DOUBLE SWIVEL WHEELHEAD DESIGN
- ALLOWS FOR GRINDING TAPERS THAT ARE STEEPER THAN CAN
  BE OBTAINED BY THE  NORMAL METHOD OF SWIVELLING THE
  MACHINE TABLE.  IN ADDITION, COMBINED PARALLEL AND FACE
  GRINDING CAN BE PERFORMED IN ONE OPERATION AS ON AN
  ANGLE HEAD MACHINE.
- IN ADDITION TO GRINDING STEEP TAPERS THIS WHEELHEAD
  CAN BE USED AS AN ANGLE HEAD MACHINE FOR PARALLEL AND
  FACE GRINDING IN ONE OPERATION.  IT IS FULLY SUPPORTED
  IN ALL POSITIONS AND THE SLIDES AND SWIVELS ARE
  TOTALLY ENCLOSED.
- GRINDING WHEELS CAN BE MOUNTED AT EITHER END OF THE
  WHEEL SPINDLE WITHOUT CHANGING THE DRIVING BELTS.


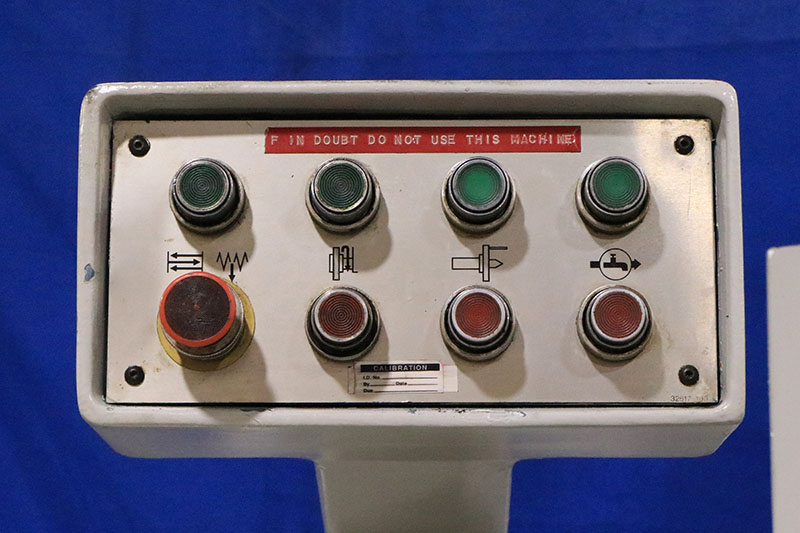

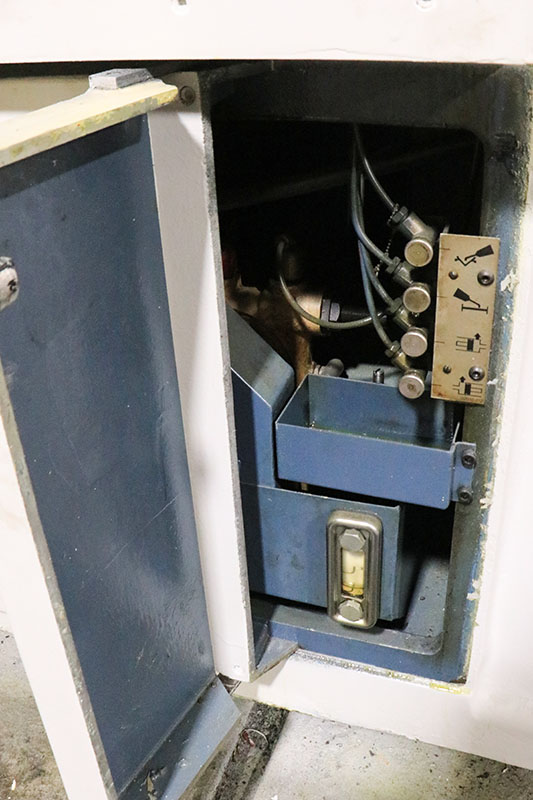

HYDRAULIC OPERATION FEATURING:
- POWER TABLE TRAVERSE
- AUTO INFEED
- AUTO PLUNGE INFEED

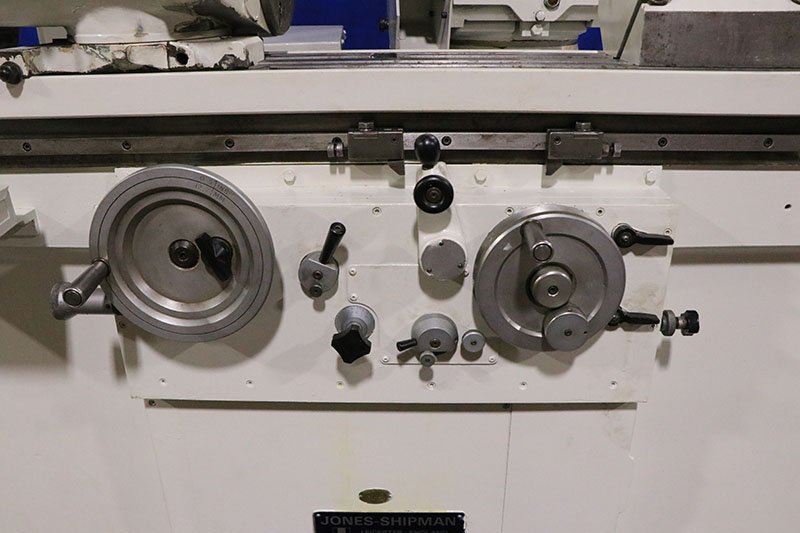

FINE FEED MECHANISM FOR INFEED
FINE FEED KNOB FOR TABLE TRAVERSE

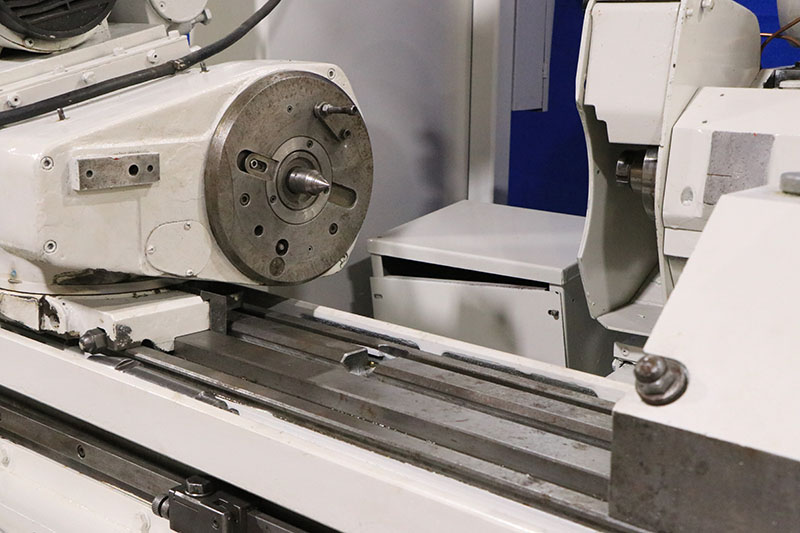

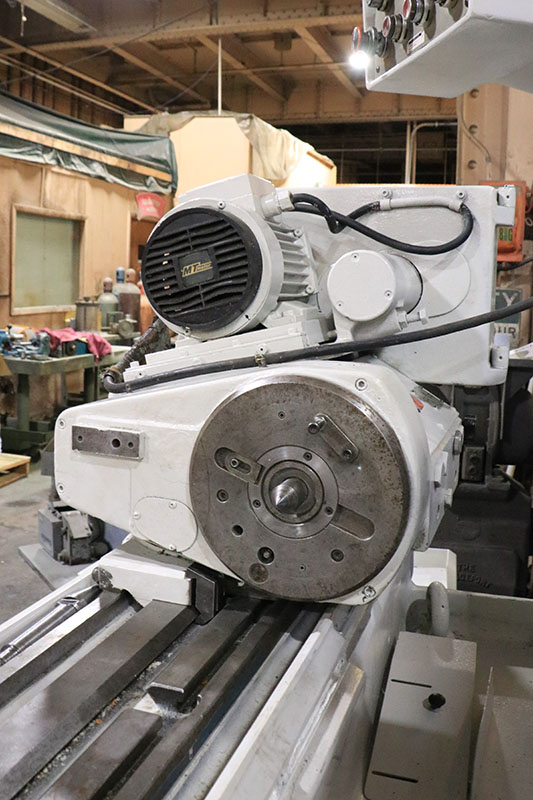

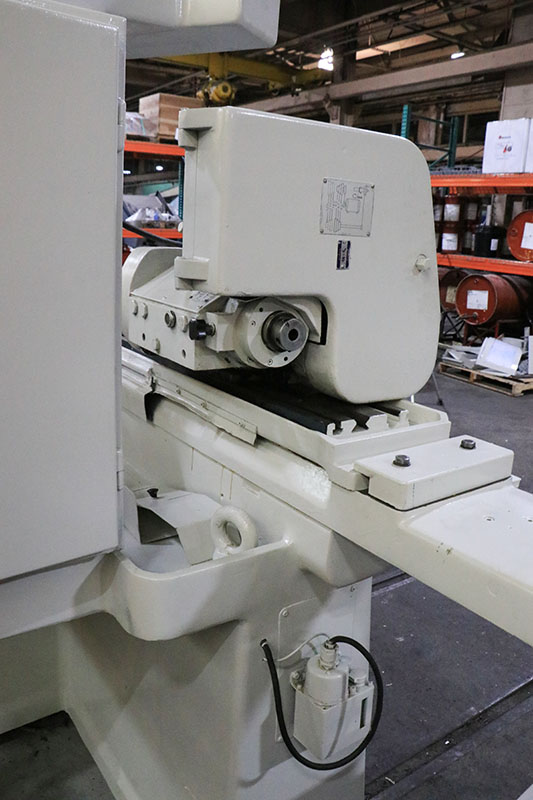

DUAL LIVE/DEAD WORKHEAD SPINDLE


EQUIPPED WITH:

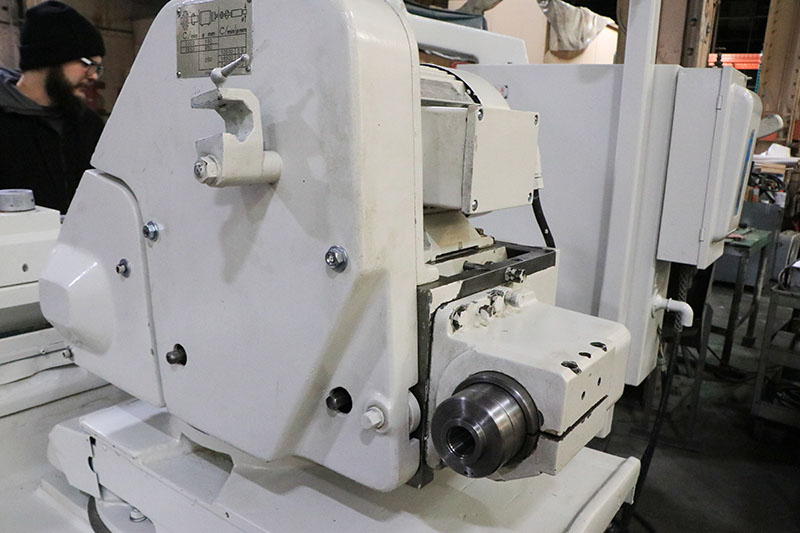

SWING AROUND I.D. GRINDING ATTACHMENT
JONES & SHIPMAN I.D. SPINDLE

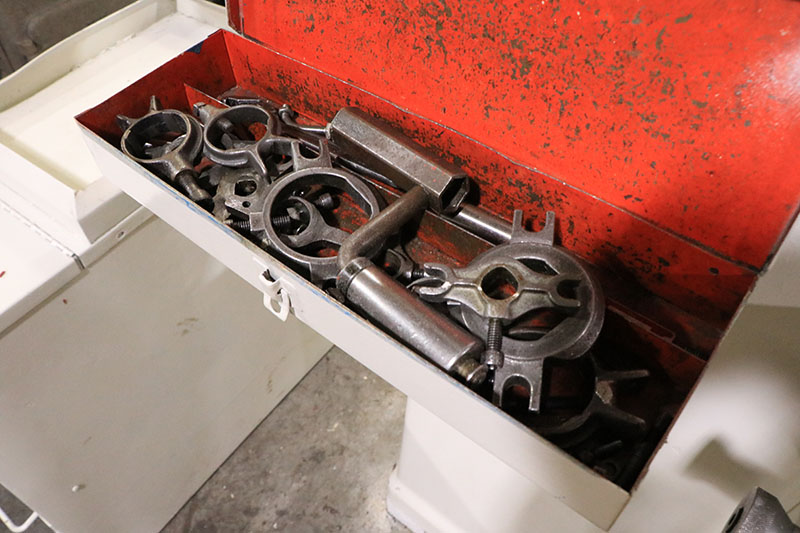

ASSORTMENT OF QUILLES FOR THE I.D. SPINDLE
CENTER IN WORKHEAD

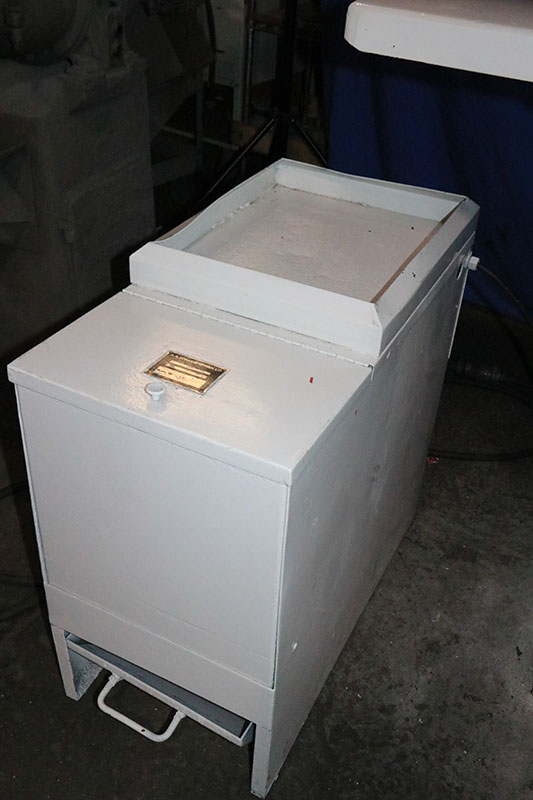

COOLANT TANK WITH PUMP

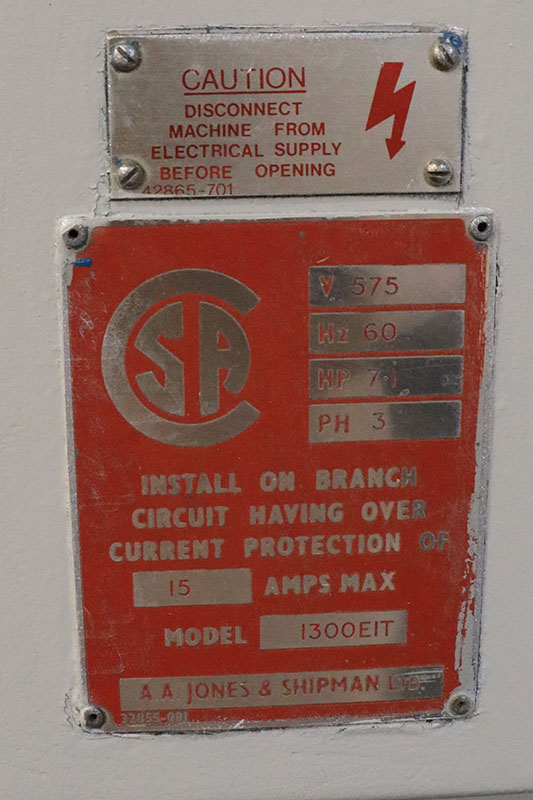

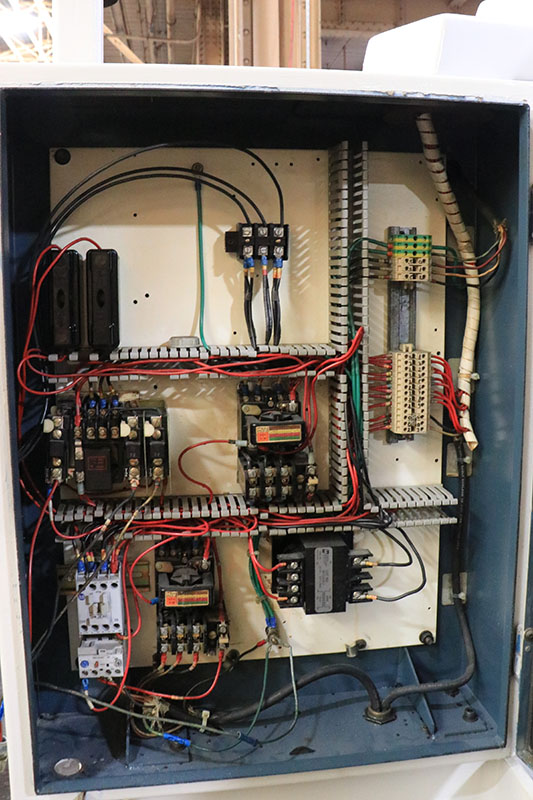

MACHINE IS WIRED FOR 3/60/575 VOLTS FROM THE FACTORY.

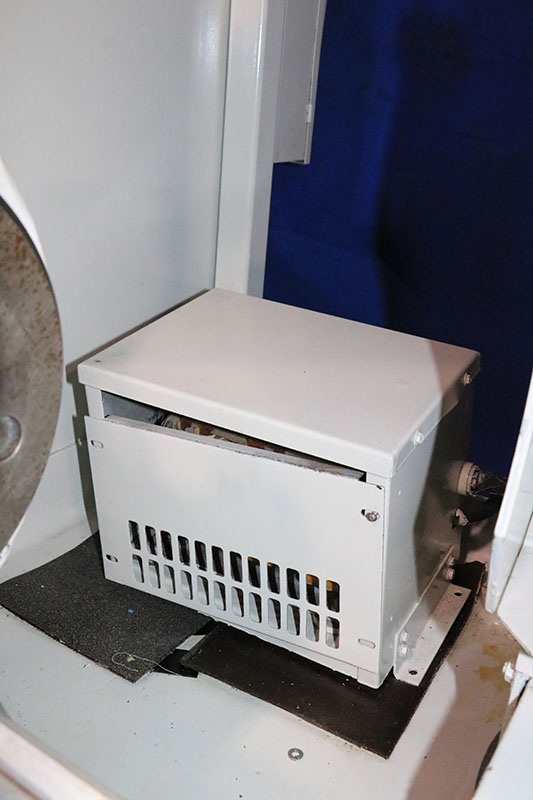

 TRANSFORMER AVAILABLE TO PURCHASE FOR $875,
 FOR 200-208-220-230-240-440-460-480 VOLTS.
 PLEASE SPECIFY YOUR VOLTAGE REQUIREMNT AND WE
 WILL PROVIDE THE CORRECT TRANFORMER.

Link to video: https://youtu.be/RUtO1zSFOyw?si=rsYbYsE6x97C0RzK
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE. **
** VERY GOOD CONDITION & APPEARANCE **
