Kellenberger 1000U, 1984, I.D. ATTACH., FULL AUTO CYCLE, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 1000U, 1984, I.D. ATTACH., FULL AUTO CYCLE,

Year:: 1984

Ref #:: 169134

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

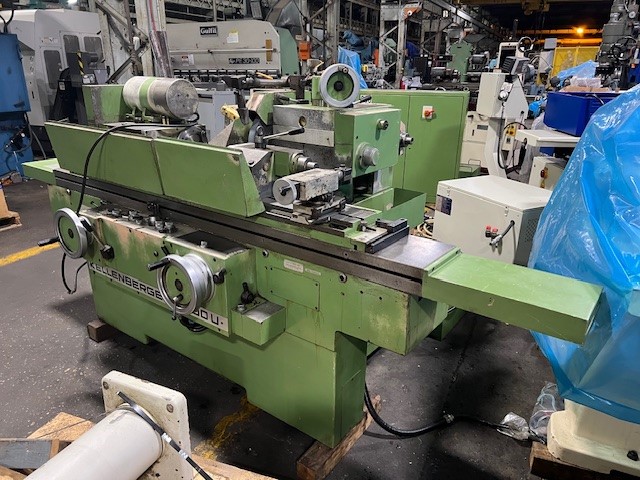

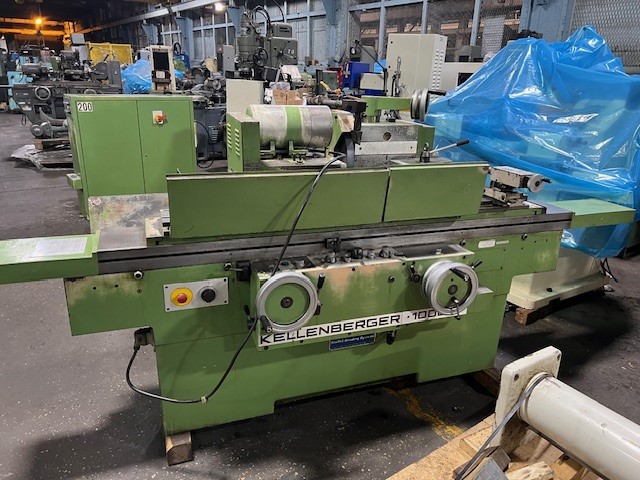

  9.8" x 39.4" KELLENBERGER "SWISS"
    "SUPER-PRECISION" UNIVERSAL
  I.D./O.D. CYLINDRICAL GRINDER

** CAPABLE OF SWING LARGER PARTS, WITH OPTIONAL
   RISER BLOCKS, UP TO 19 5/8" SWING.
   RISER BLOCKS ARE AVAILABLE FROM
   MACHINERY VALUES, FOR ADDITIONAL DOLLARS **


** MACHINE IS EQUIPPED TO GRIND O.D.,
    I.D & FACE GRINDING TASKS **

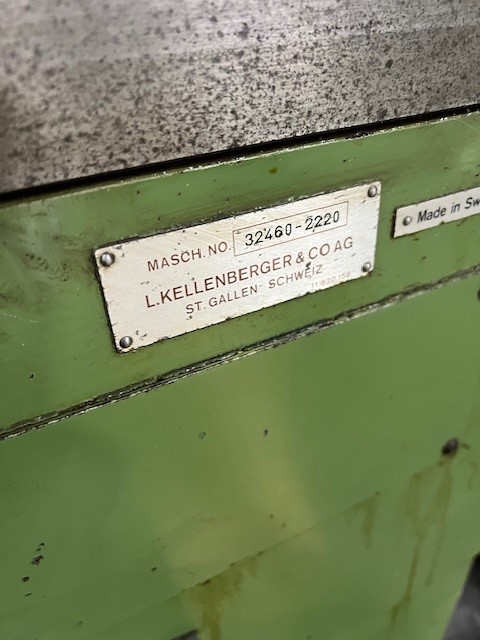

MODEL: 1000U      S/N:  32460-2220      MFG. 1984


DISTANCE BETWEEN CENTERS .................. 39- 3/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
  OVERHANGING ............................. 47- 1/4"
HEIGHT OF CENTERS, WITH REMOVABLE RISERS .. 9- 27/32"
STANDARD SWING WITHOUT RISERS ............. 9.8"
MAX. SWING WITH FACTORY RISERS ............ 19.625"

TABLE:
LONGITUDINAL TABLE TRAVEL ................. 51- 13/16"
LONGITUDINAL TABLE TRAVEL PER TURN
 OF HANDWHEEL:
  COARSE .................................. 25/32"
  FINE .................................... 3/32"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0.6 - 240" IPM
TABLE SWIVELS ............................... 9 DEGREES
REVERSING DWELL ........................... 0 TO 5 SECONDS
GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE ................ 0.0002"
  AUTOMATIC FEED, MAXIMUM ................... 0.036"
  AUTO. INFEED PER TABLE REVERSAL ......... 0.00005" TO 0.0012"
  INFEED FOR PLUNGE GRINDING .............. 0.00004" TO 0.002"
  MICROMETER STOP, 1 GRADUATION ............. 0.00005"

UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF WHEEL SLIDE ........ 11-1/4"
  HYDRAULIC RAPID WHEEL SLIDE
    ADVANCE/RETRACTION STROKE ............... 1-37/64"
  GRINDING WHEEL SPEEDS (4) ........... 1500, 1700, 2200& 3600 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING .............................. 16" X 2" X 5"
  GRINDING WHEEL (SURFACE GRINDING) ...... 10" X 3/4" X 3"
  SWIVEL OF GRINDING HEAD W/LOCKING EVERY
   90° ...................................... 270°
  VERTICAL MOTION OF GRINDING SPINDLE HEAD,
   HEIGHT OF CENTERS ...................... 4-59/64" TO 13-25/32"

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS .......... 10 - 400 RPM
  WORKHEAD SWIVELS .......................... 360°
  INSIDE TAPER OF WORK SPINDLE .............. #5MT

APPROXIMATE FLOOR SPACE REQUIRED ......... 106" x 64" x 66"H
APPROXIMATE MACHINE WEIGHT .................. 6,500 LBS

MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
-SPARKOUT TIMER

ADJUSTABLE CENTER HEIGHT FEATURE

MACHINE HAS THE FOLLOWING:
THREE WHEELHEAD MACHINE, PRESENTLY COMES WITH THE O.D.,
 I.D. GRINDING, FACE GRINDING WHEEL OPTIONS.

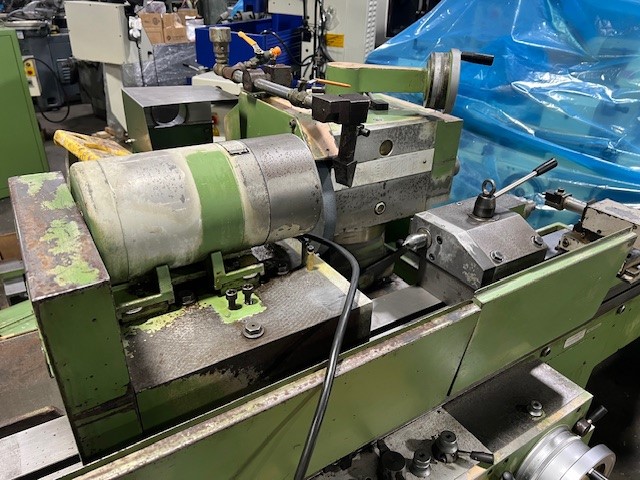

I.D. ATTACHMENT, FACTORY MOUNTED I.D. BLOCK, ON THE BACK
 OF THE WHEELHEAD.  BUYER GETS TO CHOOSE, ONE OF THE TWO
 I.D. GRINDING SPINDLES THAT ARE SHOWN IN THE PHOTOS.

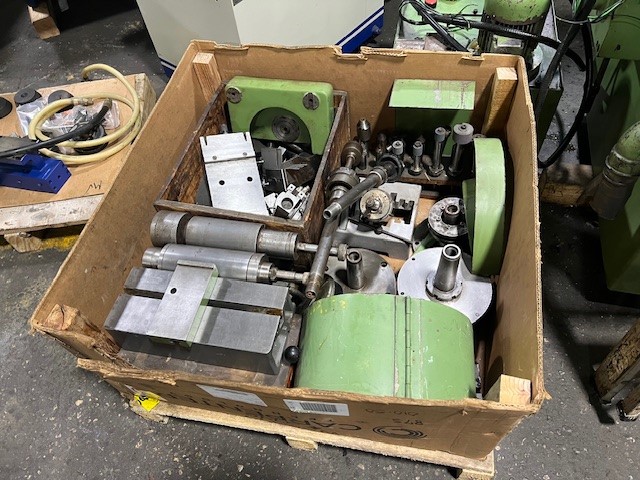

ACCESSORIES:
ASSORTMAENT OF I.D. SPINDLE QUILLS WITH WHEELS
TWO CHUCKS, EACH HAS A #5MT ADAPTOR
DRAW BARS
TABLE MOUNTED WHEEL DRESSER
COOLANT SYSTEM
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS


SPECIAL NOTE:
RISERS AVAILABLE FOR ADDITIONAL DOLLARS, TO INCREASE THE SWING.



** EXCELLENT CONDITION AND APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ **
