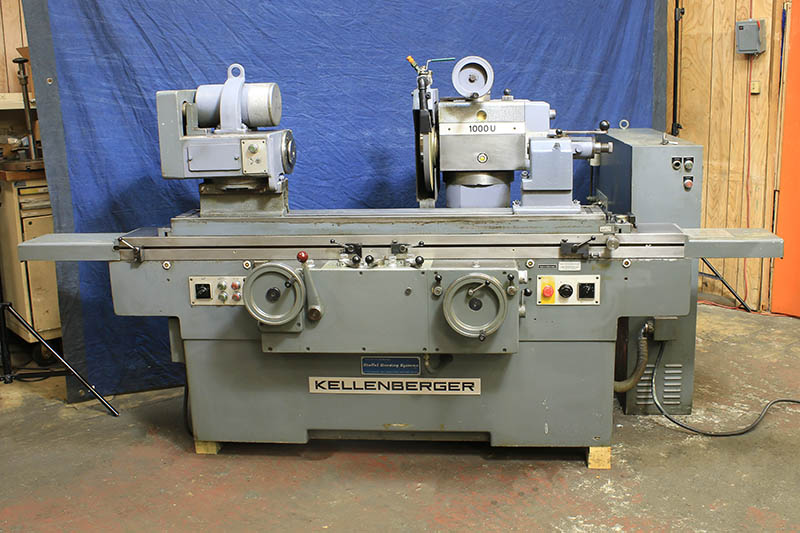

Kellenberger 1000U UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 1000U

Year:: 1982

Ref #:: 156505

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

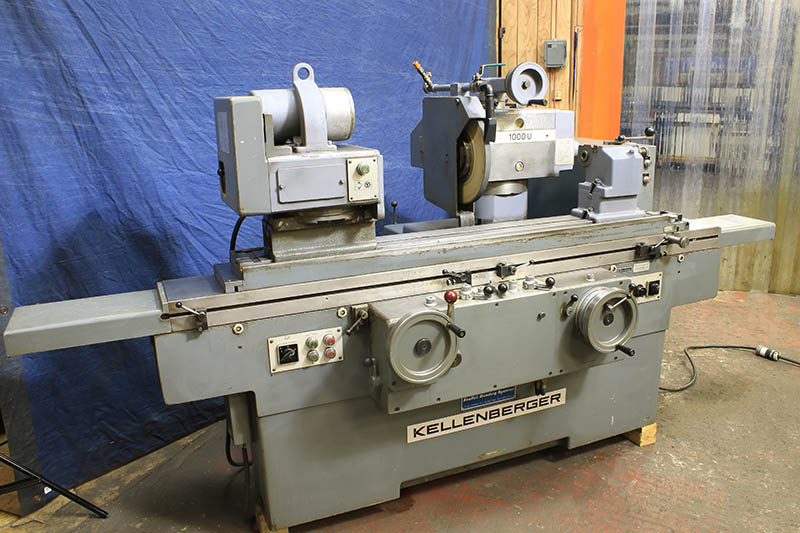

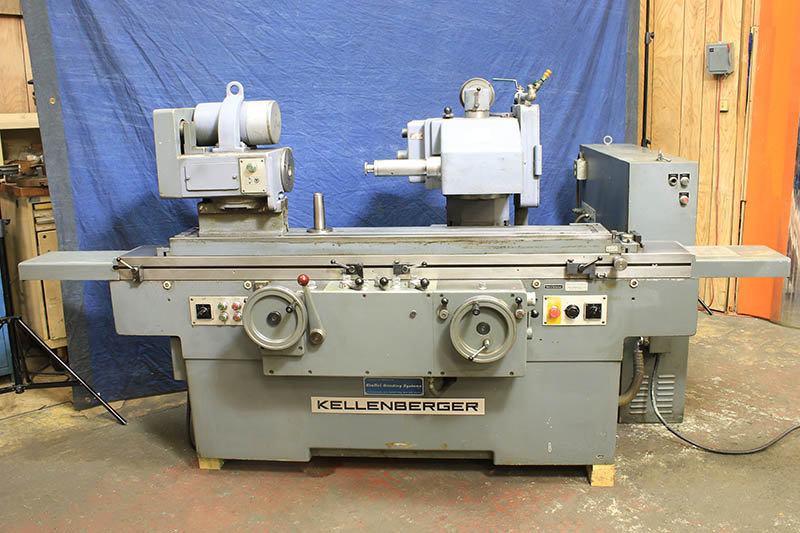

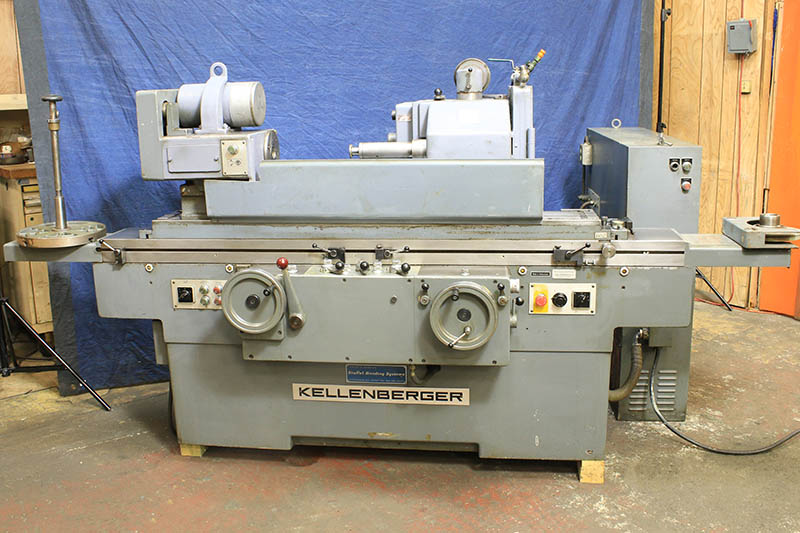

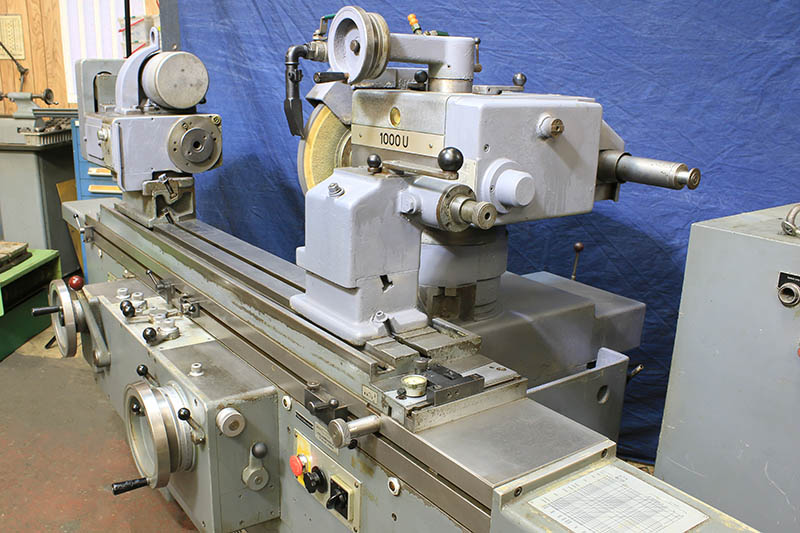

  KELLENBERGER "SWISS" SUPER-PRECISION UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER


** PRESENTLY EQUIPPED WITH FACTORY RISERS PROVIDING FOR 17.8" SWING **


** MACHINE IS EQUIPPED TO GRIND O.D., I.D & FACE
  GRINDING TASKS **

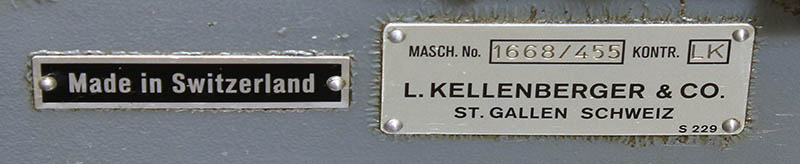

MODEL: 1000U      S/N:  1668/455       MFG. 1982

DISTANCE BETWEEN CENTERS ........................ 39- 3/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
  OVERHANGING ................................... 47- 1/4"
HEIGHT OF CENTERS, WITH REMOVABLE RISERS ........ 9- 27/32"
STANDARD SWING WITHOUT RISERS ................... 9.8"

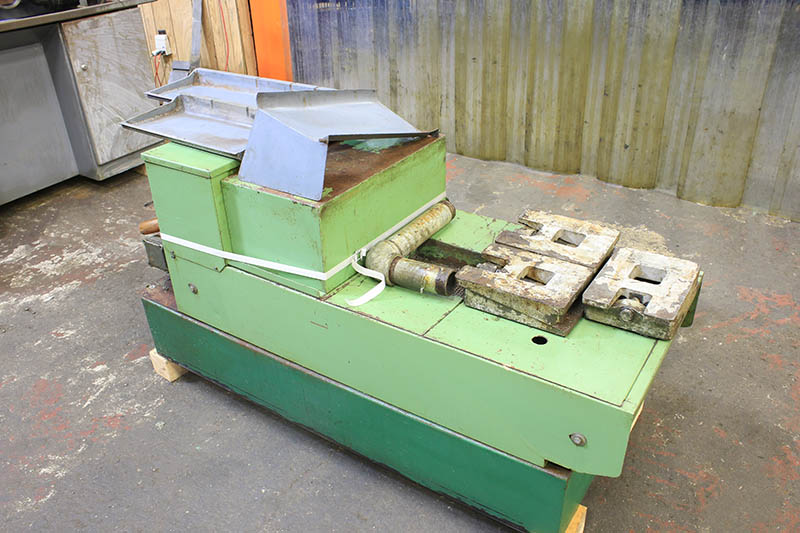

PRESENT SWING WITH 100mm RISERS THAT ARE WITH
 THE MACHINE .................................... 17.8"

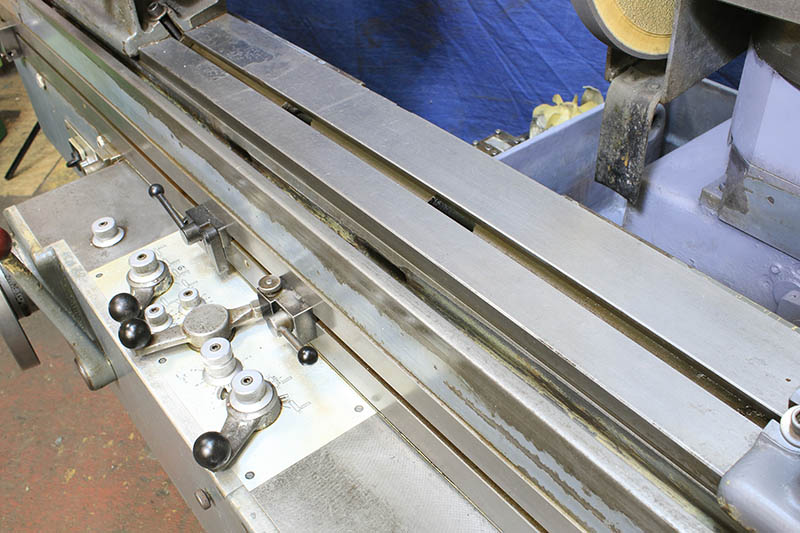

TABLE:
LONGITUDINAL TABLE TRAVEL ....................... 51- 13/16"
LONGITUDINAL TABLE TRAVEL PER TURN OF HANDWHEEL:
  COARSE ........................................ 25/32"
  FINE .......................................... 3/32"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ............ 0.6 - 240" IPM
TABLE SWIVELS ................................... 9 DEGREES
REVERSING DWELL ................................. 0 TO 5 SECONDS
GRINDING WHEEL INFEED:

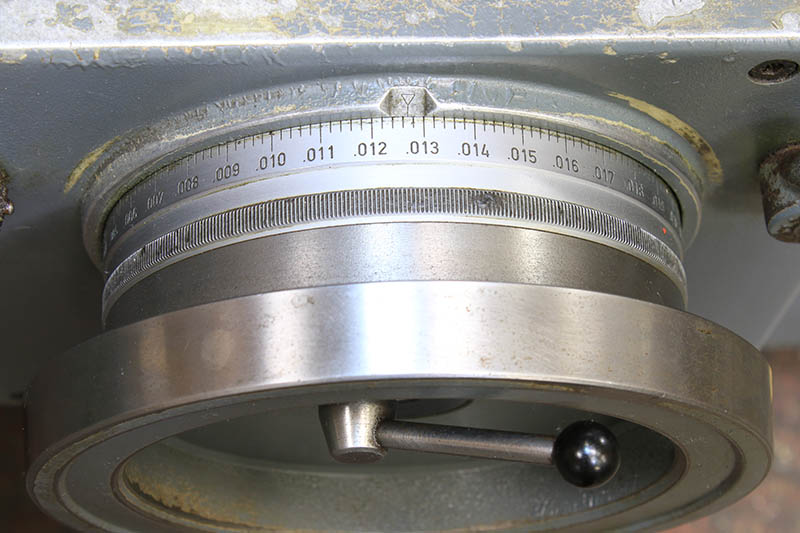

  1 GRADUATION OF FEED SCALE .................... 0.0002"
  AUTOMATIC FEED, MAXIMUM ....................... 0.036"
  AUTO. INFEED PER TABLE REVERSAL ............... 0.00005" TO .0012"
  INFEED FOR PLUNGE GRINDING .................... 0.00004" TO .002"

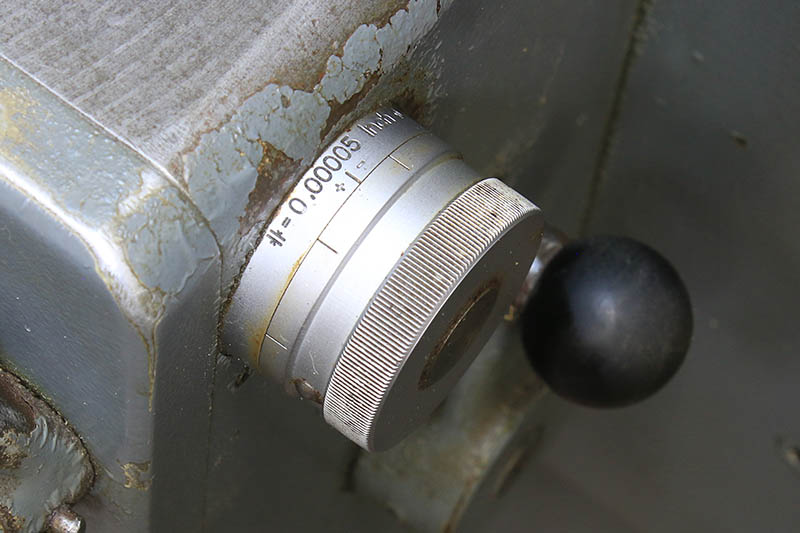

  MICROMETER STOP, 1 GRADUATION ................. 0.00005"

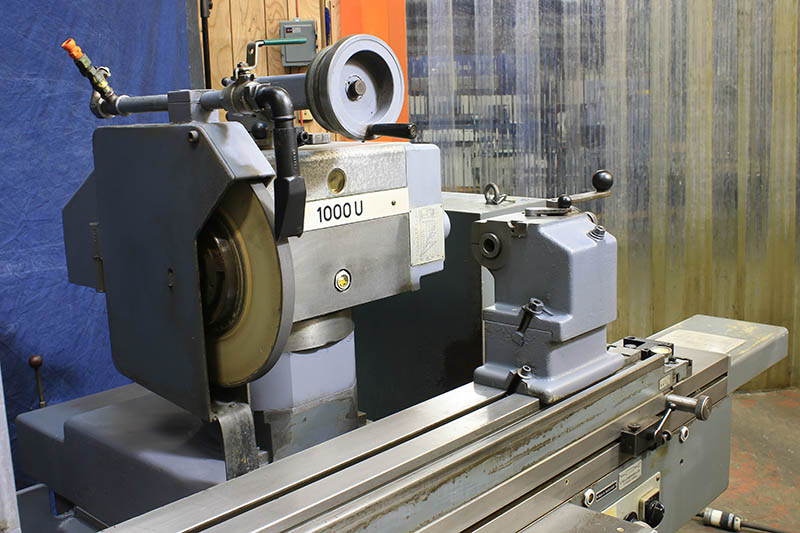

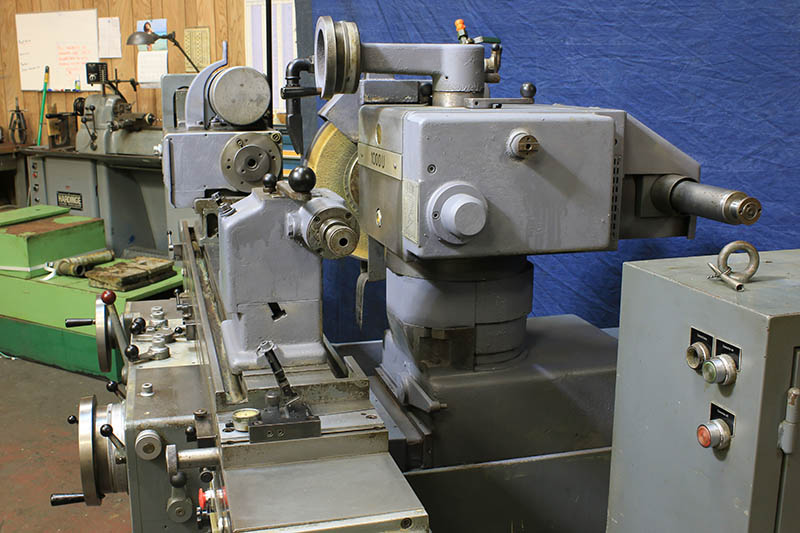

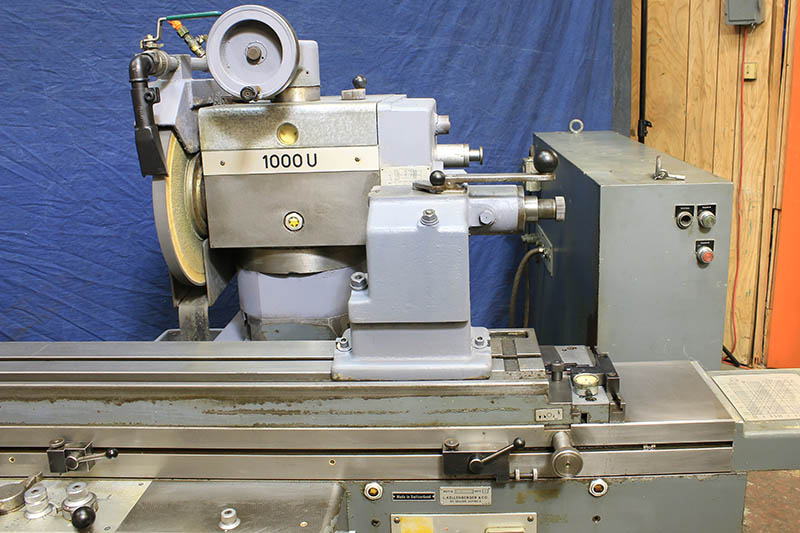

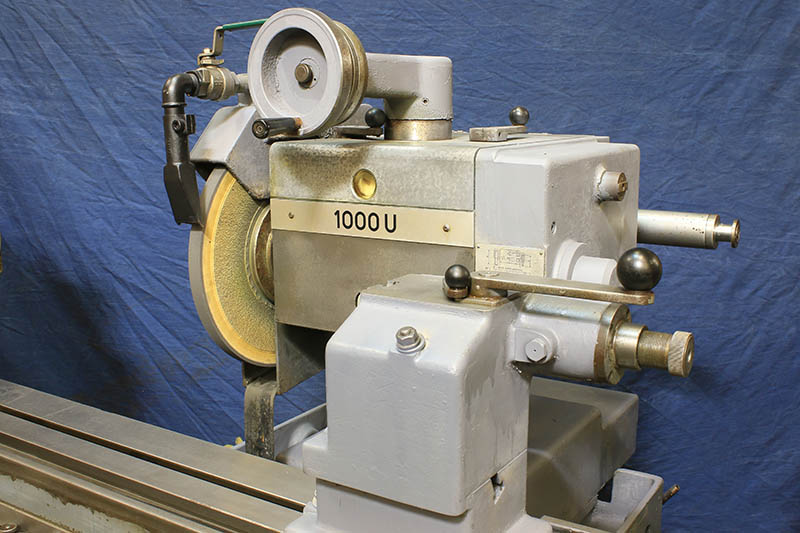

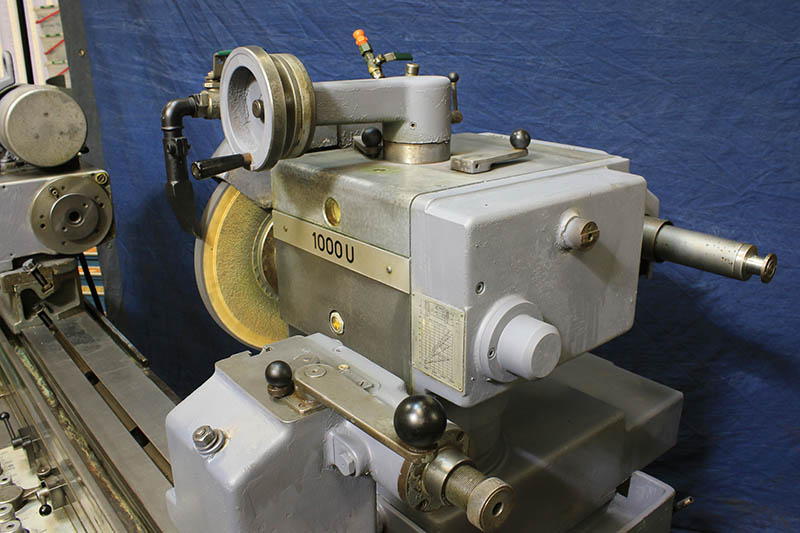

UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF WHEEL SLIDE ............ 11-1/4"
  HYDRAULIC RAPID WHEEL SLIDE ADVANCE/RETRACTION
   STROKE ....................................... 1-37/64"
  GRINDING WHEEL SPEEDS (4) ..................... 1500, 1700, 2200& 3600 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING ..................................... 16" X 2" X 5"
  GRINDING WHEEL (SURFACE GRINDING) ............. 10" X 3/4" X 3"

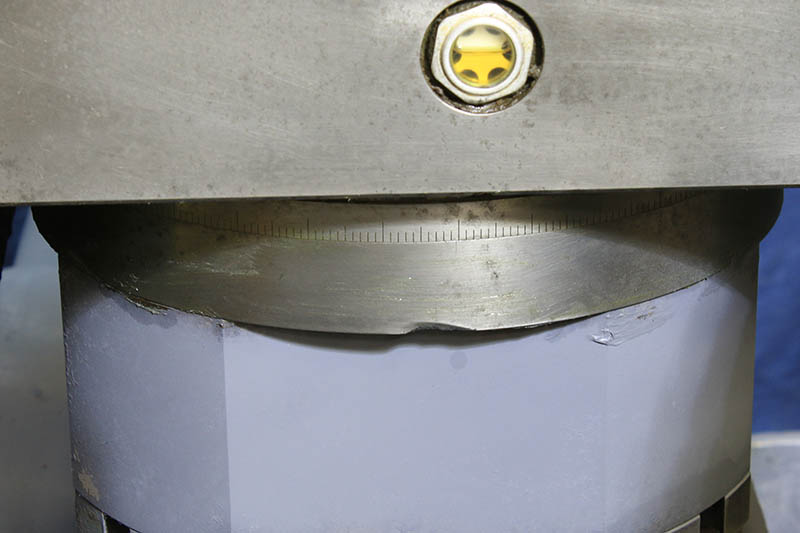

  SWIVEL OF GRINDING HEAD W/LOCKING EVERY
   90 DEGREES ................................... 270 DEGREES
  VERTICAL MOTION OF GRINDING SPINDLE HEAD,
   HEIGHT OF CENTERS ............................ 4-59/64" TO 13-25/32"

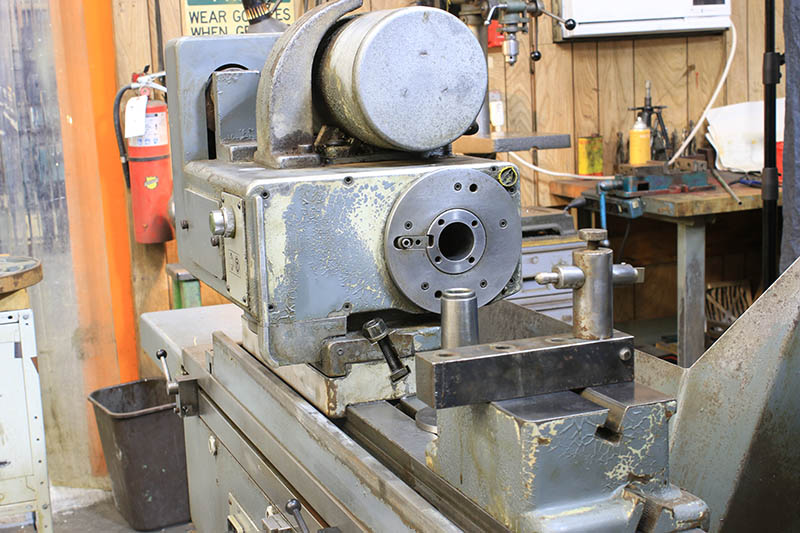

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS .............. 10 - 400 RPM
  WORKHEAD SWIVELS .............................. 360 DEGREES
  INSIDE TAPER OF WORK SPINDLE .................. #5MT

APPROXIMATE FLOOR SPACE REQUIRED ................ 106" X 64" X 66"H
APPROXIMATE MACHINE WEIGHT ...................... 6,500 LBS

MACHINE FEATURES:

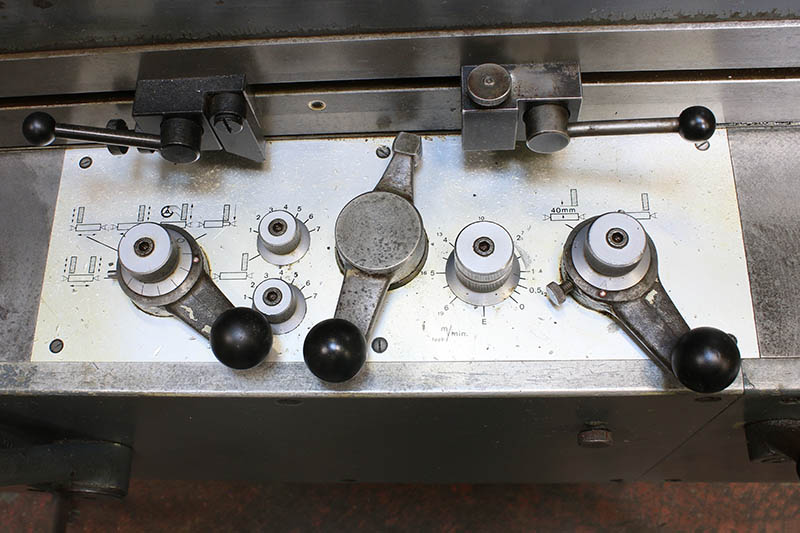

HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
-SPARKOUT TIMER

ADJUSTABLE CENTER HEIGHT FEATURE



EQUIPPED WITH:

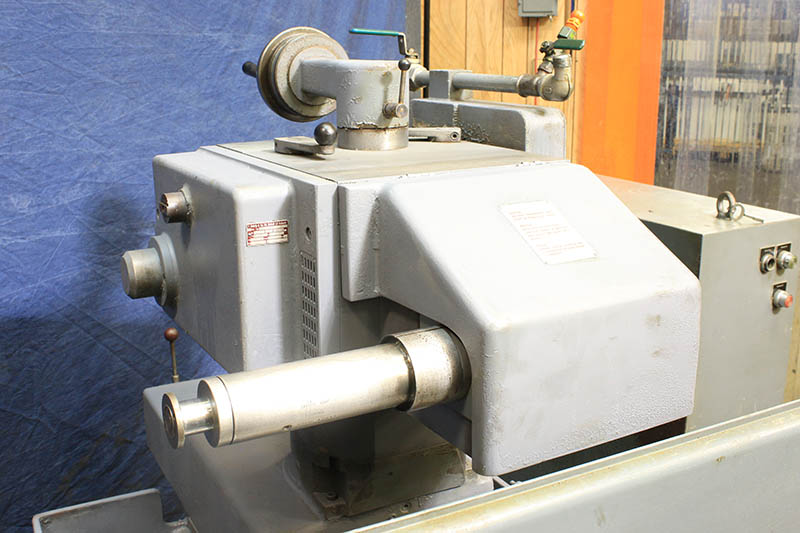

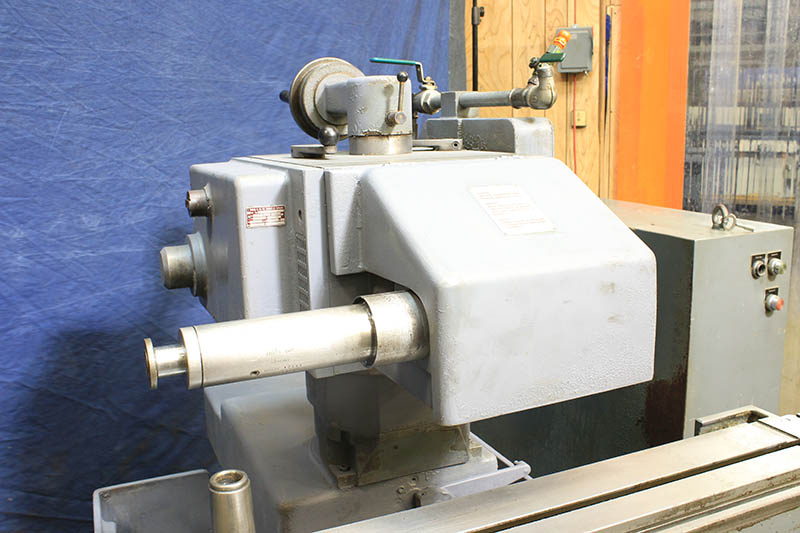

SWING AROUND I.D. GRINDING ATTACHMENT WITH I.D. GRINDING SPINDLE

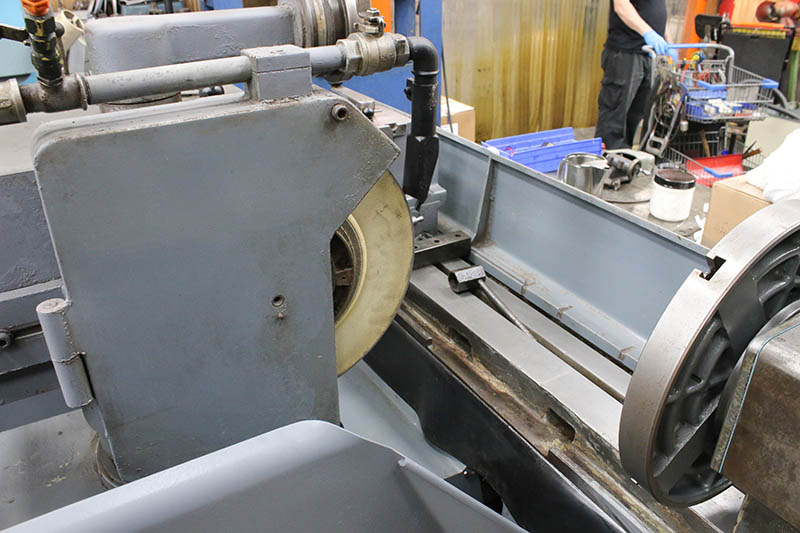

FACE GRINDING ATTACHMENT WITH WHEEL HUB & WHEEL GUARD

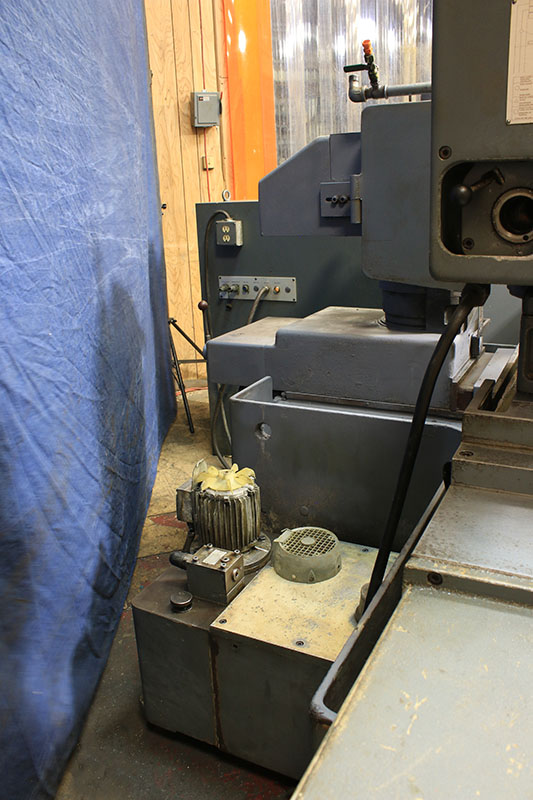

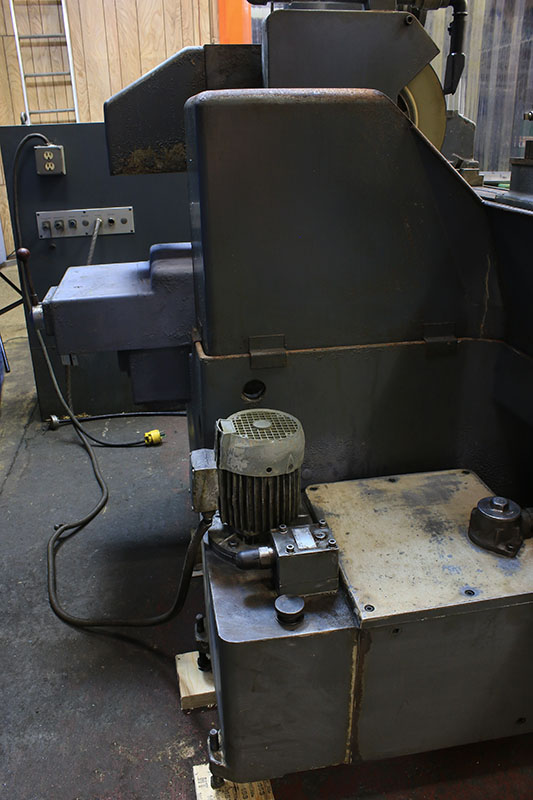

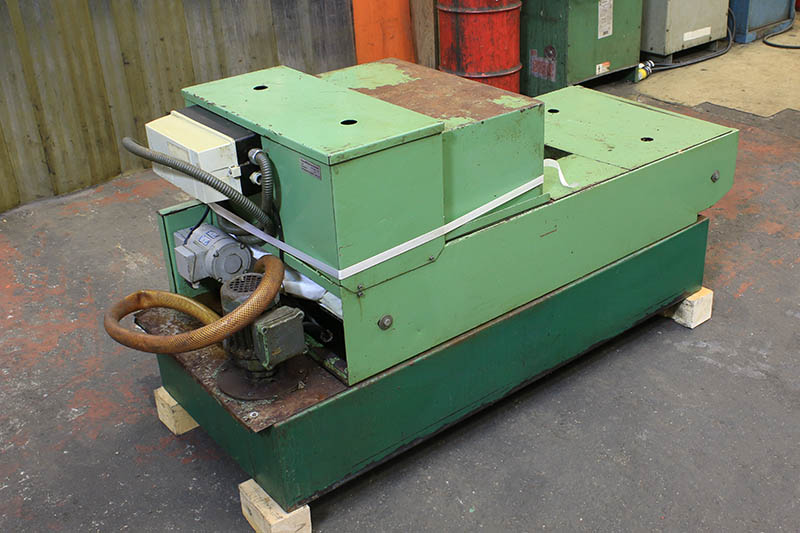

COOLANT SYSTEM WITH PAPER FILTRATION
4 HP WHEEL HEAD MOTOR
WORKHEAD SPINDLE IS "LIVE & DEAD"

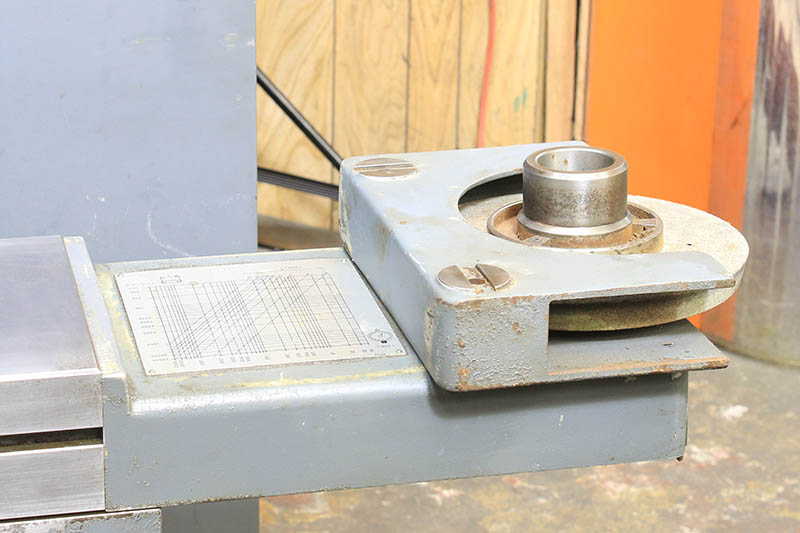

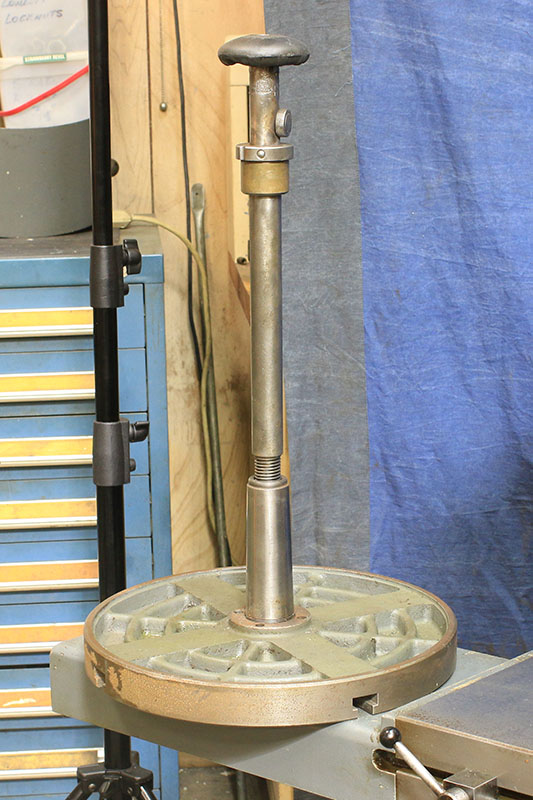

FACE PLATE WITH MT No.5 TAPER MOUNT
TABLE MOUNTED DRESSER

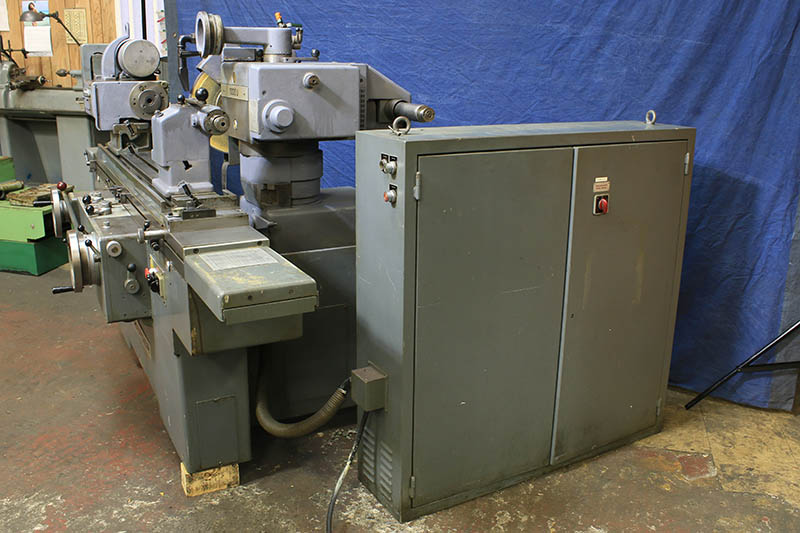

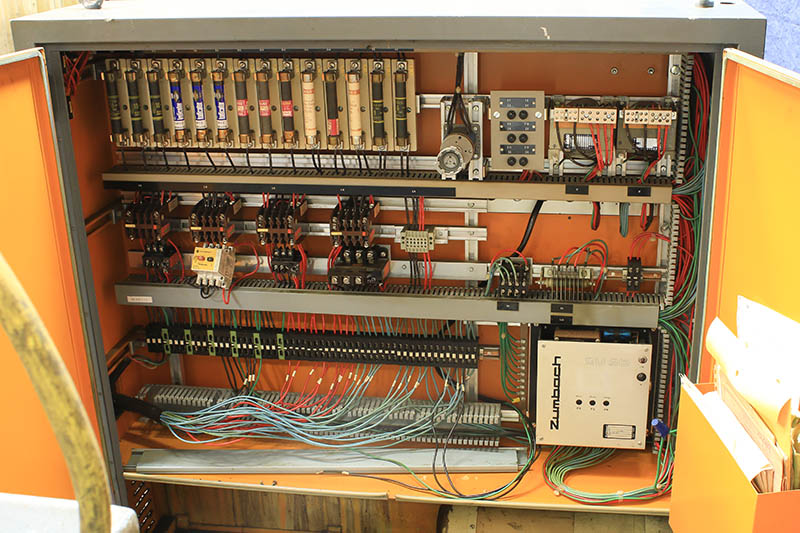

3/60/230-460 VOLT ELECTRICS


SPECIAL NOTE:
THIS MACHINE IS PRESENTLY SET UP FOR 17.8" SWING, WITH 100mm RISERS.
 .


** EXCELLENT CONDITION AND APPEARANCE  **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
