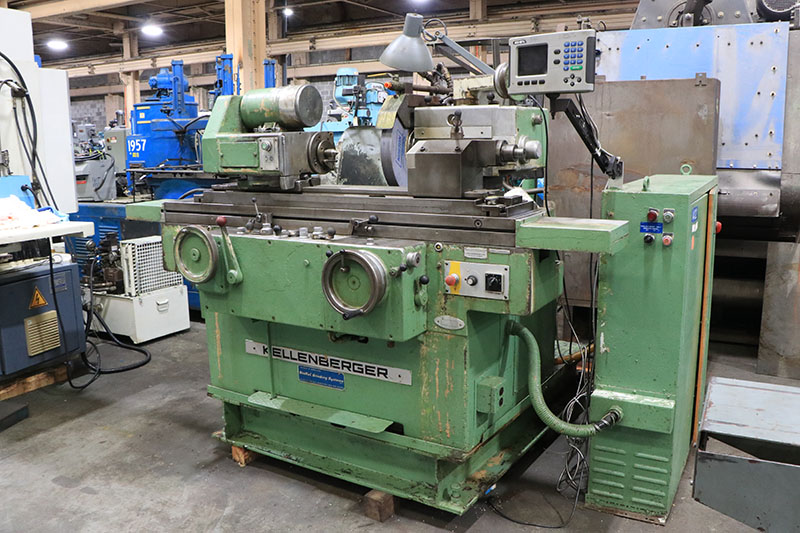

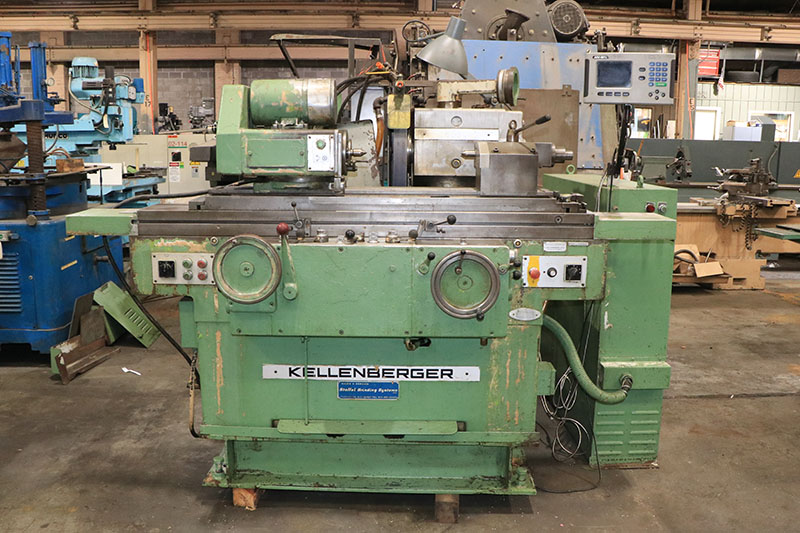

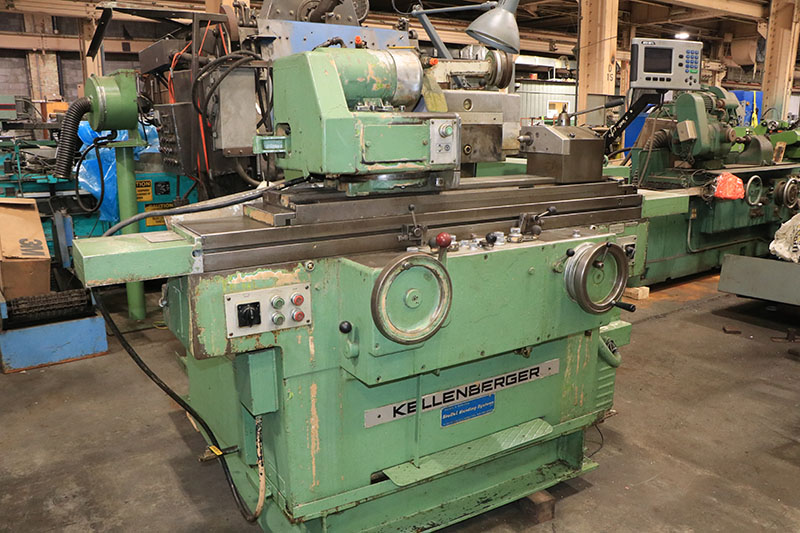

Kellenberger 600U, NEW 1977, OD/ID/FACE GRINDING CAPABILITY UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 600U, NEW 1977, OD/ID/FACE GRINDING CAPABILITY

Year:: 1977

Ref #:: 160698

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

   9.8" x 23.6" KELLENBERGER "SWISS" "HIGH PRECISION"
      UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

*** THIS MACHINE IS CAPABLE OF SWINGING 19.8"
             WITH FACTORY RISER BLOCKS
    THAT CAN BE PURCHASED FROM KELLENBERGER.  ***

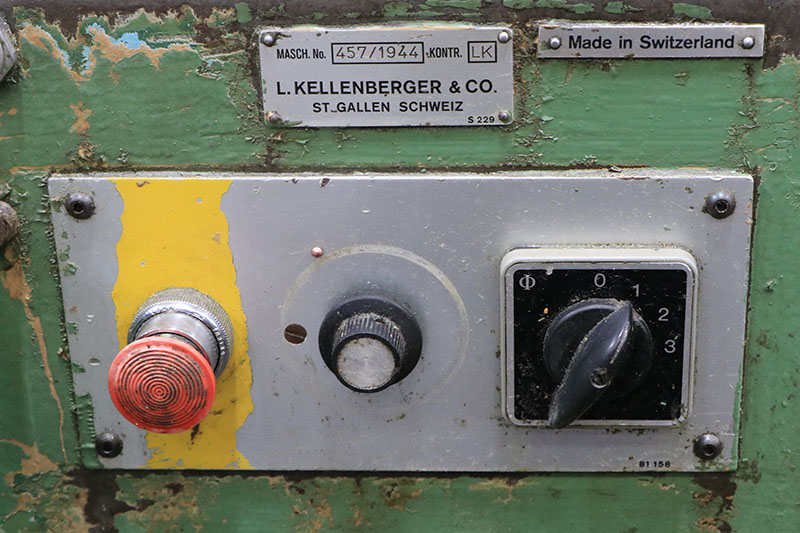

MODEL:  600U     S/N: 457-1944          NEW: 1977


MAX. SWING AS PRESENTLY SET UP ............ 9.8"
MAX. SWING w/FACTORY RISERS ............... 19.8"
DISTANCE BETWEEN CENTERS (NOMINAL)......... 23- 5/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
  OVERHANGING ............................. 29- 1/2"

TABLE:
LONGITUDINAL TABLE TRAVEL ................. 35- 7/16"
LONGITUDINAL TABLE TRAVEL PER
  TURN OF HANDWHEEL:
  COARSE .................................. 0.8"
  FINE .................................... 0.1"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0 TO 20' FPM
TABLE SWIVELS ............................. 11 DEGREES
REVERSING DWELL ........................... 0 TO 5 SECONDS

GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE .............. 0.0002"
  AUTOMATIC HYDRAULIC INFEED, ............. 0 TO 0.037"
  AUTO INFEED PER TABLE REVERSAL .......... 0.00004" TO 1.18"
  PLUNGE GRINDING: INFEED SPEED ........... 0.00001 TO .0001 IN/S
  MICROMETER STOP, 1 GRADUATION ........... 0.00005"

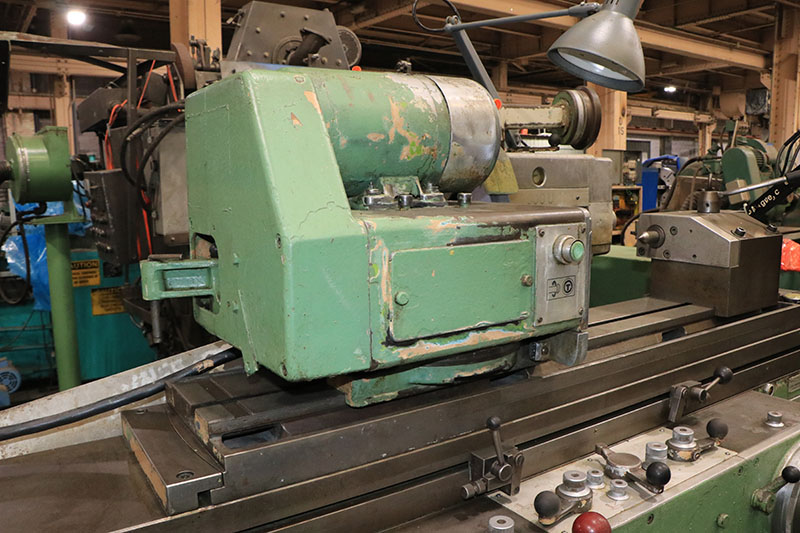

UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF WHEEL SLIDE ...... 8- 21/32"
  INFEED PER REV. OF HANDWHEEL:  COARSE ... 0.3"
                                 FINE ..... 0.04"
  HYDRAULIC RAPID WHEEL SLIDE
   ADVANCE/RETRACTION STROKE .............. 1-9/16"
  GRINDING WHEEL SPEEDS ................... 1500, 1700, 2200 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING ............................... 16" X 2" X 5"
  GRINDING WHEEL (SURFACE GRINDING)........ 9" X 1/2" X 3"
  SWIVEL OF GRINDING HEAD
   W/LOCKING EVERY 90 DEGREES ............. 270 DEGREES

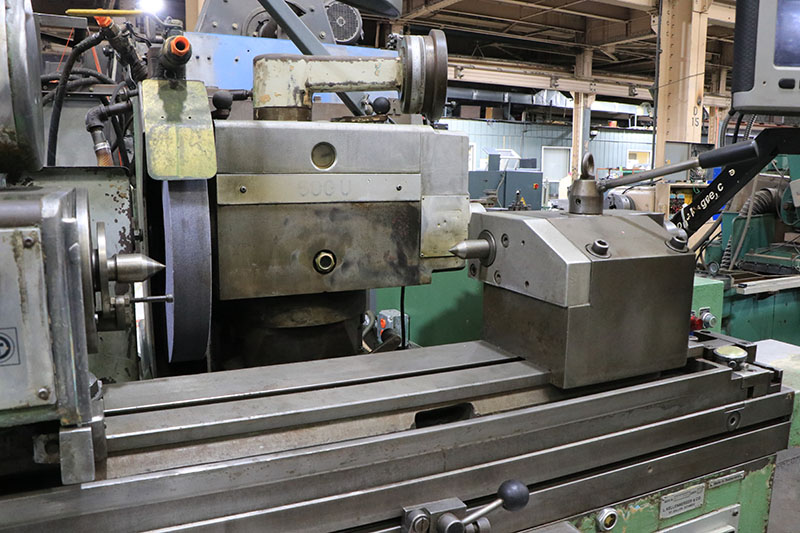

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS ........ 6 - 600 RPM
  WORKHEAD SWIVELS ........................ 360 DEGREES
  INSIDE TAPER OF WORK SPINDLE ............ #5MT

TAILSTOCK:
  INSIDE TAPER OF SPINDLE ................. #4MT
  STROKE OF SPINDLE ........................ 1- 3/16"

APPROXIMATE FLOOR SPACE REQUIRED .......... 102" X 64" X 66"H
APPROXIMATE MACHINE WEIGHT ................ 6,000 LBS

MACHINE FEATURES:

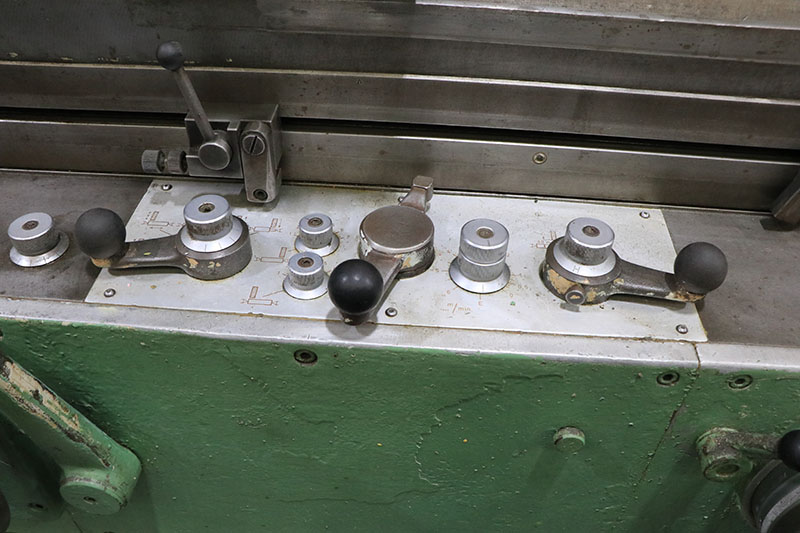

HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
SPARKOUT TIMER


EQUIPPED WITH:
- I.D ATTACHMENT & I.D GRINDING SPINDLE

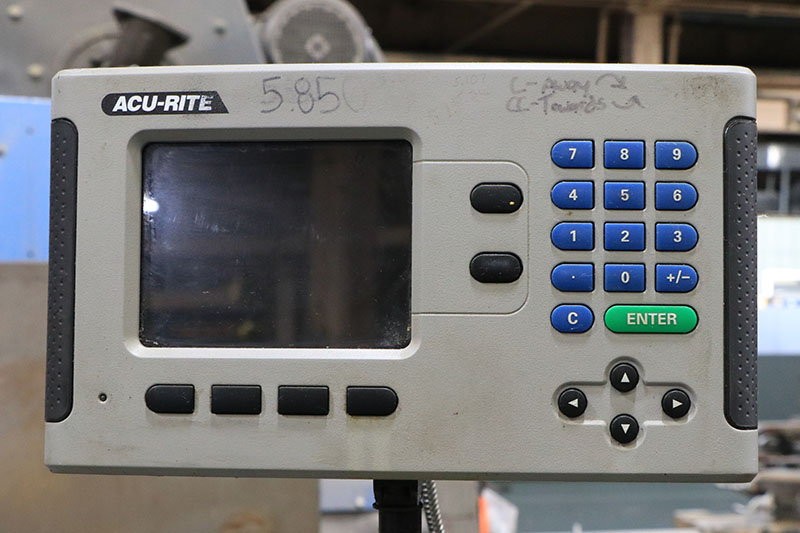

  "ACU-RITE" DIGITAL READOUT DISPLAY

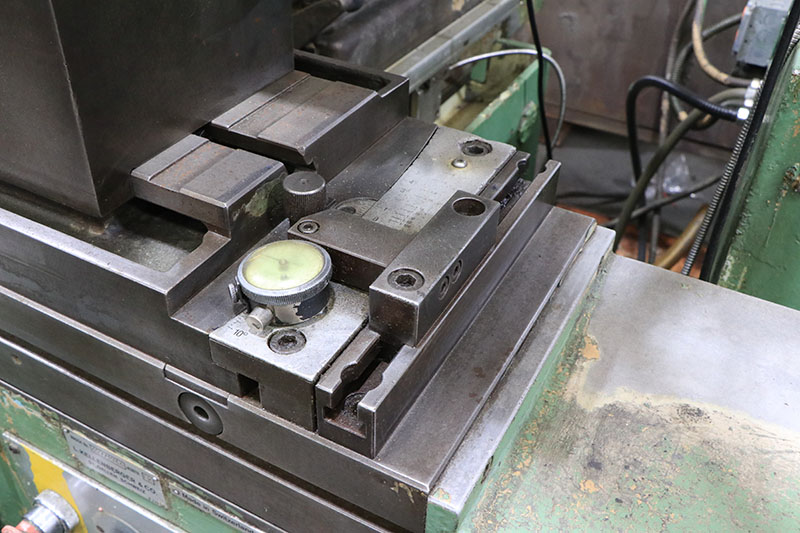

- DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT
- CENTER IN WORKHEAD SPINDLE
- ADJUSTABLE RISE & FALL MECHANISM OF WHEELHEAD BY TURN OF HANDWHEEL
- SWING AROUND INTERNAL GRINDING ATTACHMENT, DOES NOT HAVE AN I.D. SPINDLE.
- 16" O.D. WHEEL
- WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE
- 4 H.P. WHEELHEAD MOTOR

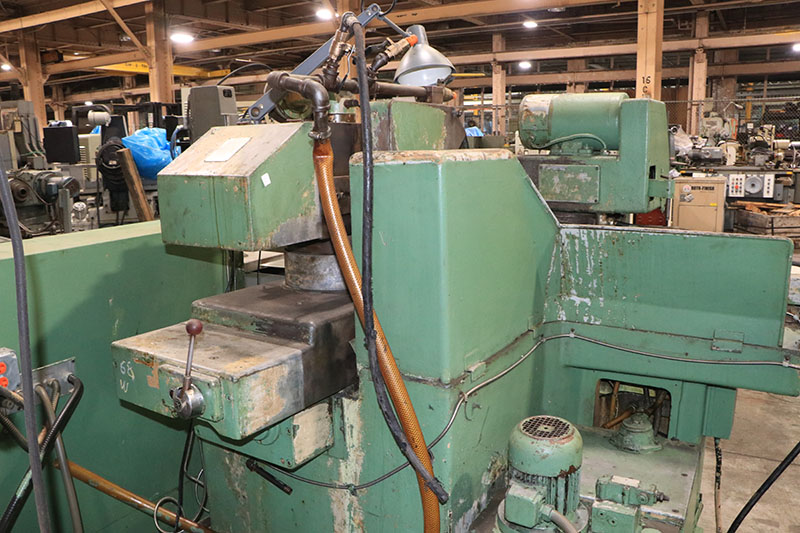

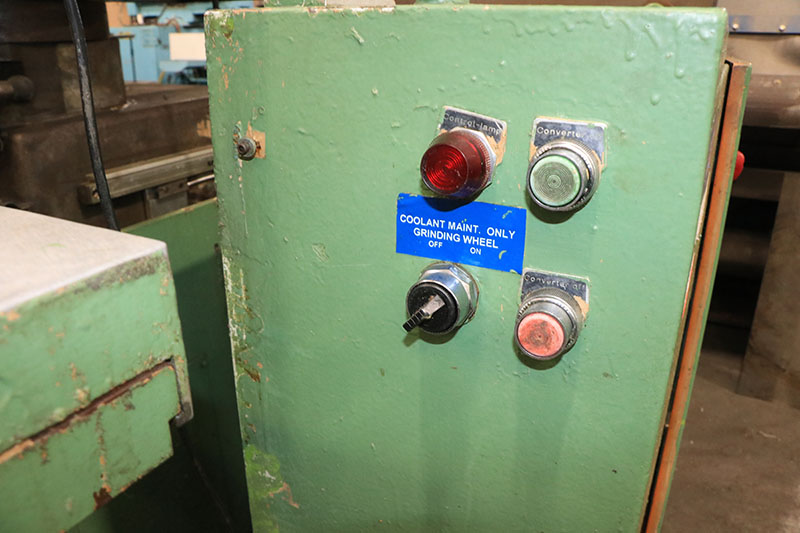

- COOLANT SYSTEM
- LEVELLING PADS

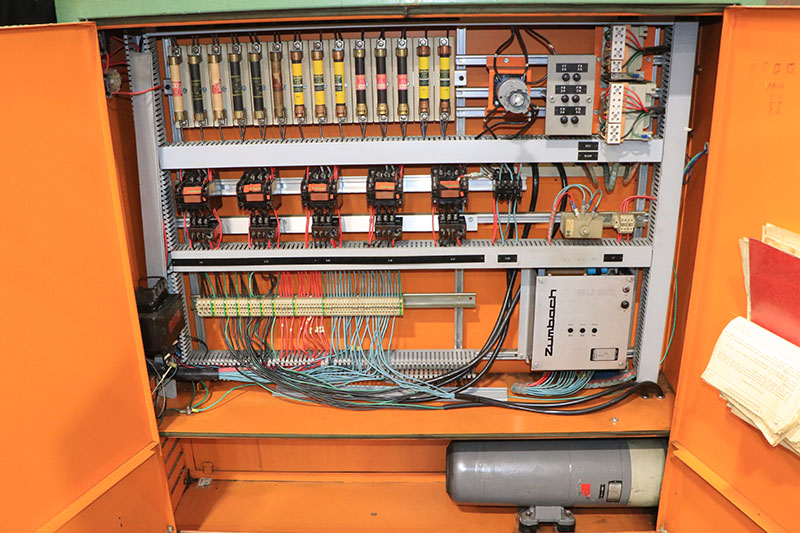

- MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

SPECIAL NOTE:
AVAILABLE FROM KELLENBERGER TO INCREASE THE SWING OF THIS MACHINE,
 FACTORY RISER BLOCKS.  MAXIMUM SWING OBTAINABLE IS 19.8".



** EXCELLENT CONDITION & APPEARANCE - FROM A DEFENSE CONTRACTOR **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
