Kia Super KiaTurn 21LMS CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Kia

Model:: Super KiaTurn 21LMS

Year:: 2004

Ref #:: 162283

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

KIA KIATURN 21 LMS CNC TURNING CENTER W/ MILLING & SUB SPINDLE
NEW: 2004

Video Link: https://youtu.be/e0NWEVjw5co
SPECIFICATIONS:
Swing Over Bed                         21.6"
Max Turning Diameter                   13.8"
Max Turning Length                     20.9"
Spindle nose                           A2-6
Hole through spindle                   2.99"
Max Bar Cap.                           2.56"
Spindle speeds                         25-4000 RPM
X Axis Travel                          8.2"
Z Axis Travel                          21.6"
B Axis Travel                          29.5"
Rapid Traverse X,Z,B                   1417,1417,1181 IPM
Turret Style                           12 tools
Sub Spindle Speeds                     5000 RPM
Main Motor                             20 HP AC
Sub-Spindle                            5 HP AC
Milling Spindle Speeds                 4000 RPM
Milling Spindle Motor                  5 HP AC
Machine Weight                         10,600 LBS.

EQUIPPED WITH:
 FANUC 0iTB CNC CONTROL
 ATS S26 COLLET CHUCK ON MAINSPINDLE
 16C COLLET CHUCK ON SUBSPINDLE
 12 POSITION TURRET
 FULL C-AXIS ON MAINSPINDLE
 AUTOMATIC PARTS CATCHER

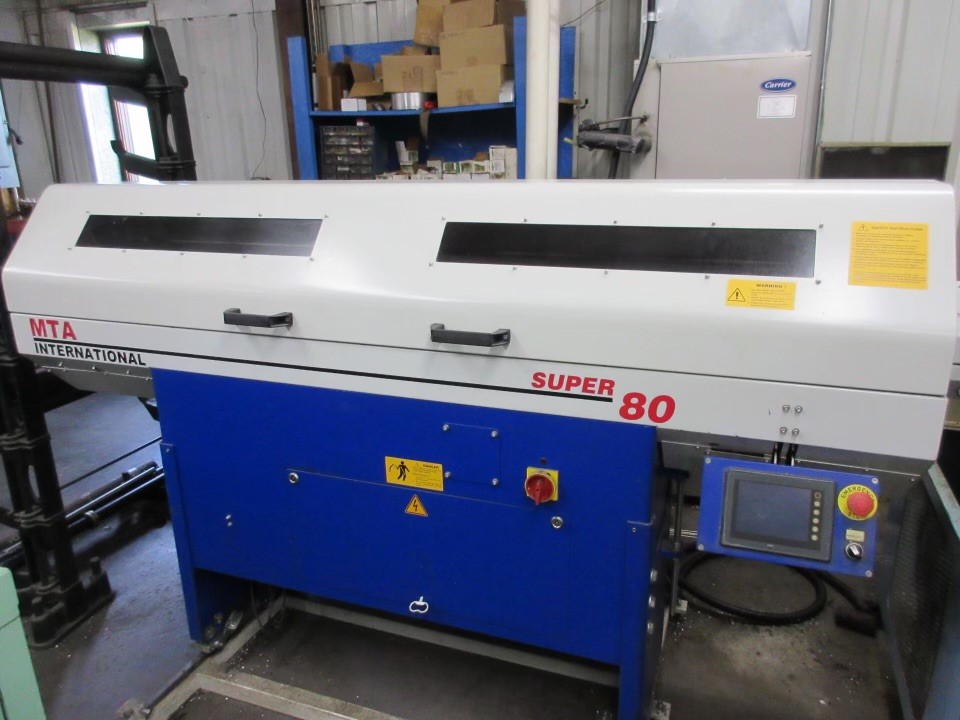

 MTA SUPER 80 SHORT MAGAZINE BAR FEED
 CHIP CONVEYOR
 ALL AVAILABLE STATIC AND LIVE TOOL HOLDERS
 ALL AVAILABLE MANUALS
