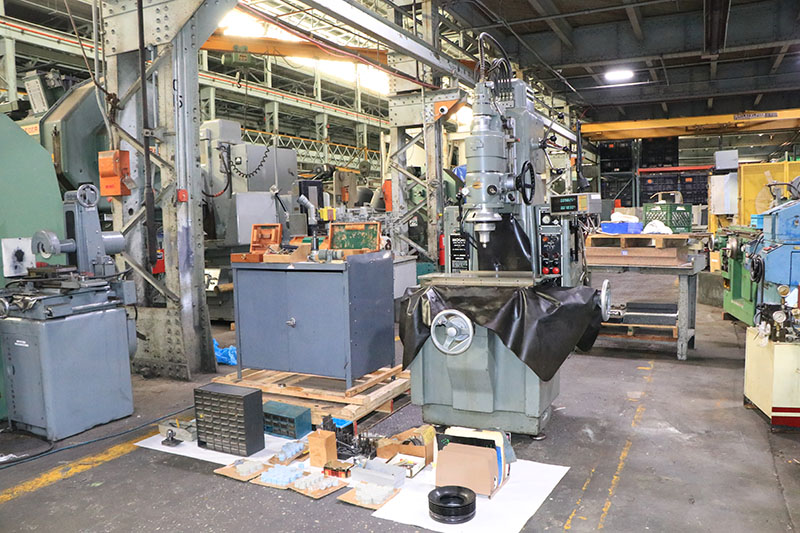

Moore #3, S/N: G1728, 2X DRO, ACCESSORIES, CHERRY JIG GRINDERS

Price on Request

Make:: Moore

Model:: #3, S/N: G1728, 2X DRO, ACCESSORIES, CHERRY

Year:

Ref #:: 166479

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

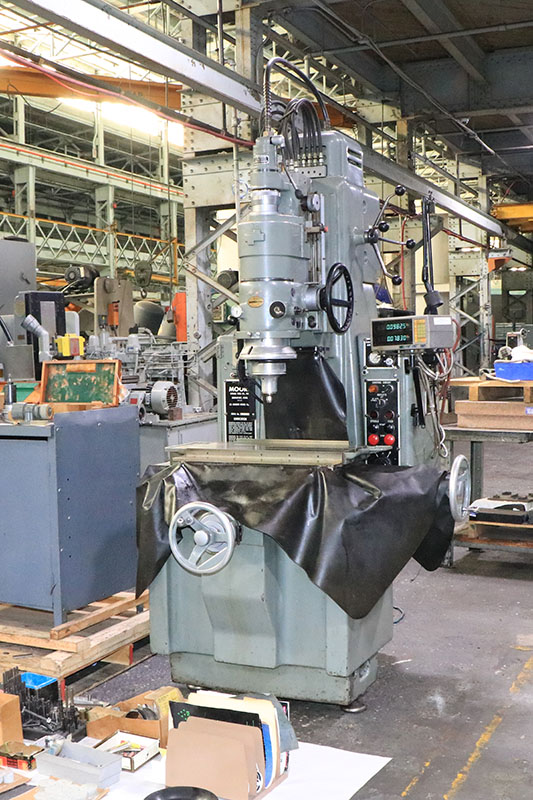

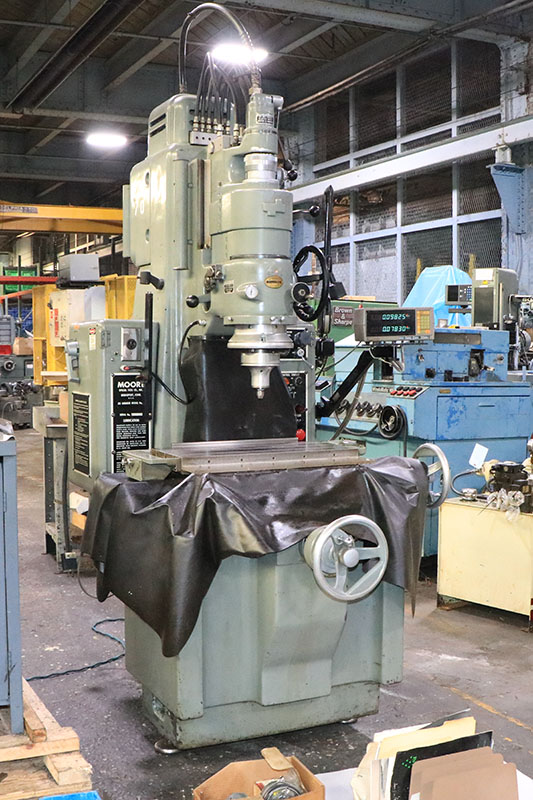

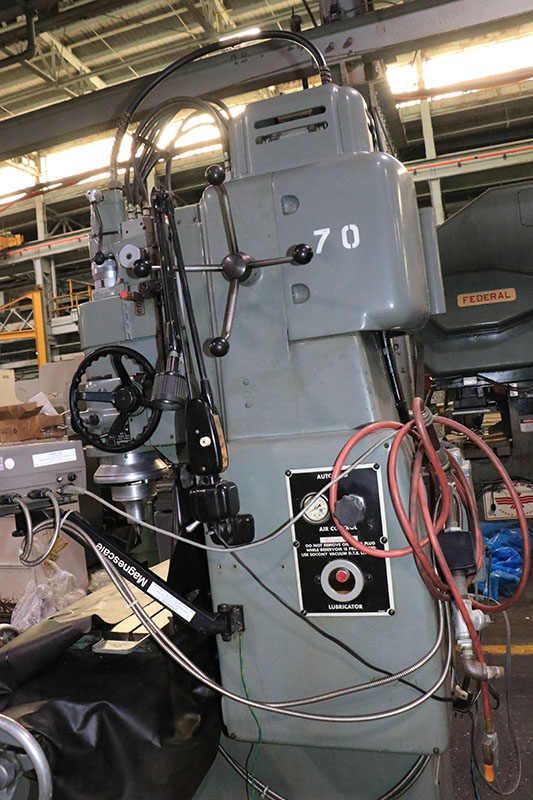

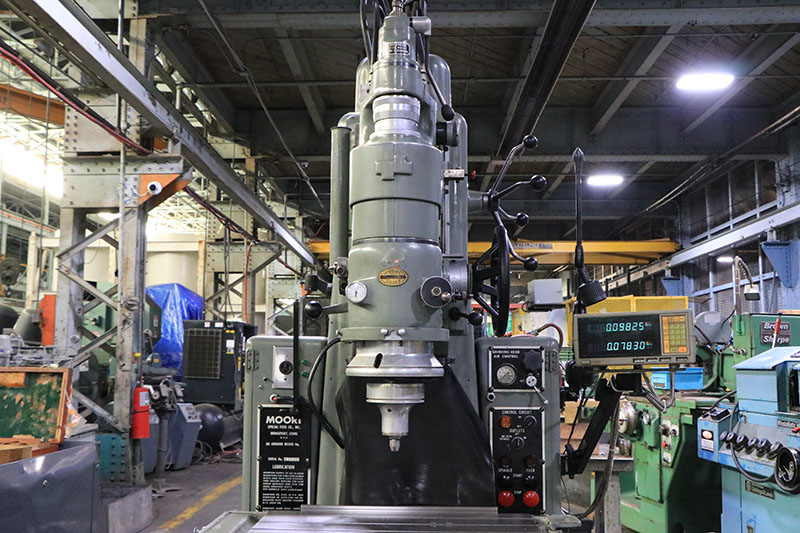

  #3 MOORE JIG GRINDER

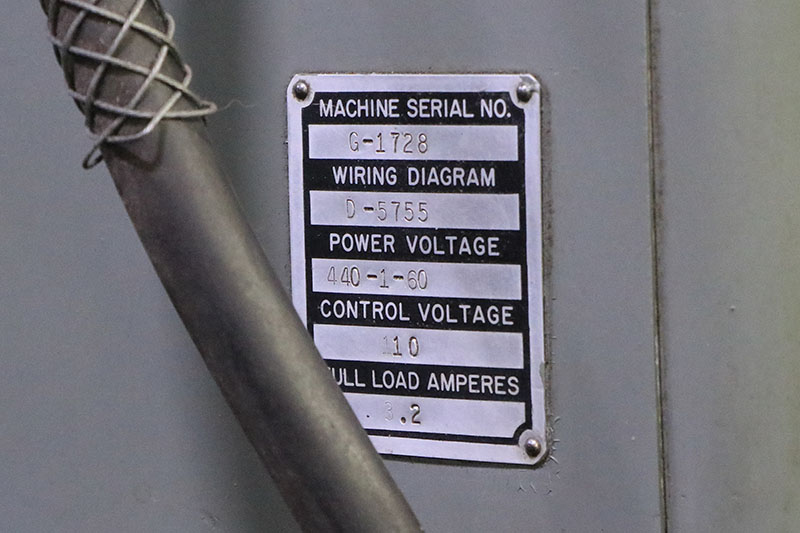

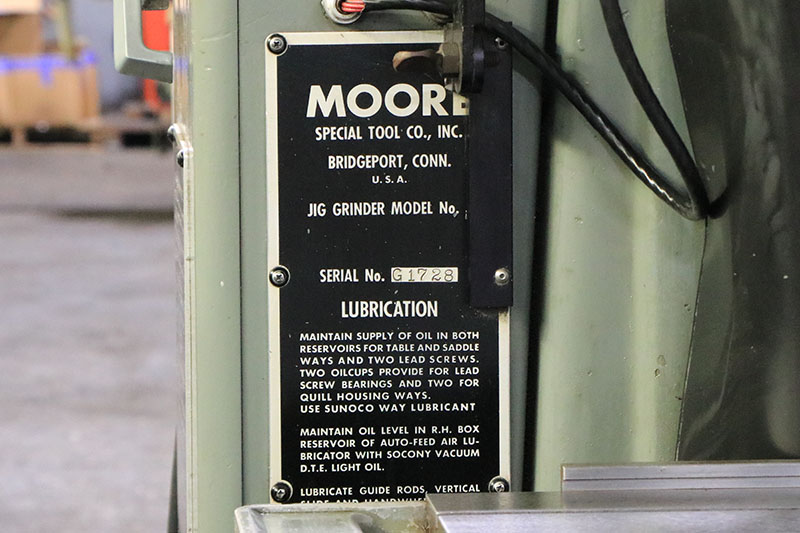

S/N: G-1728

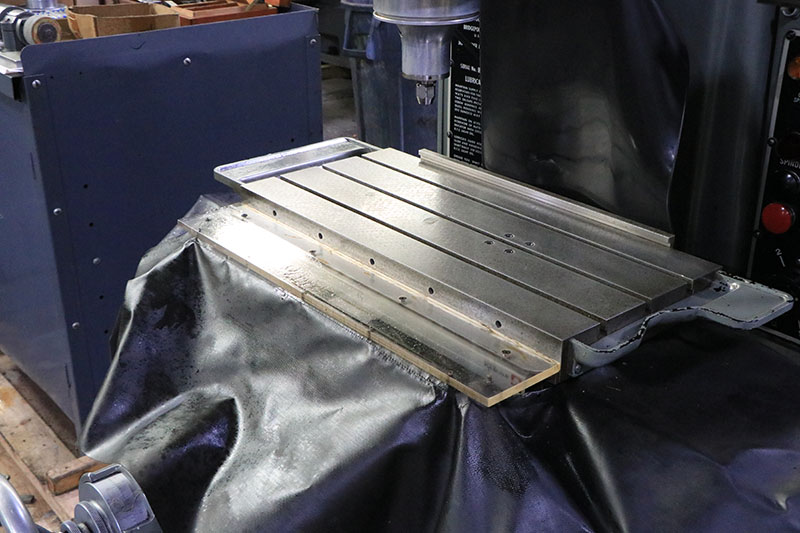

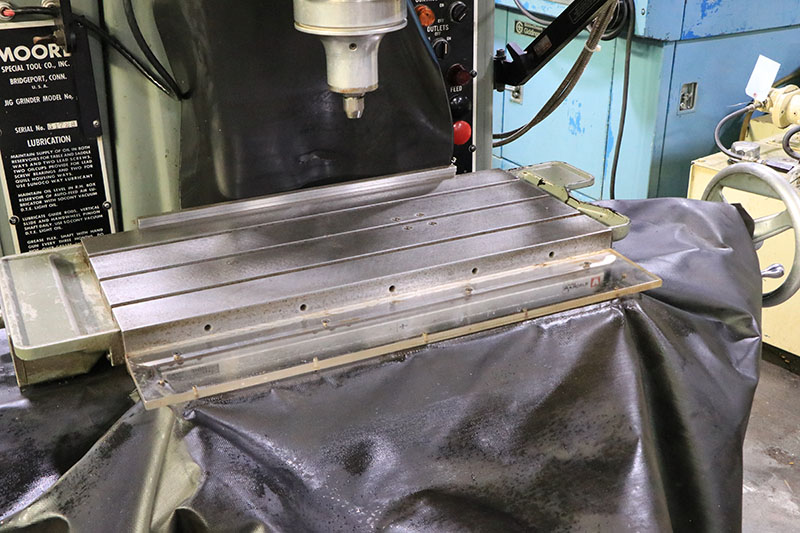

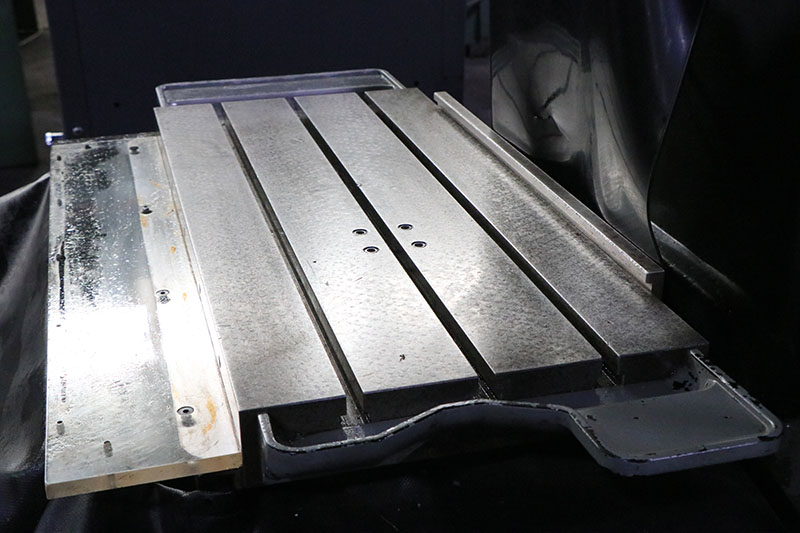

TABLE SIZE ........................... 11" x 24"
RANGE:
TABLE MOVEMENT ....................... 11" x 18"
TABLE TOP TO WHEEL COLLET ............ 2" x 18"
SPINDLE TO COLUMN WAYS ............... 10"
SPINDLE TO COLUMN BELOW WAYS ......... 13-1/2"
INFINITELY VARIABLE SPINDLE SPEEDS ... 40 TO 250 RPM
INFINITELY VARIABLE SPINDLE FEEDS .... 2 TO 120 SPM
GRINDING CAPACITY:
GRINDING WHEELS ...................... 3/16" TO 5"
DIAMOND MANDRELS ..................... 1/64" TO 3/16"

MAIN SPINDLE SLIDE ADJUSTMENT ........ 1-1/2° EITHER WAY,
                                       3° INCLUDED ANGLE

RADIAL OFF-SET OF GRINDING SPINDLE:
  (A) - FROM CENTER TO 1-1/8" OFF CENTER BY ROUGH ADJ.
  (B) - WHILE RUNNING .0001" ADJ. FOR DISTANCE OF .100"
         ANYWHERE IN THE 1-1/8" RANGE

APPROXIMATE WEIGHT ................... 3,700 LBS
APPROX. FLOOR SPACE REQUIRED ..... 72"LR x 84"FB x 102"H

EQUIPPED WITH:
HARDENED, GROUND AND LAPPED STEEL WAYS (NO GIBS)
HARDENED, GROUND & LAPPED LEAD SCREWS
1/2 HP VARIABLE DC MOTOR WITH RECTIFIER
MACHINE IS WIRED FOR 220 VOLTS/1PH/60Hz ELECTRICS

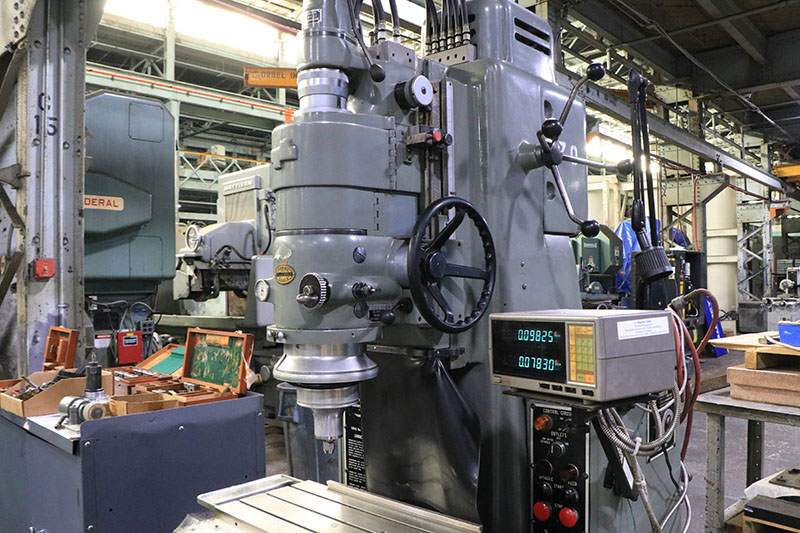

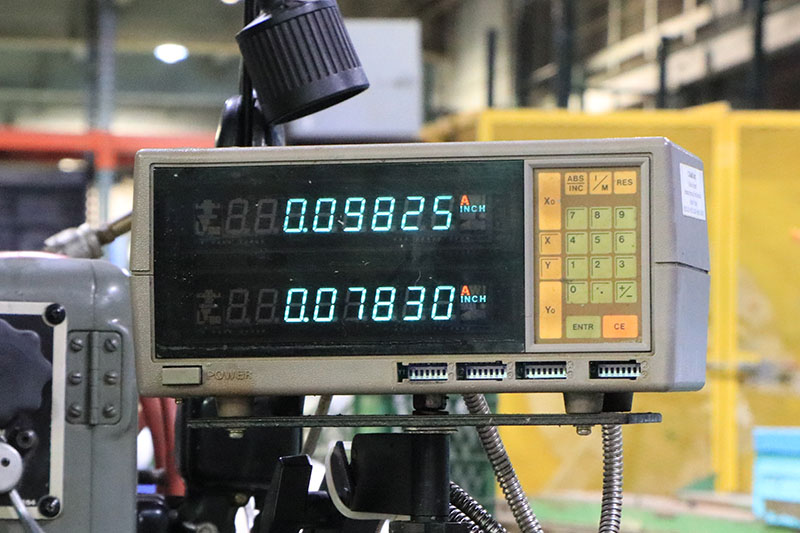

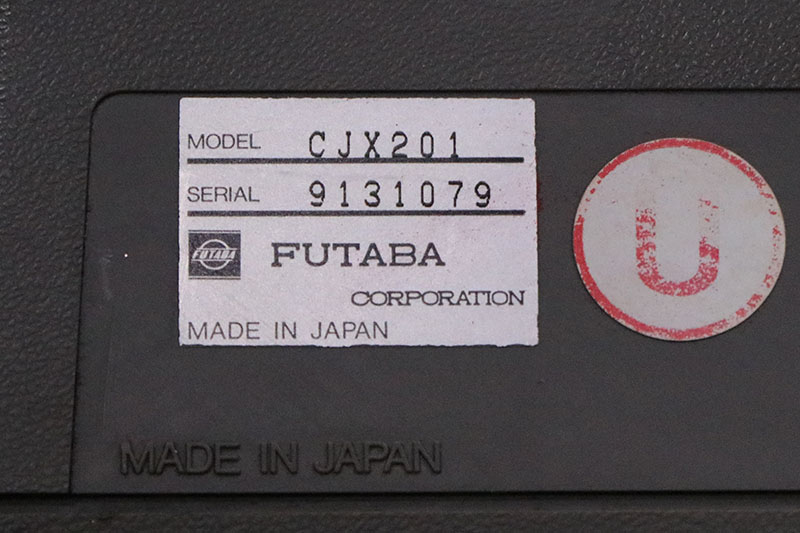

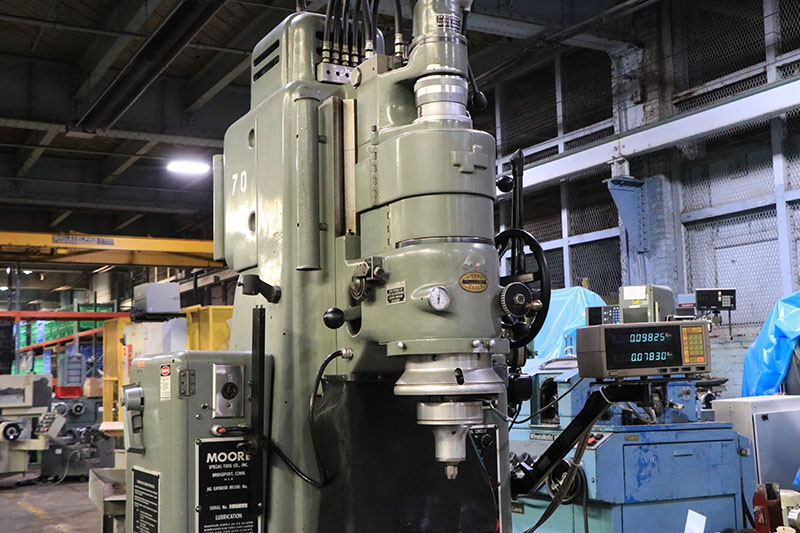

FUTABA 2-AXIS DRO

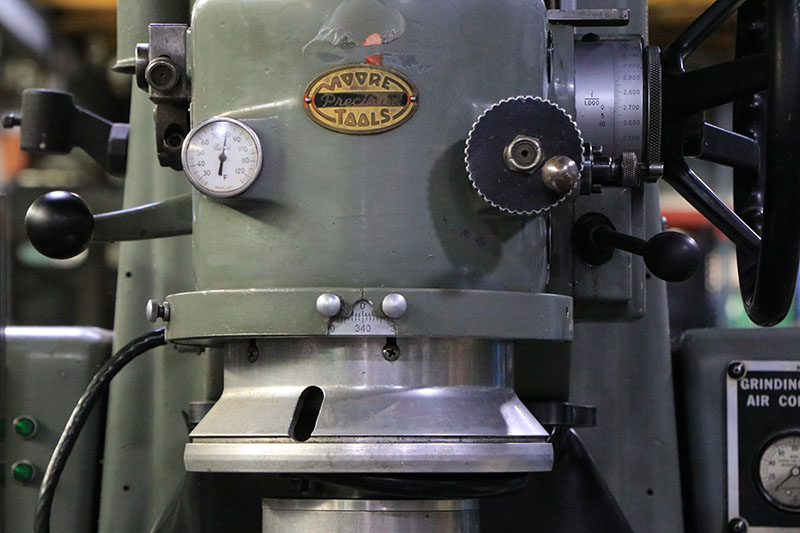

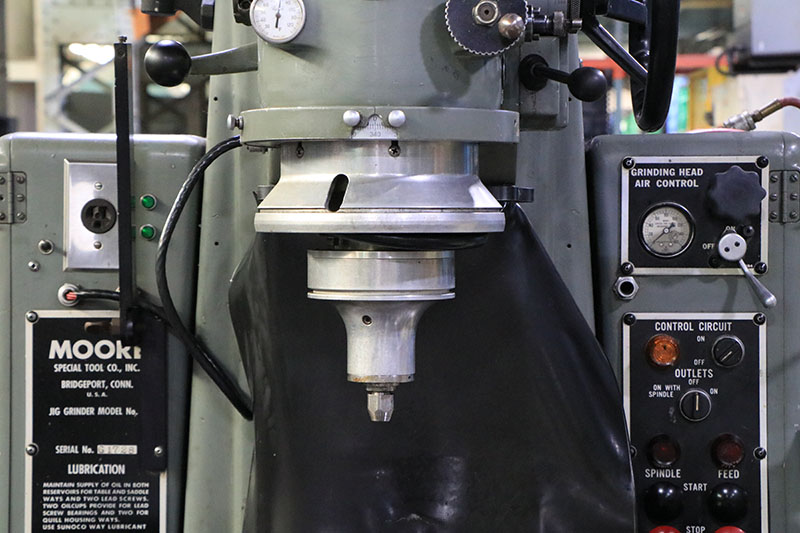

MOORE JIG GRINDING HEAD

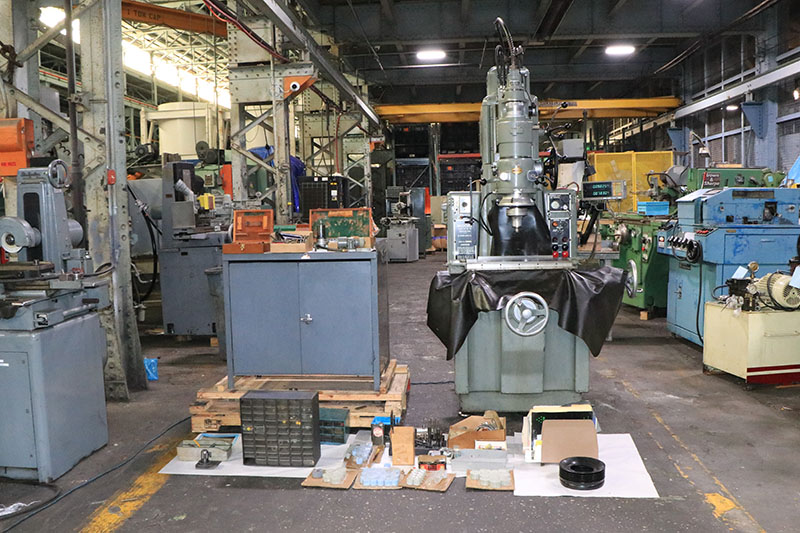

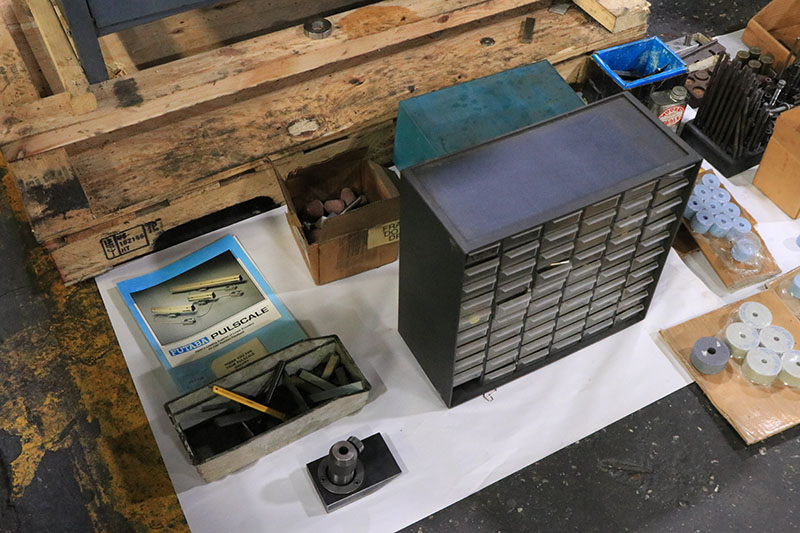

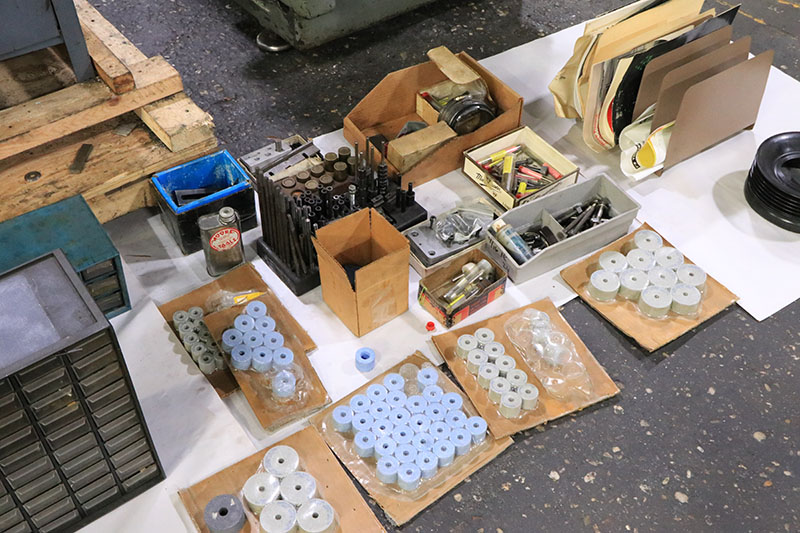

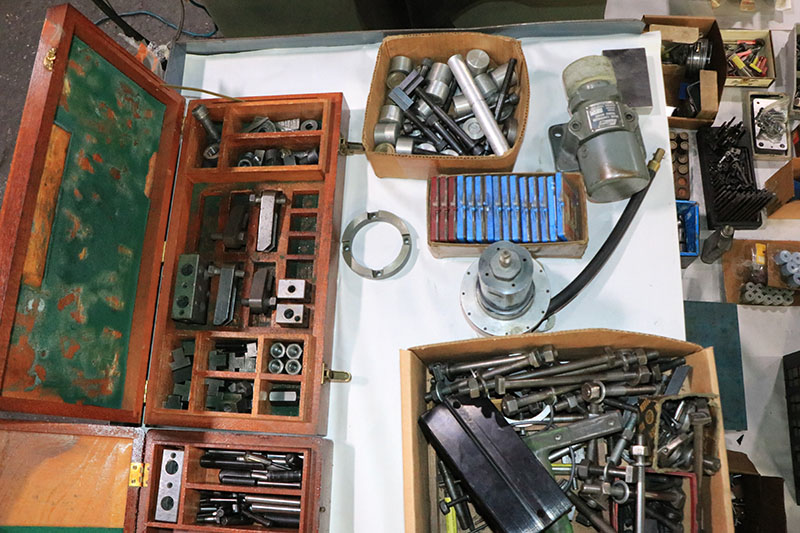

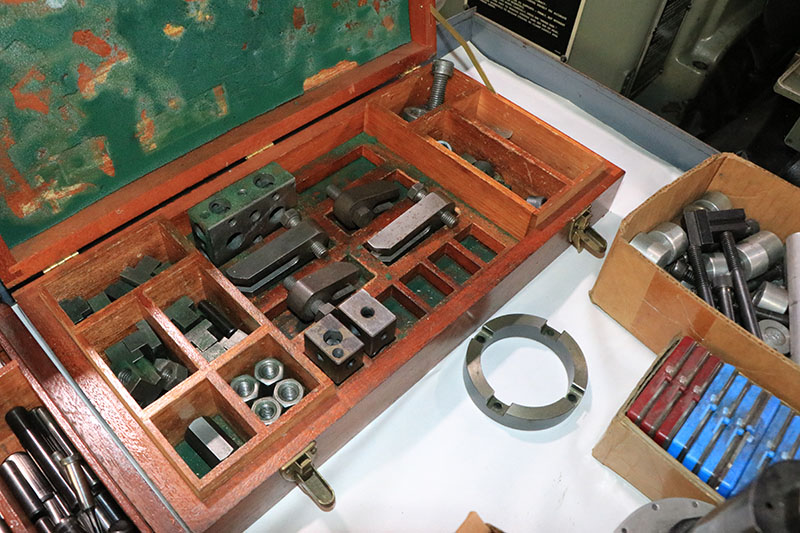

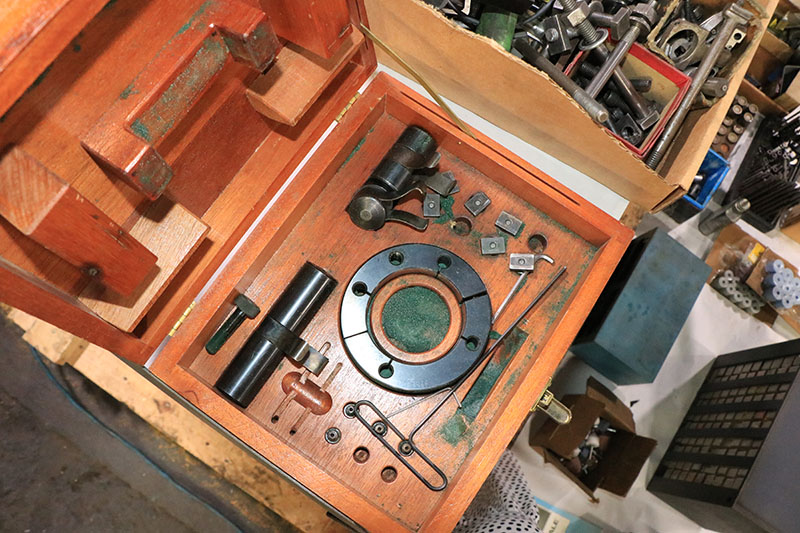

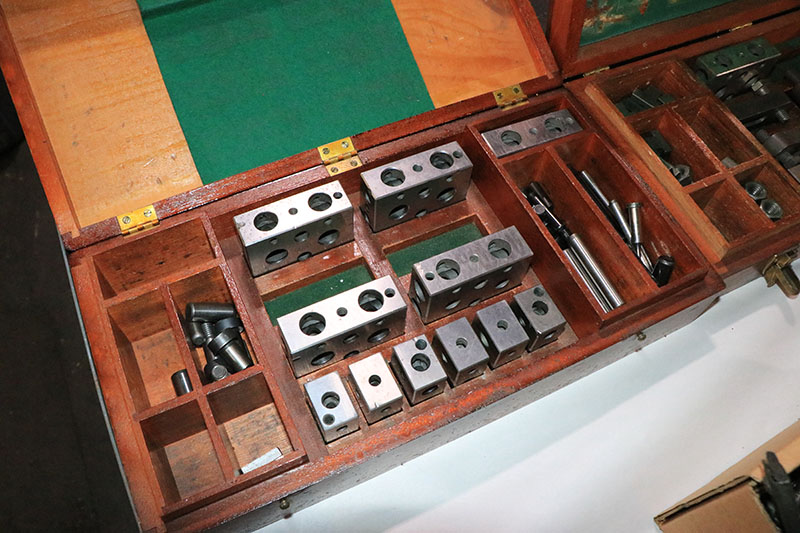

MANY ACCESSORIES AS SHOWN IN THE PHOTOS


** INSPECT UNDER POWER IN OUR WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
