Okuma Multus B750W/4000 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: Multus B750W/4000

Year:: 2010

Ref #:: 159646

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

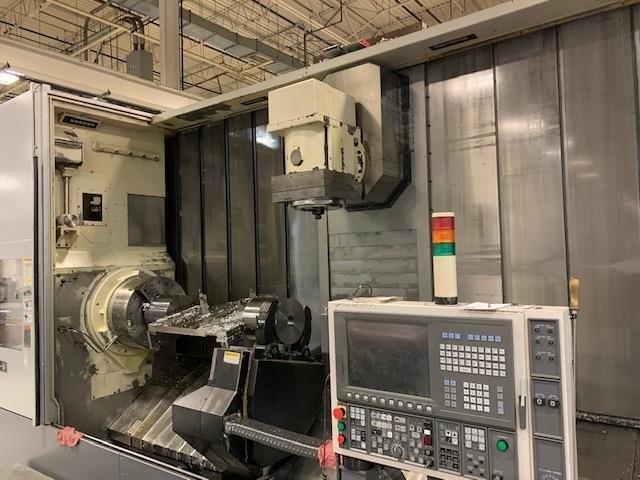

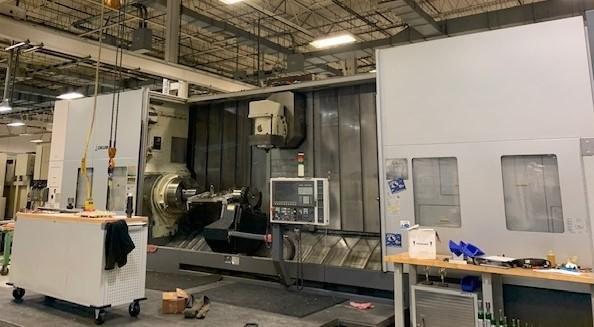

Okuma Multus B750W/4000 CNC Muti-Tasking Turning Center
Year:  2010

SPECIFICATIONS:
Swing Over Bed:  41.34"
Turning Diameter:  36.2"
Turning Length:  165"
Distance Between Spindles:  178.9"
Spindle Nose 1, 2:  A2 -15, A2 -11
Spindle Bore Diameter 1, 2:  11.02", 8.66"
Spindle Speeds 1, 2:  1500, 2000 RPM
Spindle Horsepower 1, 2:  50, 50 HP
B - Axis Head Indexing:  -30, +120 Degrees
B - Axis Milling Spindle Speed:  5000 RPM
B - Axis Milling Spindle Taper:  CAPTO C8
B - Axis Milling Spindle Horse Power:  40 HP
ATC For Milling Spindle:  80 ATC
Tool Diameter:  11.81"
Tool Length:  23.62"
Tool Weight:  30 lbs
X - Axis Travel X1, X2, X3:  42.52"
Z - Axis Travel Z1, Z2, Z3:  165.9"
Y - Axis Travel Y1, Y2, Y3:  25.9"
C - Axis Indexing 1, 2:  .001, .001 Degrees
W - Axis Travel Sub Spindle:  89"
Rapid Traverse Rates X1, X2, X3:  1575"
Rapid Traverse Rates Z1, Z2, Z3:  1575"
Rapid Traverse Y1, Y2, Y3:  1181"
Machine Weight:  59,800 lbs

Equipped With:
Spindle Chiller
Chip Conveyor
Thru Spindle Coolant
Full Contouring B-Axis Mill Head
Auto Tool Changer 80 ATC
Steady Rest 16" Capacity
24" 3-Jaw Hydraulic Chuck on Main, 18" on Sub
(3) Long Boring Bar Attachment
