Parker-Majestic LIBERTY "STYLE 14x10 COMBINATION" , ID /OD, CNC UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Parker-Majestic

Model:: LIBERTY "STYLE 14x10 COMBINATION" , ID /OD,

Year:: 2004

Ref #:: 172430

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

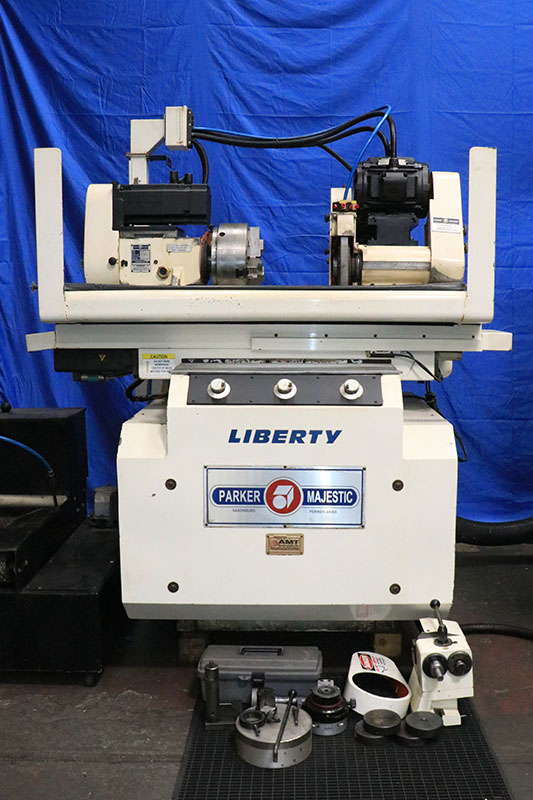

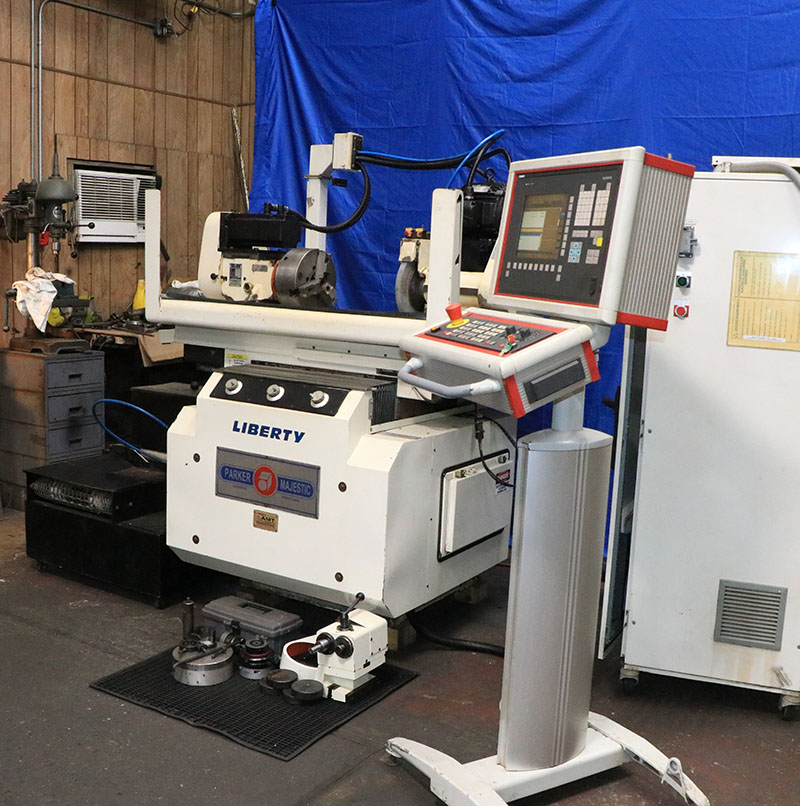

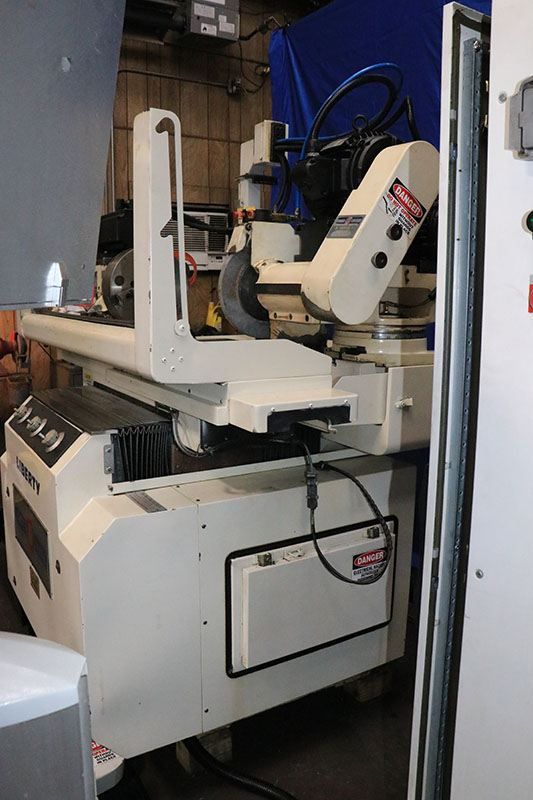

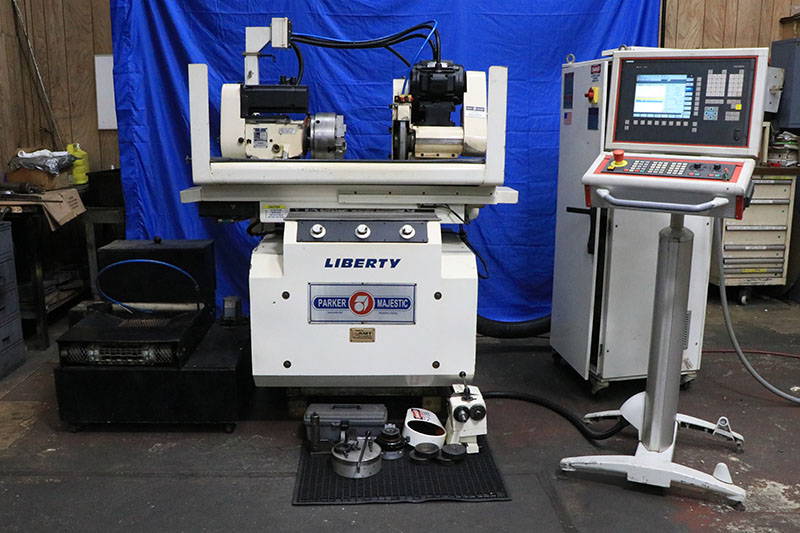

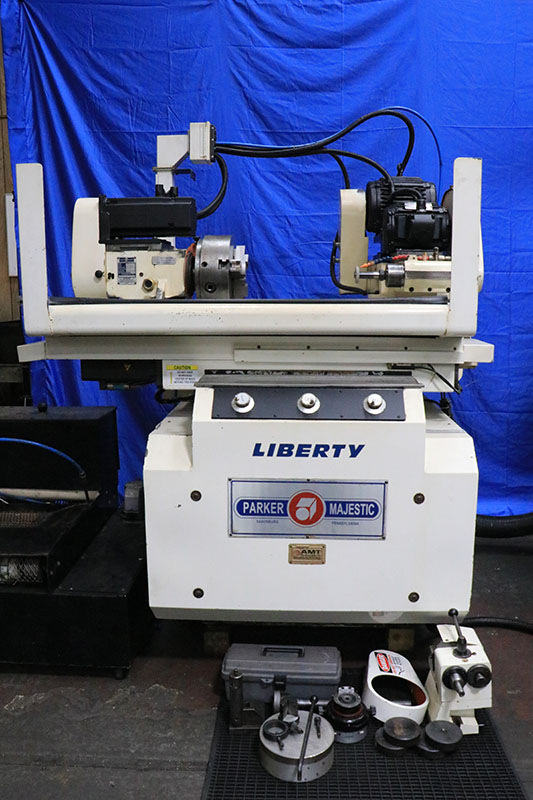

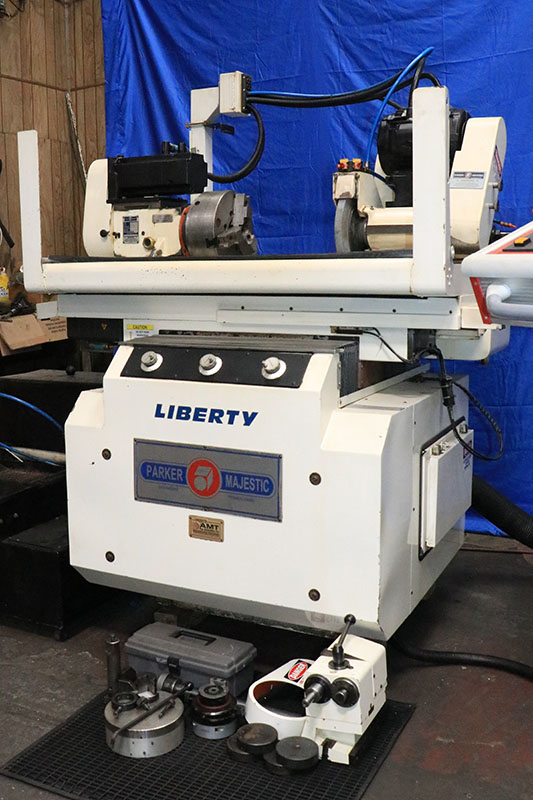

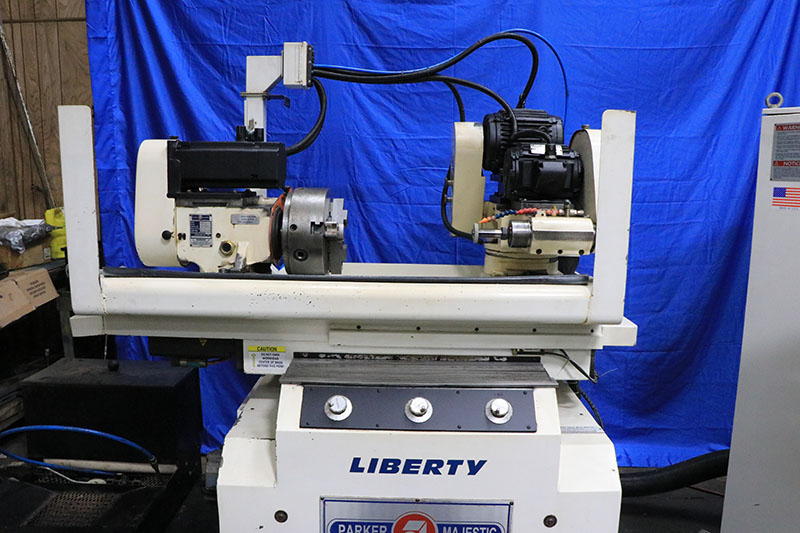

    14" x 10"cc PARKER-MAJESTIC
    "LIBERTY" "STYLE 14x10 COMBINATION"
     "HIGH PRECISION (MADE IN USA)
  CNC UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

    *** SIEMENS SINUMERIK 810D CNC CONTROL,
         3-AXIS CNC, X, Z & C AXES ***

     ** WITH MANY ACCESSORIES, SEE BELOW **

    S/N: 0000-55-7CC-04       NEW: 2004




SPECIFICATIONS:
  Table Specs:
     Table Size ........................ 5" x 32"
     Table Stroke Length ............... 0.4" - 15"
     Max. Number of Table Strokes ...... 132 - 1" Strokes

  Work Capacity:
     Swing ............................. 14"
     Distance between centers .......... 10"
     Z Axis Travel ..................... 15"
     X Axis Travel ..................... 7"

  Headstock:
     Work Spindle Speed ................ 50 - 450 RPM
     Workhead Swivels .................. 0 to 90 Deg.

  Wheelhead:

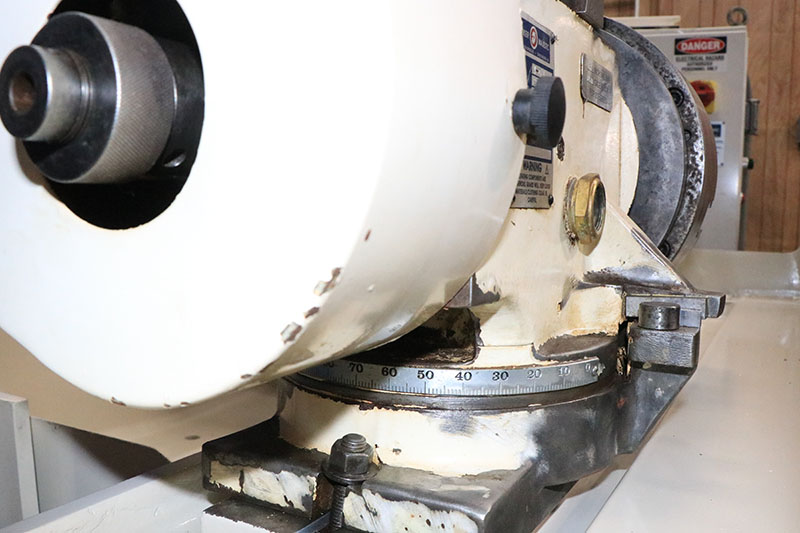

     Swivels 0 to 40 Degrees Either Direction

  Machine Size:
  Machine Weight .................. 3,500 Lbs.
  Floor Space ..................... 72.62" x 59"


MACHINE FEATURES:

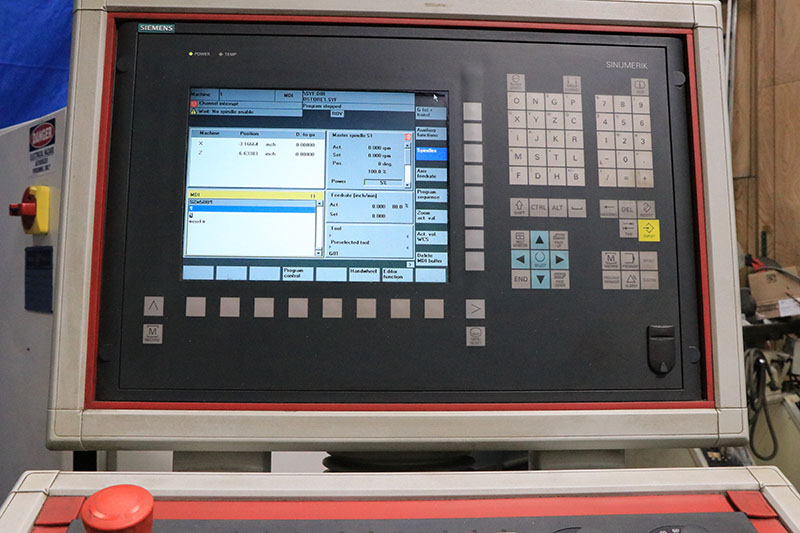

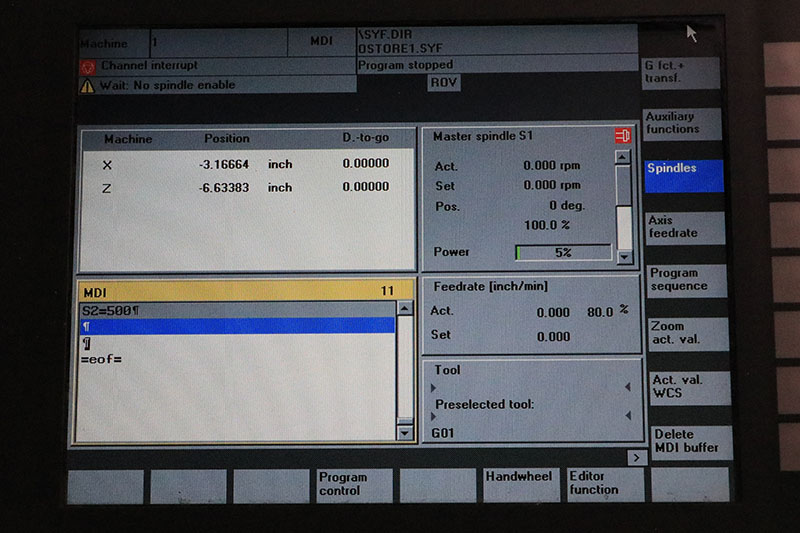

  Siemens SINUMERIK 810D, with Continous Path Contouring

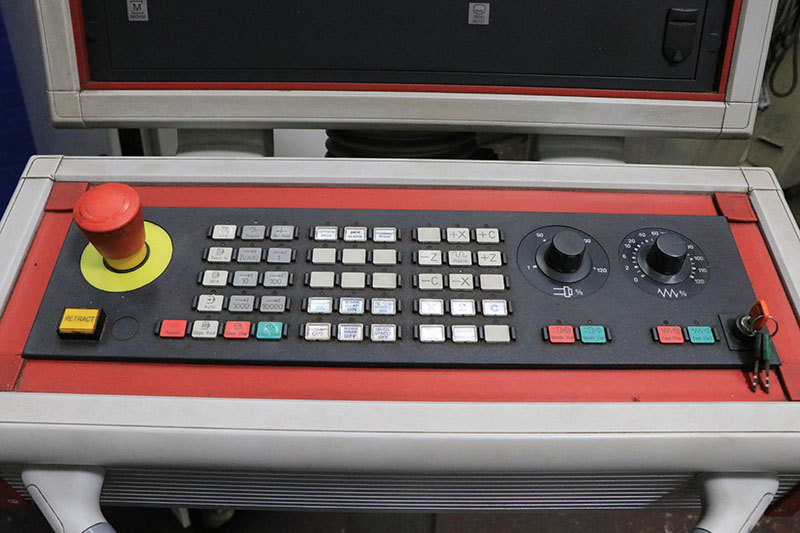

  10.4" TFT Color Display w/Numeric CNC Keypad
  Alphanumeric and Symbols
  Controller integrated keyboard

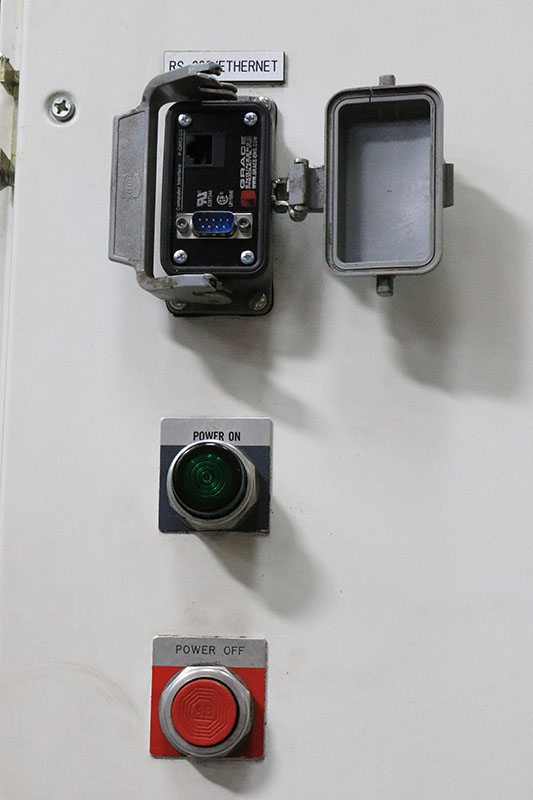

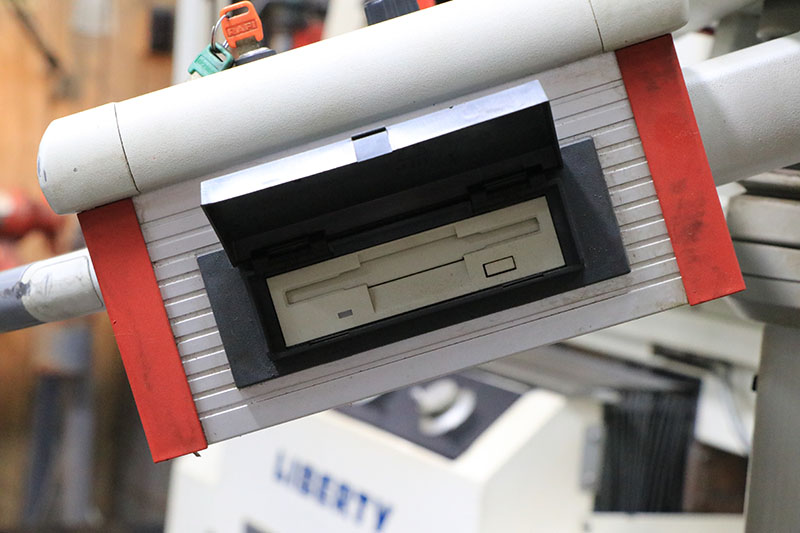

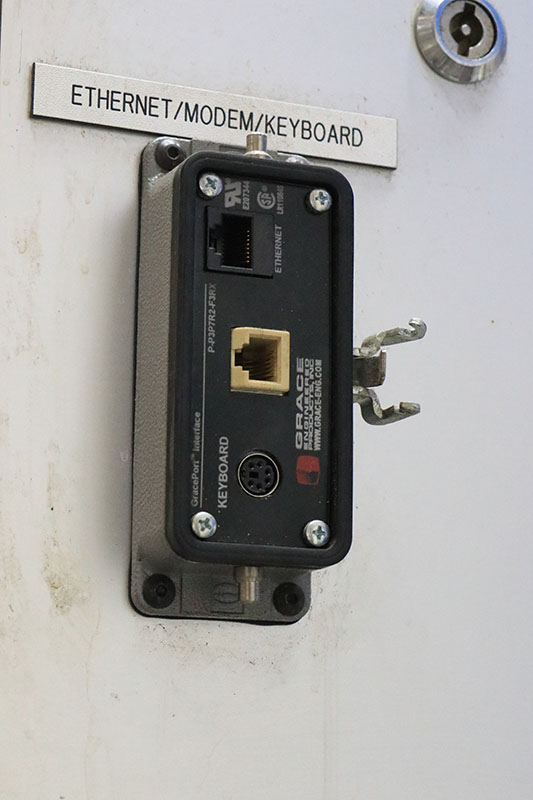

  Ethernet, RS-232, 3.5" Floppy Drive
  Incremental and Absolute
  Inch and Metric
  Minumum Input Command is .000010"
  2 Optional Macro Screens
  Remote diagnostics is standard
  Scale / Encoder Feedback Device

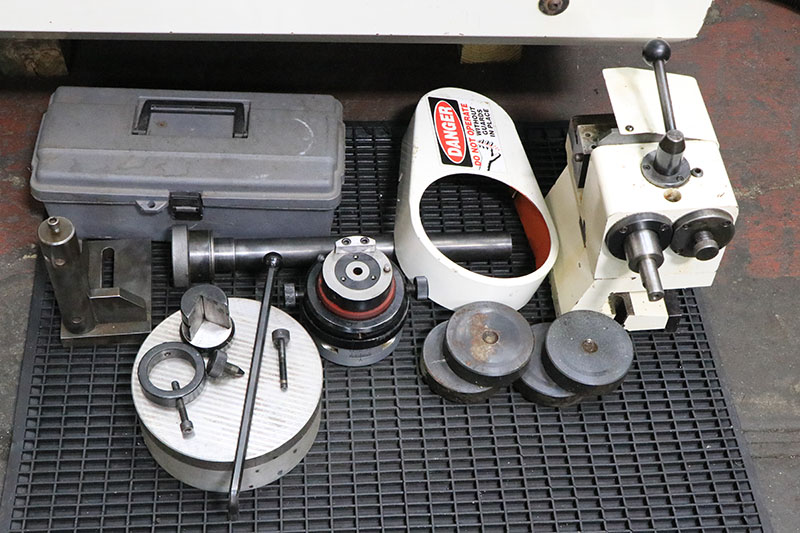

EQUIPPED WITH:

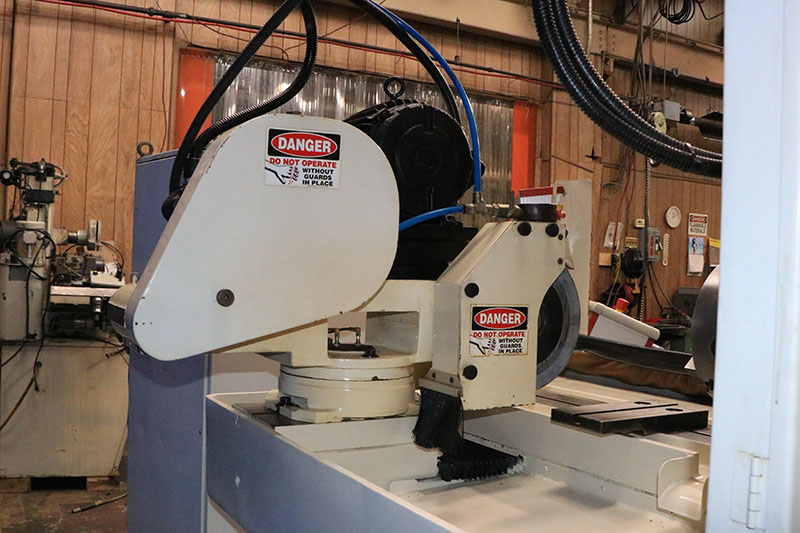

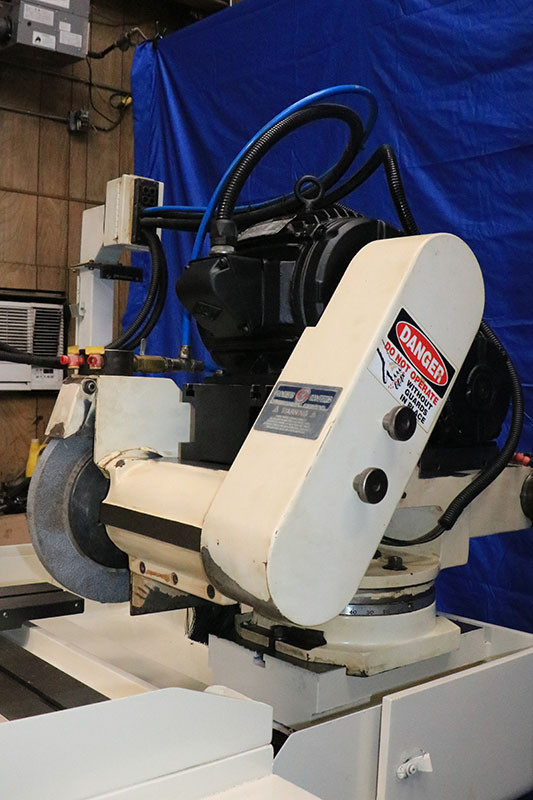

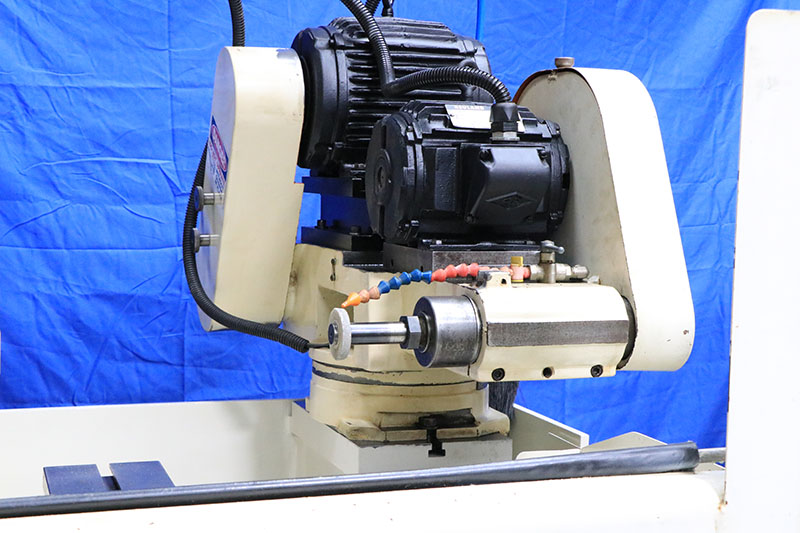

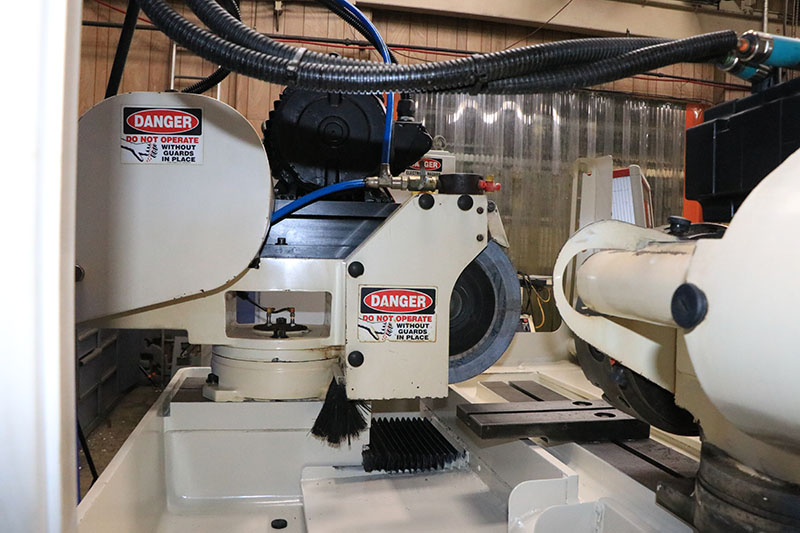

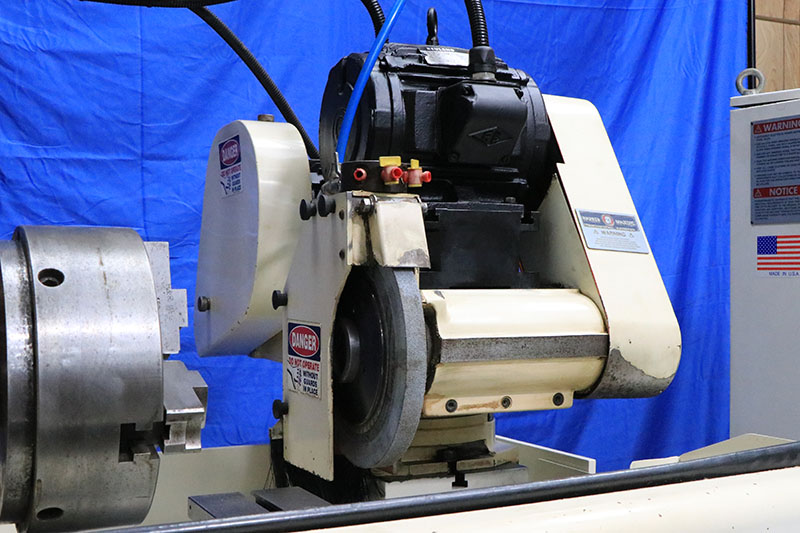

O.D. Grinding Wheelhead, 12" Grinding Wheel
  Presently on Machine
Wheelhead is Variable Spindle Speeds, Commanded thru
  The CNC Control
(2) P-M I.D. Grinding Spindles,

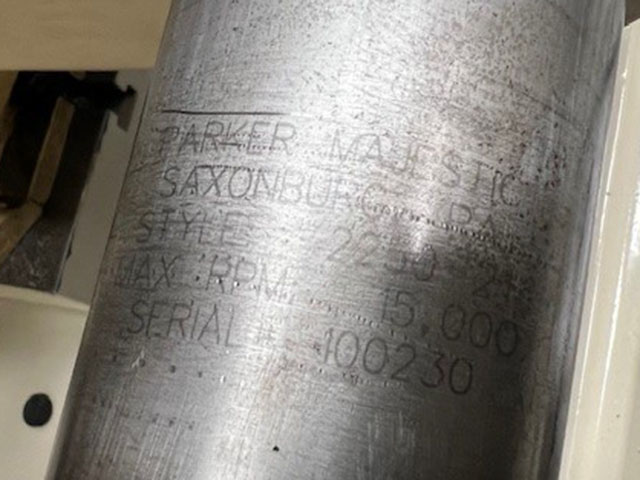

  a.  Style 2250-21, Max. 15,000 RPM
  b.  Style 2251-0013, Max. 25,000 RPM
8" Suburban Tool Model RMC-FP "Fine-Pole
  Magnetic Chuck
Levelling Pads

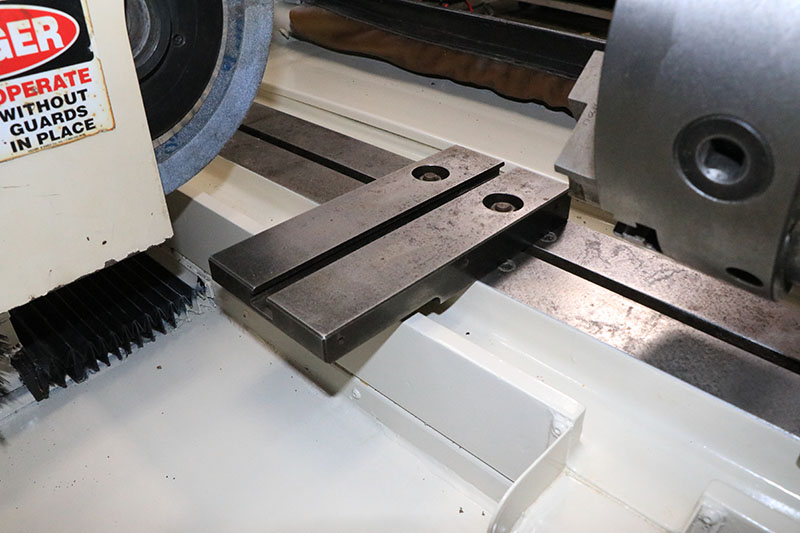

Table Mounted Single Point Dresser

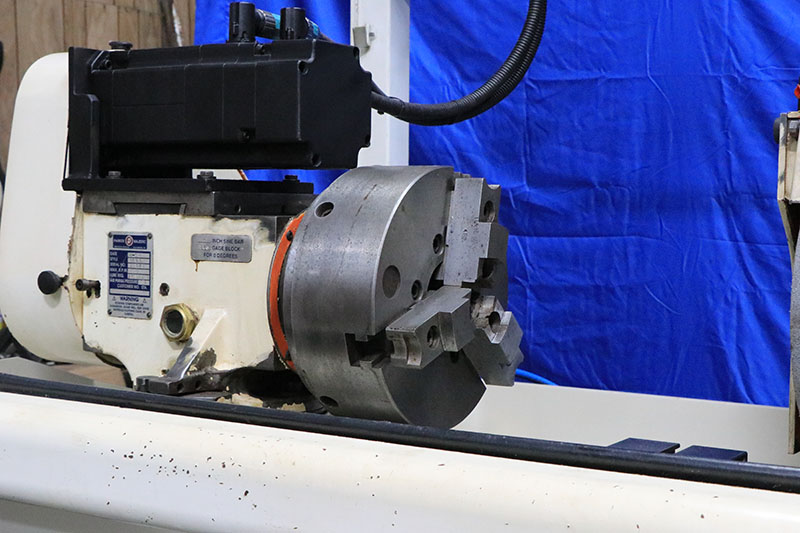

10" 3-Jaw Chuck, with Adaptor Plate
5C Collet Draw Bar, for 5C Collets

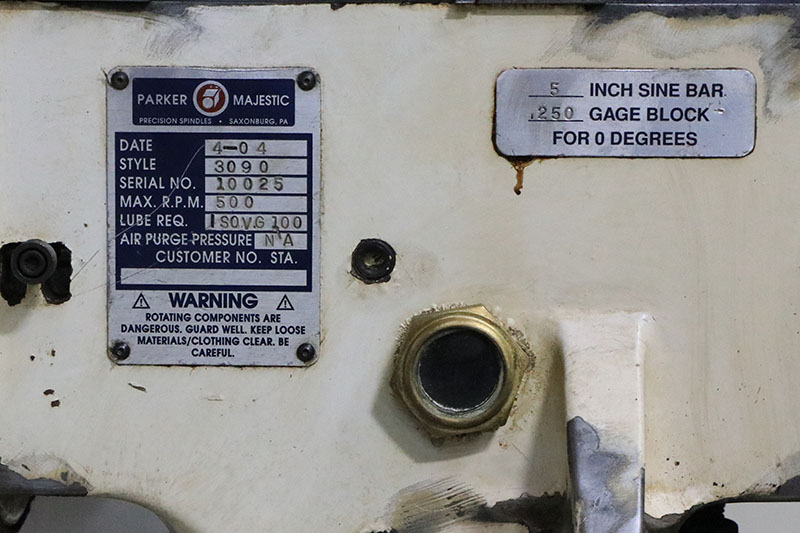

Workhead is Model No. 3090, it has Variable Spindle
  Speeds, Commanded thru The CNC Control
Workhead has a "C" Axis, for Degrees Rotation

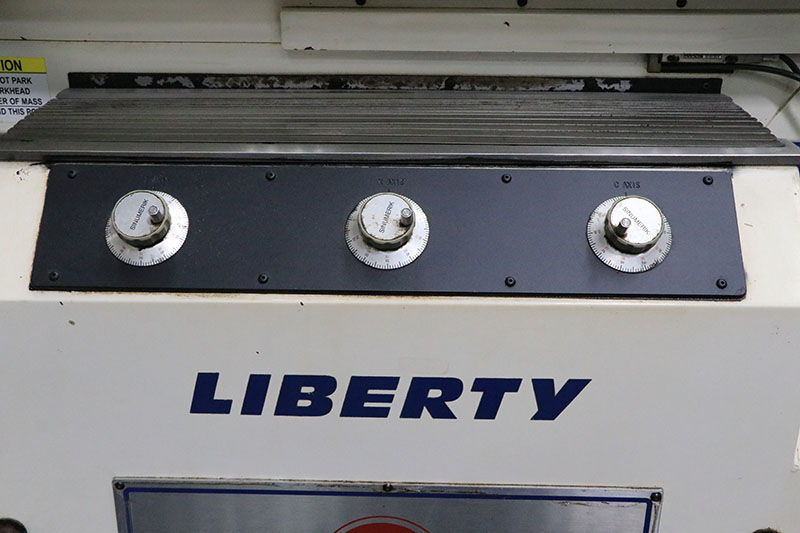

(3) Separate Pulse Genrator's, for X, Z & C Axes
Tailstock, Manual

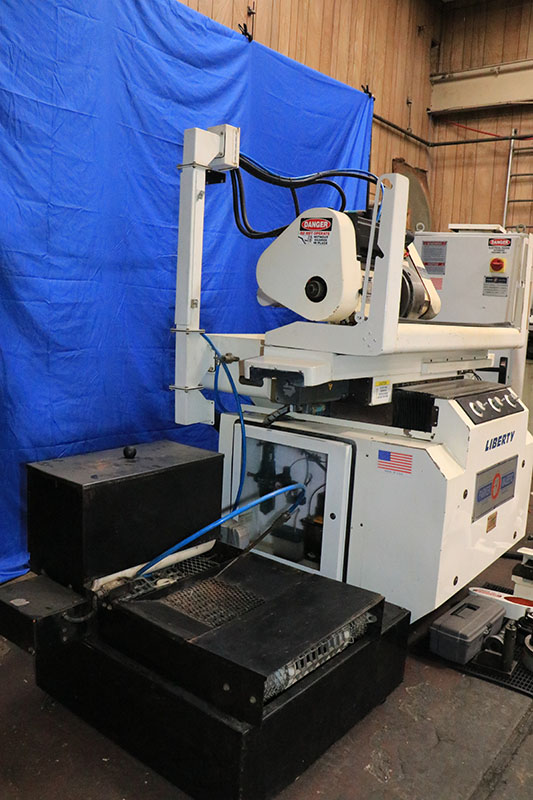

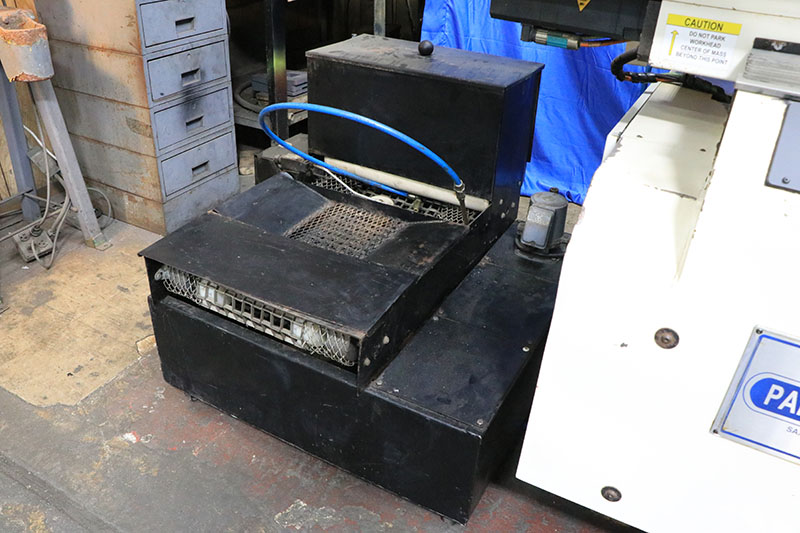

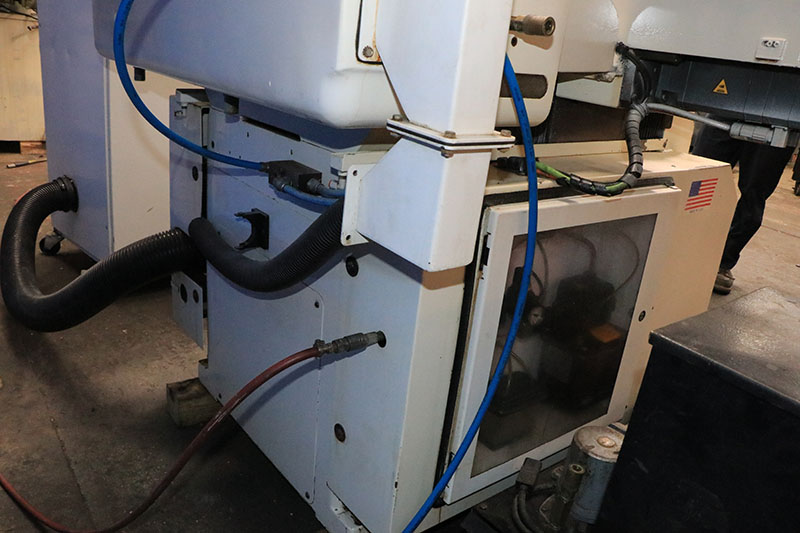

Coolant System with Paper Filtration
5 H.P. Motor, Wheelhead, AC Servo
2 H.P. Motor, Workhead, AC Servo
Variable Speed Drives are Siemens Made

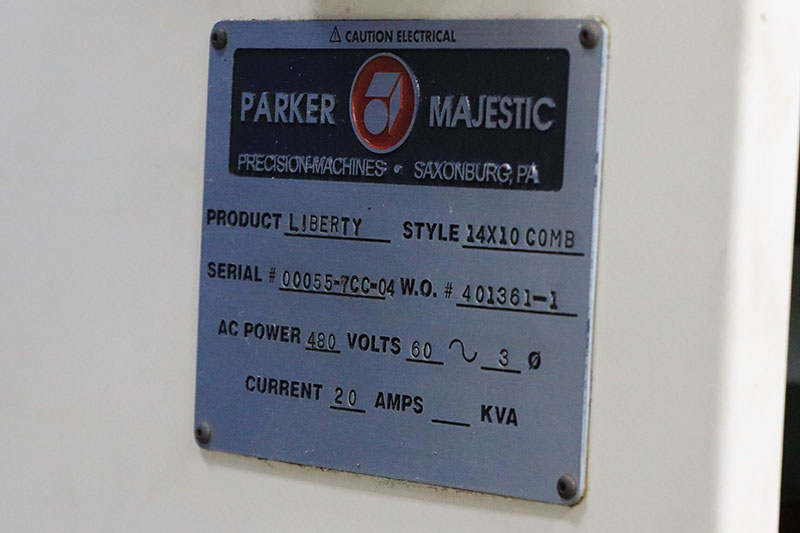

Machine is Presently Wired for 3/60/460 Volts,
  20 Full Load Amps

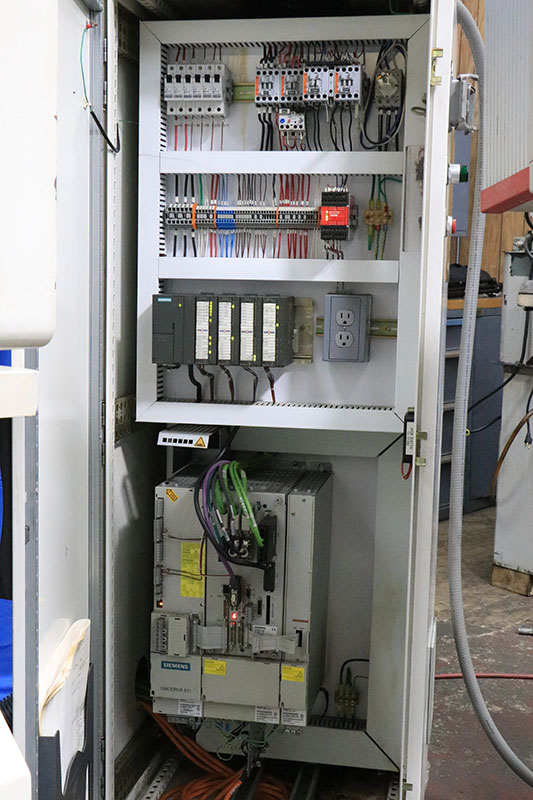

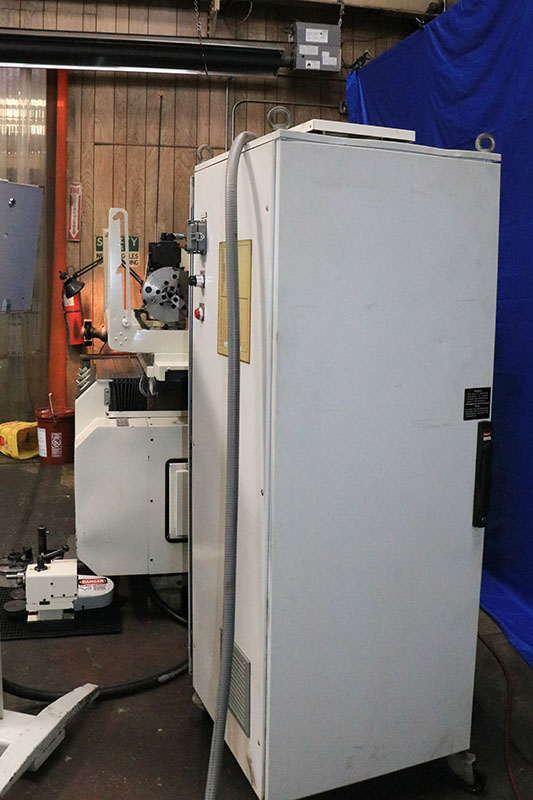

Inide Electrical Cabinet, Multi-Tap Transformer
  to Provide for Other Voltages


LINK TO VIDEO: https://youtu.be/mS1SQtjXIpE?si=MUukePmG_jUBH6-j

** SUPERB CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
