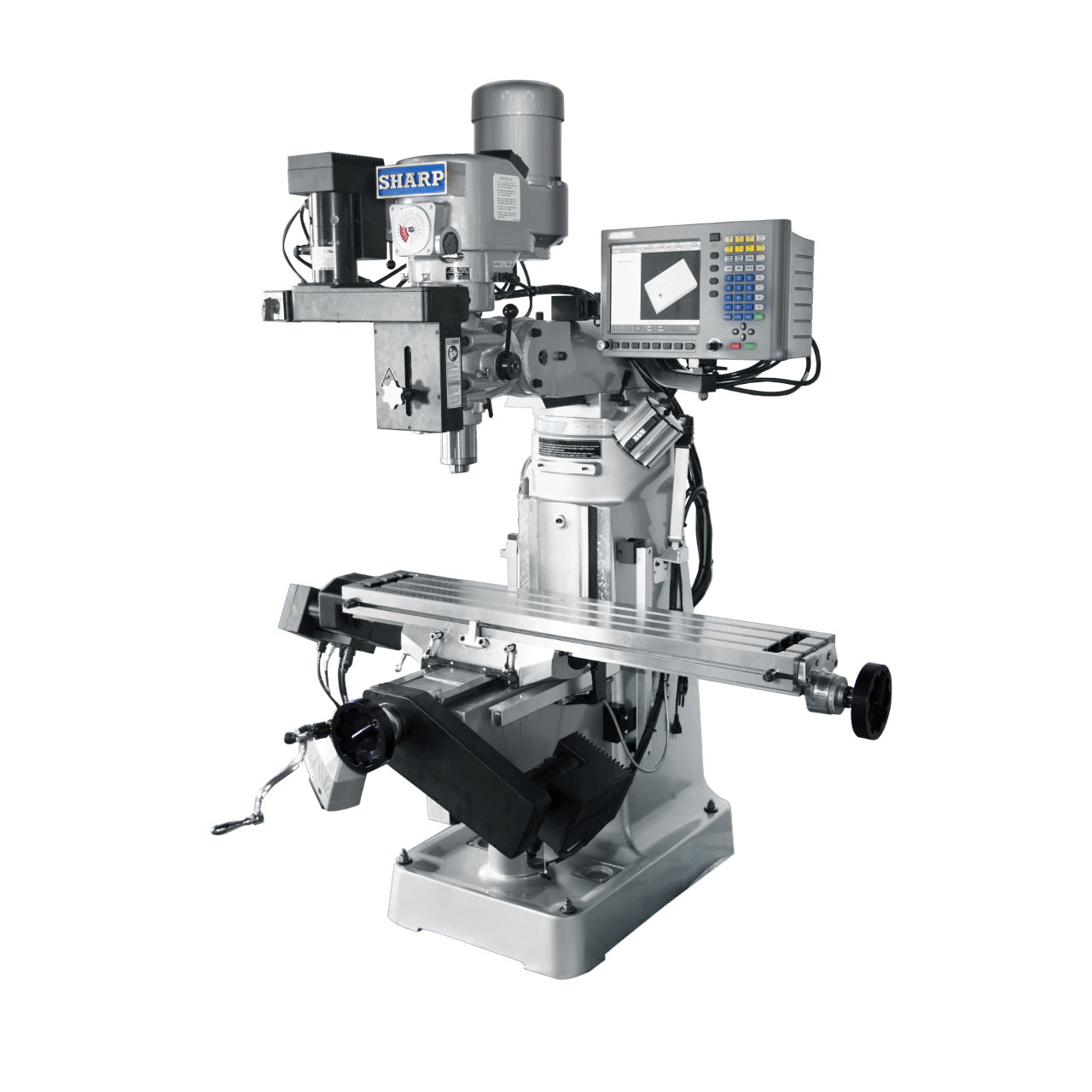

Sharp LMV-50/MP-3 NEW CNC MILLS / VMC'S

Price on Request

Make:: Sharp

Model:: LMV-50/MP-3

Year:: NEW

Ref #:: 167636

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

NEW SHARP CNC MILLING MACHINE
MODEL: LMV-50/MP-3
MILL PACKAGE WITH ACU-RITE 3-AXES CNC MILLPWR G-2 CONTROL
AND 3-AXES READOUT

SPECIFICATIONS:
TABLE
WORKING SURFACE ........................... 9”X50”
T-SLOT NUMBER, SIZE ....................... 3, 5/8”
CAPACITY
TABLE TRAVEL; X-AXIS ...................... 32”
SADDLE TRAVEL; Y-AXIS ..................... 11”
RAM TRAVEL ................................ 12”
QUILL TRAVEL; Z-AXIS ...................... 5”
KNEE TRAVEL ............................... 16”
SPINDLE TO COLUMN (NIM-MAX) ............... 6 ¾” – 18 ½”
SPINDLE TO NOSE TO TABLE .................. 2 1/8”-18”
SPINDLE
MOTOR ..................................... 3 HP
WIRING VOLTAGE ............................ 220/440V, 3 PHASE, 60 H
TAPER ..................................... R-8
SPEEED (VARI SPEED) ....................... 60-4, 500 RPM
QUILL FEED (IPR) .......................... 0.0015, 0.003, 0.006”
HEAD SWIVEL ............................... 360°
HEAD TILT; RIGHT-TO-RIGHT-LEFT (EACH WAY) . 45°
HEAD TILT; UP-AND-DOWN (EACH WAY) ......... 45°
DIMENSIONS AND WEIGHT
FLOOR AREA (W X D) ........................ 7 X 6.5’
NET WEIGHT (APPROXIMATELY) ................ 3,000 LBS
TOTAL POWER CONSUMPTIONS
220V ...................................... 3KVA/8 AMPS
440V ...................................... 3KVA/4 AMPS

STANDARD EQUIPMENT:
AUTOMATIC LUBE SYSTEM
HARD-CROME WAYS
FRONT AND REAR WAY COVERS
3 AXES CNC CONTROL ( X/Y/Z)
PLEASE SPECIFY 220 V OR 440 V APPLICATION
TOOL KIT INCLUDES:
MACHINE MANUAL, HALF NUT WRENCH, WRENCH 17, & 19M, SET OF 6 ALLEN WRENCHES, PHILLIP SCREW    DRIVER, FLAT HEAD SCREW DRIVER, OIL CAN, GREASE GUN, REAR WAY COVER BRACKET, PIN FOR INDICATOR
CAN OF PAINT
WIRED 220VOR 440V.  PLEASE SPECIFY

MILLPWR IS A FULL – FEATURED 3-AXES CONTROL/3-AXES READOUT WITH A NUMBER OF SOFTWARE AND HARDWARE FEATURES.

SOFTWARE
DIMENSION FUNCTIONS:
ABS/INC, POLAR/CARTESIAN, INCH/METRIC.
PROGRAMMING:
PROGRAM IN/OUT, POSITION/DRILL, MILL LINES, MILL ARC, BLEND (CORNER RADIUS)
HOLES (BOLT CIRCLE, RECTANGULAR ARRAY, RECTANGULAR FRAM, LINE),
CIRCLE (POCKET, FRAM, RING), RECTANGLE (POCKET, FRAME, SLOT, FACING) 9,999 STEPS OF PROGRAM SIZE
SPECIAL FEATURES:
CUSTOM POCKETS, REPEAT, ROTATE, MIRROR IMAGE.
RUN OPTIONS:
SINGLE STEP, DRY RUN, GRAPHICS ONLY, MANUAL POSITIONING.
CALCULATOR FUNCTIONS:
GEOMETRY, TRIG.

HARDWARE:
OPERATOR CONSOLE:
EASY TO USE FORMAT.  CONVERSATIONAL ENGLISH.  THREE DIMENSIONAL HARD KEYS.  10” FLAT PANEL, COLOR LCD DISPLAY.  REMOTE STOP/GO SWITCH.
CONTROLLER CABINET:
HEAVY DUTY ENCLOSURE MODULAR CONSTRUCTION,  1 GHZ INTEL CELERON MICROPROCESSOR.
USB AND RS232 INTERFACE
12.1” HIGH RESOLUTION DISPLAY WITH 3 D GRAPHICS
115VAC – 20 AMPS
2 YEARS WARRANTY OF THE CONTROL
POSITIONING:
PRECISION LINEAR GLASS SCALES .  CLOSED LOOP FEEDBACK THROUGH SERVO AMPLIFIERS.  DC SERVO MOTORS.  PRECISION GROUND BALL SCREWS.

OPTIONAL ACCESSORIES:
ACU-RITE ELECTRICAL EDGE FINDER - 283273-01
ACURITE D.R.O. SYSTEM ON KNEE - AR-LMV-MP21
DRO SYSTEM INSTALLATION CHARGE
SHARP POWER KNEEL FEED - SP-250D
POWER KNEEL FEED INSTALLATION
6” “KURT” VISE WITH SWIVEL BASE - 5000-2126 A
DRILL CHUCK &  DRILL ARBOR - LMV-D/A
COOLANT SYSTEM WITH CHIP PAN AT BASE - C311-LMV
“MAXI-TORQUE RITE” POWER DRAW BAR - TR-100
FACTORY INSTALLATION CHARGE – PDB, EACH
R-8 COLLET (SET OF 11) – 1/8” – 3/4” BY 1/16” - ACC-R8
CLAMPING KIT (52 PCS/STEEL RACK) - CK-104
HALOGEN WORK LIGHT - WL-110V55W
RISER BLOCK 6”.- ACC -06
FACTORY INSTALLATION
CE MARK   ( FACTORY ORDER ONLY)
440 V TRANSFORMER - 440T4
