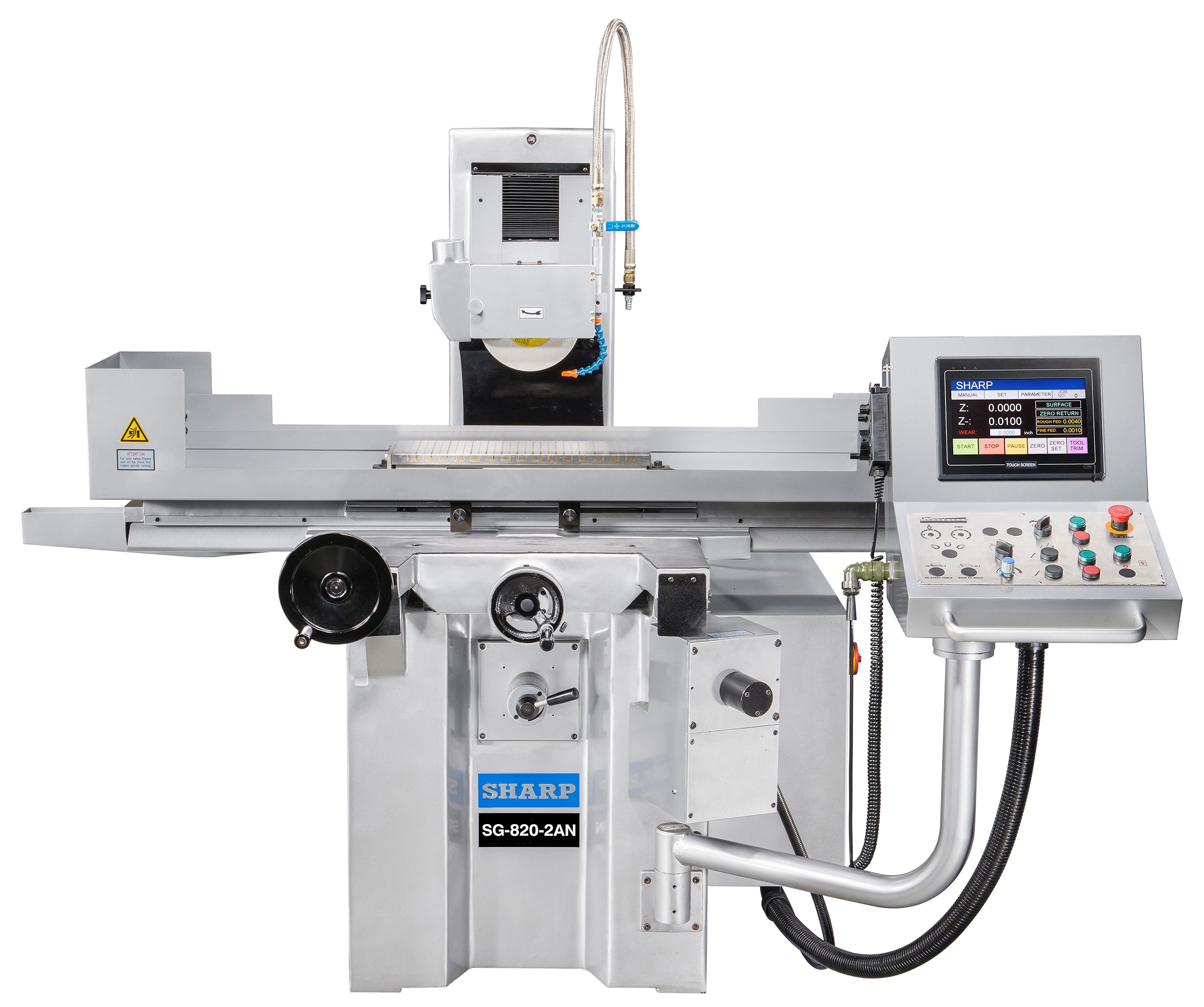

Sharp SG820-2AN NEW SURFACE GRINDERS

Price on Request

Make:: Sharp

Model:: SG820-2AN

Year:: NEW

Ref #:: 168931

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

NEW SHARP AUTOMATIC SURFACE GRINDER
MODEL: SG820-2AN

SPECIFICATIONS:
CAPACITY
MAXIMUM GRINDING LENGTH .................... 21.7”
MAXIMUM GRINDING WIDTH ..................... 8.7”
MAXIMUM DISTANCE- TABLE TO SPINDLE CENTER .. 15.7”
TABLE
WORKING SURFACE (W X L) .................... 8 X 20”
MAXIMUM LONGITUDINAL TRAVEL ................ 23.6”
MAXIMUM CROSS TRAVEL ....................... 9.25”
FEED:
LONGITUDINAL MOVEMENT OF TABLE
HYDRAULIC FEED ............................. 3.3 – 82 IPM
HAND FEED PER REVOLUTION ................... 2.7”
 CROSS MOVEMENT OF SADDLE
INTERMITTENT FEED .......................... 0.006 – 0.4” IPM
CONTINUOUS TRAVERSE FEED ................... 47 IPM
HAND FEED PER REVOLUTION ................... 0.2”
GRADUATION OF HAND WHEEL ................... 0.0005”
 VERTICAL MOVEMENT OF WHEEL HEAD
HAND FEED PER REVOLUTION ................... 0.05”
GRADUATION OF HAND WHEEL ................... 0.0001”
RAPID FEED ................................. 15 IPM
SPARK OUT .................................. 0 – 9 PASSES
SPINDLE AND WHEEL
SPINDLE MOTOR .............................. 2 HP
SPINDLE SPEED .............................. 3,420 RPM
GRINDING WHEEL OUTSIDE DIAMETER ............ 8”
GRINDING WHEEL BORE ........................ 1.25”
GRINDING WHEEL WIDTH ....................... 0.5”
GENERAL
MOTOR (HYDRAULIC) .......................... 1.0 HP
FLOOR SPACE (WXHXL) ........................ 83” X59” X 78”
NET WEIGHT ................................. 2,600 LBS
TOTAL POWER CONSUMPTIONS
220V ....................................... 4KVA/11 AMPS
440 V ...................................... 4 KVA/ 5.5 AMPS

STANDARD EQUIPMENT:
GRINDING WHEEL (8” X 0.75” X 1.25”)
KANETSU ELECTRO-MAGNETIC CHUCK W/ CONTROL
NC DOWN FEED CONTROL
BALL SCREW ON CROSS AXIS
AUTO LUBE SYSTEM
COOLANT SYSTEM W/ PAPER FILTER (25 GAL.) & SPLASH GUARD
WHEEL ADAPTER/FLANGE
WORK LIGHT
WHEEL BALANCING ARBOR
DIAMOND DRESSER
MICROPROCESSOR PROGRAMMABLE TOUCH SCREEN DOWN FEED CONTROL
WIRED 220V, NEEDS TRANSFORMER FOR 440 V OPERATION
TOOL KIT INCLUDES:
MACHINE MANUAL, HALF NUT WRENCH, WRENCH 17M, 19M, SET OF 6 ALLEN WRENCHES, PHILLIP SCREW DRIVER, OIL CAN, GREASE GUN, REAR WAY COVER BRACKET, PIN FOR INDICATOR, CAN OF PAINT.

FEATURES:
ADVANCED TOUCH SCREEN DOWNFEED SYSTEM
8” X 20” TABLE, 9.25” X 23.6”X 8.7” TRAVEL
AUTOMATIC CROSSFEED
ACCURATE SLOT-GRINDING CAPABILITY
HYDRAULIC SYSTEM FOR TABLE TRAVEL
2 HP SPINDLE MOTOR – 3,420 RPM
DOUBLE “V” WAY CROSS TRAVEL
ONE “V” ONE FLAT WAY LONGITUDINAL TRAVEL
HAND SCRAPED AND TURCIT B COATED WAYS

OPTIONAL ACCESSORIES: (CALL FOR PRICING)
* 8” X 20” KANETSU ELECTRO-MAGNETIC CHUCK (FINE POLE) WITH CONTROL ( FACTORY ORDER), IN LIEU OF KANETSU ELECTRO-MAGNETIC CHUCK W/ CONTROL - PART#KESL-2050/KT-115
* 8” X 20” WALKER ELECTRO-MAGNETIC CHUCK (FINE POLE) WITH SMART 1 C CONTROL, IN LEU OF KANETSU ELECTRO-MAGNETIC CHUCK W/ CONTROL - PART#LBP-820
*** ALL MAGNETIC CHUCKS INCLUDE FREE INSTALLATION ***

* EXTRA WHEEL ADAPTER (FLANGE) - PART#SG-08
* “OVERHEAD” MANUAL PARALLEL DRESSER - PART#SG-05
* BALANCE STAND - PART#BS-SG/SP
* DUST COLLECTOR - PART#DC
* COOLANT SYSTEM W/MAGNETIC SEPARATOR & PAPER FILTER (25 GAL)
220V/440V - PART#CS&PF&MS
* COOLANT SYSTEM W/MAGNETIC SEPARATOR & PAPER FILTER (25 GAL)
380V (FOR INTERNATIONAL USE) - PART#MCA40/PF
* US/CSA COMPONENTS UPGRADE

- DIGITAL READOUT SYSTEMS:
* FAGOR 20I D.R.O. - PART#FG-SG820
* FAGOR 40I D.R.O. - PART#FG-40I-SG820
* ACU-RITE 203 D.R.O. - PART#AR-SG820
* NEWALL NMS 800 DRO ( NOT AVAILABLE UNTIL MARCH, 23) - PART#NWN-SG-820
* FACTORY INSTALLATION – D.R.O.
