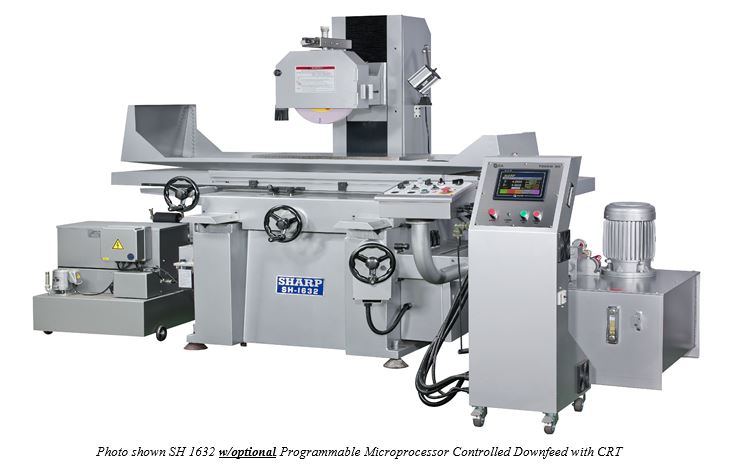

NEW SHARP HYDRAULIC GRINDER
MODEL: SH-1632
SPECIFICATIONS:
CAPACITY
TABLE TRAVEL: ....................... 17.6” X 36”
SPINDLE CENTER TO TABLE SURFACE: .... 23.6”
TABLE
WORKING SURFACE (W X L): ............ 15.8” X 32”
LONGITUDINAL HYDRAULIC TABLE FEED: .. 6.6-82 FPM
FEED
INTERMITTENT CROSS FEED: ............ 0.004-0.4 IPM
CONTINUES CROSS FEED: ............... 39 IPM
NUMBER OF GRADUATIONS ON DIAL: ...... 200
FEED PER GRADUATION: ................ 0.0005”
FEED PER REVOLUTION: ................ 0.1”
RAPID DOWNFEED (OPTIONAL: 18.9 IPM
VERTICAL TRAVEL
NUMBER OF GRADUATIONS: .............. 500
FEED PER GRADUATION: ................ 0.0001”
FEED PER REVOLUTION: ................ 0.05”
RAPID DOWNFEED (OPTIONAL): .......... 18.9 IPM
WHEEL SIZE (OD X WIDTH X ID): ....... 14” X 1-1/2” X 5”
SPINDLE MOTOR: ...................... 5 HP
COOLANT SYSTEM MOTOR: ............... 1/8 HP
GENERAL INFORMATION
APPROXIMATE WEIGHT: ................. 7,300 LBS.
DIMENSIONS: ......................... 100.5” X 82.7” X 74.8”
TOTAL POWER CONSUMPTIONS:
220V: ............................... 8KVA/34 AMPS
440V: ............................... 8KVA/18 AMSP
STANDARD EQUIPMENT:
25 GAL COOLANT SYSTEM
AUTO LUBE SYSTEM
GRINDING WHEEL (14” X 1.5” X 5”)
WHEEL ADAPTER/FLANGE
WHEEL BALANCING ARBOR
WHEEL BALANCING STAND
DIAMOND DRESSER
SPLASH GUARD BOTH FRONT AND BACK ( NOT SHOWN ON PHOTO)
TOOL KIT
** NOTE, PLEASE ORDER ONE OF THE MAGNETIC CHUCKS IN THE OPTION LIST. THIS GRINDER DOES NOT WORK WITHOUT IT.
FEATURES:
2-AXES AUTO, OR 3-AXES AUTO WITH DOWNFEED CONTROL OPTION
5HP MOTOR
SPINDLE SPEED 1,720 RPM
2-V WAYS
EXTRA WIDE BED
DOUBLE LONGITUDINAL “V” WAYS AND CROSS “V” WAYS
HYDRAULIC TABLE (WITH OVER TRAVEL PROTECTION)
AUTO CROSSFEED (INTERMITTENT AND CONTINUOUS MODE)
SLIDE WAYS ARE HAND SCRAPED AND TURCITE COATED
ANNEALED CASTINGS FOR GREATER MACHINE STABILITY
AN OPTIONAL PROGRAMMABLE SPINDLE DOWNFEED SYSTEM WITH USER FRIENDLY CONTROL
OPTIONAL ACCESSORIES
16” X 32” KANETSU ELECTROMAGNETIC CHUCK W/CONTROL KET-4080
16” X 32” KANETSU ELECTROMAGNETIC CHUCK W/CONTROL (FINE POLE) KESL-4080
16” X 32” WALKER ELECTROMAGNETIC CHUCK W/CONTROL (FINE POLE) LBP-1632
***ALL MAGNETIC CHUCKS INCLUDES FREE INSTALLATION***
440V TRANSFORMER - 3HP (FOR MICRO CONTROL DOWN FEED SYSTEM) 3KVA 440T4
TOUCH SCREEN PROGRAMMABLE MICROPROCESSOR CONTROL SPINDLE SH-011
DOWNFEED SYSTEM WITH Z AXIS MOTION CONTROL
DRESSER COMPENSATION PACKAGE INSTALLED, NEEDS TO PURCHASE WITH SH-50
SH-011 - DOWNFEED SYSTEM CONTROL
*(440V MACHINES NEEDS TRANSFORMER FOR PROGRAMMABLE MICRO CONTROL DOWNFEED SYSTEM.)
PARALLEL DRESSER (MANUAL) SH-07
RADIUS AND ANGLE DRESSER SH-09
HALOGEN WORK LIGHT WL-110V55W
COOLANT SYSTEM W/MAGNETIC SEPARATOR (25 GAL) IN LIEU OF STANDARD COOLANT SYSTEM
DUST SUCTION COOLING SYSTEM
PAPER FILTER REFILL
SPARE WHEEL ADAPTOR (FLANGE) SH-920 – SH1224 SH-FLANGE 1124
RAPID TRAVERSE UP/DOWN WHEEL HEAD SH-15
CRISIS FEED
440 V TRANSFORMER
OIL MIST COLLECT DUST SUCTION COOLING SYSTEM
*** CE MARK ( FACTORY ORDER ONLY)
DIGITAL READOUT SYSTEMS:
FAGOR 20I D.R.O. FG-SH1632
FAGOR 40I D.R.O. FG-40I-SH1632
ACU-RITE 200S D.R.O. AR-SH1632
NEWALL DP700 D.R.O. DPG NW-SH1632
