South Bend 10" Precision CL187ZB ENGINE LATHES

$4,950

Make:

South Bend

Model:

10" Precision CL187ZB

Year:

1978

Ref #:

178011

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

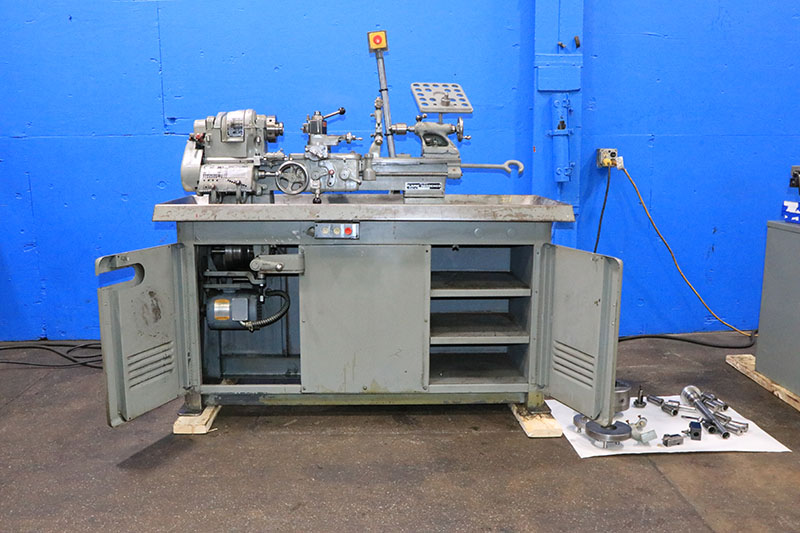

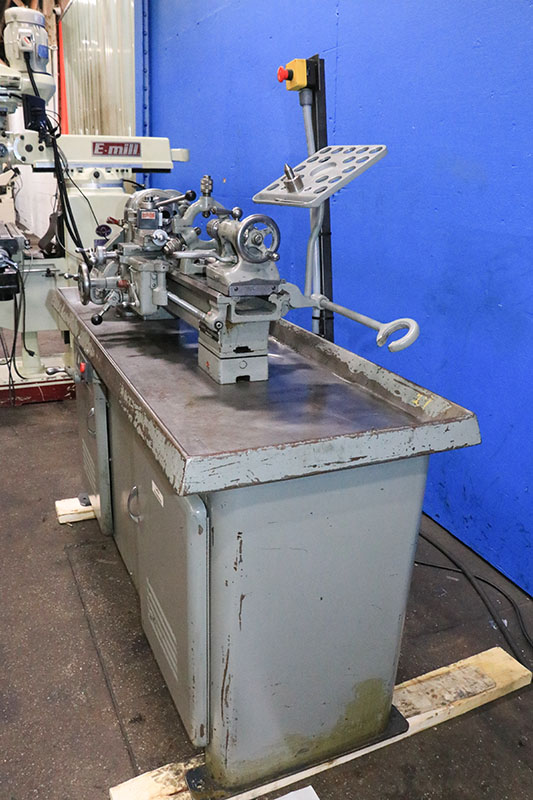

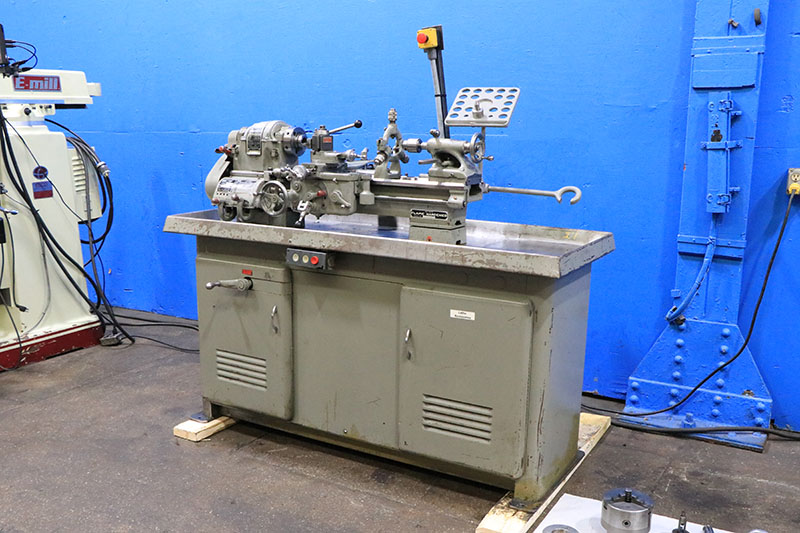

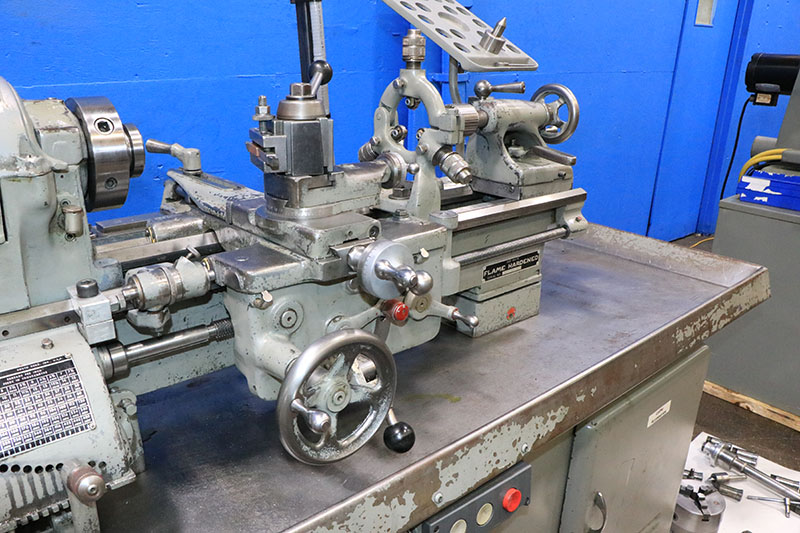

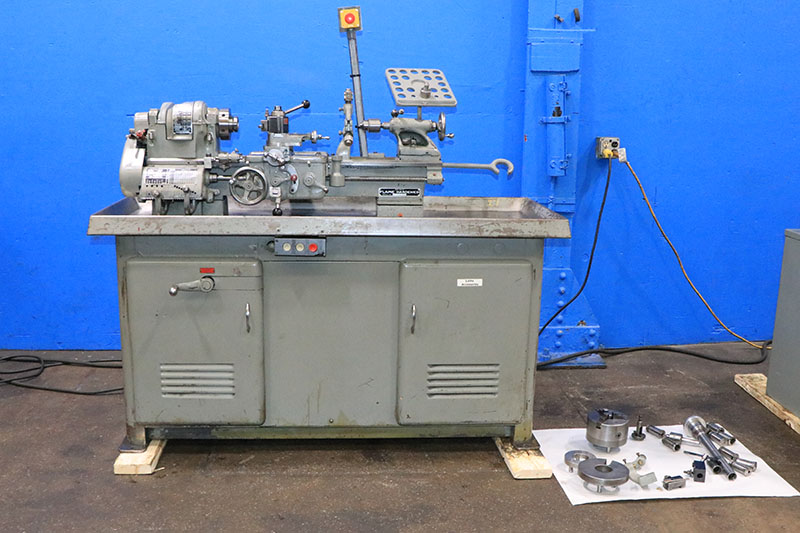

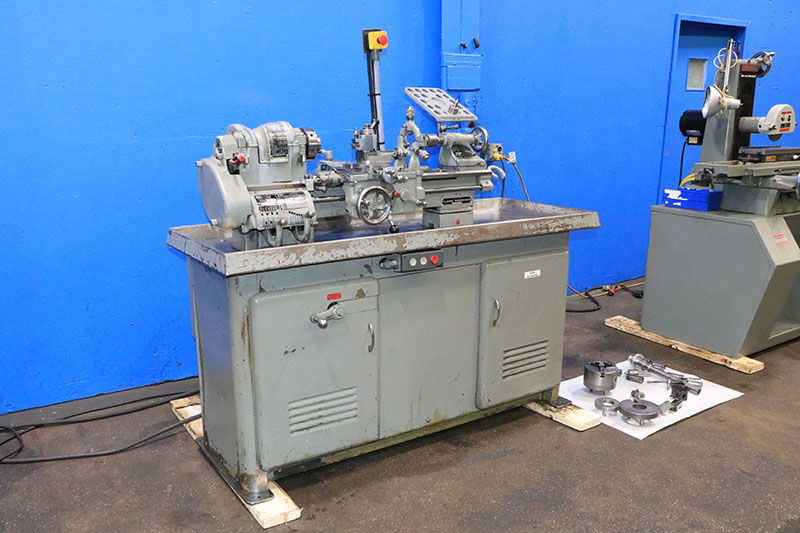

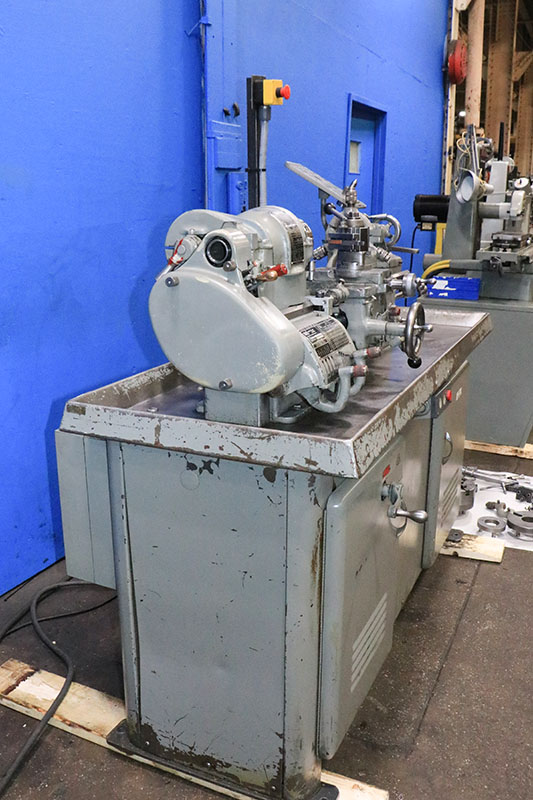

10" x 19" SOUTHBEND PRECISION LATHE

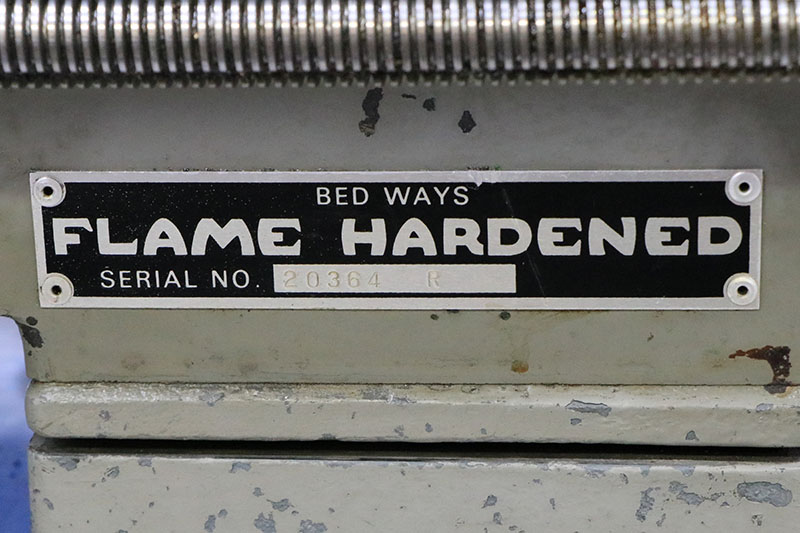

MODEL: CL187ZB, S/N: 20364R, NEW: 1978



SPECIFICATIONS:

SWING OVER BED ........................ 10-1/8"

SWING OVER CROSS SLIDE ................ 5-3/4"

DISTANCE BETWEEN CENTERS .............. 19"

HOLE THRU SPINDLE ..................... 1-3/8"

SPINDLE NOSE CAMLOCK .................. D1-4"

SPINDLE SPEED:

    DIRECT DRIVE ...................... 304 - 1400 RPM

    BACK GEARED ....................... 55 - 250 RPM

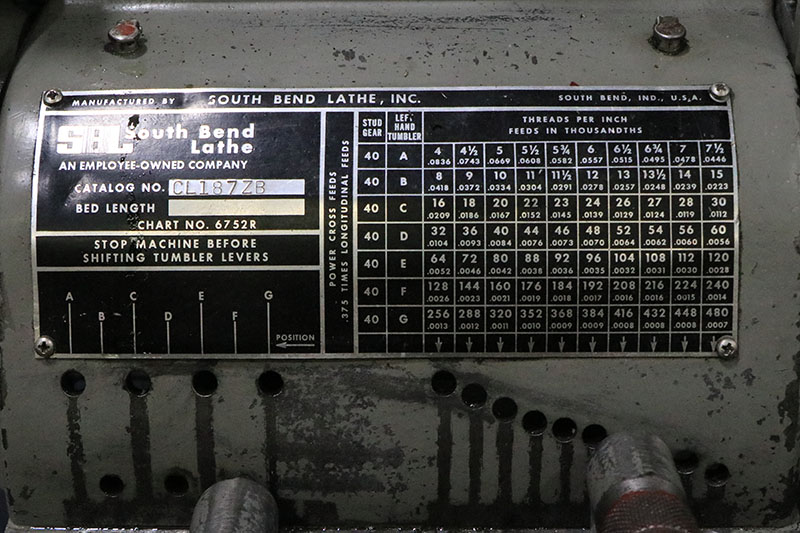

THREADING RANGE (70) .................. 4 - 480 TPI

LONGITUDINAL FEED RANGE (70) .......... .0836" - .0007"

CROSS FEED RANGE (70) ................. .0303" - .0303"

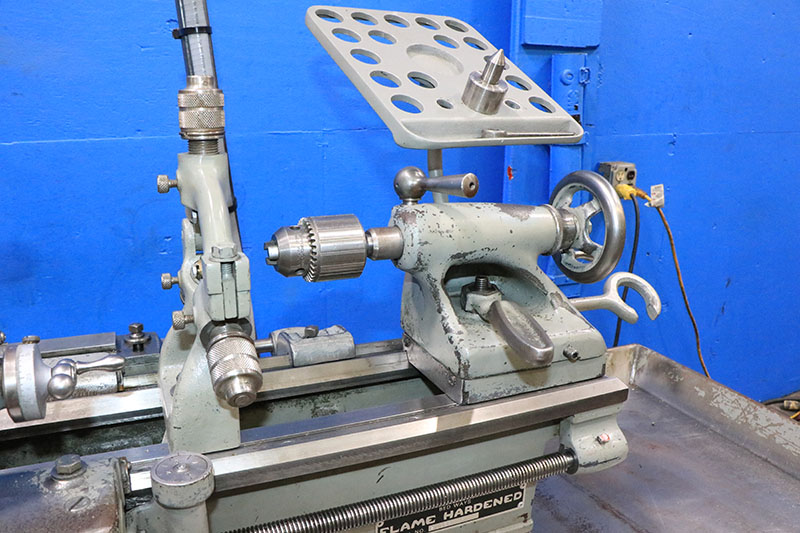

TAILSTOCK SPINDLE TAPER ............... #2MT

TAILSTOCK SPINDLE TRAVEL .............. 2-1/8"

APPROX MACHINE WEIGHT ................. 1,100 LBS

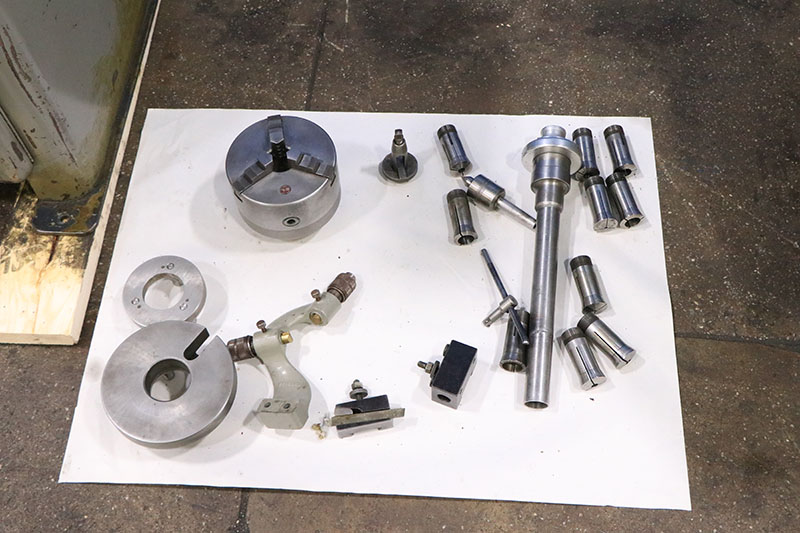

EQUIPPED WITH:

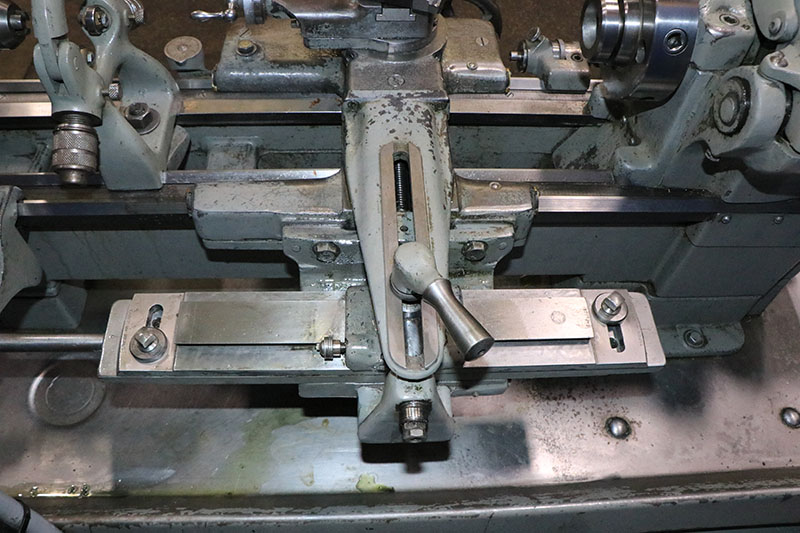

TAPER TURNING ATTACHMENT

6" 3-JAW CHUCK

DOGPLATE

STEADY REST

FOLLOW REST

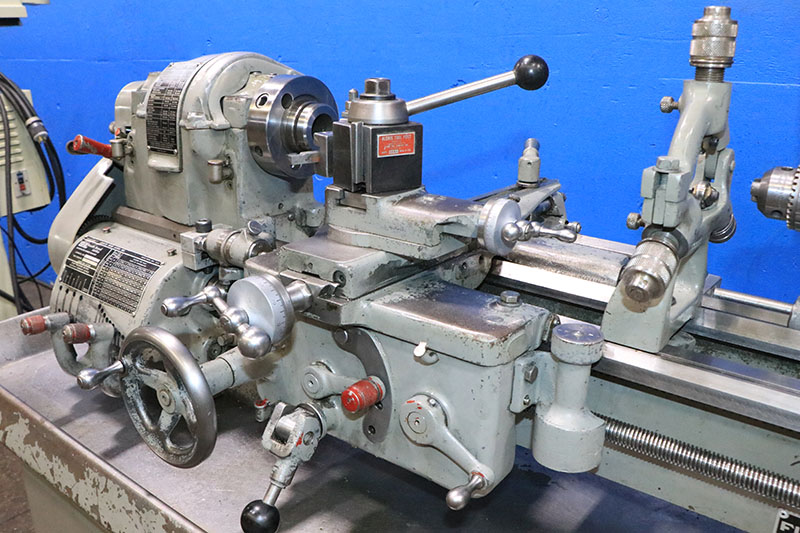

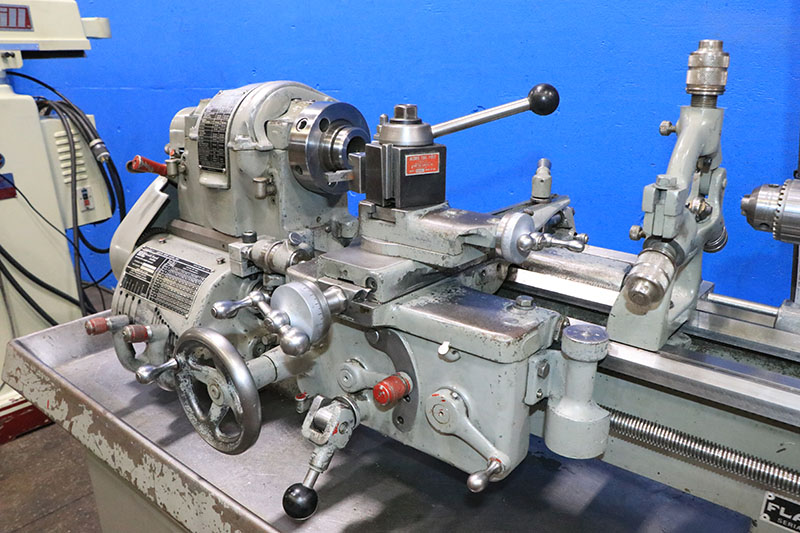

ALORIS QUICK CHANGE TOOLPOST

5C HANDWHEEL TYPE DRAWBAR

THREAD DIAL

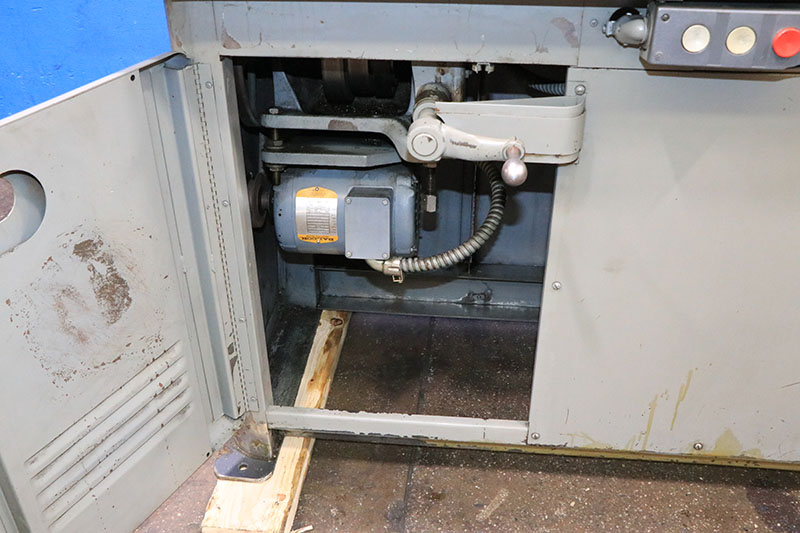

1 HORSE POWER SPINDLE MOTOR



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
