South Bend NORDIC 15 ENGINE LATHES

$5,950

Make:
South Bend
Model:
NORDIC 15
Year:
1980's
Ref #:
157914

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

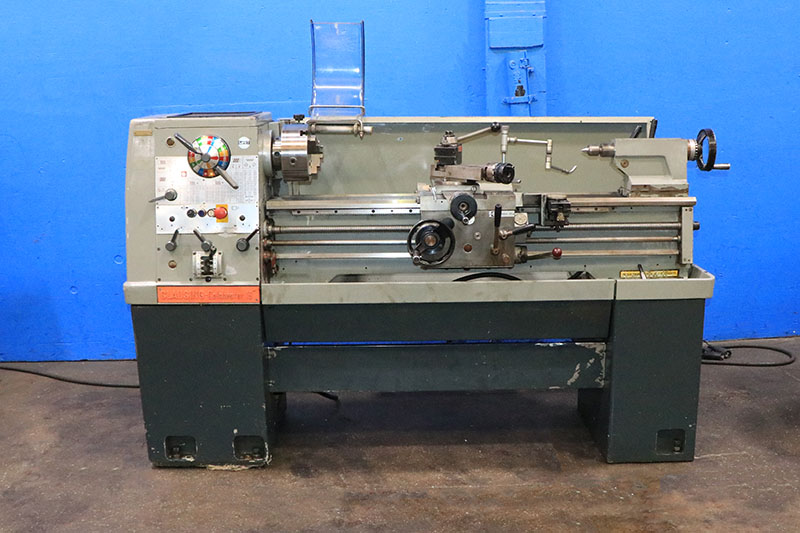

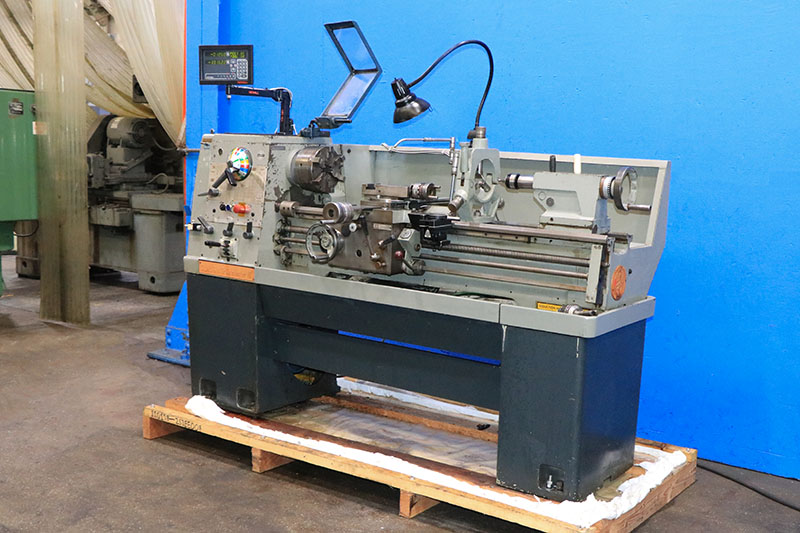

15" x 56" SOUTHBEND ENGINE LATHE
MODEL: NORDIC-15, S/N: CN15811130AF17, NEW: 1980'S

SPECIFICATIONS:
SWING OVER BED WAYS ................. 15"
SWING OVER CROSS SLIDE .............. 8-5/8"
DISTANCE BETWEEN CENTERS ............ 56"
HOLE THRU SPINDLE ................... 2-1/32"
SPINDLE NOSE CAMLOCK ................ D1-6"
SPINDLE SPEED RANGE (16) ............ 40 - 2000 RPM
LONGITUDINAL FEED RANGE (54) ........ .0025" - .140"
CROSS FEED RANGE (25) ............... .00125" - .070"
INCH THREADING RANGE ................ 1-5/8 - 96 TPI
METRIC THREADING RANGE .............. .2 - 10 mm
TAILSTOCK SPINDLE TRAVEL ............ 5-1/4"
TAILSTOCK SPINDLE TAPER ............. #4MT
BED WIDTH ........................... 10-5/8"
APPROXIMATE FLOOR SPACE ............. 100"L x 36"W x 50"H
APPROX WEIGHT ....................... 2,500 LBS

EQUIPPED WITH:
INCH & METRIC THREADING
ACU-RITE DIGITAL READOUT
TAPER TURNING ATTACHMENT
12" 3-JAW CHUCK
10" 4-JAW CHUCK
ALORIS TOOLPOST MODEL: CA WITH HOLDERS SHOWN
TAILSTOCK
THREAD DIAL INDICATOR
REMOVEABLE CHIP PAN
HARDENED & GROUND BED WAYS
5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE



DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
