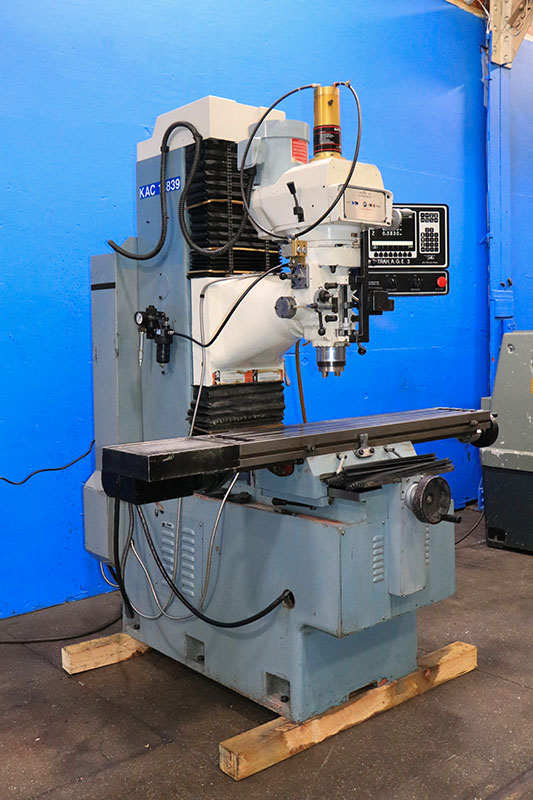

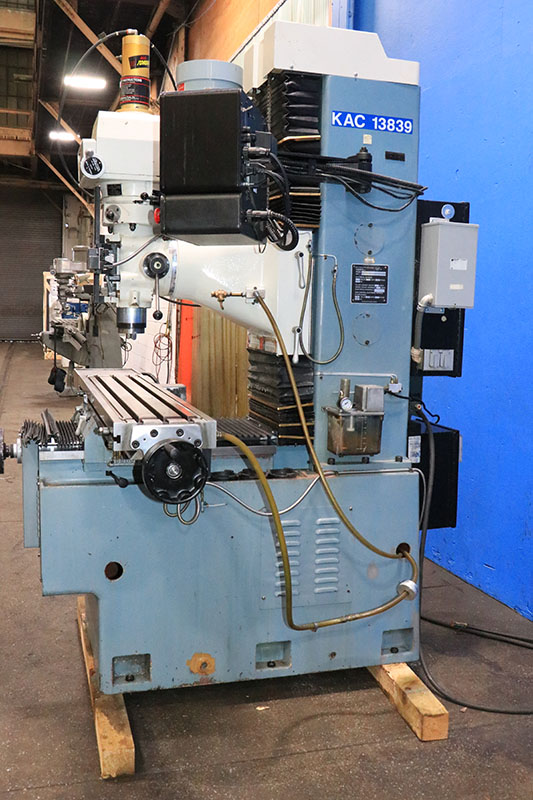

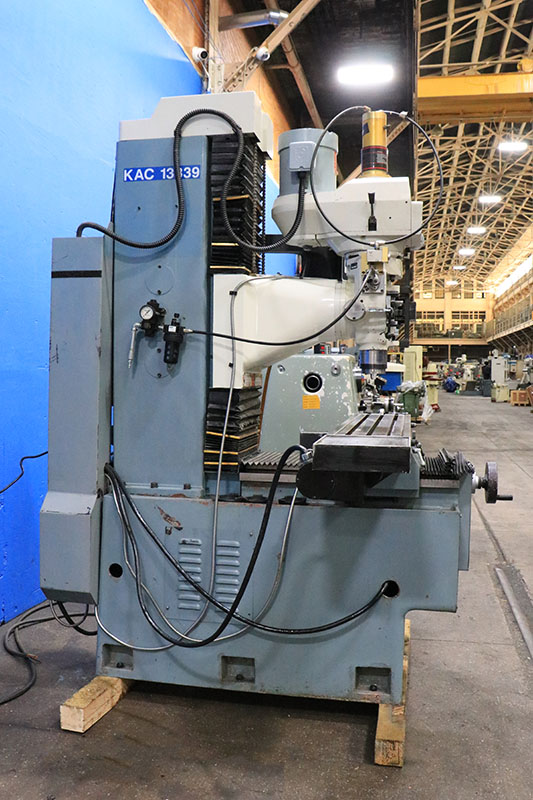

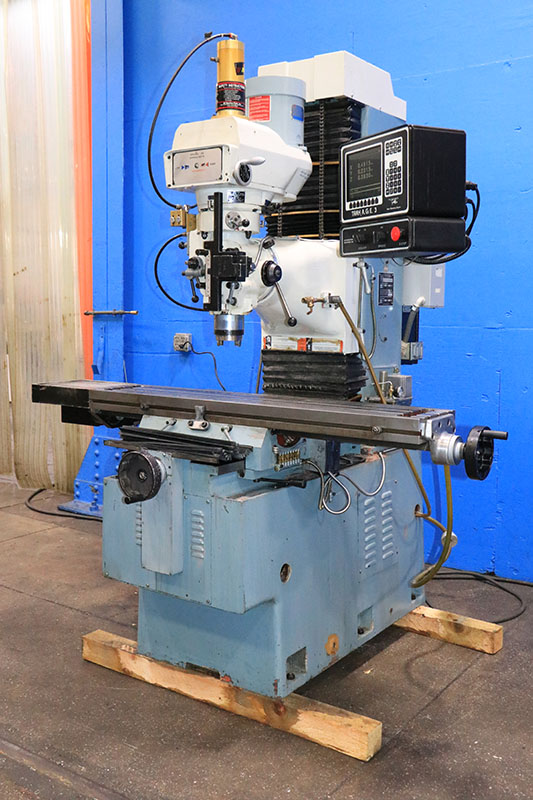

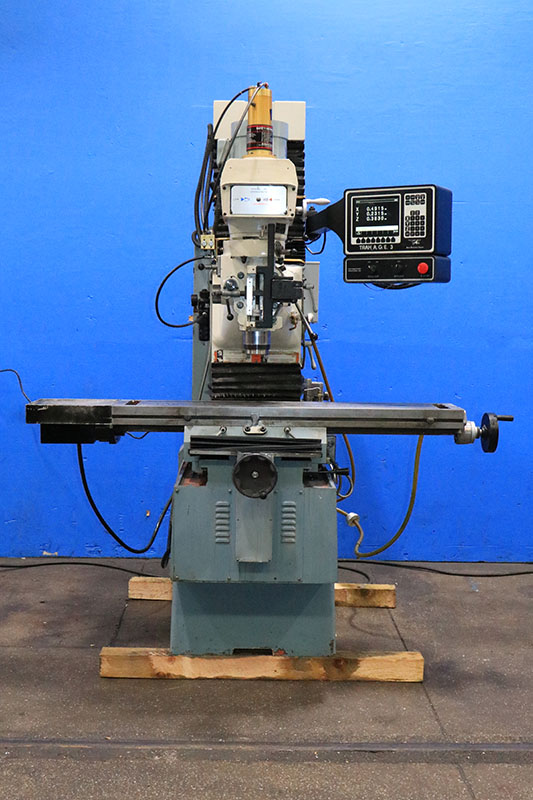

Southwest Ind. TRAK DPM CNC VERTICAL MILLING MACHINES

$10,500

Make:: Southwest Ind.

Model:: TRAK DPM

Year:: 2000

Ref #:: 177912

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

SOUTHWESTERN INDUSTRIES
PROTO-TRAK 3-AXIS CNC BED MILL

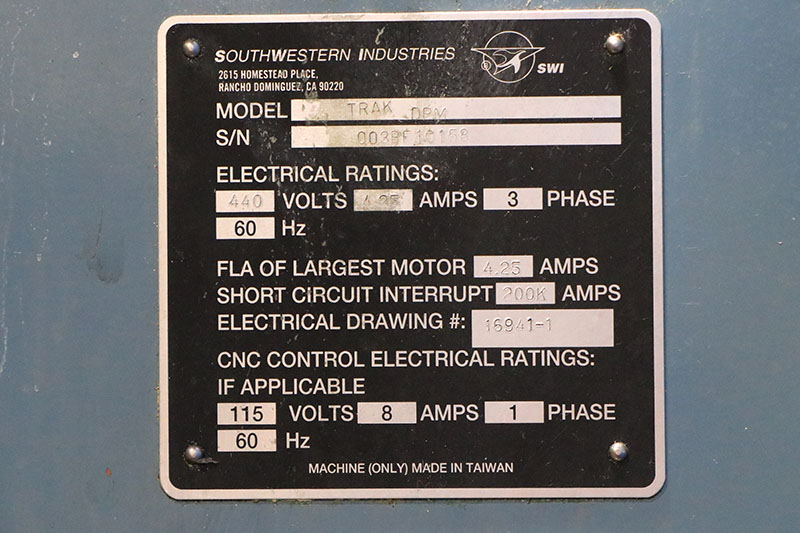

MODEL: DPM,  S/N: 003BF10158,  NEW: 2000

SPECIFICATIONS:

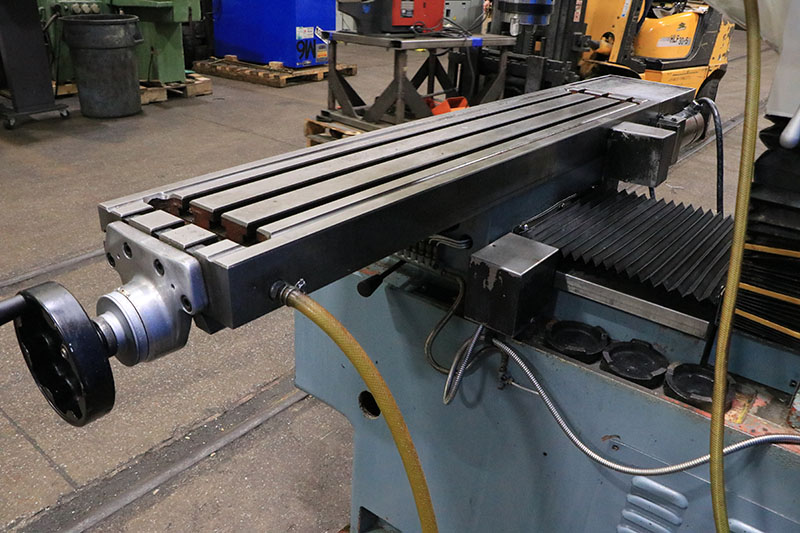

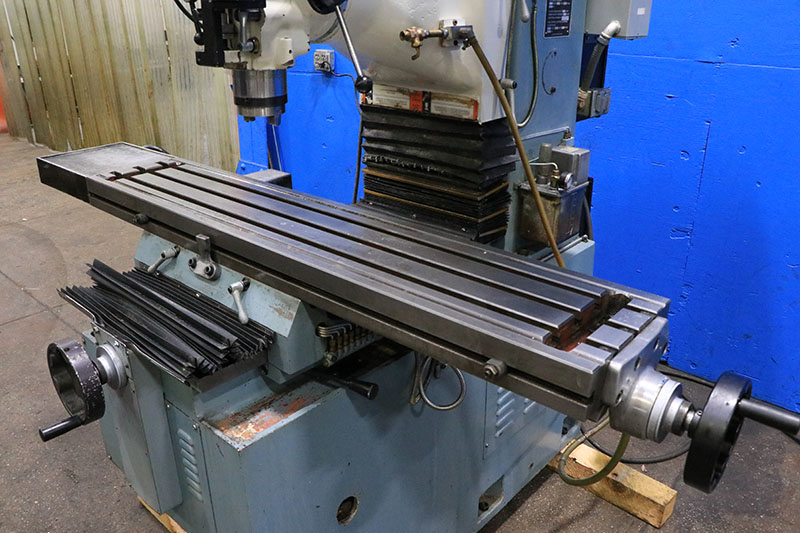

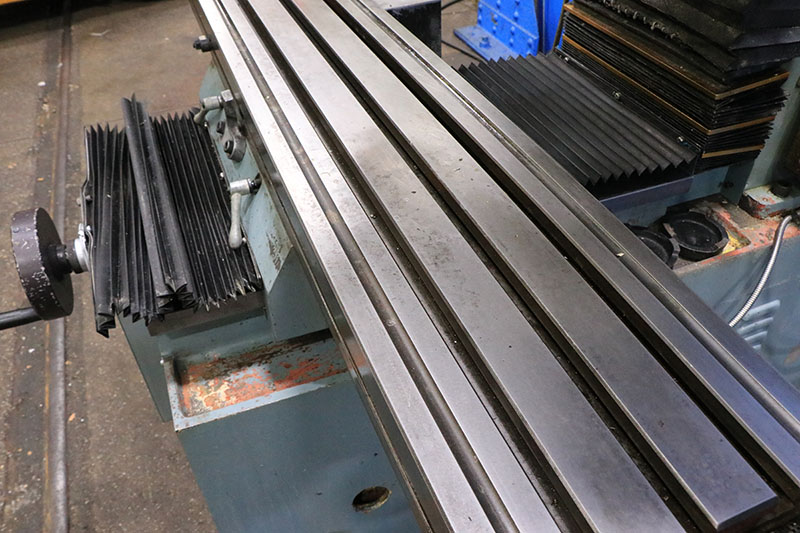

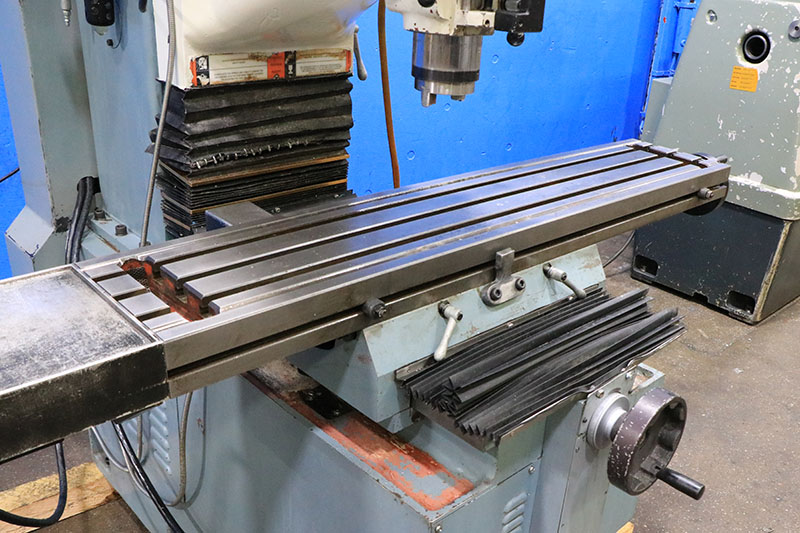

TABLE SIZE ........................ 10" x 50"
TABLE TRAVEL (X) .................. 31"
SADDLE TRAVEL (Y) ................. 17"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... #40 NST
SPINDLE NOSE TO TABLE ............. 0 - 24"
SPINDLE CENTER TO COLUMN FACE ..... 17.3"
HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES
SPINDLE SPEED RANGE ............... 40 - 5000 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 68"W x 64"D x 95"H
MACHINE WEIGHT .................... 4,100 LBS

EQUIPPED WITH:

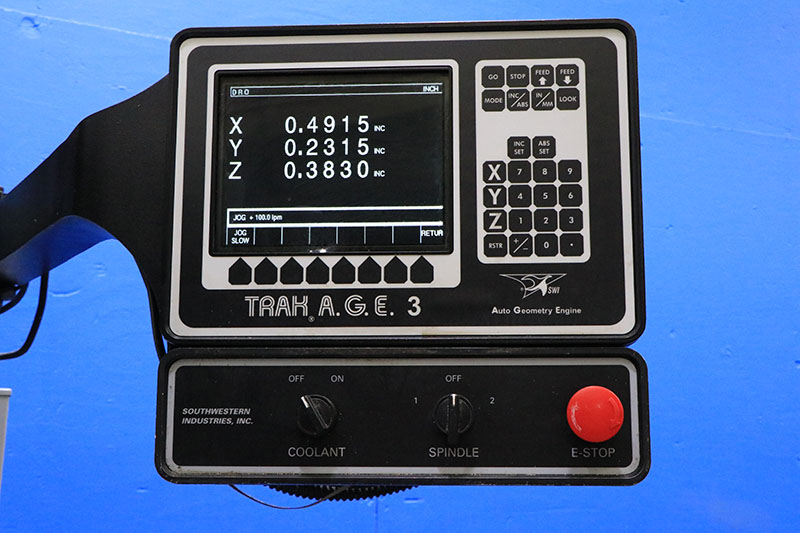

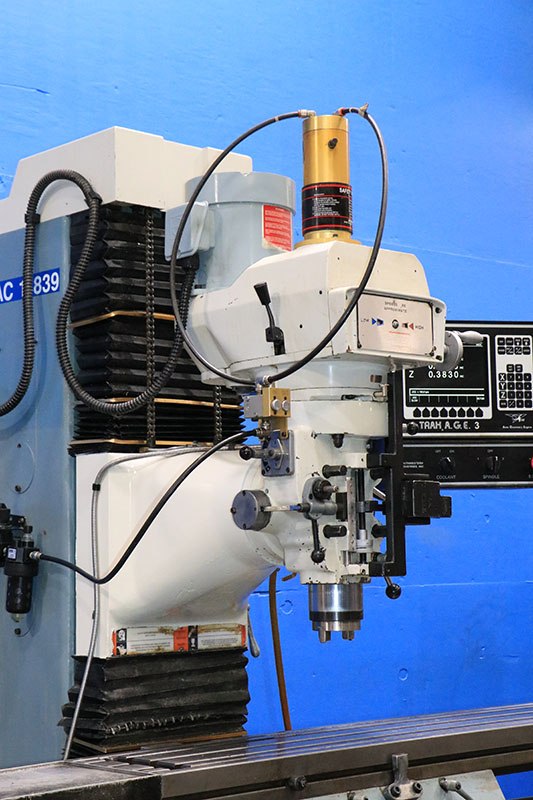

PROTO-TRAK MODEL: AGE-3 CONTROL UPDATED IN 2019
    THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING
    HELICAL CANNED CYCLES
    IN MANUAL MODE 3-AXIS DRO
    RS232 PORT & FLOPPY DISK DRIVE

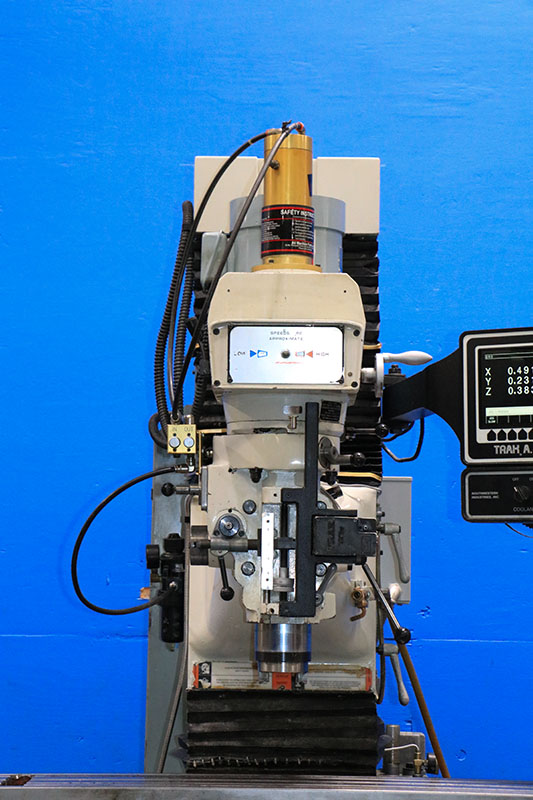

QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN, NOT QUILL)
SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
COOLANT SYSTEM

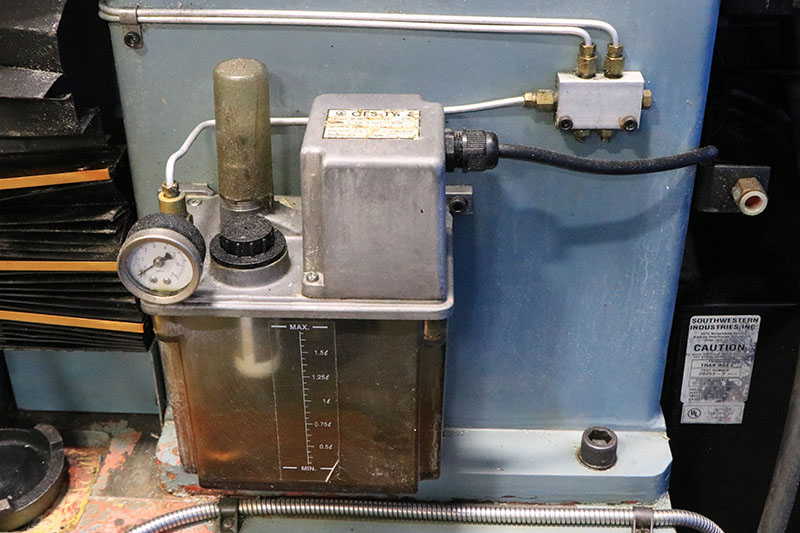

AUTOMATIC LUBRICATION SYSTEM
BELOWS WAY COVERS
3 HORSE POWER SPINDLE MOTOR

TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
