Southwest Ind. TRAK K3-EMX CNC VERTICAL MILLING MACHINES

Price on Request

Make:
Southwest Ind.
Model:
TRAK K3-EMX
Year:
2016
Ref #:
177836

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

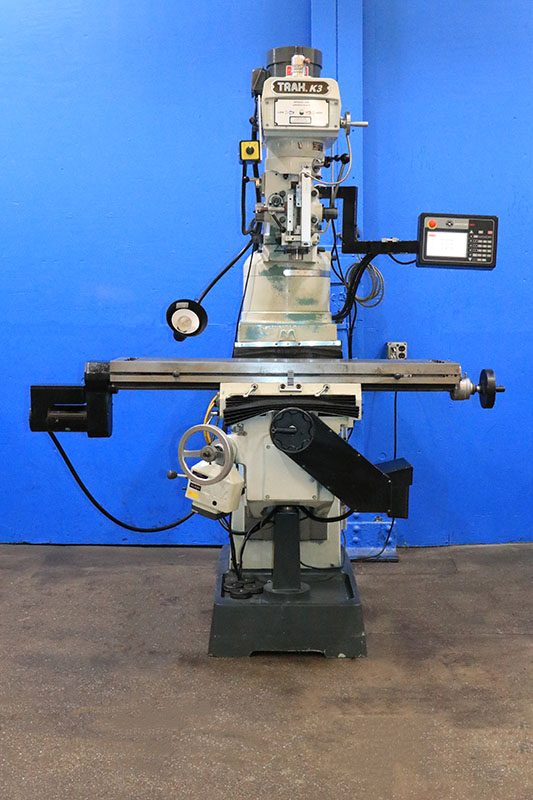

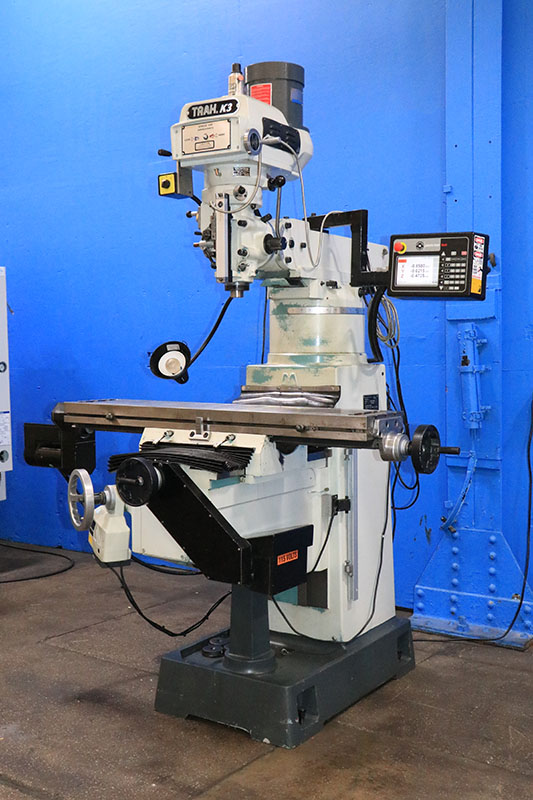

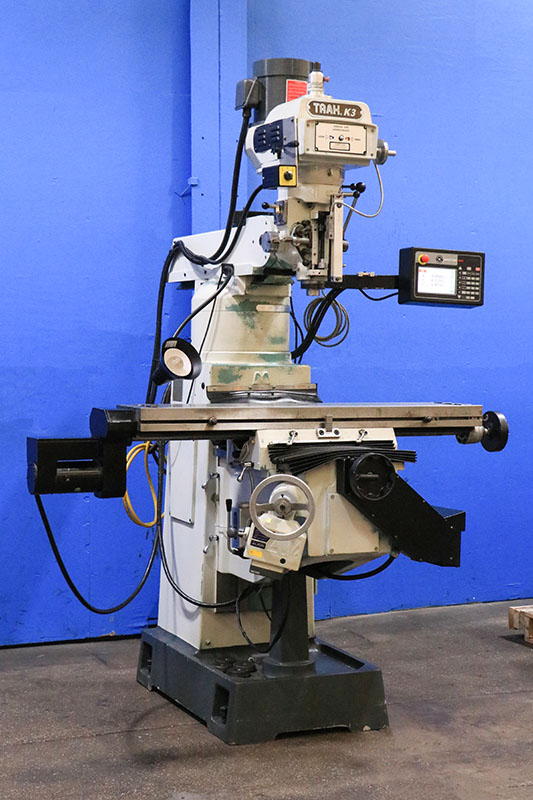

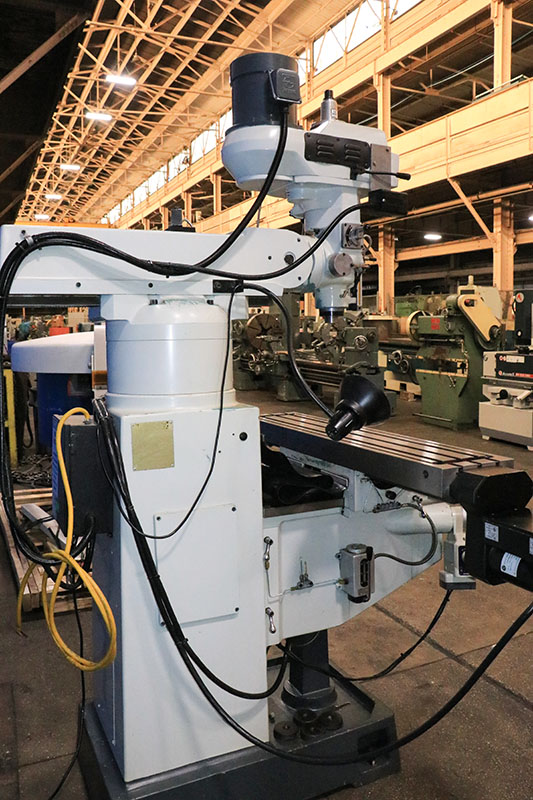

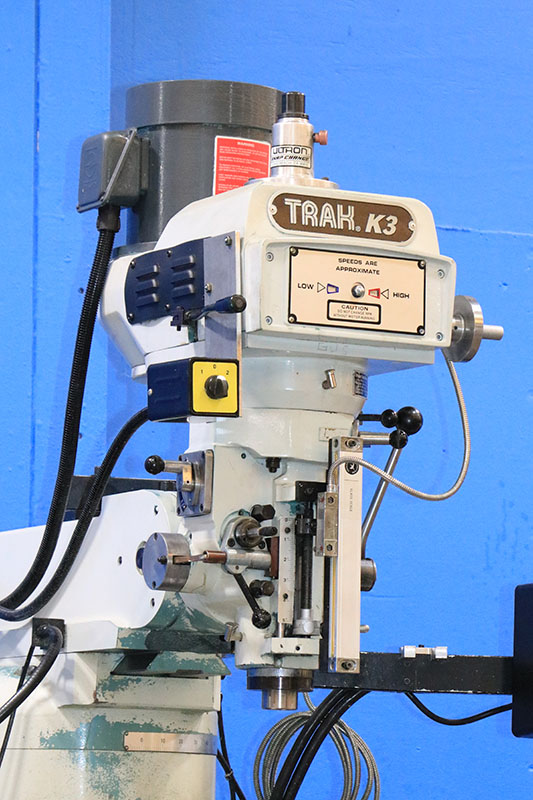

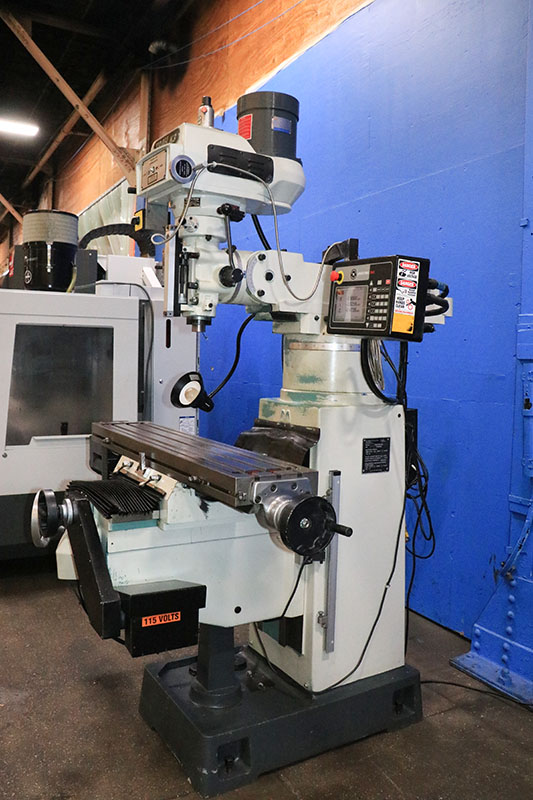

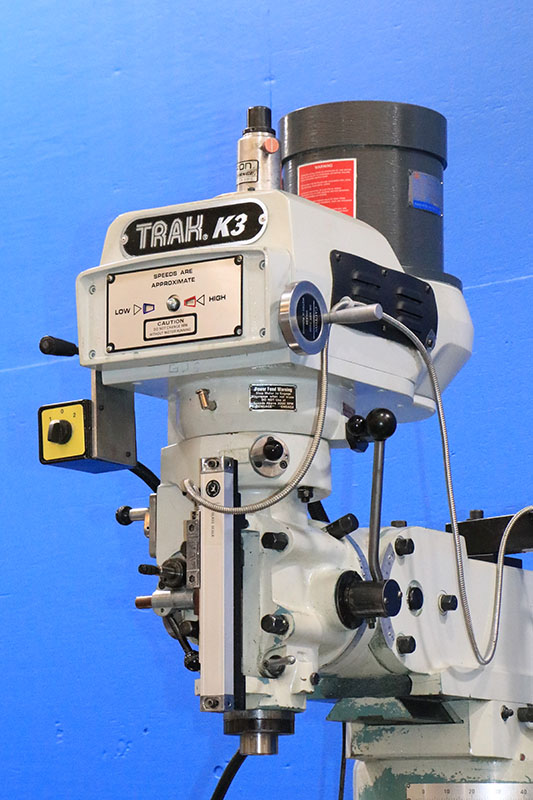

 SOUTHWESTERN INDUSTRIES CNC VERTICAL MILL

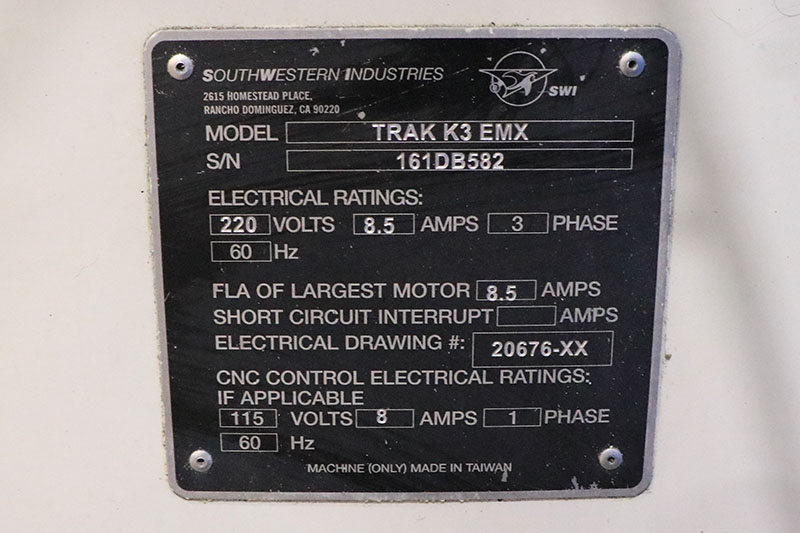

MODEL: TRAK K3 EMX, S/N: 161DB582, NEW: 2016

SPECIFICATIONS:

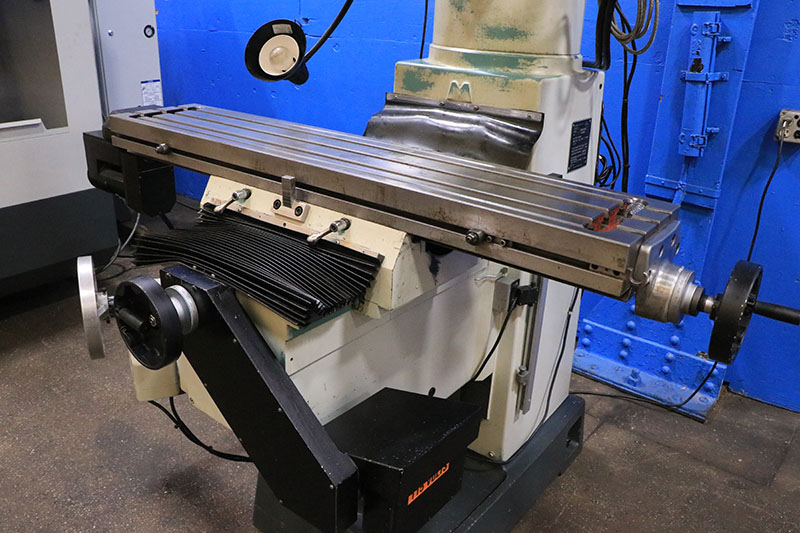

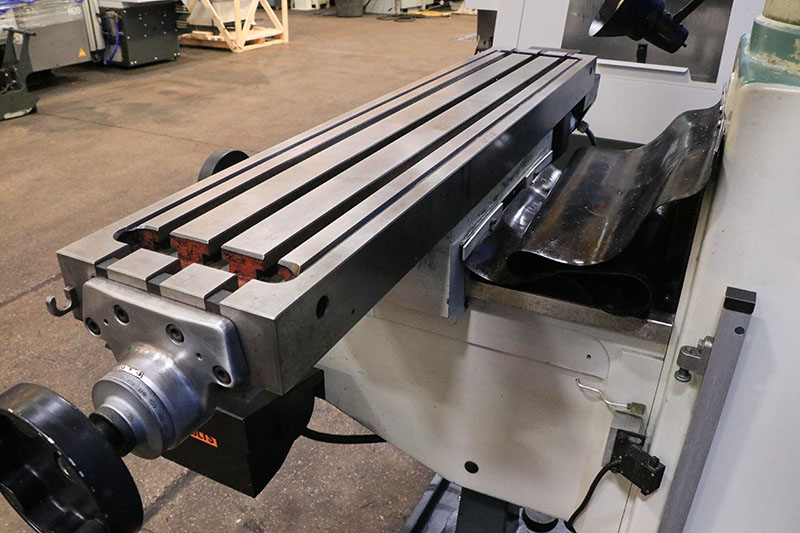

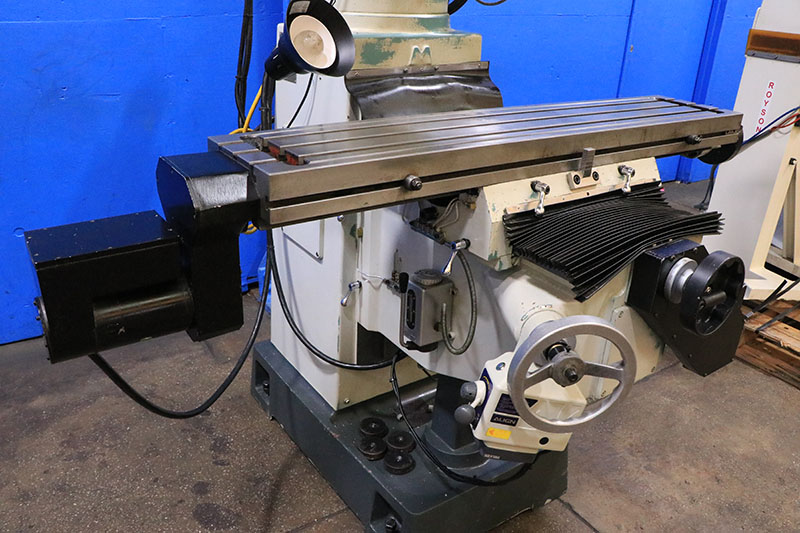

TABLE WORKING SURFACE ............. 10" X 50"
TRAVELS:
        LONGITUDINAL TABLE (X) .... 32"
        CROSS  TABLE (Y) .......... 16"
        QUILL (Z) ................. 5"
        VERTICAL, KNEE ............ 16"
        RAM ....................... 15"

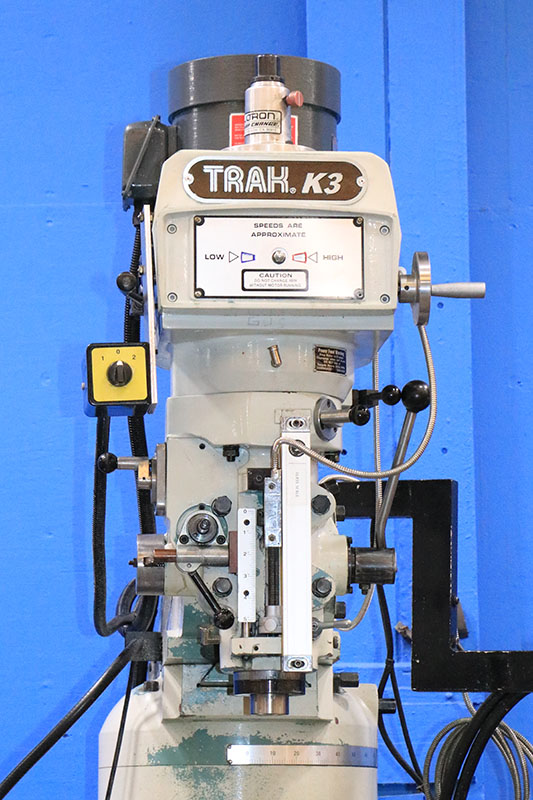

QUILL DIAMETER .................... 3.375"
MAXIMUM UNIFORM TABLE LOAD ........ 750 LBS.
HEAD TILT, LEFT AND RIGHT ......... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY. 45 DEGREES
(3) POWER QUILL FEEDS ............. .0015, .003, .006 IPR
SPINDLE SPEED RANGE (2) (INF VAR) . 60-500 RPM & 500-4,200 RPM.
SPINDLE TAPER ..................... R-8
MAXIMUM COLLET CAPACITY ........... 3/4"
MAXIMUM RAPID FEED RATE ........... 100 IPM
APPROX DIMENSIONS ................. 69" L-R X 69" F-B X 90" H
APPROX WEIGHT ..................... 2850 LBS

EQUIPPED WITH
- MANUAL OR CNC MODE OF OPERATION

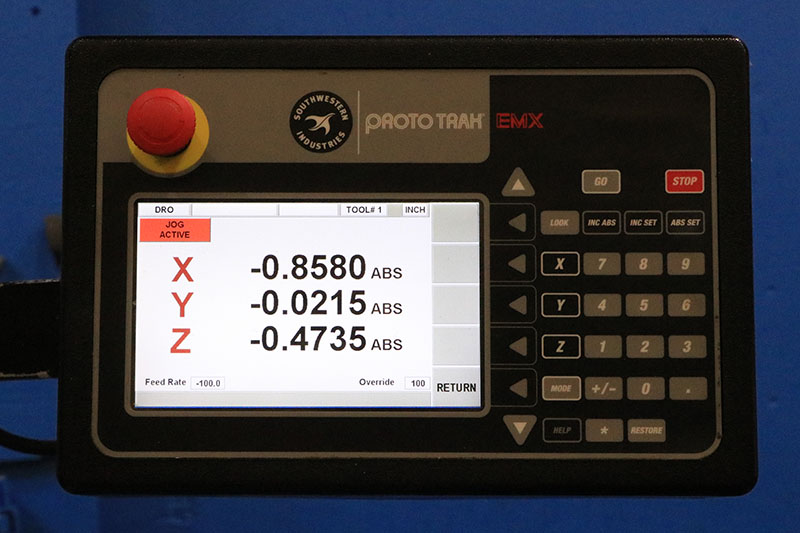

- PROTOTRAK MODEL: EMX 2 TWO-AXIS (X & Y) CNC CONTROL
 (THREE-AXIS DIGITAL DISPLAY IN MANUAL MODE) W/ LCD SCREEN
- PRECISION BALL SCREWS AND SERVO DRIVES FOR X & Y AXES
- MEEHANITE CASTING
- HARDENED AND GROUND SQUARE BOX WAYS ON SADDLE
- HARDENED AND GROUND DOVETAIL WAYS ON X-TABLE & Z-KNEE
- SLIDE WAYS ARE TURCITE COATED
- 6" RISER BLOCK ON COLUMN

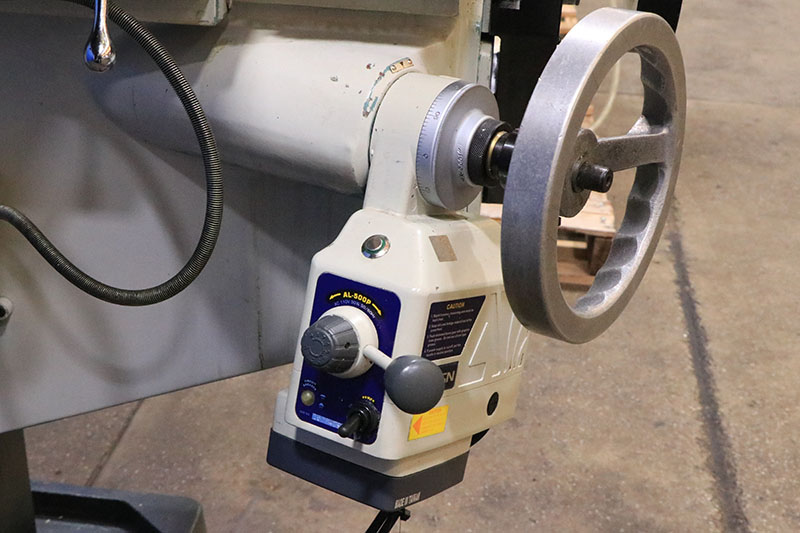

- ALIGN POWER FEED FOR KNEE ELEVATION

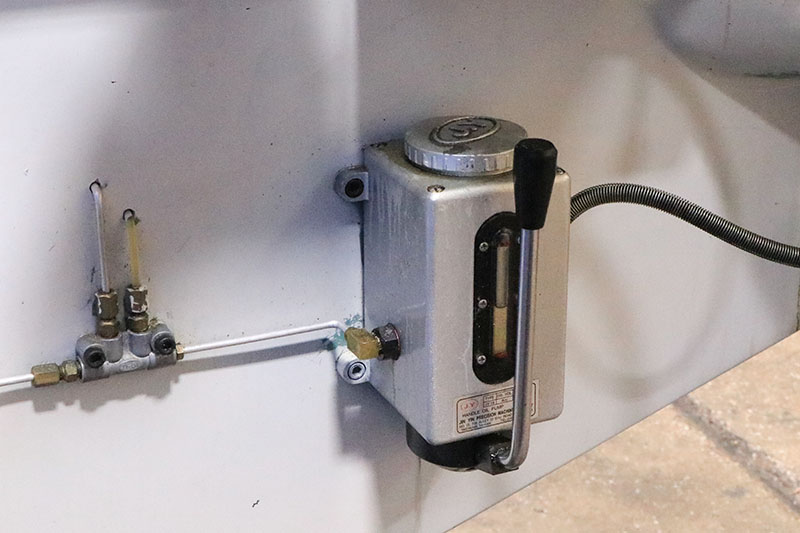

- MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM
- 3 H.P. 3/60/220-440 VOLT SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS

MACHINE IS WIRED FOR 220 VOLT OPERATION.

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
