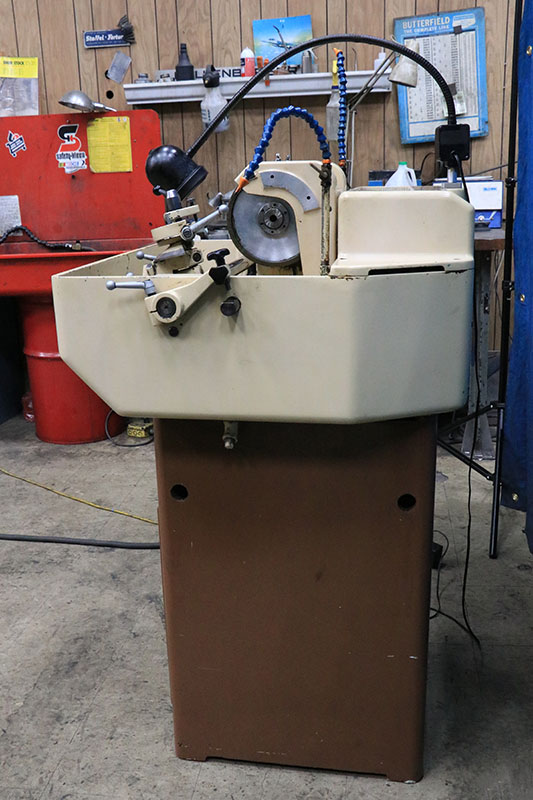

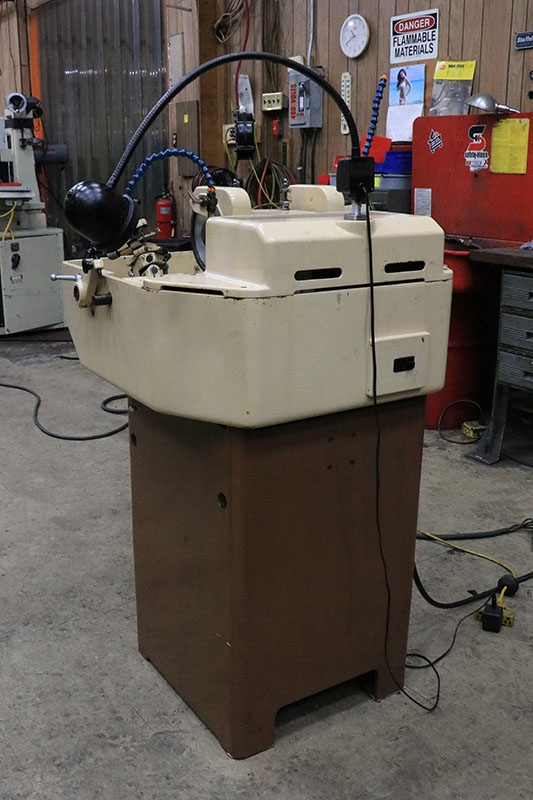

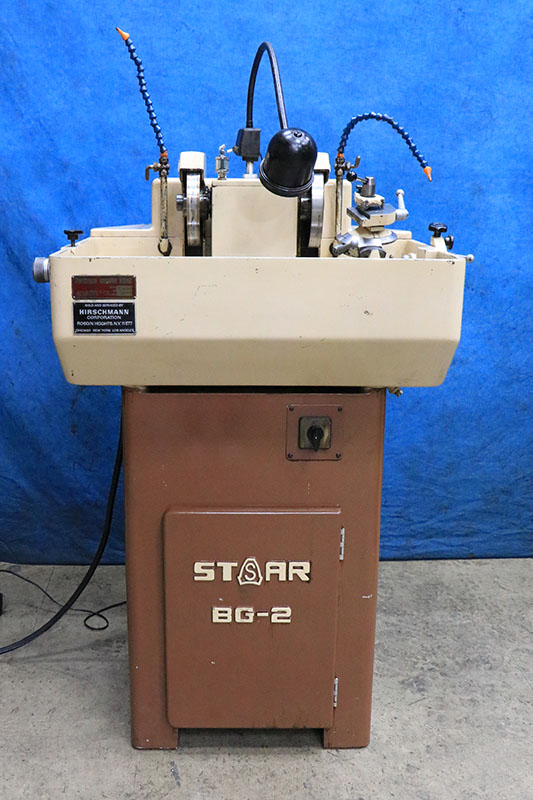

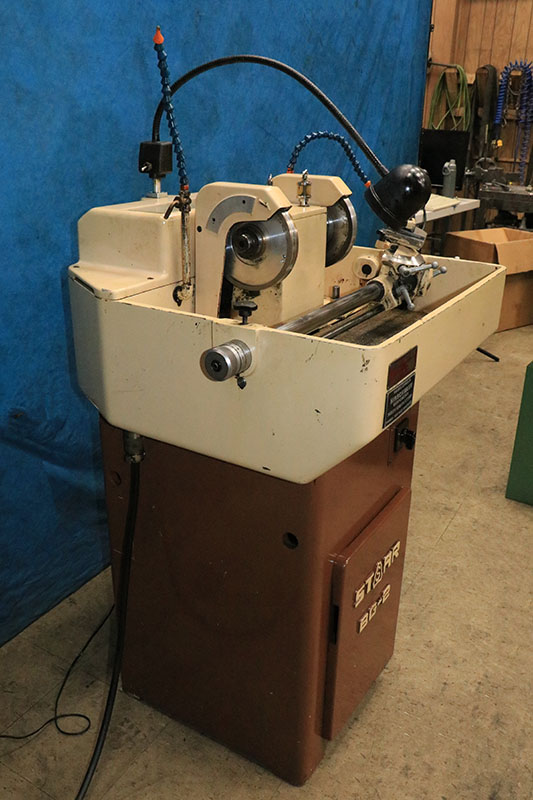

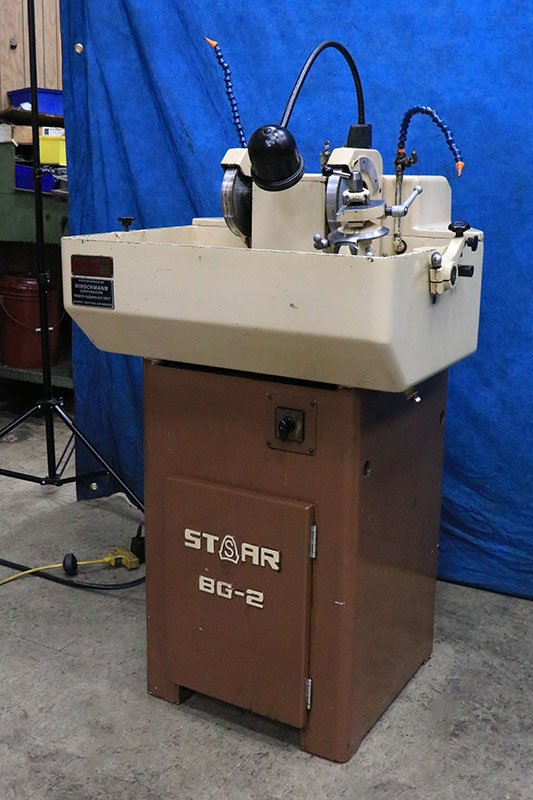

Star BG-2, 1984, DOUBLE END SPINDLE, UNIVERSAL FIXTURE CARBIDE GRINDERS

Price on Request

Make:: Star

Model:: BG-2, 1984, DOUBLE END SPINDLE, UNIVERSAL FIXTURE

Year:: 1984

Ref #:: 174594

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

  STAR "MADE IN JAPAN" "HIGH-PRECISION"
 CARBIDE TOOL GRINDING & LAPPING MACHINE

SIMILAR TO AGATHON MODEL 175-DIA

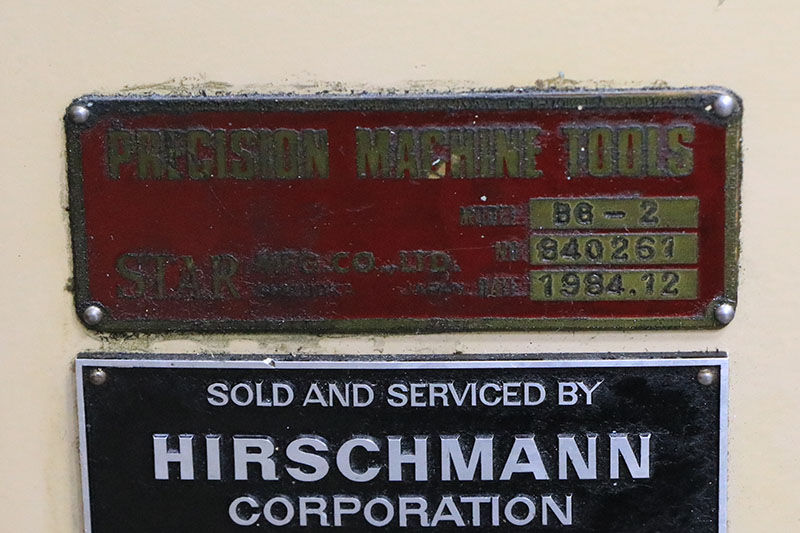

MODEL: BG-2     S/N: 840261     NEW: 1984



"The BG-2 offers an ideal solution for
  the requirements of producing a large
  variety of carbide single point turning
  tools, as well as their maintenance
  by resharpening.


Diamond-double-side rough and finish
  grinding and lapping wheels eliminate
  re-clamping of tools.


Direct and accurate reading of angular
  setting facilitates extremely precise
  adjustment of tool holder to cutting angle.


Micrometer infeed, combined with a
  sensitive reciprocating motion of the tool
  procedure perfect cutting faces and edges,
  while  providing for long life of grinding
  and lapping wheels."


WHEEL SIZE ...................... 7"DIA. x 1- 1/4"B x 1"W

SWIVELLING ANGLE OF TOOLHOLDERS:
  HORIZONTAL PLANE .............. 90° (RIGHT& LEFT)
  VERTICAL PLANE ................ 32° (RIGHT& LEFT)
  FRONT & BACK .................. 45°

SHANK SIZE OF TOOLS ............. 7/8" SQUARE
INFEED STROKE ................... 5/8"

SPINDLE MOTOR ................... 0.4 KW
COOLANT MOTOR ................... 0.6 KW

FLOOR SPACE ..................... 30" x 30" x 47"H
APPROX. WEIGHT .................. 880 LBS.

EQUIPPED WITH:

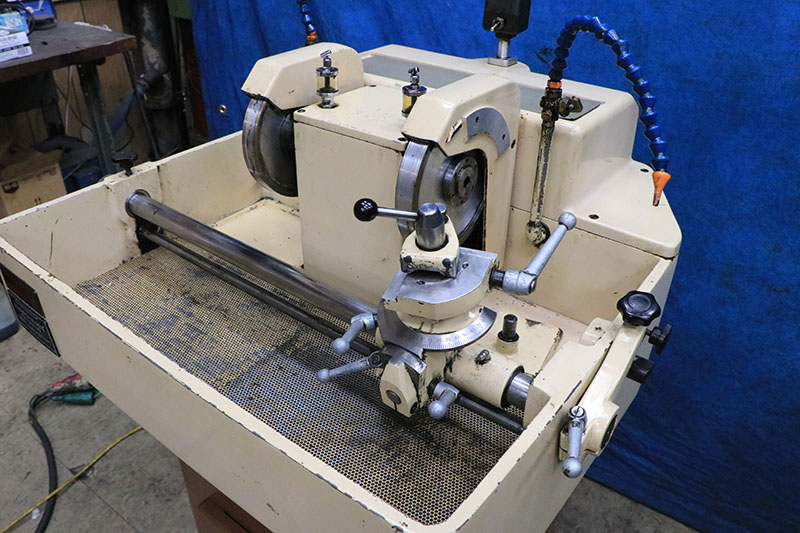

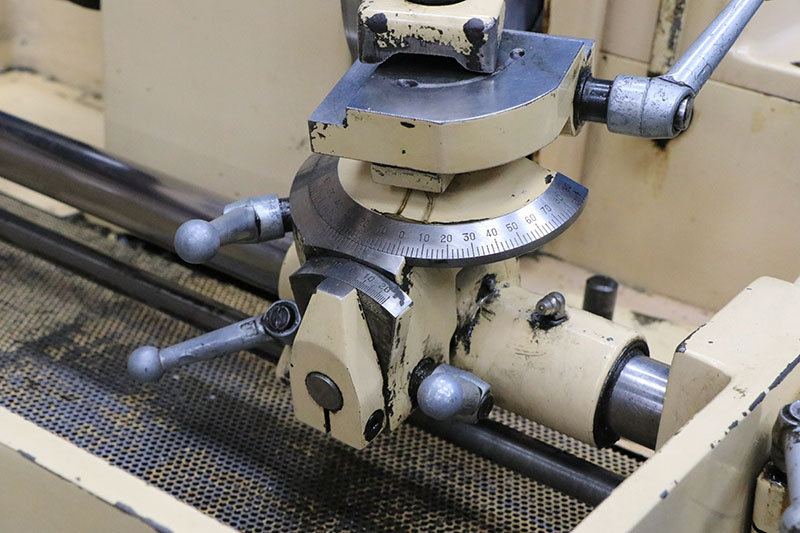

SWIVELLING UNIVERSAL TOOL FIXTURE

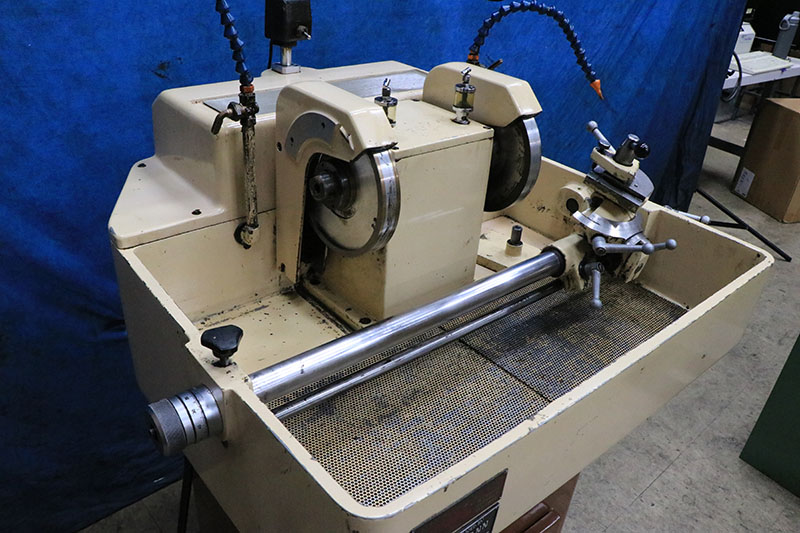

TWO DIAMOND WHEELS
COOLANT SYSTEM
WIRED PRESENTLY FOR 3/60/220 VOLTS

Available for Purchase Separately
  for this Machine:

Star Model "ST-15"
"Small Cutter Grinding Attachment"

link to video: https://youtu.be/TTXe4f_6EyM?si=kVk93_24eHYgpWza
