Star BG2, SIMILAR TO AGATHON 175-DIA, NEW 1989 CARBIDE GRINDERS

Price on Request

Make:: Star

Model:: BG2, SIMILAR TO AGATHON 175-DIA, NEW 1989

Year:: 1989

Ref #:: 163644

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

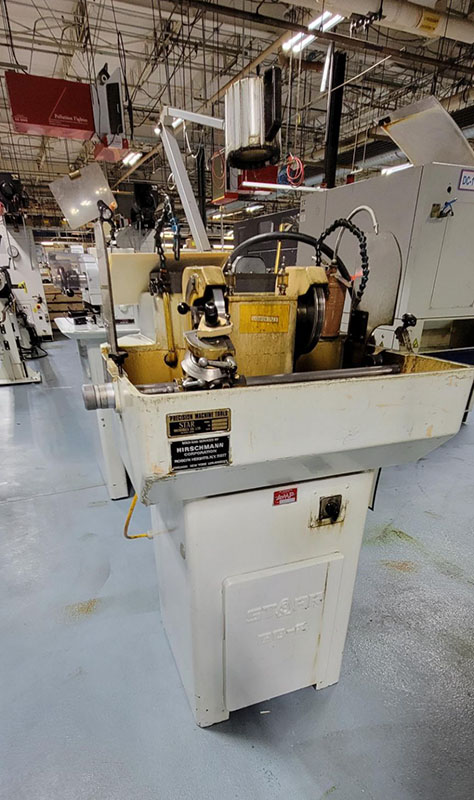

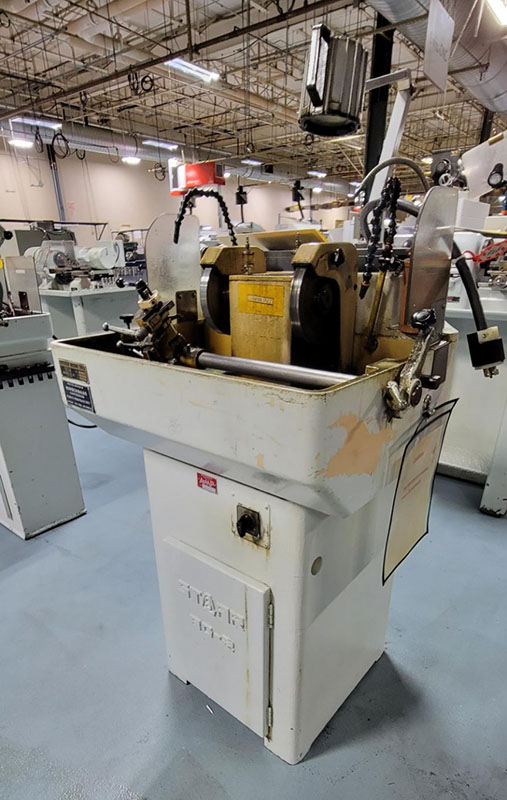

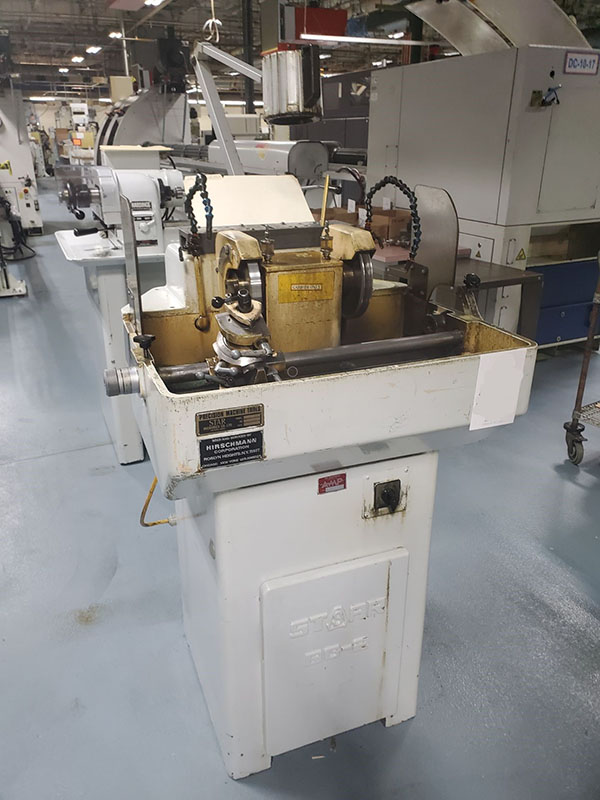

STAR "MADE IN JAPAN" "HIGH-PRECISION"
 CARBIDE TOOL GRINDING & LAPPING MACHINE

SIMILAR TO AGATHON MODEL 175-DIA

MODEL: BG-2     S/N:  890600    NEW: 1989



"The BG-2 offers an ideal solution for the
 requirements of producing a large variety
 of carbide single point turning tools,
 as well as their maintenance by resharpening.


Diamond-double-side rough and finish grinding
  and lapping wheels eliminate re-clamping
  of tools.


Direct and accurate reading of angular setting
  facilitates extremely precise adjustment of
  tool holder to cutting angle.


Micrometer infeed, combined with a sensitive
  reciprocating motion of the tool procedure perfect
  cutting faces and edges, while  providing for
  long life of grinding and lapping wheels."


WHEEL SIZE ...................... 7"DIA. x 1- 1/4"BORE x 1"WIDTH

SWIVELLING ANGLE OF TOOLHOLDERS:
  HORIZONTAL PLANE .............. 90 DEG. (RIGHT& LEFT)
  VERTICAL PLANE ................ 32 DEG. (RIGHT& LEFT)
  FRONT & BACK .................. 45 DEG.

SHANK SIZE OF TOOLS ............. 7/8" SQUARE
INFEED STROKE ................... 5/8"

SPINDLE MOTOR ................... 0.4 KW
COOLANT MOTOR ................... 0.6 KW

FLOOR SPACE ..................... 30" X 30" X 47"H
APPROX. WEIGHT .................. 880 LBS.

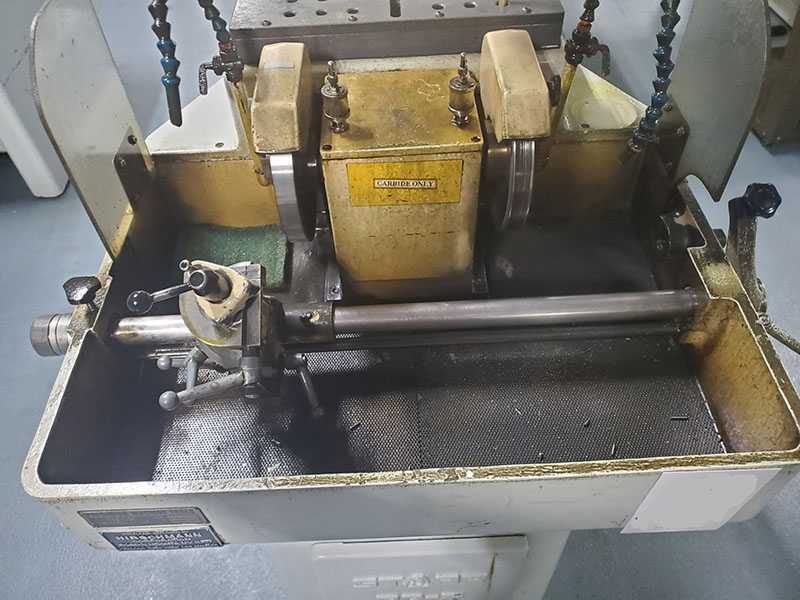

EQUIPPED WITH:
SWIVELLING UNIVERSAL TOOL FIXTURE
TWO DIAMOND WHEELS
COOLANT SYSTEM
WIRED PRESENTLY FOR 3/60/220 VOLTS

Available for Purchase Separately for this Machine:
Star Model "ST-15" "Small Cutter Grinding Attachment",
 Uses W-20 Collets


** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
