Supertec PLANOTEC 1224NC NEW SURFACE GRINDERS

Price on Request

Make:
Supertec
Model:
PLANOTEC 1224NC
Year:
NEW
Ref #:
137734

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


SUPERTEC MODEL PLANOTEC 1224NC
3-AXIS FULLY AUTOMATIC HYD. SURFACE GRINDER

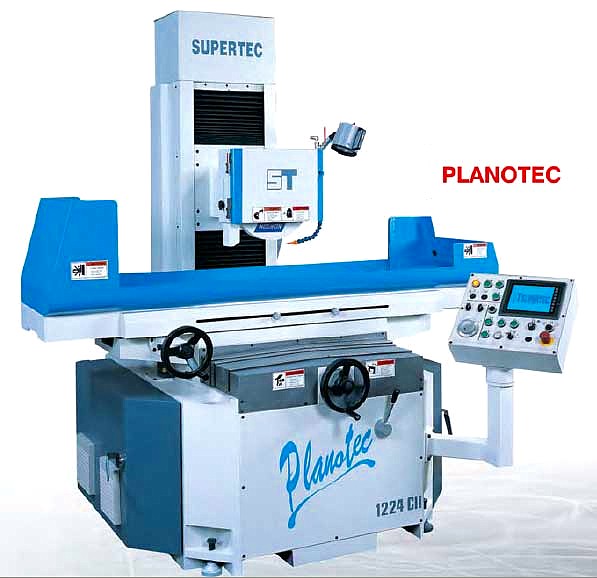

NOTE:  PHOTO IS OF THIS MODEL
FEATURES:
- All essential castings are rib reinforced to provide a rigid
machine structure for long lasting accuracy and stability.
- The precision cartridge spindle is equipped with a total of 4
preloaded class 7 (p4) super precision angular contact ball
bearings to ensure high accuracy and superior grinding finish.
- Spindle, couplings, and 7.5 HP spindle motor are precisely
balanced for low vibration and powerful output to achieve
precision grinding accuracy.
- Double V saddle and table ways are Turcite-B coated and precisely
hand scraped to provide smooth movement, better accuracy and
longer way life.
- Both saddle and table travel on Hydrostatic ways, a cushion of oil
with no metal-to-metal contact, providing excellent way longevity
and accurate positioning.
- The rigid wheelhead travels on linear slideways and is precisely
positioned with an AC servo motor and precision ballscrew to
ensure better downfeed repeatability.  The smallest downfeed
increment is 0.000010".
- The crossfeed mechanism incorporates a precision ballscrew, and
AC inverter to provide smooth, accurate crossfeed and allows
criss-cross grinding for better workpiece finish.
- The hydraulic & coolant systems are separated from the machine
to eliminate vibration and dissipate heat better.  A heat exchanger
is used on the hydraulic system to maintain optimum oil temperature.
- All moving surfaces and rotating parts are continuously lubricated
by an auto-lube system to ensure long service life and maintain
maximum accuracy. An alarm light will illuminate if oil pressure
drops below recommended pressure.
- Mitsubishi PLC control uses a menu-driven LCD touch screen is
easy to learn and easy to set up.  Simply fill in the blanks to set
total grinding amount, rough increment, fine increment, sparkout
passes, feeding direction, parking position, wheelhead retract
distance, and press cycle start to complete an automatic grinding
cycle.
- Grinding cycles for CII model:  semi-automatic, surface, plunge,
crisscross.

SPECIFICATIONS:
GENERAL CAPACITY
  - Table size:                                                       12" x 24"
  - Distance from table surface to spindle center:       24"
  - Standard magnetic chuck size:                            12" x 24"

LONGITUDINAL MOVEMENT
  - Manual traverse:                                                28"
  - Hydraulic traverse:                                             26"
  - Table speed (infinitely variable):                          10 - 82 fpm

CROSS MOVEMENT
  - Manual traverse:                                                 14.5"
  - Automatic traverse:                                             14"
  - Rapid traverse:                                                   40 ipm
  - Auto traverse increment:                                     0.02" - 0.32"
  - Handwheel per graduation:                                  0.001"
  - Handwheel per revolution:                                   0.2"

VERTICAL DOWNFEED
  - Automatic infeed:                                 0.000010" - 0.01"
  - Wheelhead vertical infeed:
  - handwheel per graduation (MPG):     0.000010"/0.0001"/0.001"
  - handwheel per revolution (MPG):             0.001"/0.01"/0.1"

GRINDING WHEEL
  - Wheel size:                                            14" x 2" x 5"
  - Spindle speeds:                                        1800 rpm

MOTOR
  - Spindle motor:                                          7.5 HP
  - Crossfeed motor:                                      .25 HP
  - Elevating motor: (servo motor)                 1.33 HP (1 KW)
  - Hydraulic motor:                                        2 HP

MACHINE
  - Net weight (approx.):                                7,330 lbs
  - Gross weight (approx.):                             8,000 lbs
  - Packing Dimension (L x W x H):              90" x 83" x 90"

STANDARD ACCESSORIES:
- Grinding wheel w/flange
- Wheel extractor
- Balancing arbor
- Diamond dresser
- Halogen lamp
- Hydraulic system w/cooling fan
- Leveling screws w/ blocks
- Tool box w/adjusting tools
- Operator's manual & parts lists
- Splash guards

OPTIONS, TOOLING AND ACCESSORIES (call for pricing):
MAGNETIC CHUCKS AND CONTROL
  - Electromagnetic chuck (12" x 24")
  - Auto demagnetizer (for electric chuck)
  - Permanent magnetic chuck (12" x 24")
  - Manual demagnetizer (for permanent chuck use)
  - O.S. Walker ceramax permanent chuck (fine pole, 12" x 24")
  - O.S. Walker LBP (fine pole, 12" x 24")
  - Control for O.S. Walker chuck

COOLANT SYSTEMS AND DUST COLLECTOR
  - Coolant system (58L capacity)
  - Coolant system (98L capacity)
  - Coolant system w/mag. sep. & paper filter (20L/min, 80L)
  - Coolant system w/mag. sep. & paper filter (60L/min, 140L)
  - Coolant system w/magnetic separator (20L/min, 58L)
  - Coolant system w/magnetic separator (40L/min, 98L)
  - Coolant system w/paper filter (20L/min, 80L)
  - Coolant system w/paper filter (60L/min, 140L)
  - Combine coolant & dust collector
  - Dust collector

DRESSING ATTACHMENT
  - Manual parallel dressing attachment
  - Hydraulic parallel dressing attachment
  - Overhead parallel dress. w/auto compensation
  - Radius dressing attachment

SONY DIGITAL READOUT SYSTEM
  - Two axis (Z & Y axis) digital readout
  - One axis (Elevating) digital readout

OTHER ACCESSORIES
  - Balancing stand (straight type)
  - Balancing stand (roller type, 20")
  - Grinding wheel
  - Spare wheel flange
  - 460V Transformer
  - Variable spindle speeds for wheelhead by AC frequency control
