TAKAMAZ X-200 LIVE TOOL SUBSPINDLE CNC TURNING CENTERS - CNC LATHES

$22,500

Make:: TAKAMAZ

Model:: X-200 LIVE TOOL SUBSPINDLE

Year:: 2003

Ref #:: 164409

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

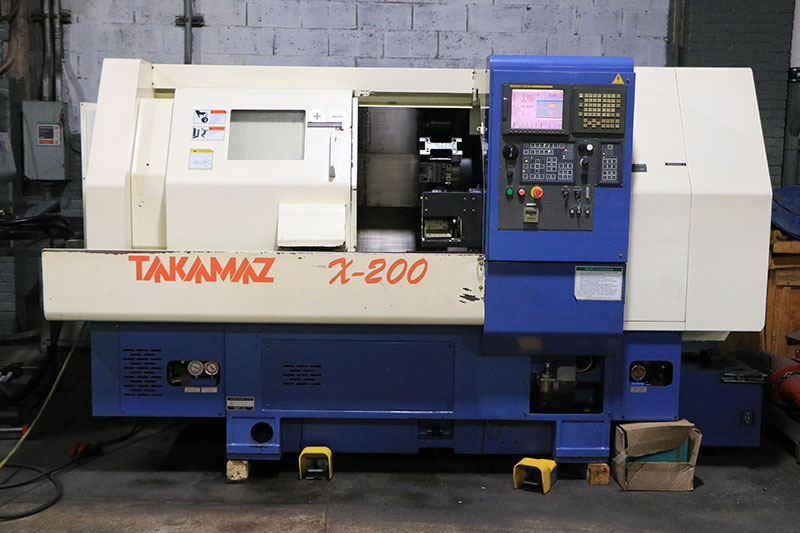

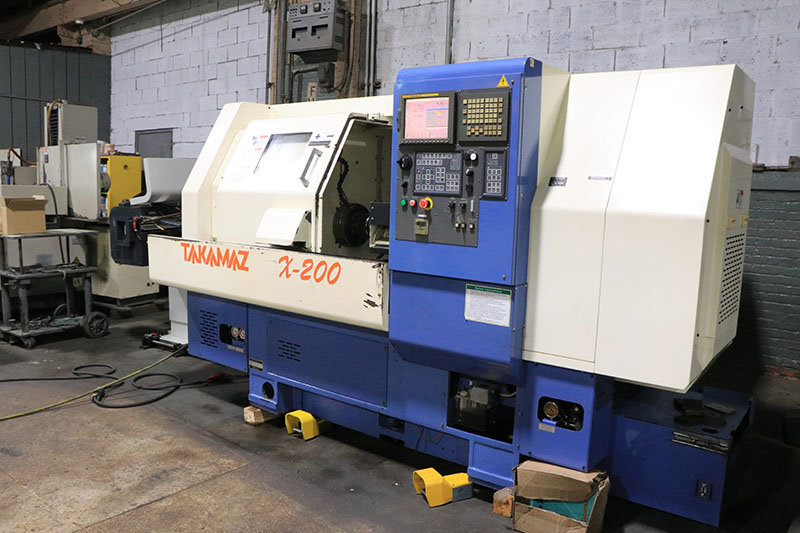

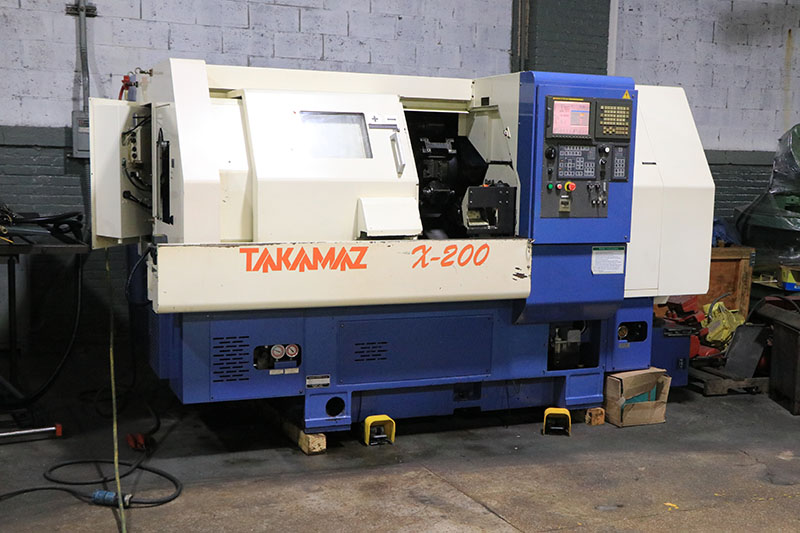

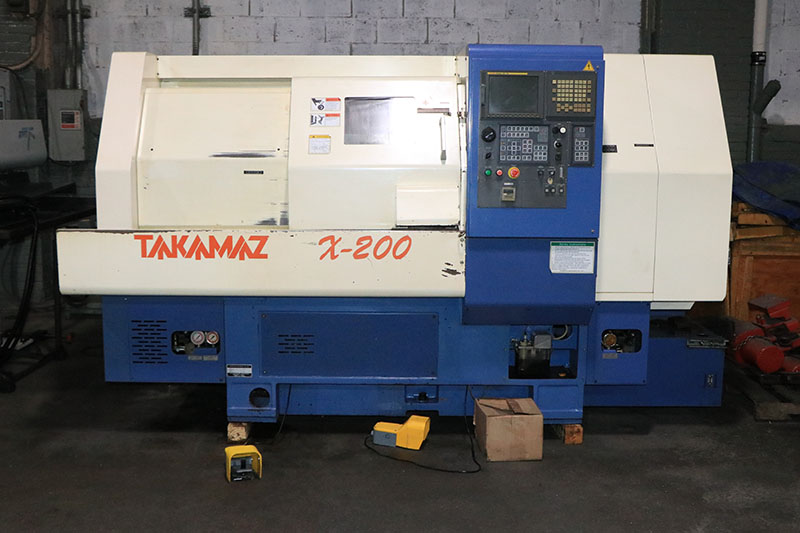

TAKAMAZ X-200 CNC MILLING/TURNING CENTER w/SUBSPINDLE
NEW: 2003

VIDEO LINK: https://youtu.be/Er0z5sL0I2Y

SPECIFICATIONS:
OPTIMUM TURNING DIA. ............... 13.38"
MAX. TURNING LENGTH ................ 20.07" (Collet)
MAX. BAR DIA. ...................... 2"
SPINDLE NOSE ....................... A2-6
MAX. SPINDLE SPEED ................. 5,000 RPM
TURRET TYPE ........................ 12 STATION VDI
MAX. TOOL SIZE ..................... 1" Square
MAX. BORING HOLDER ID .............. 1.57"
X-AXIS STROKE ...................... 9.44"
Z-AXIS STROKE ...................... 21.65"
ROTARY TOOL SPINDLE SPEED .......... 4000 RPM
ROTARY TOOL MOTOR .................. 5.5/3.7 Kw
MAIN SPINDLE MOTOR ................. 15/11 Kw
APPROX. MACHINE WEIGHT ............. 10,600 LBS.

EQUIPPED WITH:

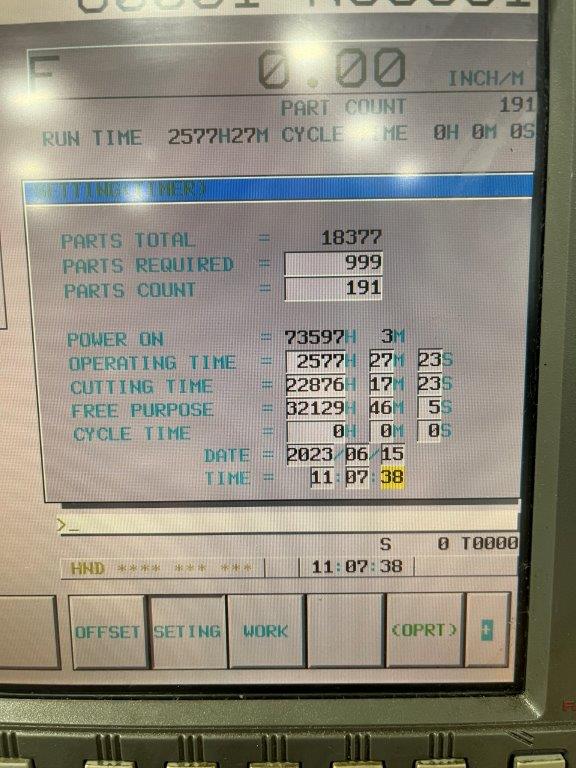

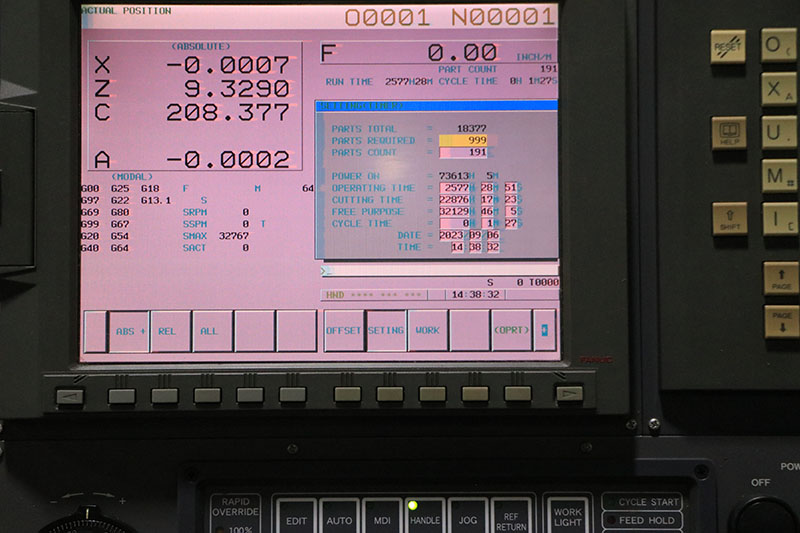

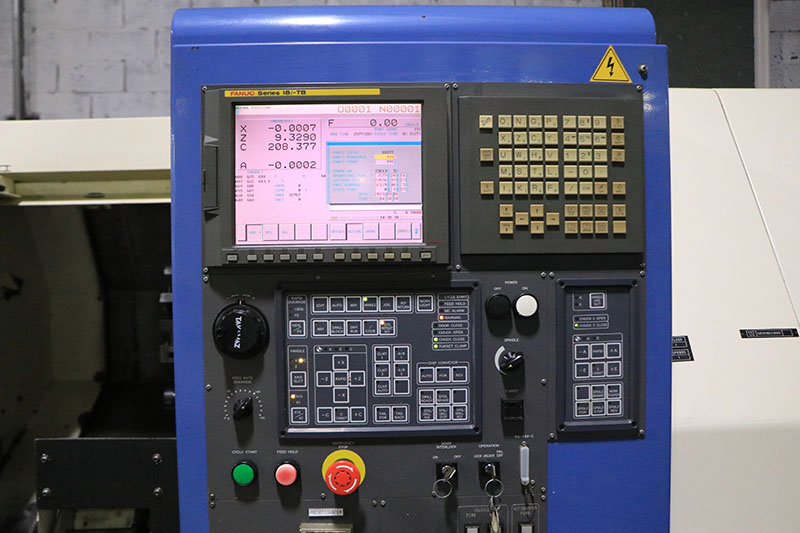

 - FANUC 18iTB CNC CONTROL

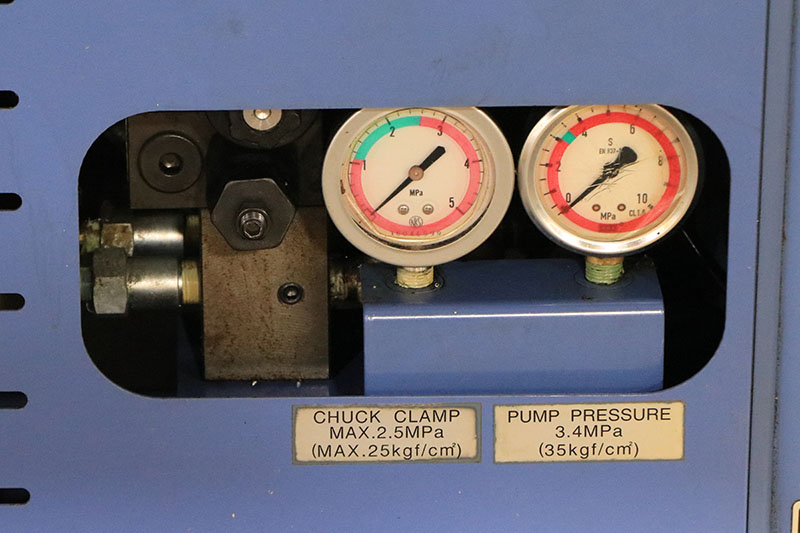

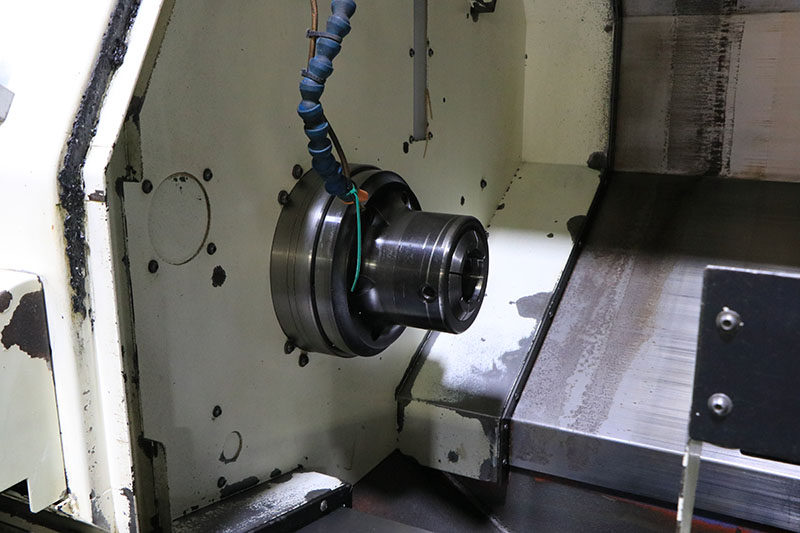

 - ATS S-26 COLLET CHUCK ON MAINSPINDLE
 - SMW AUTOBLOK 165BH 6" 3-JAW HYD CHUCK ON SUBSPINDLE
 - FULL C-AXIS ON MAINSPINDLE

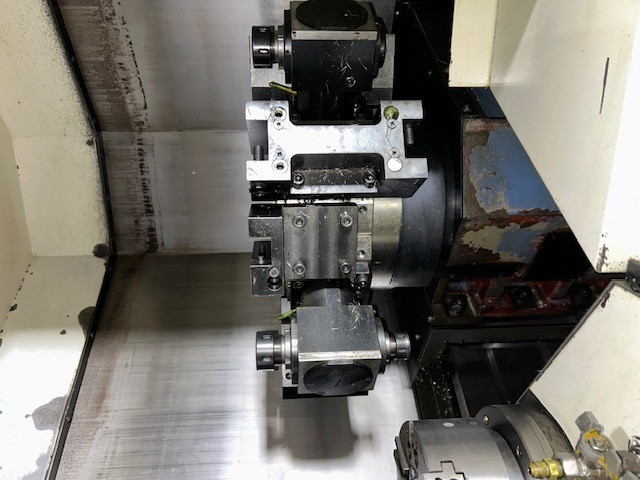

 - 12 POSITION TURRET
 - PARTS CATCHER
 - CHIP CONVEYOR
 - (4) LIVE TOOLHOLDERS
 - ALL AVAILABLE STATIC TOOLHOLDERS
 - ALL AVAILABLE MANUALS
 - LNS ECOLOAD SHORT MAGAZINE BARFEED (NOT CURRENTLY INTERFACED WITH THE MACHINE)
