Tschudin HTG-400, 1980, ,MADE IN SWITZERLAND UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tschudin

Model:: HTG-400, 1980, ,MADE IN SWITZERLAND

Year:: 1980

Ref #:: 158474

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

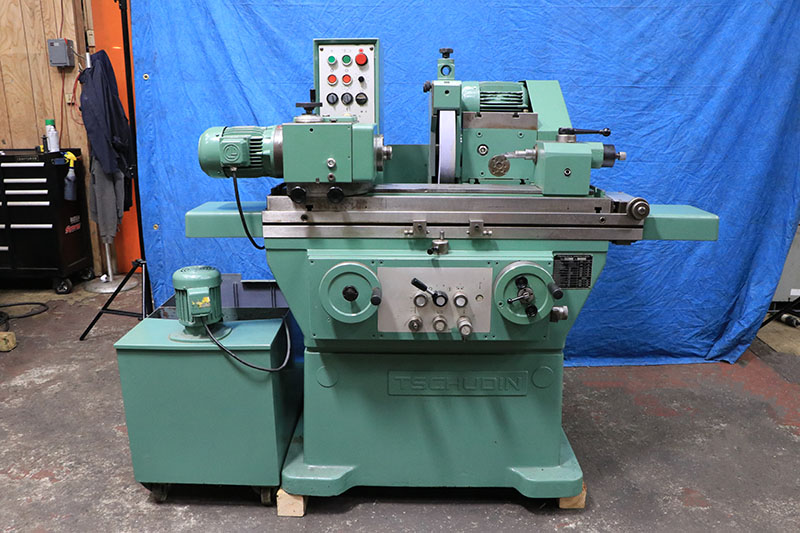

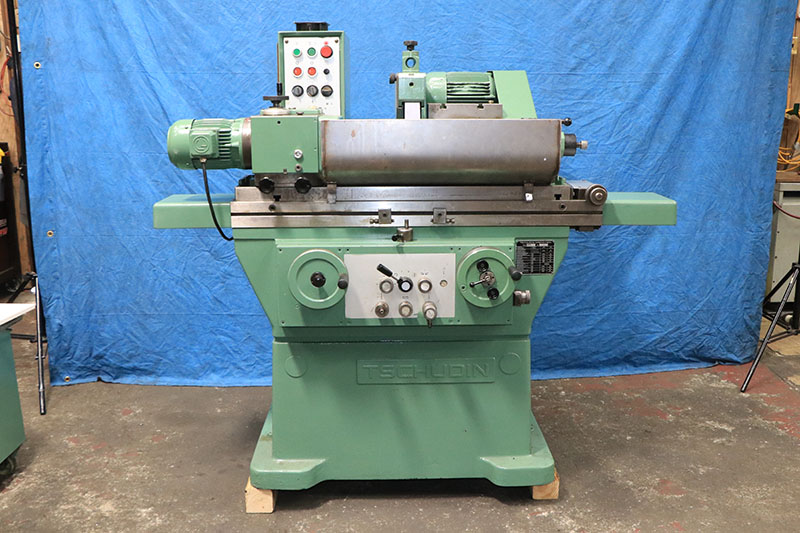

              8" X 16" TSCHUDIN
          "SWISS" SUPER-PRECISION

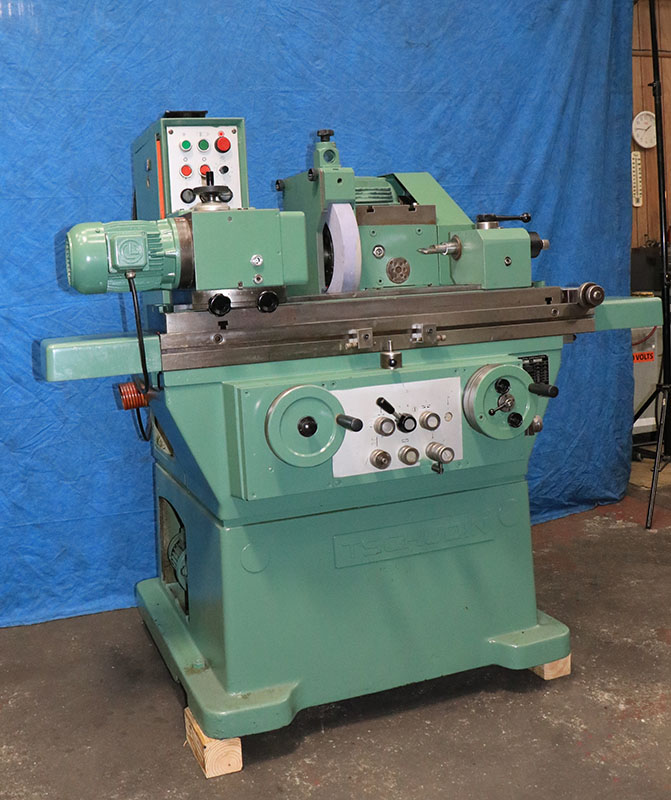

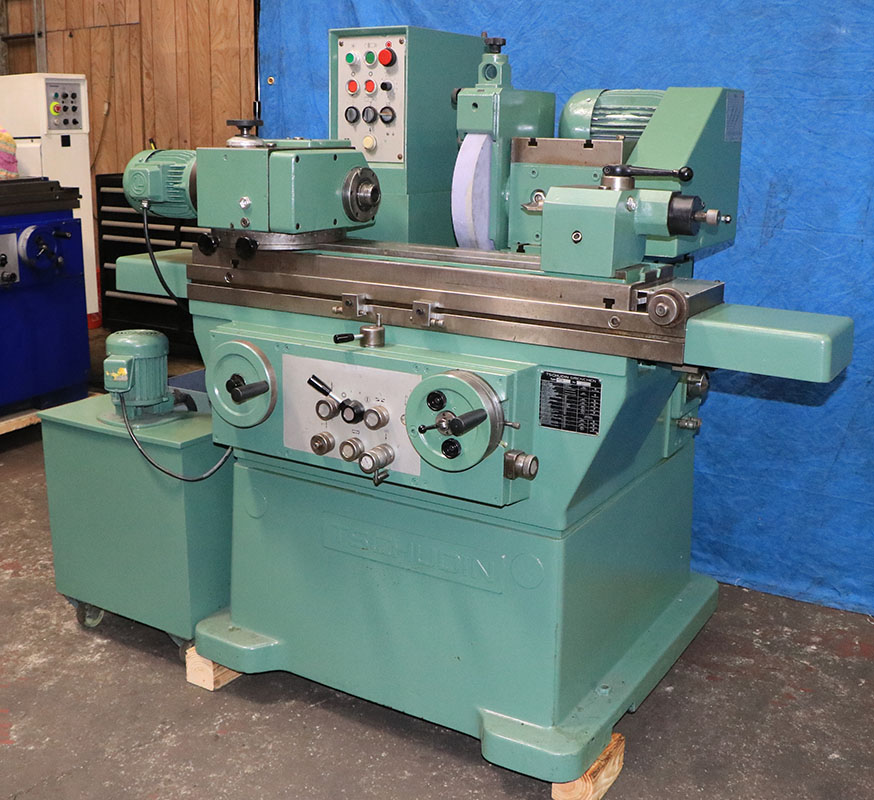

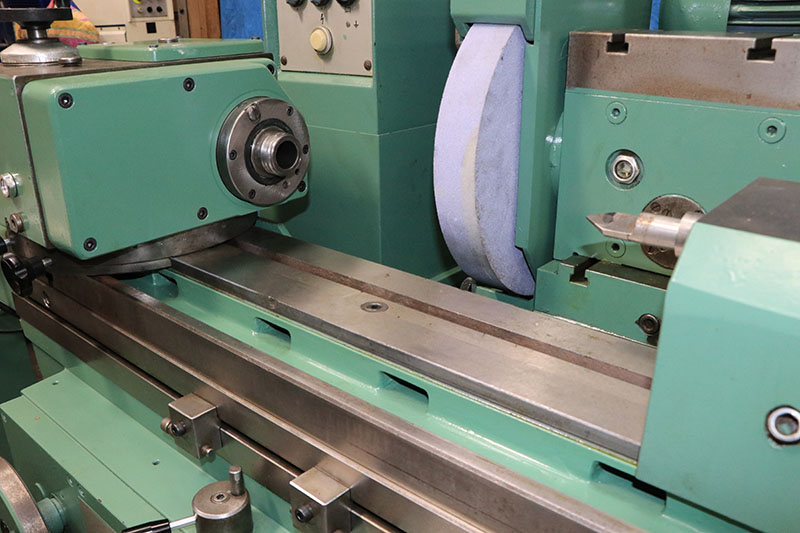

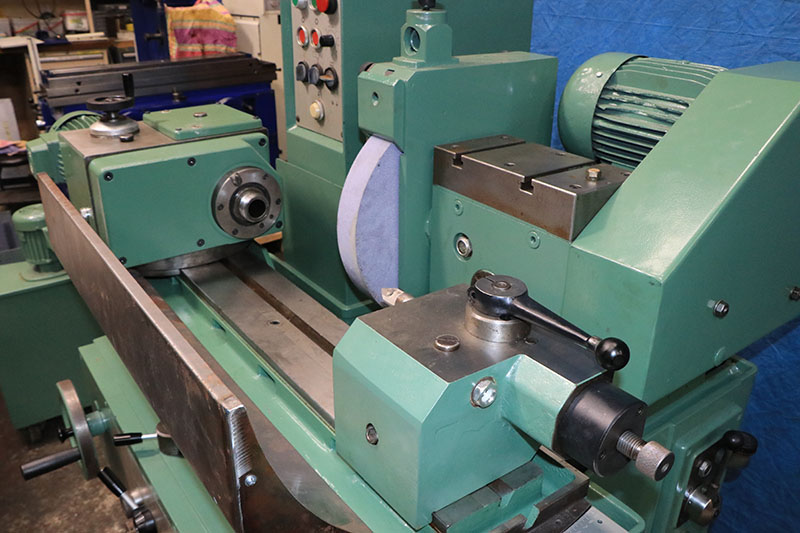

        UNIVERSAL CYLINDRICAL GRINDER

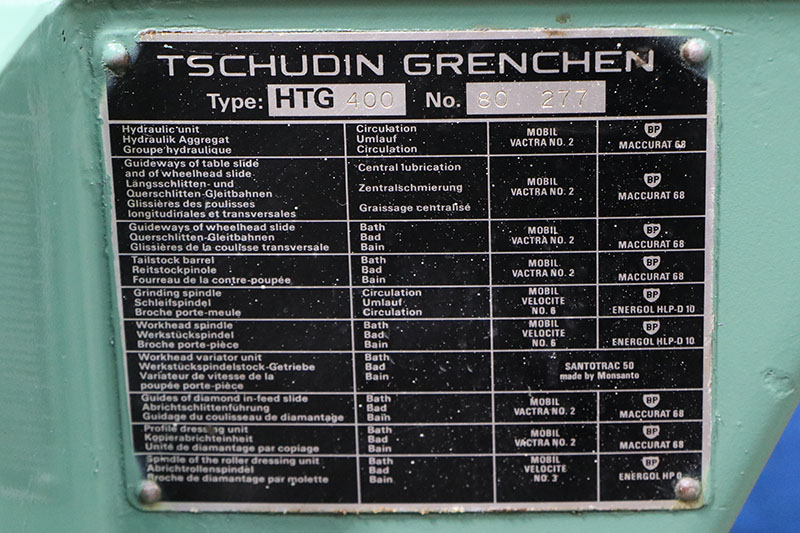

MODEL: HTG-400      S/N: 80-277      NEW: 1980

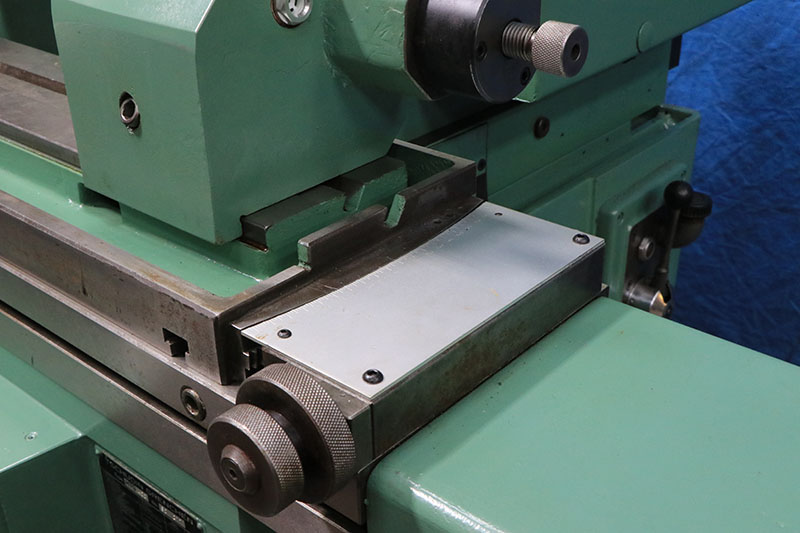

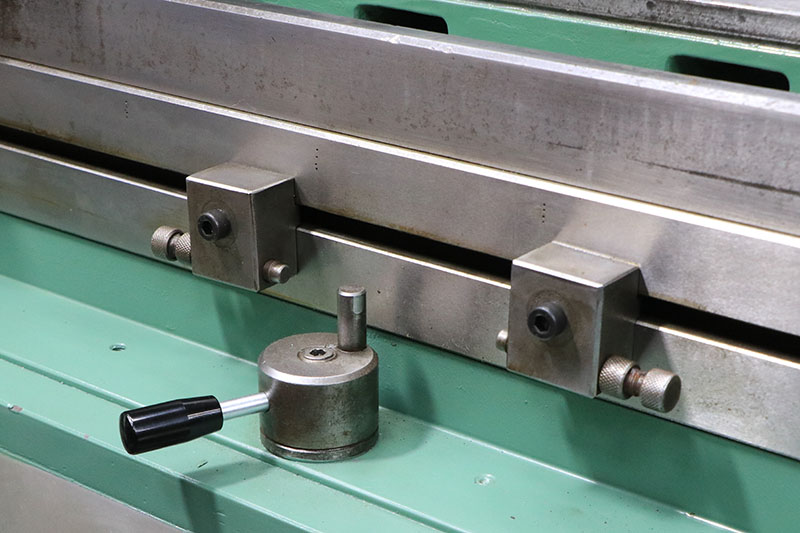

TABLE:
  NOMINAL SWING ........................... 8"
  DISTANCE BETWEEN CENTERS ................ 16"
  TABLE SPEED ............................. 0 TO 195" IPM
  TABLE DWELL ............................. 0 TO 6 SECONDS
  SWIVELLING RANGE ........................ +/- 11°

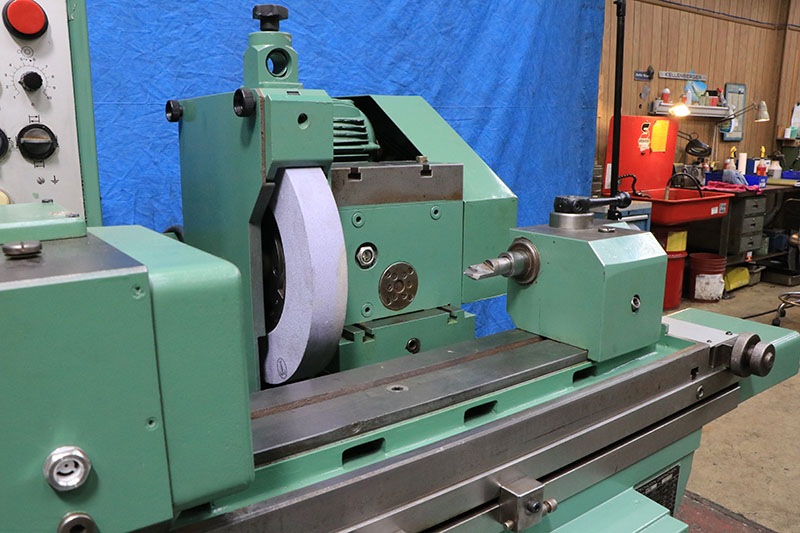

WHEELHEAD:
  WHEEL SIZE ........................ 14"DIA. x 2"W x 5"BORE
  SWIVELLING RANGE ........................ +/- 5°
  MOTOR ................................... 4 HP
  SPINDLE SPEEDS (3) ................ 1,640, 1,940 & 2,300 RPM

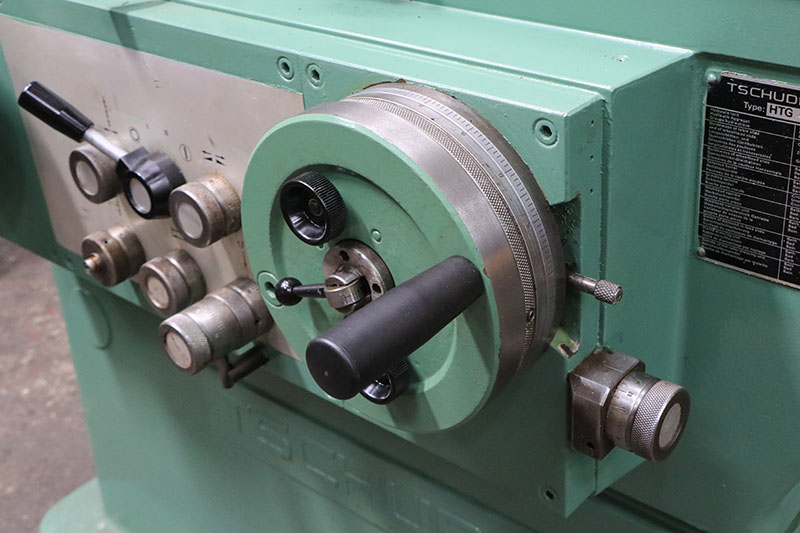

WHEELHEAD INFEED;
  RANGE OF PLUNGE FEED DIAMETER
   REDUCTION PER MINUTE ................... 0.0005" - 0.200"
  AUTOMTIC INFEED OF THE GRINDING WHEEL
   PER TABLE REVERSAL, MINIMUM INFEED
  INCREMENT DIAMETER REDUCTION ............ 0.000050"
  DIA. REDUCTION PER REV. OF INFEED
   HANDWHEEL .............................. 0.080"
  HANDWHEEL GRADUATION READS TO ........... 0.0001"
  TRAVEL BY USING THE HANDWHEEL ........... 1.8"
  RAPID APPROACH, AUTOMATICALLY ........... 1.5"
  MOVEMENT OF WHEELHEAD SLIDE BY
  HANDWHEEL ............................... 1.8"
  TRAVEL OF THE WHEELHEAD SLIDE INFEED,
   AUTOMATICALLY .......................... 0 TO .050" ON DIA.
  INFEED SPEED, MAXIMUM ................... 1.2"/MIN.
  SPARKOUT ................................ 2 TO 30 SECONDS

WORKHEAD:
  SPINDLE TAPER ........................... #4MT
  SWIVELLING RANGE ........................ 360°
  INFINITELY VARIABLE SPINDLE SPEED ....... 65 TO 500 RPM

TAILSTOCK:
  TAPER OF CENTER BORE .................... #3MT
  TRAVEL OF CENTER ........................ 0.8"

APPROXIMATE MACHINE DIMENSIONS ....... 60"L x 48"D x 58"H
APPROXIMATE WEIGHT ........................ 4,400 LBS

MACHINE FEATURES:
  TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO
   STEEL BEARING WHEELHEAD DESIGN

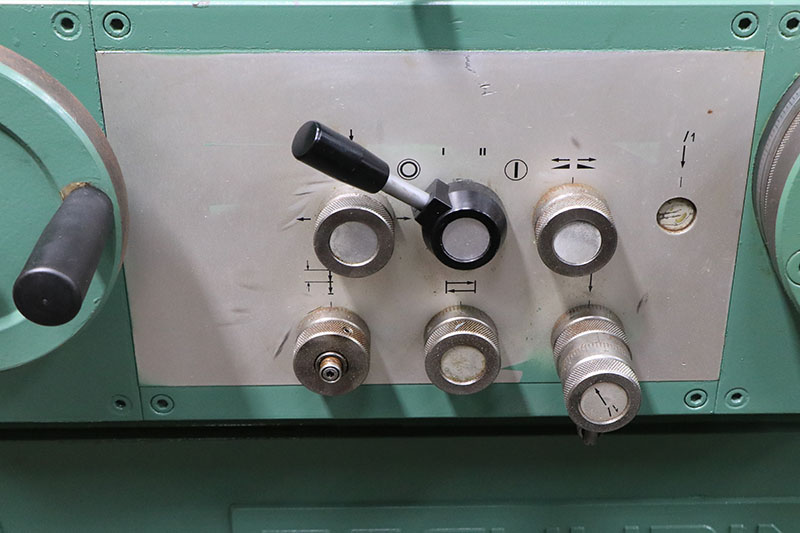

  SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS
   FOR TRAVERSE & PLUNGE GRINDING CYCLES

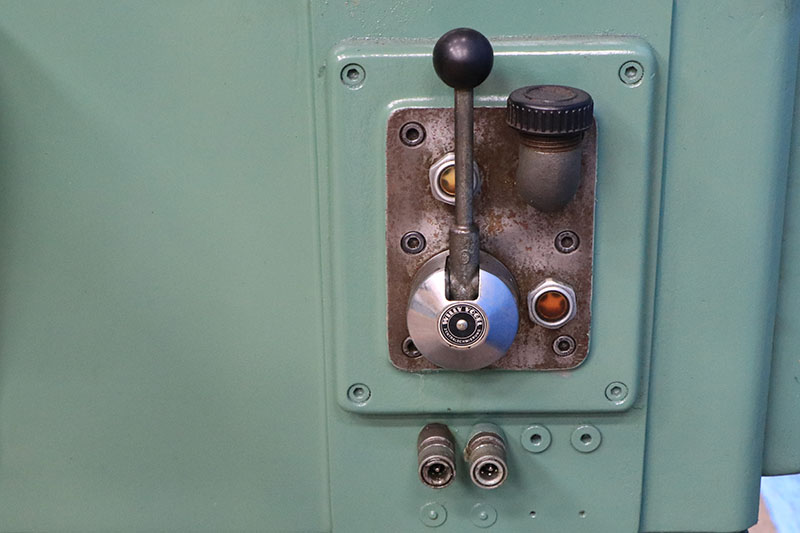

  HYDRAULIC OPERATION FEATURING:
   -POWER TABLE TRAVERSE
   -AUTOMATIC INFEED
   -DUAL RATE INFEED OPTION
   -PLUNGE INFEED
   -RAPID WHEELHEAD ADVANCE AND RETRACTION
  SPARKOUT TIMER
  TSCHUDIN "STANDARD" WORKHEAD w/DUAL LIVE & DEAD SPINDLE


EQUIPPED WITH:

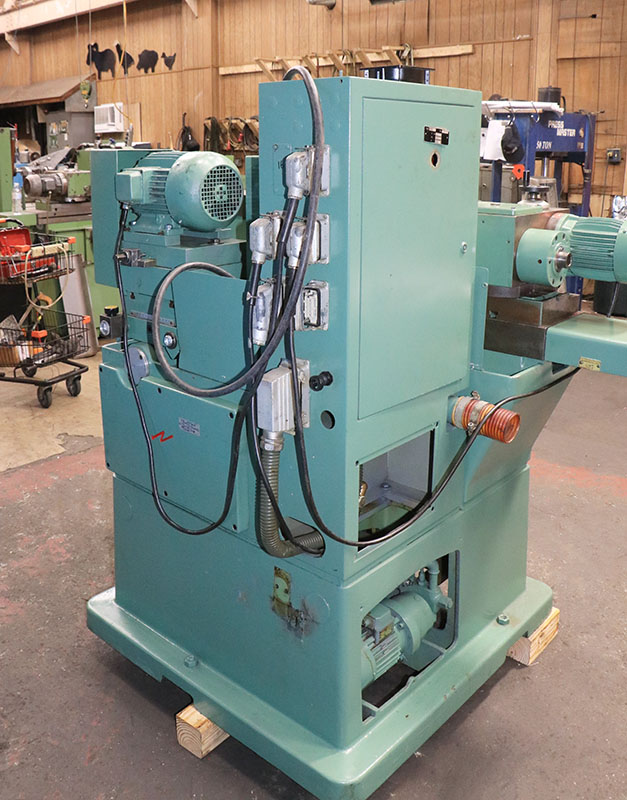

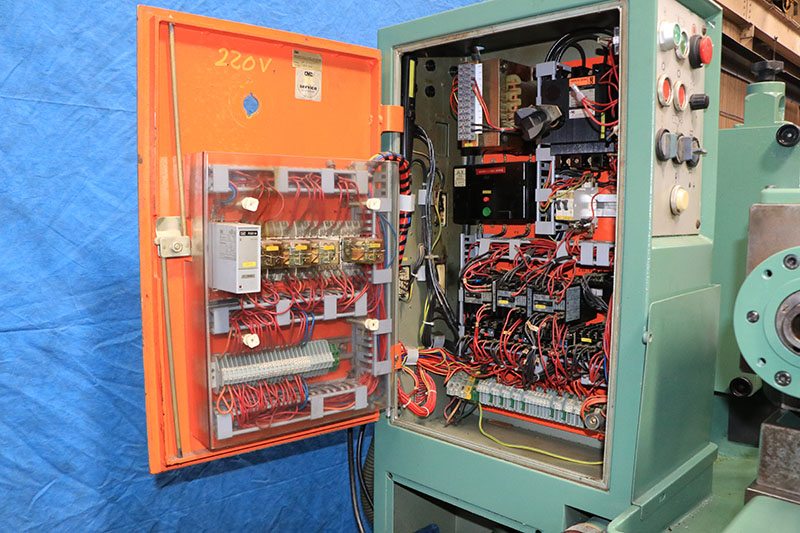

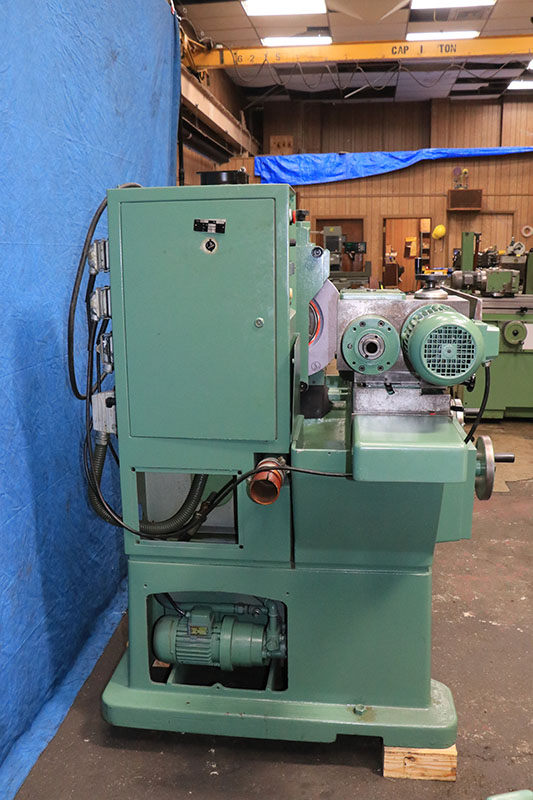

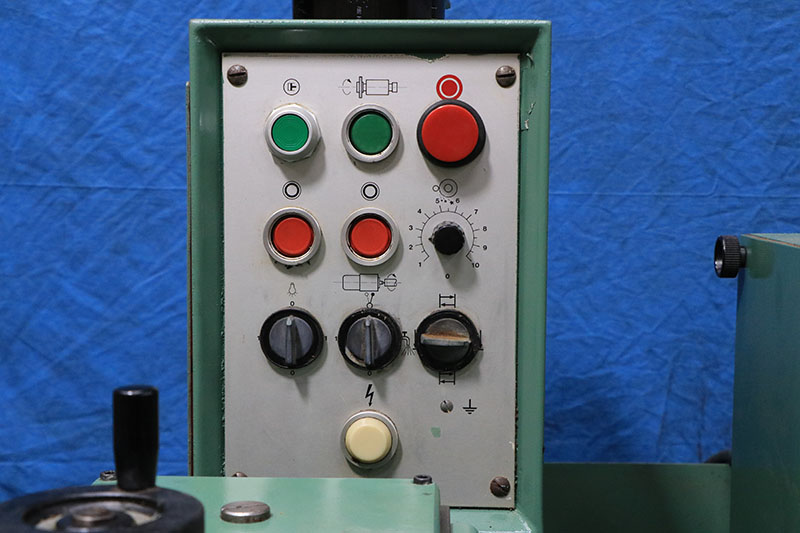

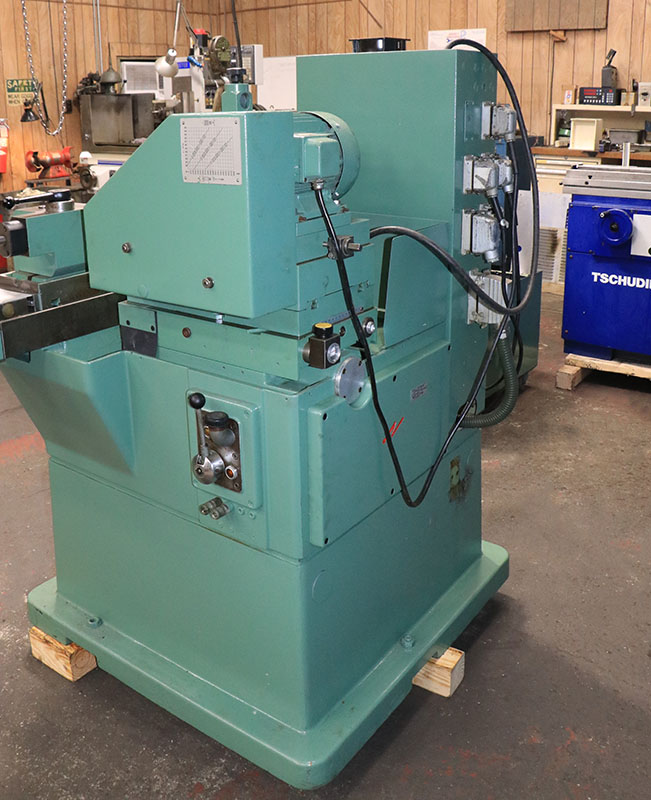

ELECTRICAL CABINET ON MACHINE, NOT SEPARATE

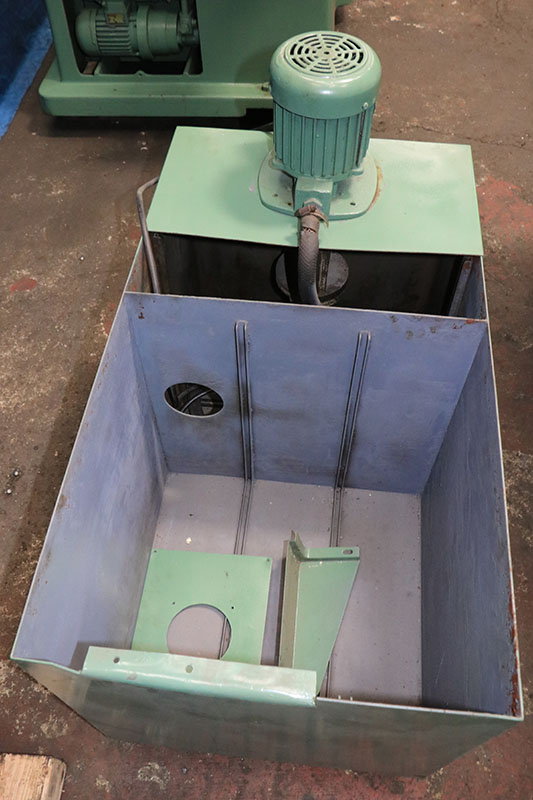

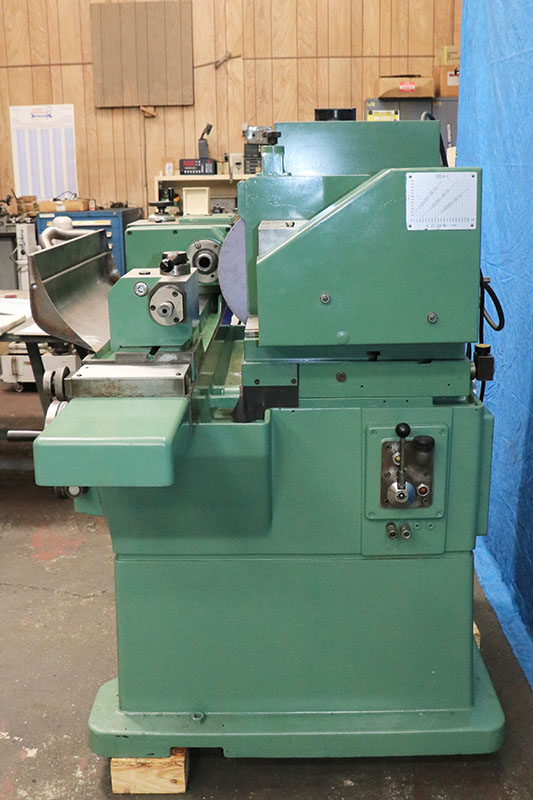

HYDRAULIC RESEVOIR IN BASE, ISOLATED BUT NOT SEPARATE
COOLANT SYSTEM
3/60/220-440 VOLT ELECTRICS

SPECIAL NOTE:
FULL & THOROUGH SERVICE DONE BY MR. BOB HOUGHTON.
 BOB TOOK THE  MACHINE APART,  MADE SURE EVERYTHING
 IS FUNCTIONING & IN EXCELLENT WORKING ORDER.
 BOB WORKED FOR TSCHUDIN GRINDERS FOR 9 YEARS.
 OUR MACHINE IS IN STOCK, READY TO DELIVER!

LINK TO VIDEO: https://youtu.be/TXklXx4azz0

* *  EXCEPTIONAL CONDITION & APPEARANCE - WOW!  * *
* * INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE * *
