Unison-Dedtru 233 RX CENTERLESS GRINDERS

Price on Request

Make:
Unison-Dedtru
Model:
233 RX
Year:
2002
Ref #:
155038

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


  UNISON "DEDTRU" CENTERLESS GRINDER WITH "C6" DEDTRU UNIT

MODEL: 233RX     S/N: 10541-W     NEW: 2002

VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
  REGULATING ROLL .................................. 10"
CROSS FEED TRAVEL .................................. 6-3/4"
LONGITUDINAL TRAVEL ................................ 18"
TABLE SIZE ......................................... 6" X 18"

WORKPIECE SIZE:
  O.D. WORK WITH BASIC EQUIPMENT ................... 1/4" TO 1-1/4"
  O.D. WORK W/STD. OPTIONAL ACCESSORIES ............ 0.031" TO 5"
  I.D. WORK - MAXIMUM O.D. ......................... 5"
MAXIMUM WHEEL DIAMETER ............................. 8"
MAXIMUM WHEEL LENGTH ............................... 3"
APPROXIMATE MACHINE WEIGHT ......................... 1,500 LBS

EQUIPPED WITH:
     UNISON MODEL "C6" DED-TRU CENTERLESS GRINDING UNIT (S/N: 327)
       -DESIGNED TO DO THROUGH FEED, O.D., I.D. AND
       SECOND OPERATIONS.
     REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC
       DRIVE CONTROLLER. REGULATING ROLL SIZE 6" X 6"
     HARIG #618W SURFACE GRINDER BASE
     OPTIONAL FINE DOWNFEED FOR VERTICAL HANDWHEEL

     "NEW UNISON" HEAVY DUTY SUPER-PRECISION DIRECT DRIVE SPINDLE
       INFINITELY VARIABLE SPINDLE SPEEDS, RHEOSTAT CONTROL,
        ON THE OPERATOR'S CONSOLE, TURN THE DIAL AND ADJUST THE SPINDLE SPEED

       MODEL:  07-2A-3-001       S/N: 1002-18
       SPEED:  3600/7200 RPM     POWER:  3H.P./1.5 H.P.

     SUPPLIED WITH HOLE THROUGH COLUMN FOR LONGER PARTS
     DUAL SINE BASE
     COOLANT TANK & PUMP
     MITUTOYO TWO-AXIS DIGITAL READOUT DISPLAY
     MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

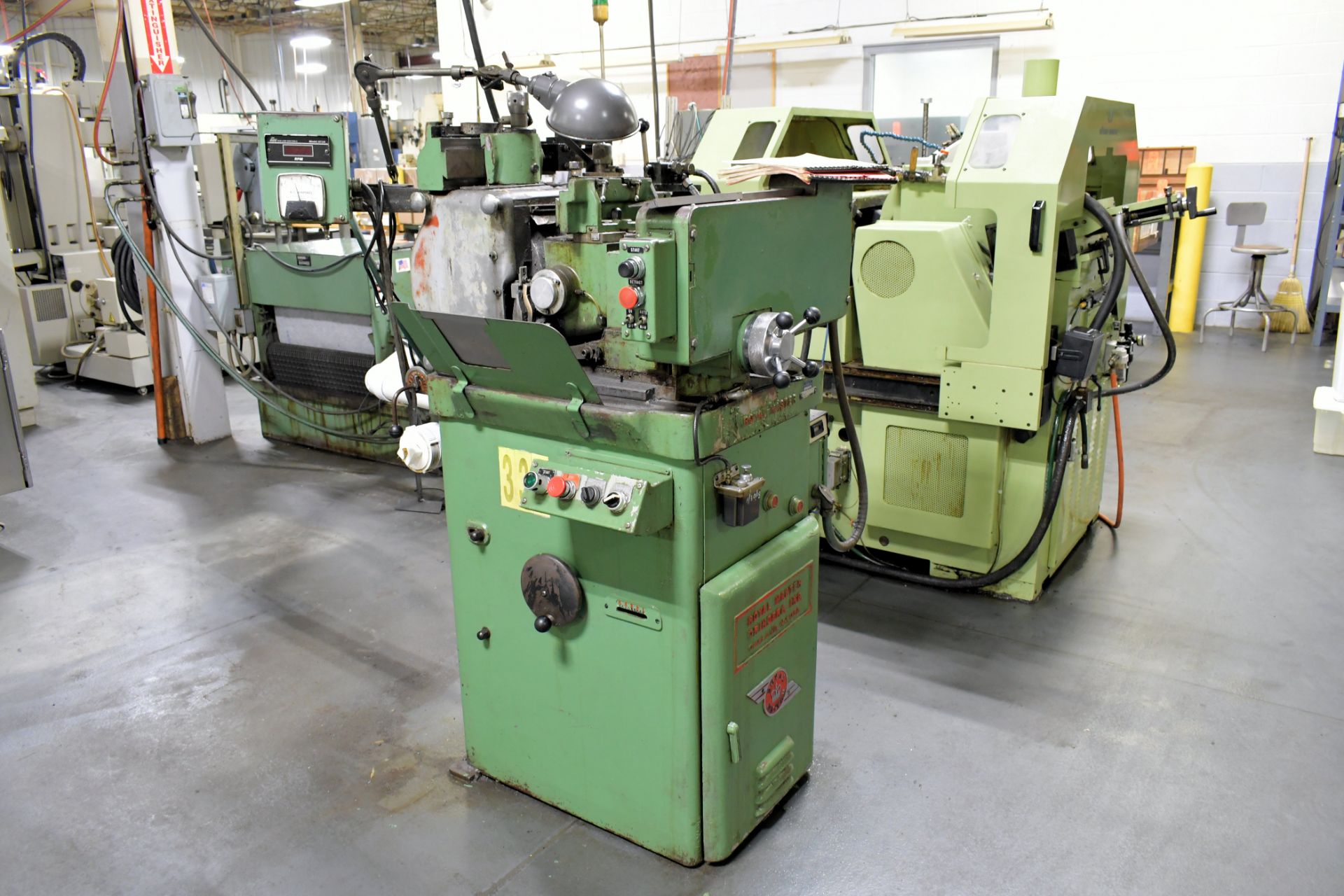

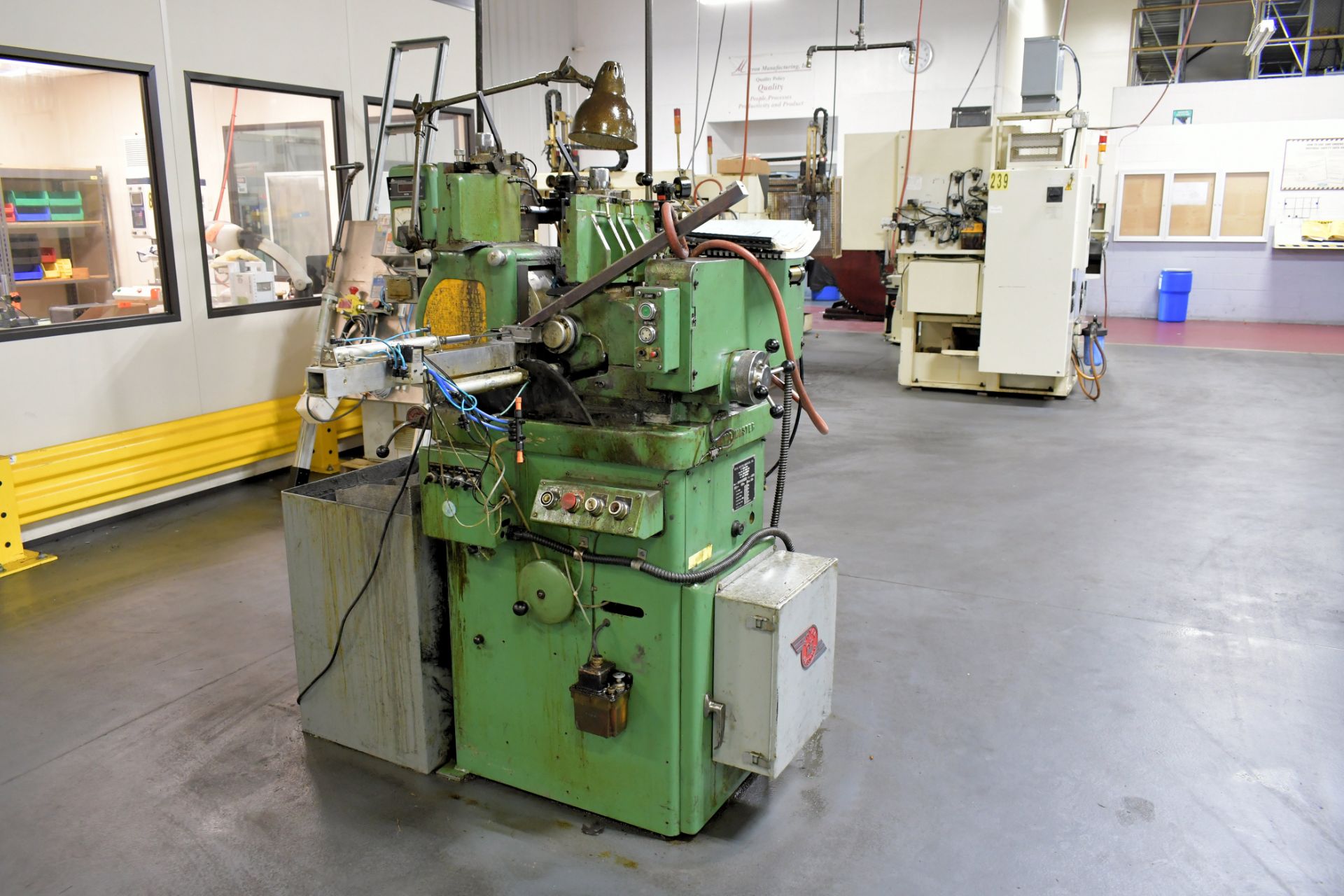

please note link to video of machine under power and photos!
<ahref="http://www.machineryvalues.com/xdetails.cfm/QN/155038">http://www.machineryvalues.com/xdetails.cfm/QN/155038



** EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
