Cincinnati-Milacron CINCO 15, 1979, DRESSERS, 24" WHEEL, WKRST CENTERLESS GRINDERS

Price on Request

Make:
Cincinnati-Milacron
Model:
CINCO 15, 1979, DRESSERS, 24" WHEEL, WKRST
Year:
1979
Ref #:
167779

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

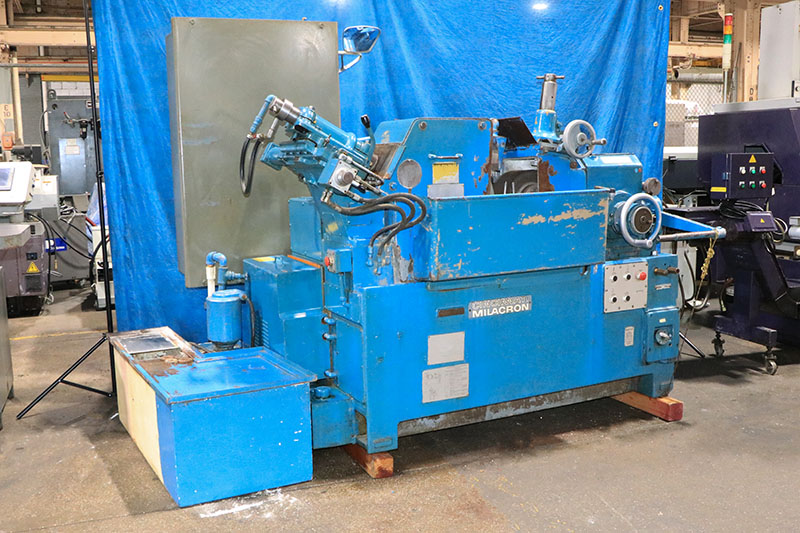

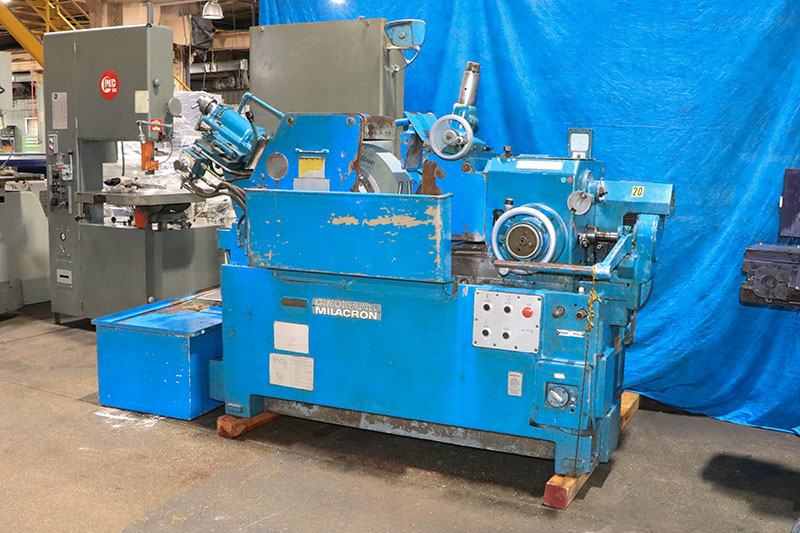

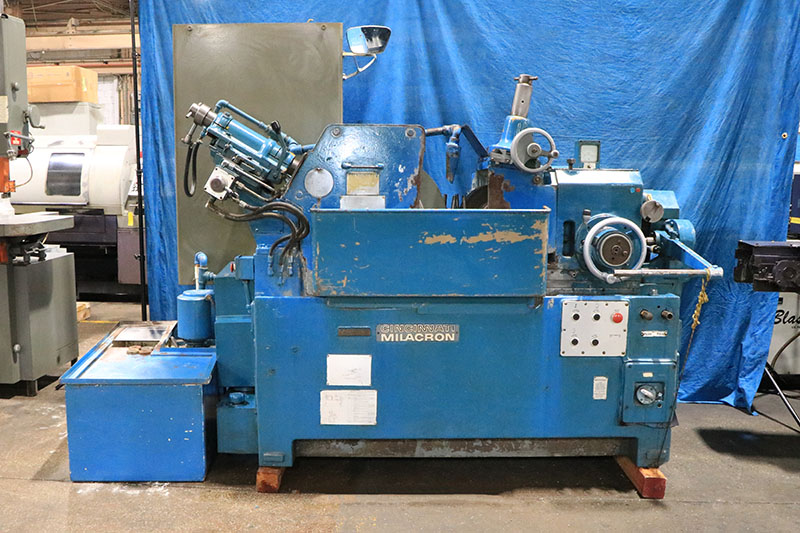

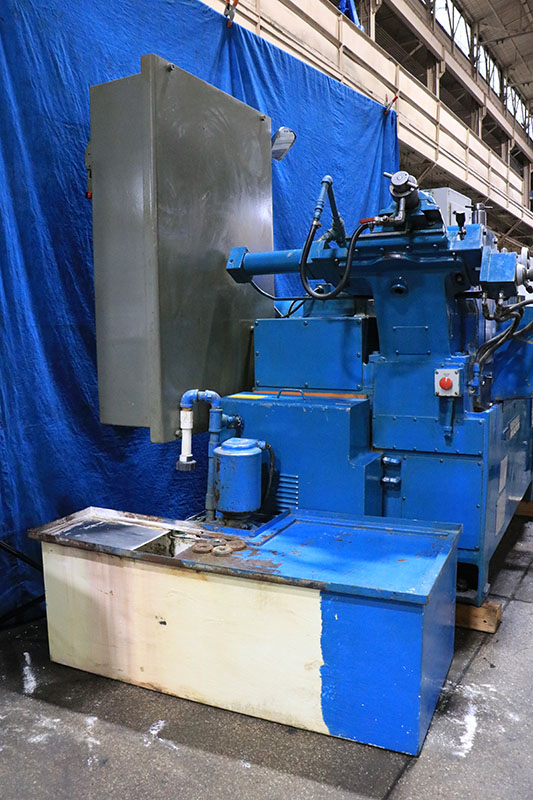

    CINCINNATI MILACRON CENTERLESS GRINDER

MODEL: CINCO 15

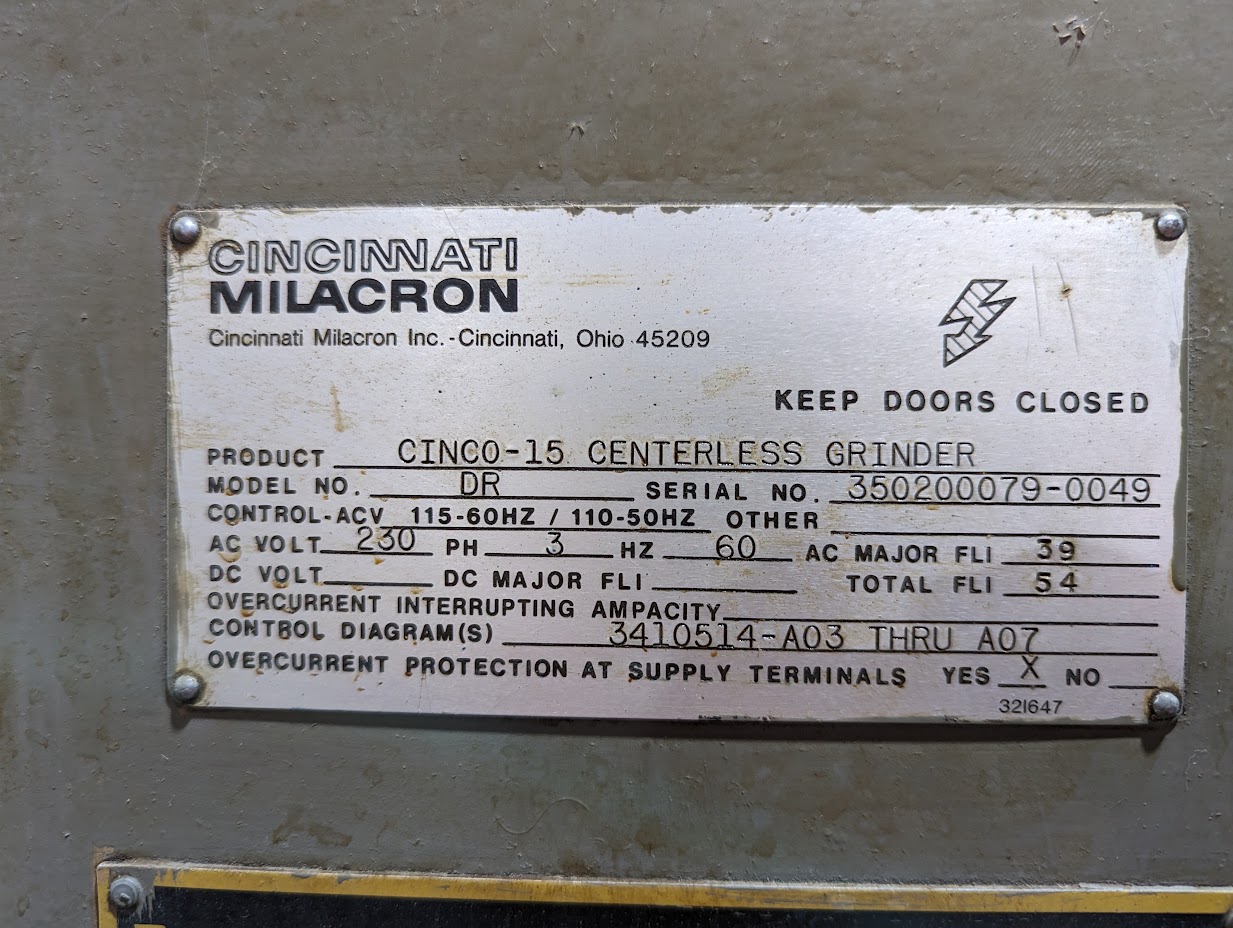

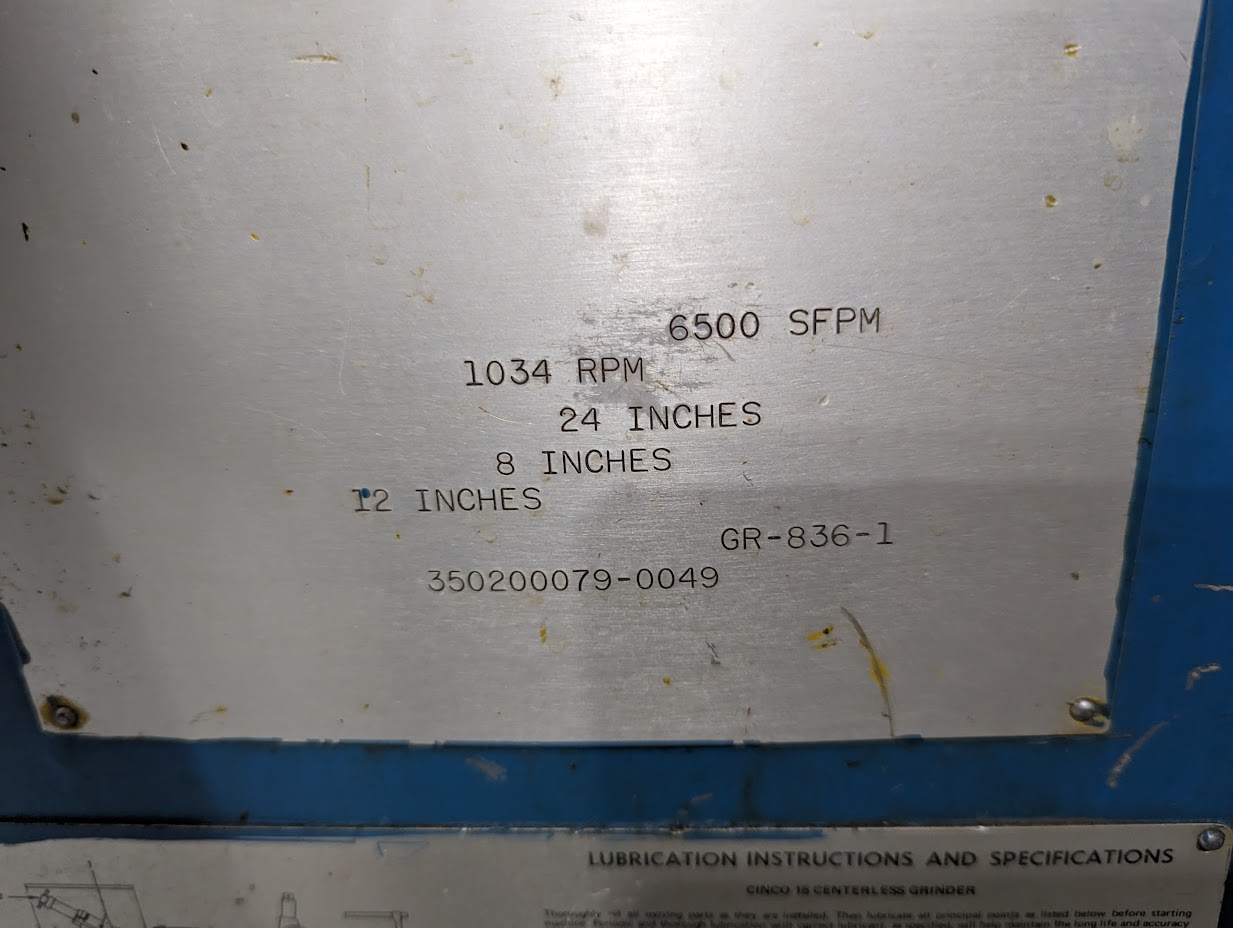

S/N: 350200079-6049
NEW: 1979

CAPACITY:
STD. THRU FEED AND INFEED
  WORK RESTS:                       0 TO 3" DIA.
MAX. WORK DIAMETER DEPENDING
  ON WHICH WORK REST IS ORDERED:    4" DIA.
WHEELS:
GRINDING WHEEL, WIDTH UP TO:        8"
DIA. CAPACITY:                      17" T0 24"
HOLE:                               12" STD.
REGULATING WHEEL,WIDTHS UP TO:      8"
DIA. CAPACITY:                      12" STD.
MAXIMUM:                            15"
MINIMUM:                            9-1/2"
HOLE:                               5"
DRIVE:

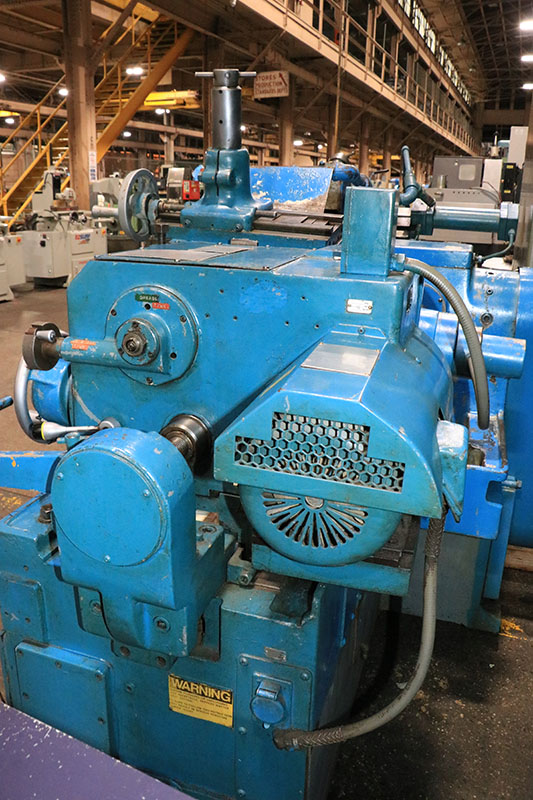

GRINDING WHEEL DRIVE MOTOR:         15 HP
REGULATING WHEEL DRIVE MOTOR:       1-1/2 HP

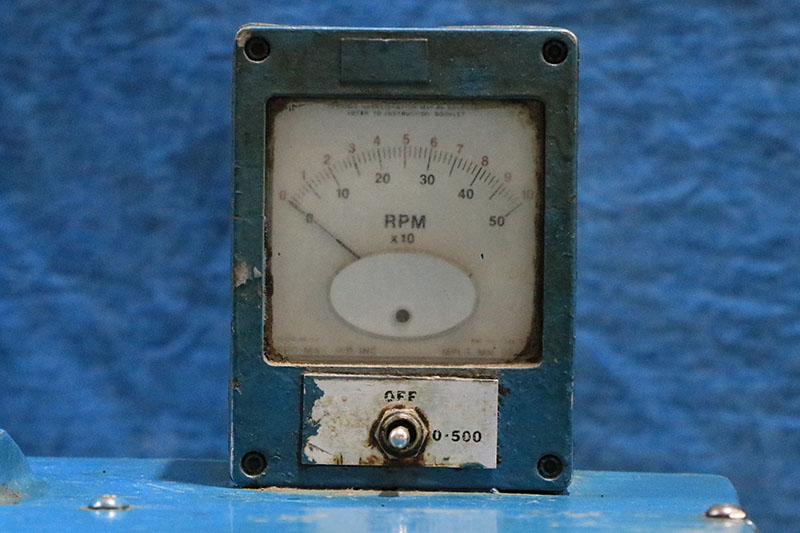

REGULATING WHEEL SPEEDS:
INFINITELY VARIABLE:                15 TO 300 RPM

SIZING ADJUSTMENT:

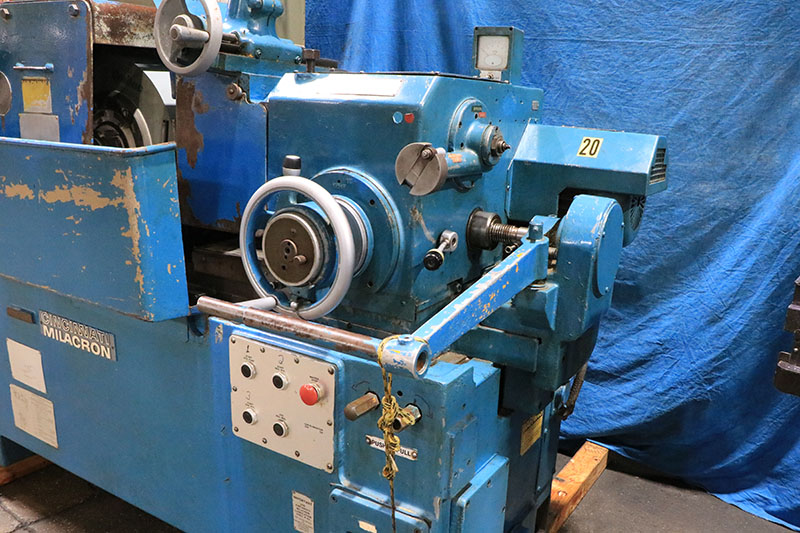

ACCURATE INFEED ADJUSTMENT
  BY HANDWHEEL GRADUATED IN:        0.001"

APPROXIMATE MACHINE WEIGHT:         8,100 LBS.
APPROXIMATE MACHINE DIMS:      90"L x 50"W x 64"H

EQUIPPED WITH:

"FILMATIC" GRINDING WHEEL SPINDLE BEARINGS

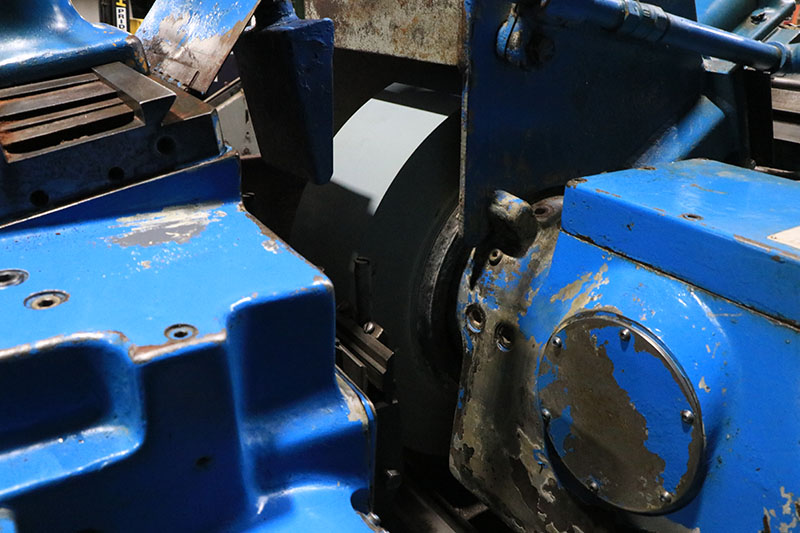

24" DIAMETER GRINDING WHEEL ON THE MACHINE

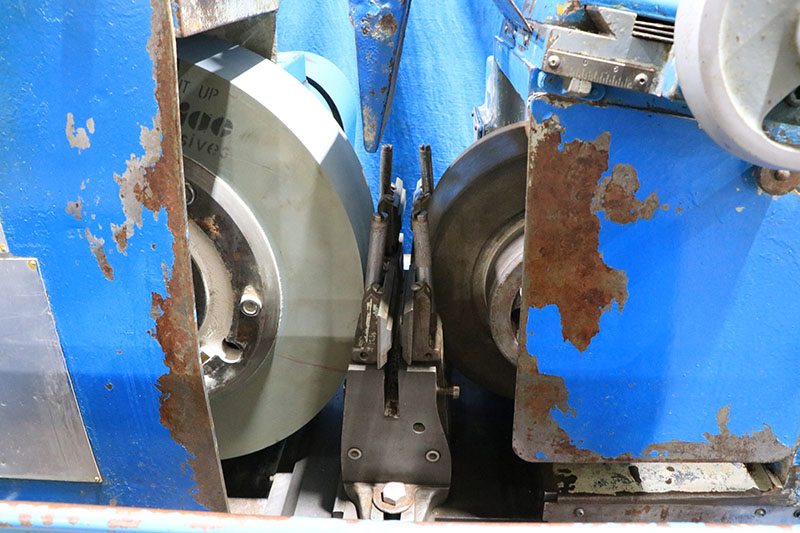

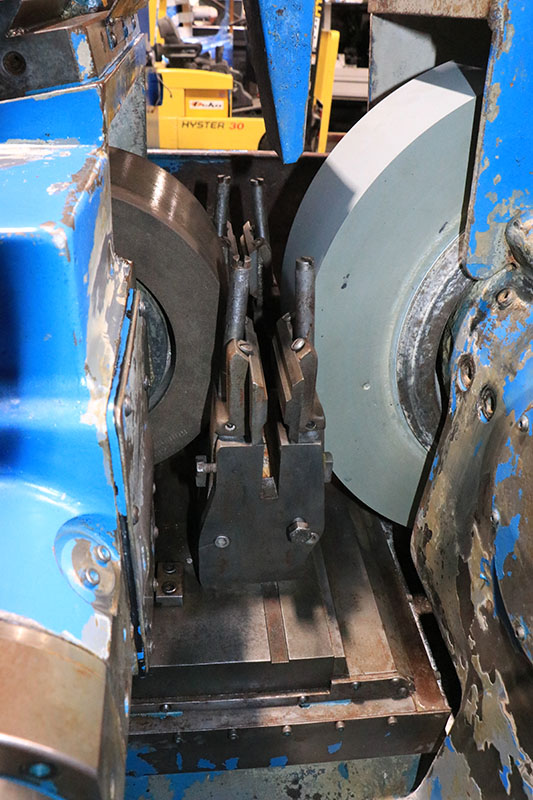

WORK REST

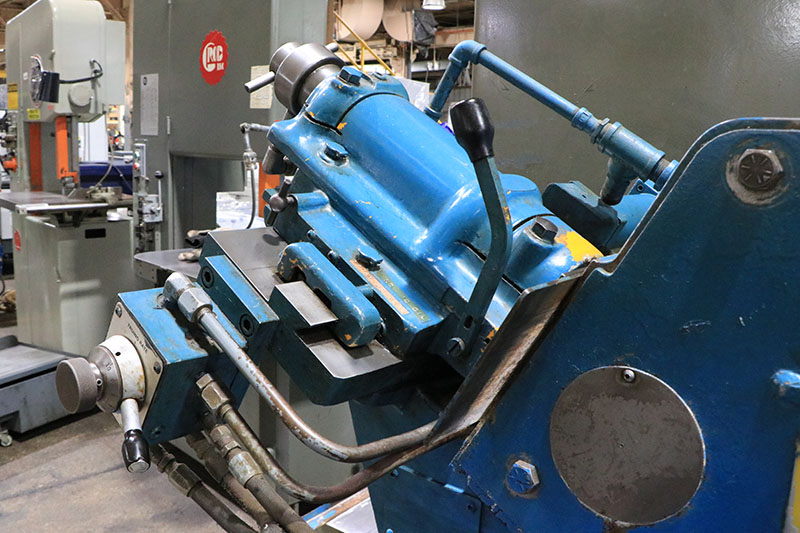

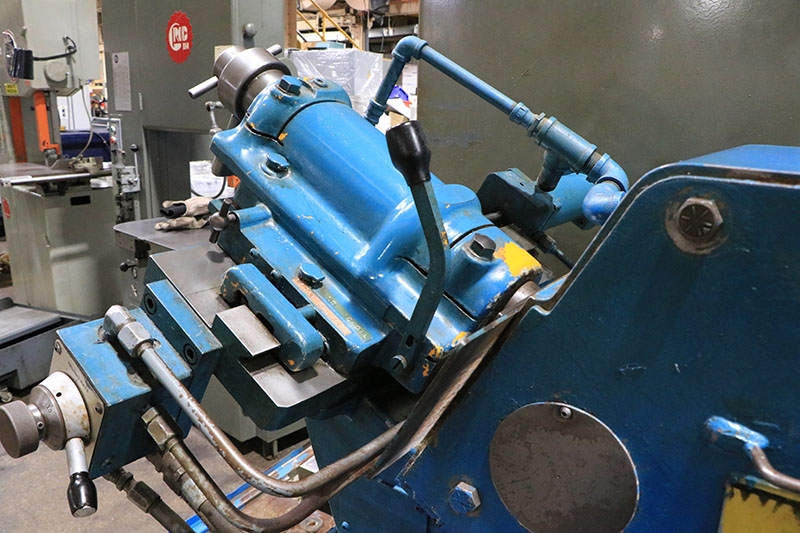

HYDRAULIC GRINDING WHEEL PROFILE TRUING DRESSER

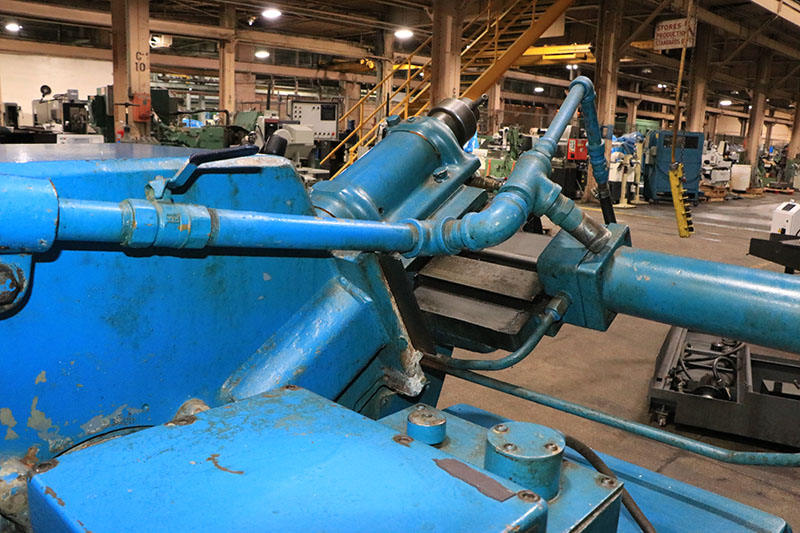

MANUAL REGULATING WHEEL TRUING DRESSER
FAST, SIMPLE TAPER ADJUSTMENT
INFINITELY VARIABLE REGULATING WHEEL SPEEDS

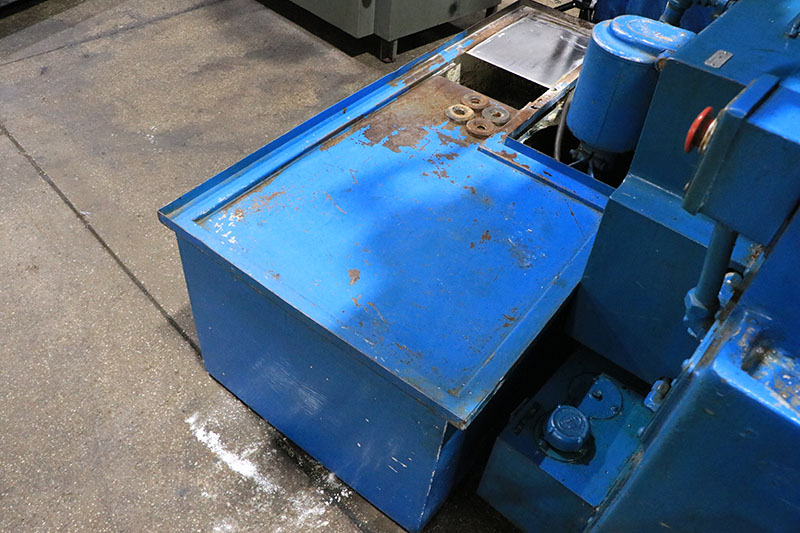

COOLANT SYSTEM

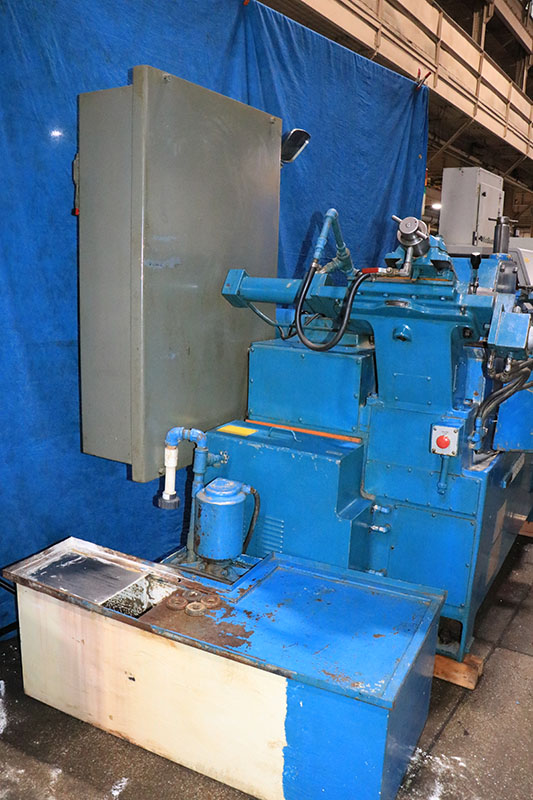

COMPACT ELECTRICAL CABINET ON MACHINE
TOOLING INTERCHANGEABLE WITH "OM" & "EA" MODELS
MACHINE IS WIRED PRESENTLY FOR 3/60/230 VOLTS


* * * F.O.B. OUR HARRISON, NJ FACILITY * * *
* * * INSPECT UNDER POWER IN OUR WAREHOUSE * * *
* * * EXCELLENT CONDITION & APPEARANCE **
