Unison-Dedtru 287-0000, 1990, POWER TABLE CYCLE OPTION, DEDTRU CENTERLESS GRINDERS

Price on Request

Make:: Unison-Dedtru

Model:: 287-0000, 1990, POWER TABLE CYCLE OPTION, DEDTRU

Year:: 1990

Ref #:: 174619

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

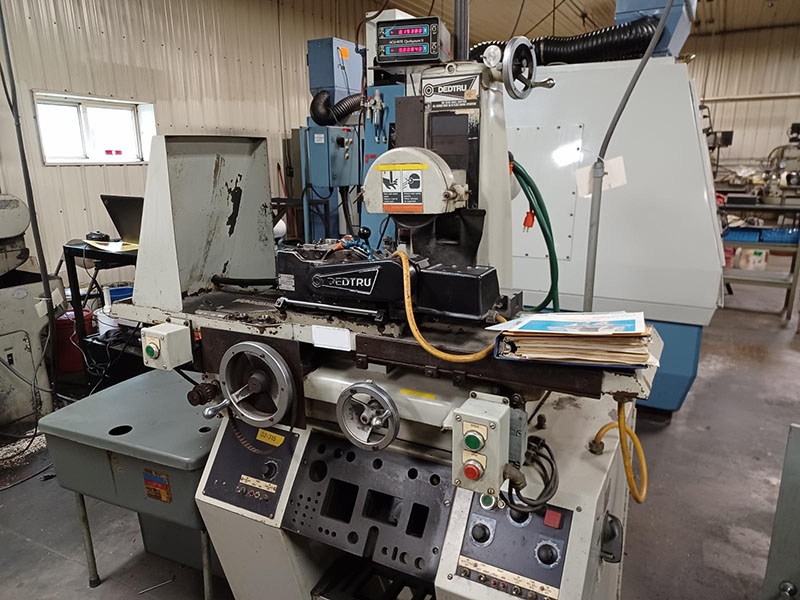

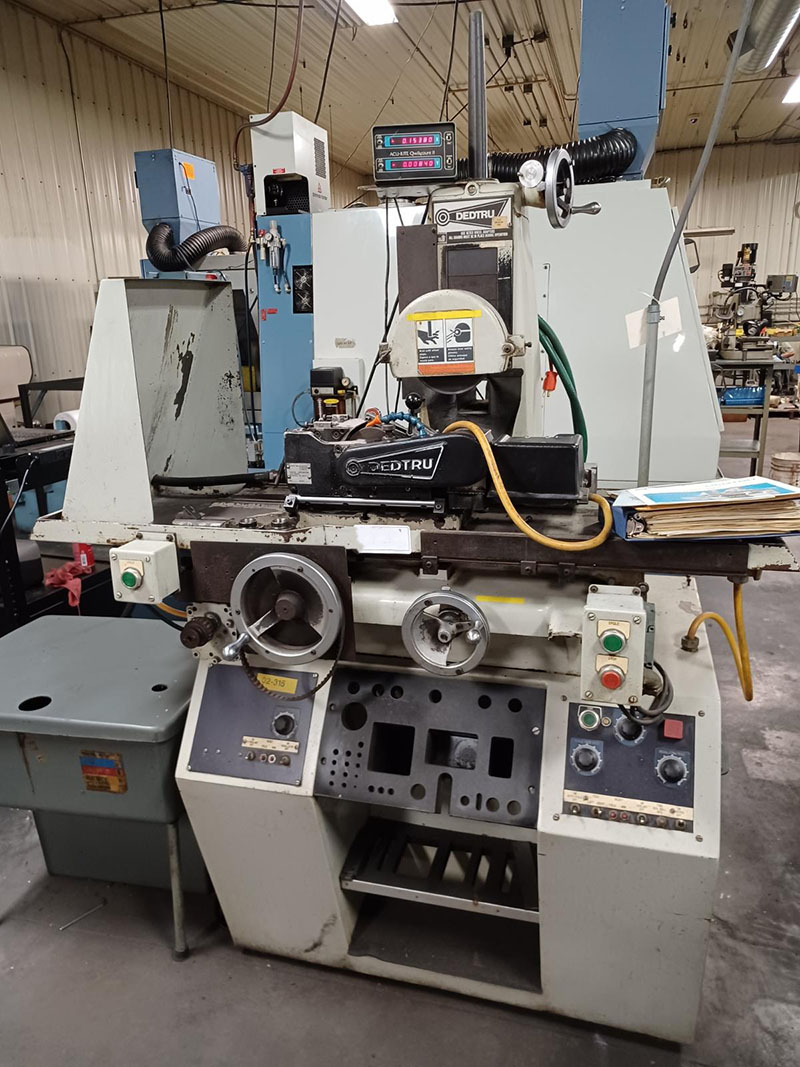

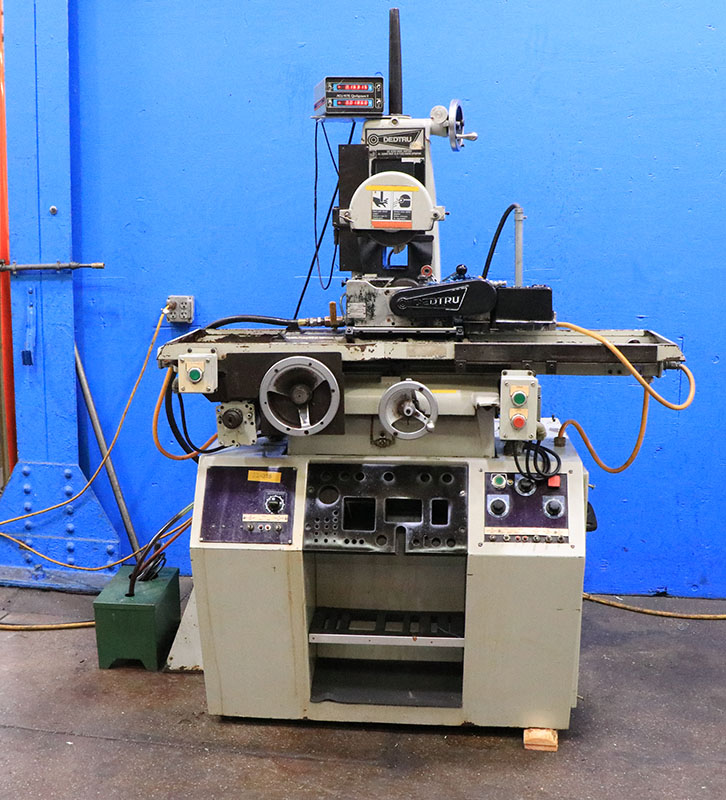

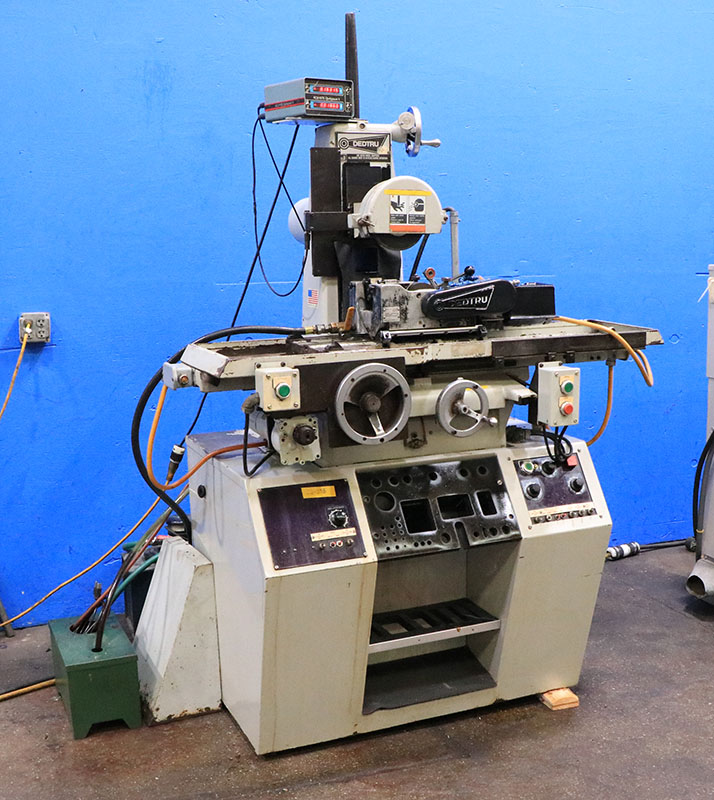

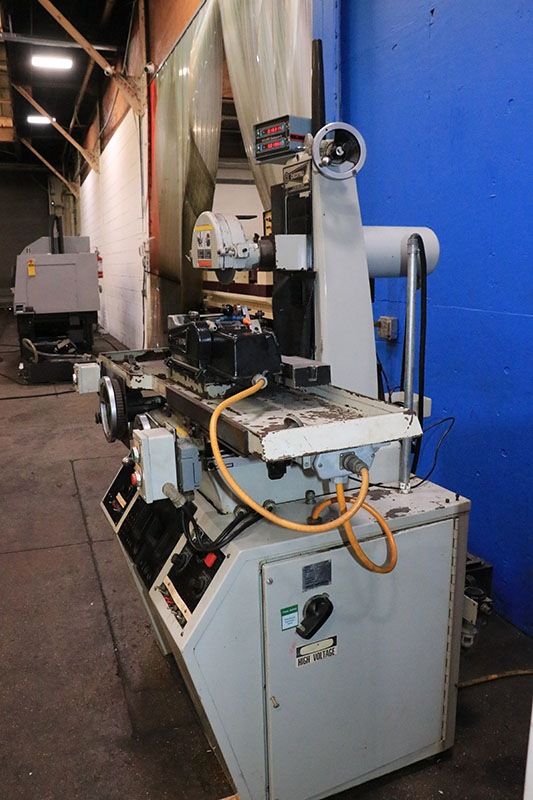

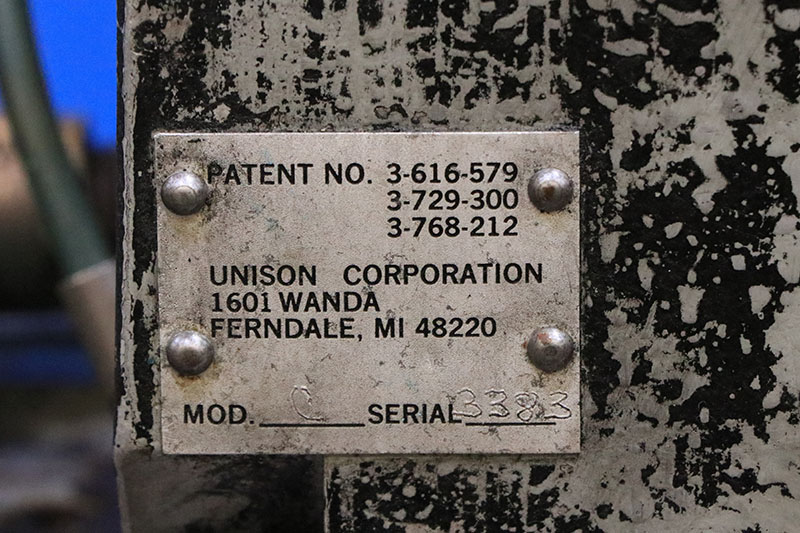

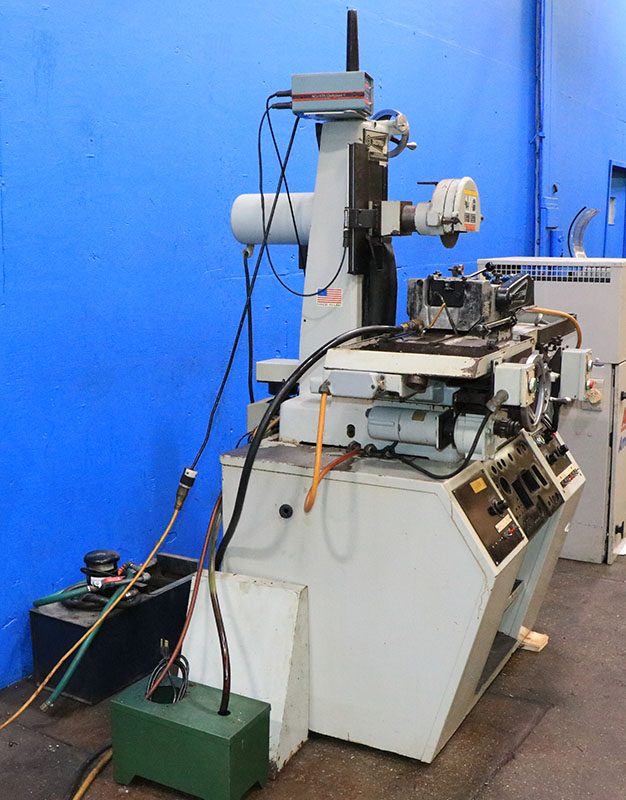

  UNISON "DEDTRU" CENTERLESS GRINDING MACHINE

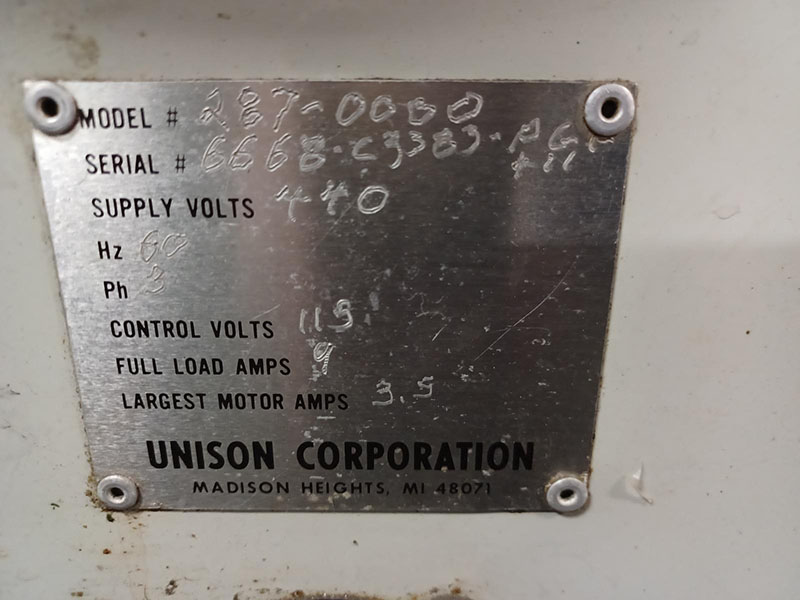

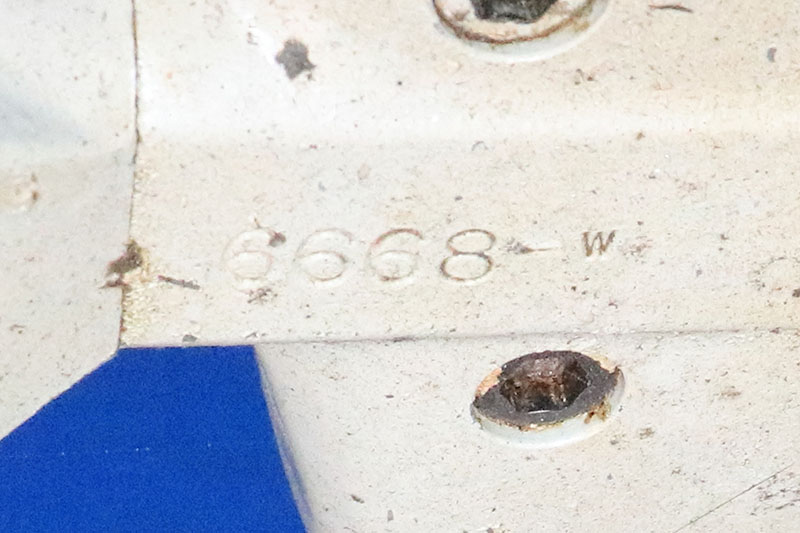

MODEL: 287-0000    S/N: 6668-C3383-PGF 111      NEW: 1990



VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
  REGULATING ROLL ................................. 10"
CROSS FEED TRAVEL .............................. 6-3/4"
LONGITUDINAL TRAVEL ............................... 18"
TABLE SIZE ................................... 6" X 18"
WORKPIECE SIZE:
  O.D. WORK WITH BASIC EQUIPMENT ....... 1/4" TO 1-1/4"
  O.D. WORK W/STD. OPTIONAL ACCESSORIES .. 0.031" TO 5"
  I.D. WORK - MAXIMUM O.D. ......................... 5"

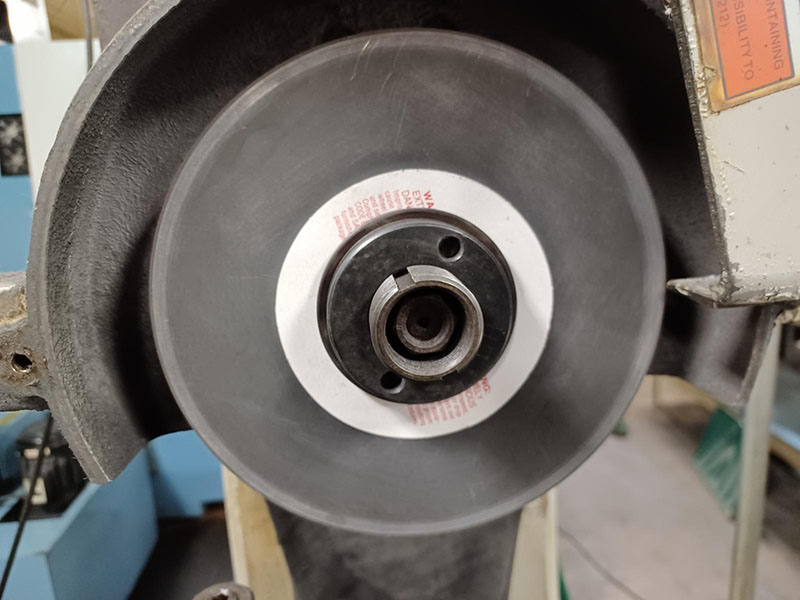

MAXIMUM WHEEL DIAMETER ............................. 8"
MAXIMUM WHEEL LENGTH ............................... 3"
APPROXIMATE MACHINE WEIGHT .................. 1,500 LBS

EQUIPPED WITH:
     ONE OR THE OTHER UNISON DEDTRU CENTERLESS GRINDER UNITS,
     BUYER CAN CHOOSE, BOTH UNITS ARE IN OUR STOCK:

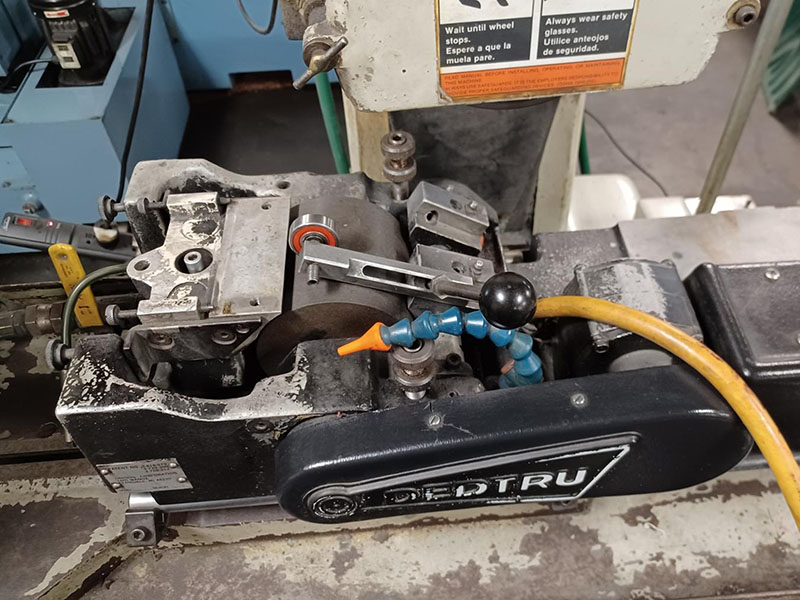

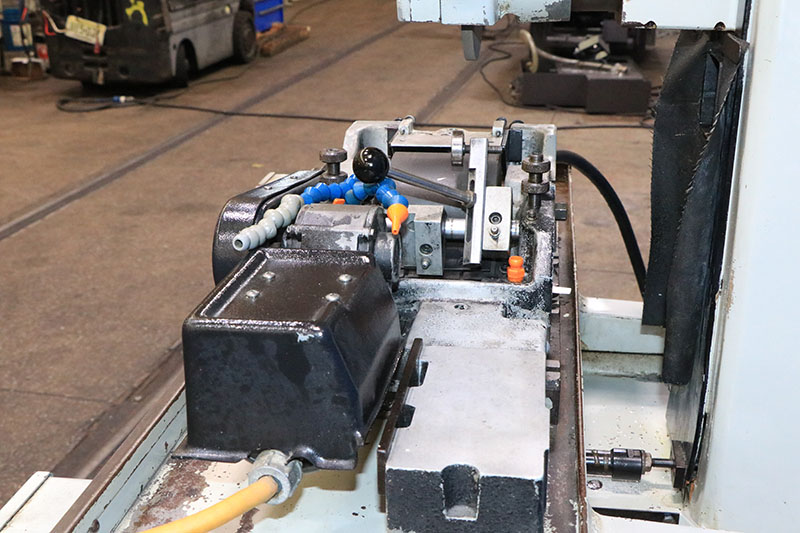

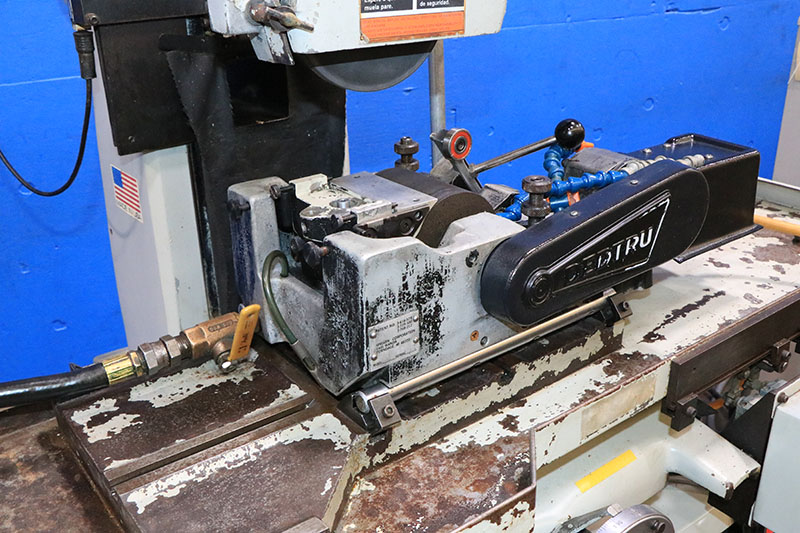

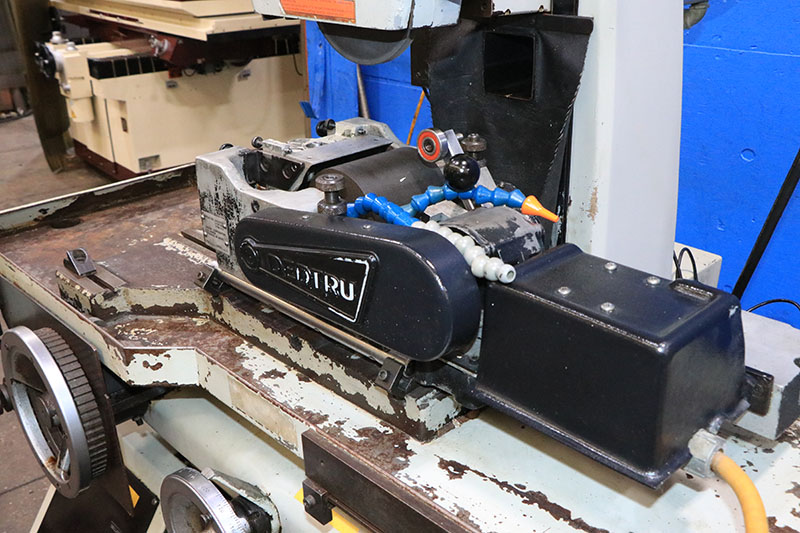

     MODEL "C" DED-TRU CENTERLESS GRINDING UNIT,
       -DESIGNED TO DO THROUGH FEED, O.D., I.D. AND
       SECOND OPERATIONS.

     MODEL PGF DED-TRU, DESIGNED TO DO ID/OD, INFEED
       AND PLUNGE GRINDING.  PART CAPACITY IS 1/4" TO
       1- 1/4".  SPECIAL TOOLING ALLOWS FOR SMALLER
       OR LARGER PARTS (CONSULT WITH "NEW UNISON CORP.").
       CAN PLUNGE GRIND STRAIGHT OR ROUND PARTS.  CAN ALSO
       PERFORM INFEED OPS WHICH REQUIRE EXTREMELY CLOSE
       TOLERANCES.

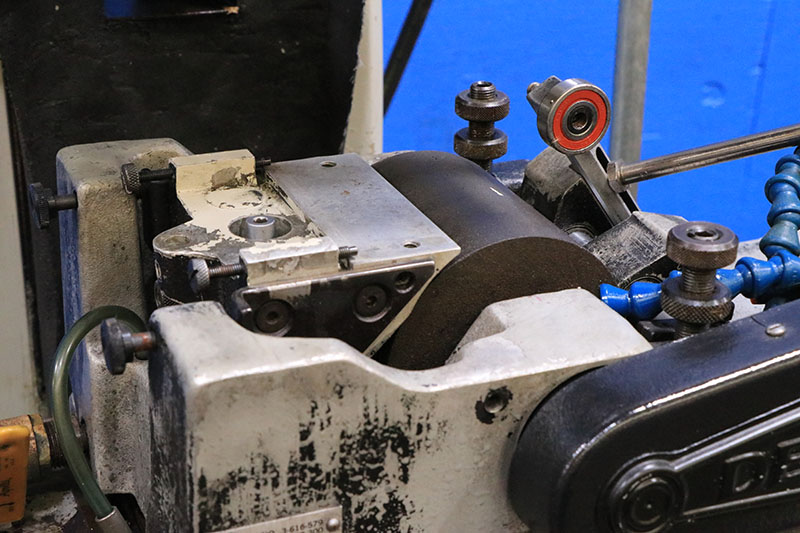

     REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC
       DRIVE CONTROLLER. REGULATING ROLL SIZE 4" X 4"
     HARIG #618W SURFACE GRINDER BASE
     OPTIONAL FINE DOWNFEED KNOB (.0001" GRAD.)

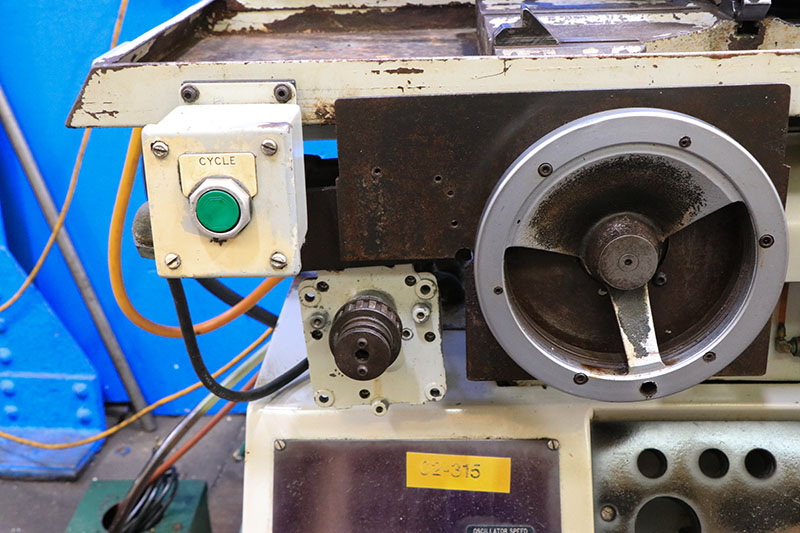

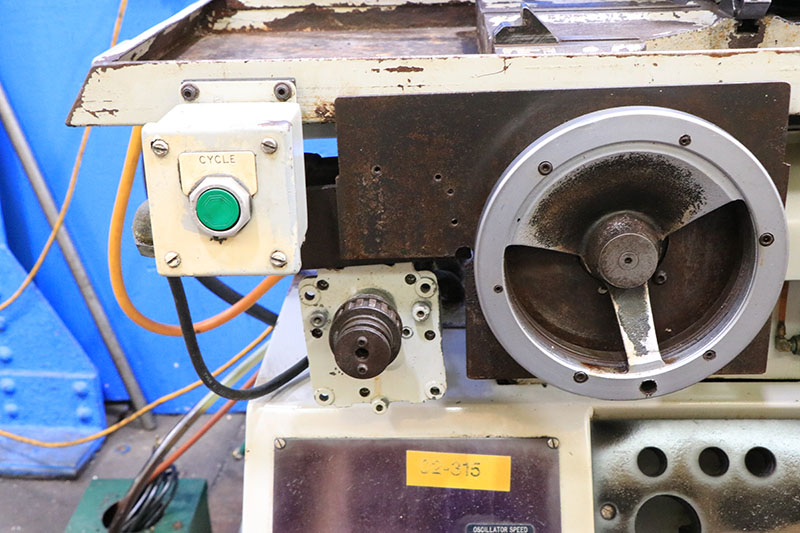

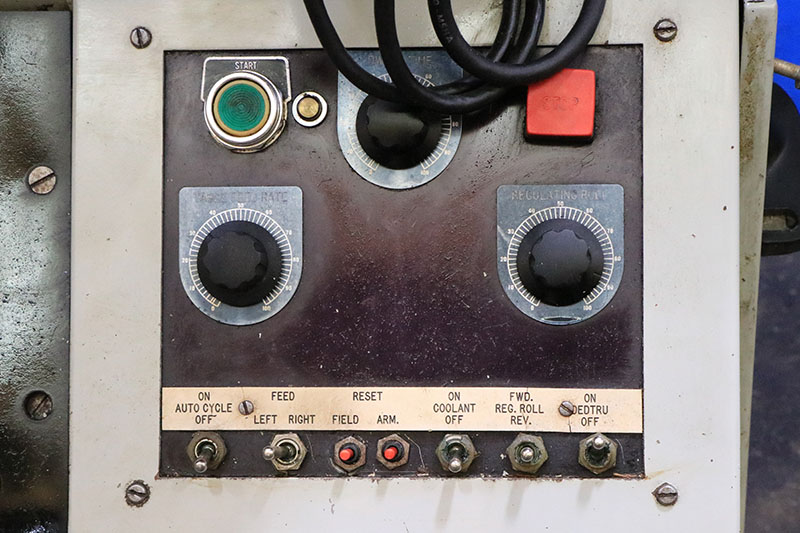

     "AUTOMATIC LONGITUDINAL FEED CYCLE" OPTION - PROVIDES
       RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,
       FEED TO POSITIVE STOP, DWELL FOR PRESET TIME,&
       AUTOMATIC RAPID CARRIAGE RETURN.  SLOW DOWN
       POSITION, FEED RATE, POSITIVE STOP,& DWELL TIME

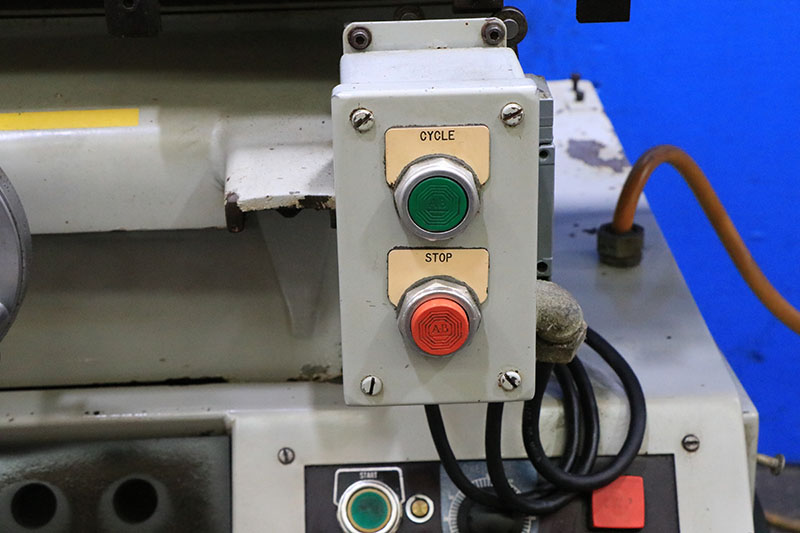

       ARE ADJUSTABLE.  INCLUDES LIMIT SWITCH START& STOP
       CONTROL OF REGULATING ROLL.

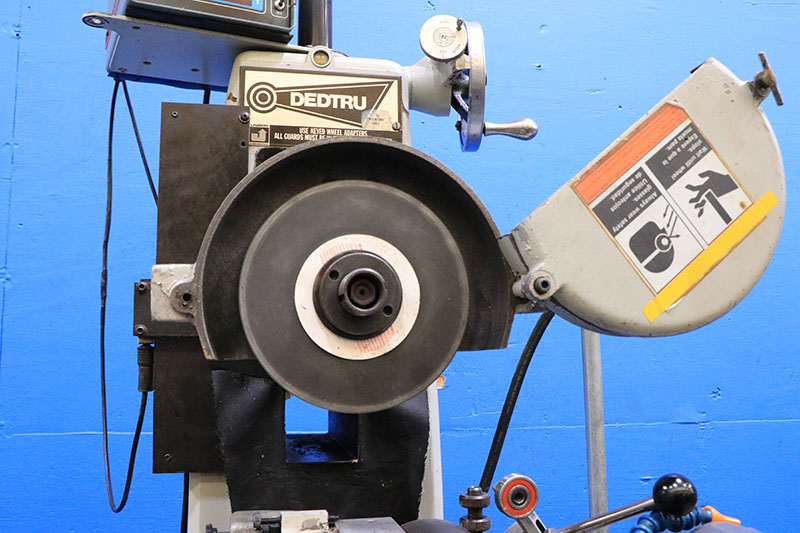

     "POPE" 3 H.P. SPINDLE, 3,600 RPM, 3/60/230-460 VOLTS

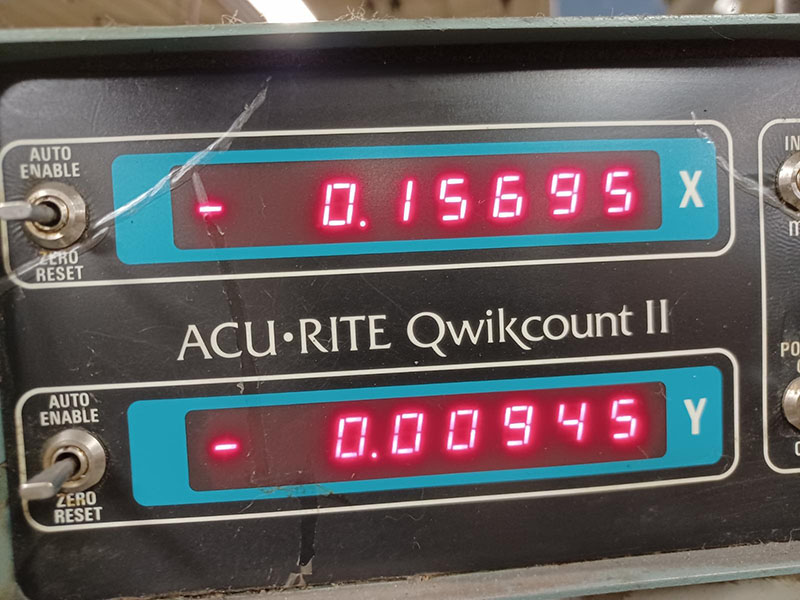

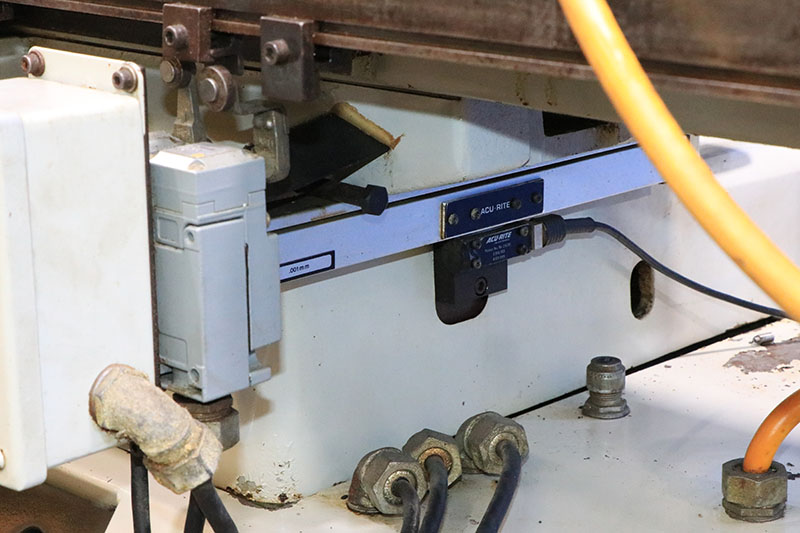

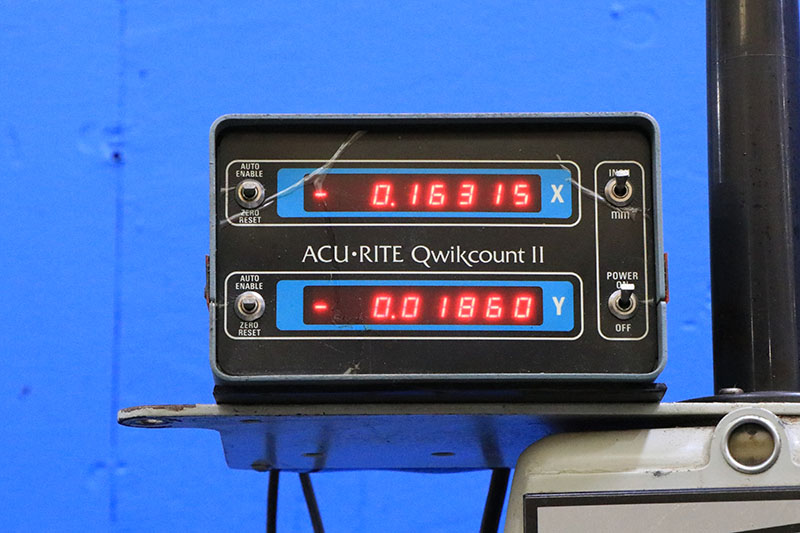

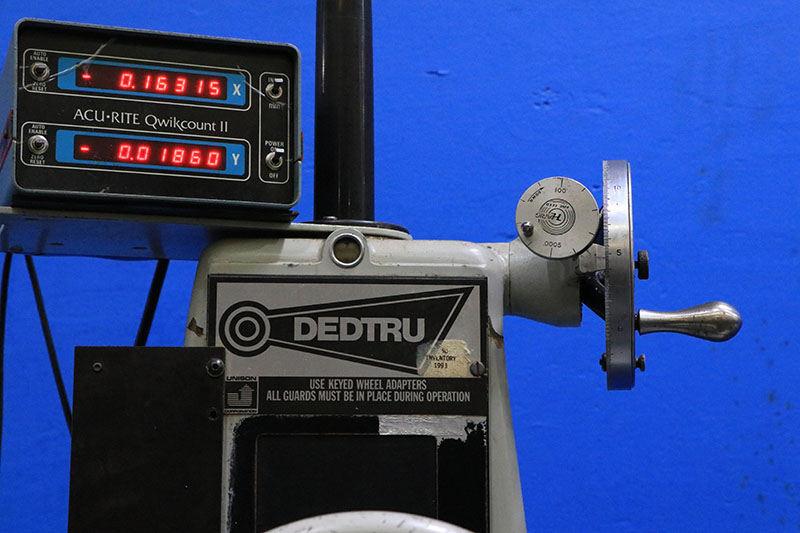

     "ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT DISPLAY
     "FINE FEED KNOB" FOR VERTICAL AXIS (OPTION)

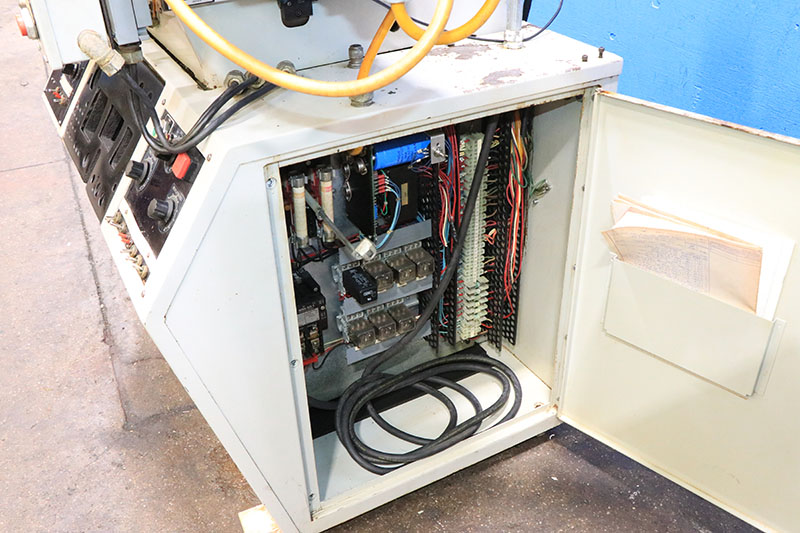

     MACHINE IS PRESENTLY WIRED FOR 440 VOLTS, 9 FLA


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
