Tru-Tech TT-9500 CNC, NEW TT-5000 CG UNIT 2023, CENTERLESS GRINDERS

Price on Request

Make:: Tru-Tech

Model:: TT-9500 CNC, NEW TT-5000 CG UNIT 2023,

Year:: 2002

Ref #:: 170379

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

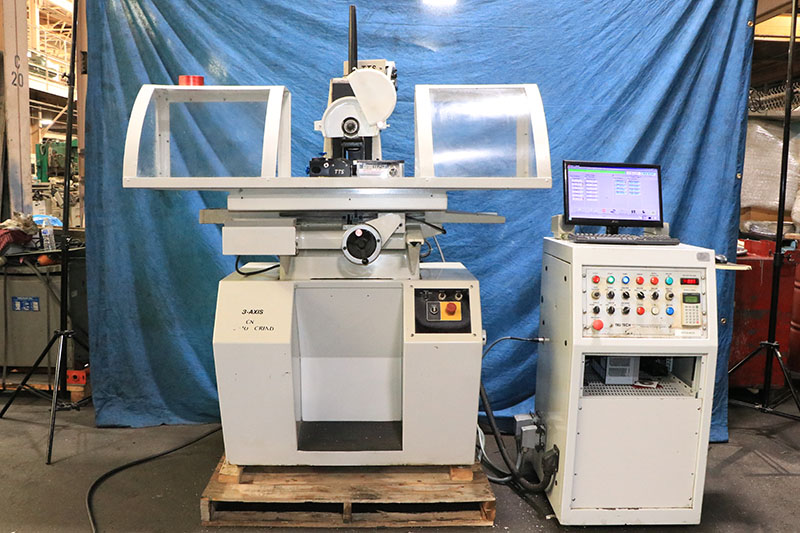

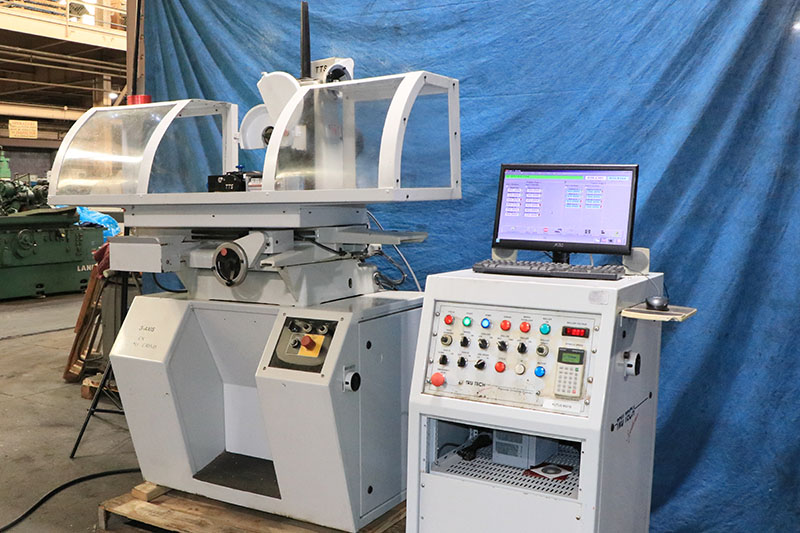

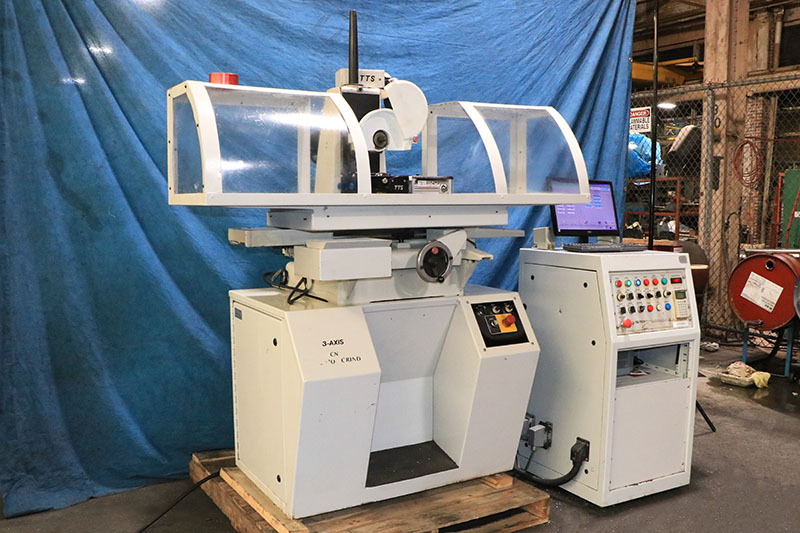

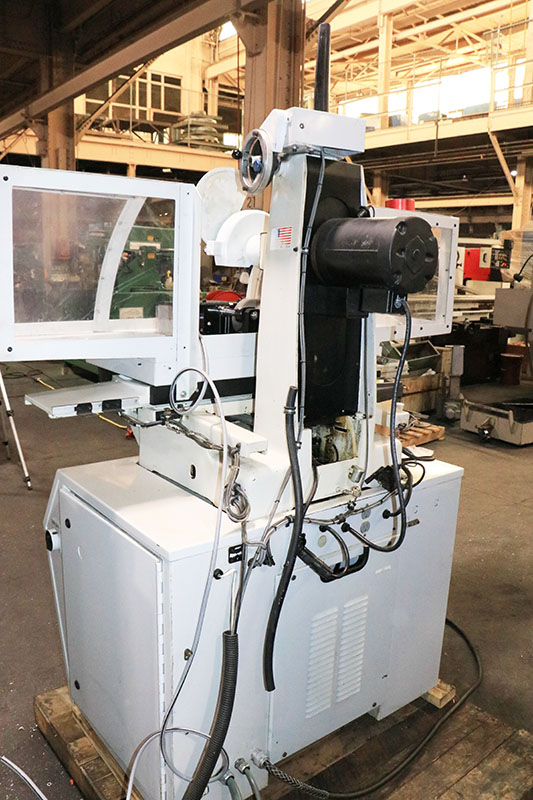

  TruTech TT9500 3-Axis CNC Centerless Profile Grinder

with Factory Coolant Enclosure,
New Never Used TT-5000 Centerless Grinding Unit
 and Sine Plate Base,
and Upgraded with New PC in 2022,

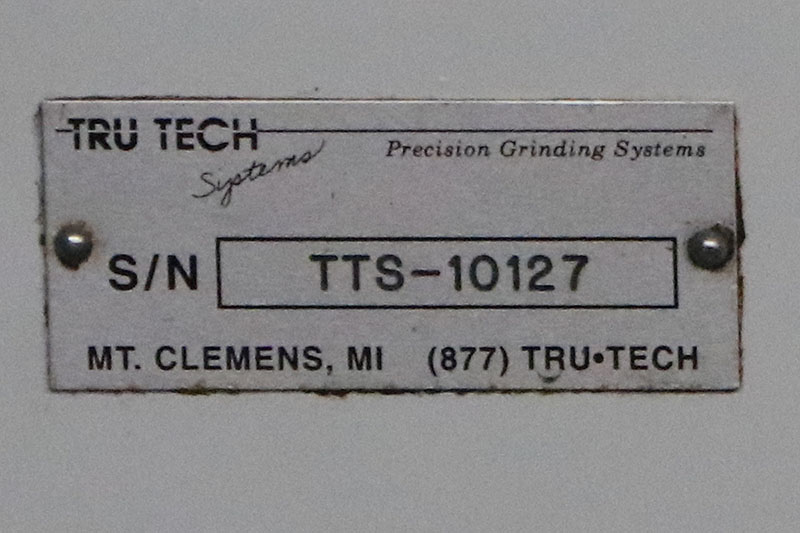

S/N: TTS-10127C
New: 2002/Upgraded with New PC in 2022


SPECIFICATIONS:
Maximum Grind Length:............. 7.5"
Maximum Grind Diameter:........... 3"
Maximum Travel X-Axis:............ 18"
Maximum Travel Y-Axis:............ 10.75"
Maximum Travel Z-Axis:............ 9"
Standard Wheel Size:.............. 8" max.
Spindle Drive:.................... 1.5 HP
Maximum Velocity Y-Axis:.......... 15 IPM
Maximum Velocity Z-Axis:.......... 15 IPM
Input Increment:.................. 0.000010"

Floor Space Required for Ops ..... 8'6"L-R x 5'6"F-B
Shipping Weight:.................. 2,500 LBS



Comments from TruTech Systems:

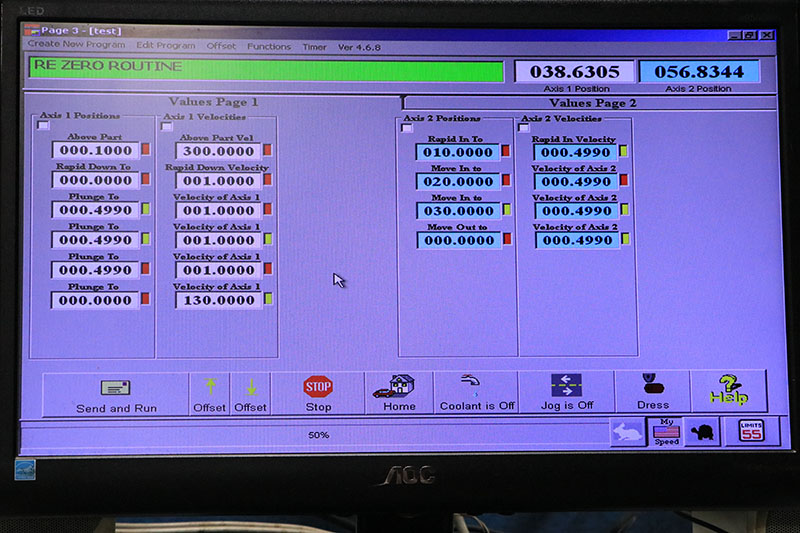

TruTech CNC Windows Based "Pick-Place" Controls
  and Programming Software
"Quick Set-Up"
"Ultra-Precision"
"Plunge Grind, Peel Grind, In-Feed
  & Thru-Feed Capable"
"Intuitive Programming"
"Ideal For Carbide Blank Preparation."
"Easy To Use, Pick-N-Place Software Allows Easy
 Profile Programming In Minutes And Grinds Most
 Profiles With A Stand 1A1 Wheel."

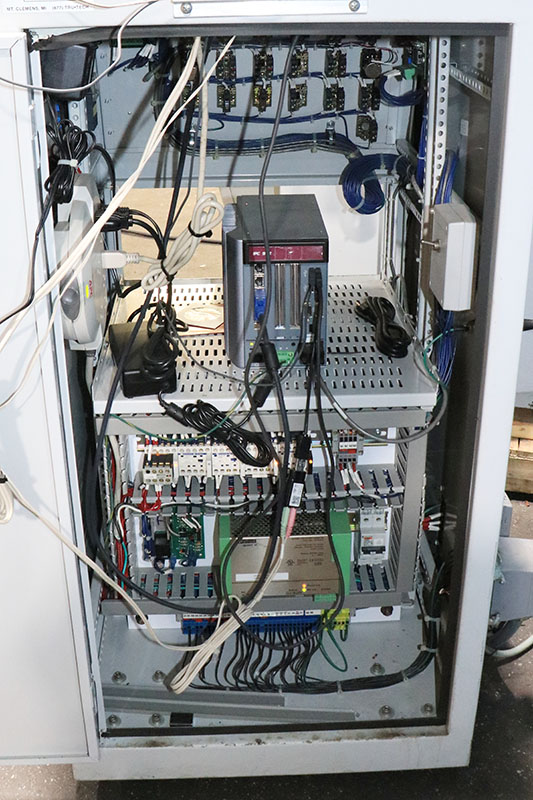

** Updated with New PC Computer, Installed in February 2022.
     This allows the machine to function far better,
     no computer latency, very quick CNC programming
     and execution. **

** TT-9500 has 9" Cross Travel.

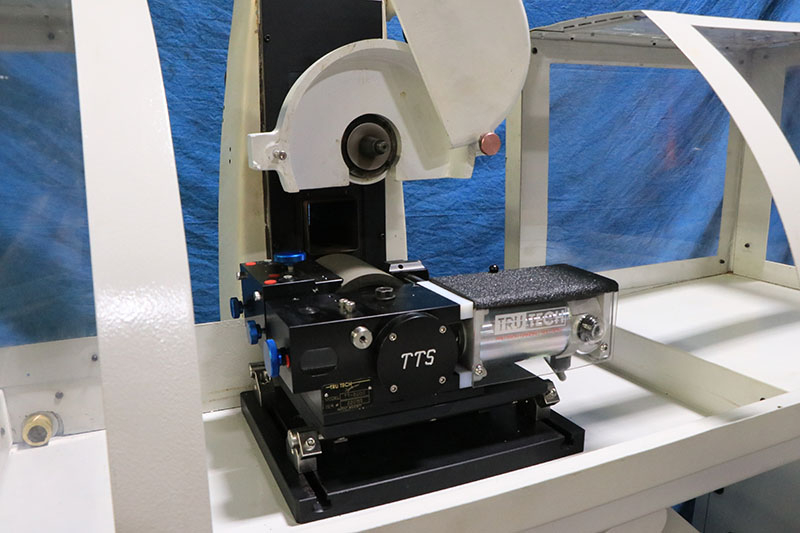

** "New 2023 - Never Used" TT5000 Centerless Grinding Unit
   - Infinitely Variable Speeds Providied Through
     the Control
   - New Sine Plate Base

Infinitely Variable Speed Grinding Spindle
Coolant System
Machine Tool Enclosure

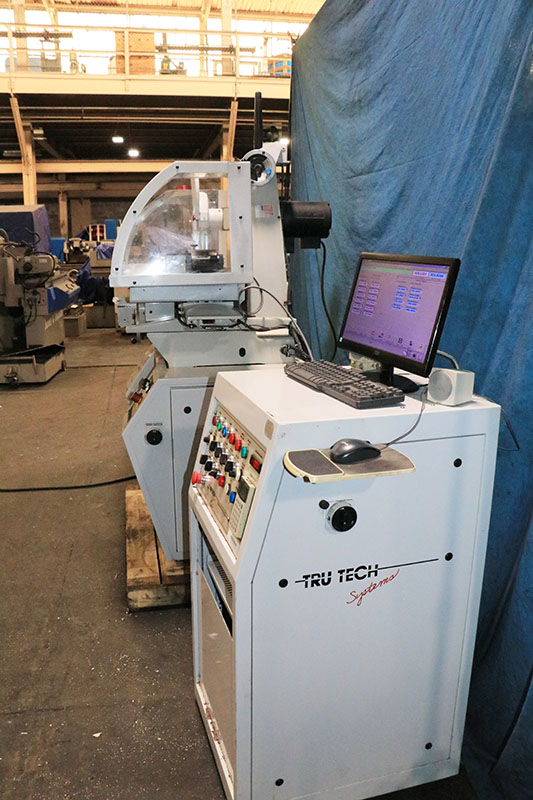

Console for CNC Control & Push Buttons
Hole Thru Column Allows for Thrufeed Grinding
Machine is Presently Wired for 3/60/230 Volts


LINK TO VIDEO: https://youtu.be/wg88LizmbMU


** F.O.B our Harrison, NJ Warehouse  **
** Superior Condition & Appearance **
** In Stock, Ready to Demo Under Power in Harrison, NJ **
