Royal Master TG12X3, REBUILT BY RMG IN 1998 CENTERLESS GRINDERS

Price on Request

Make:: Royal Master

Model:: TG12X3, REBUILT BY RMG IN 1998

Year:: 1992

Ref #:: 161347

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

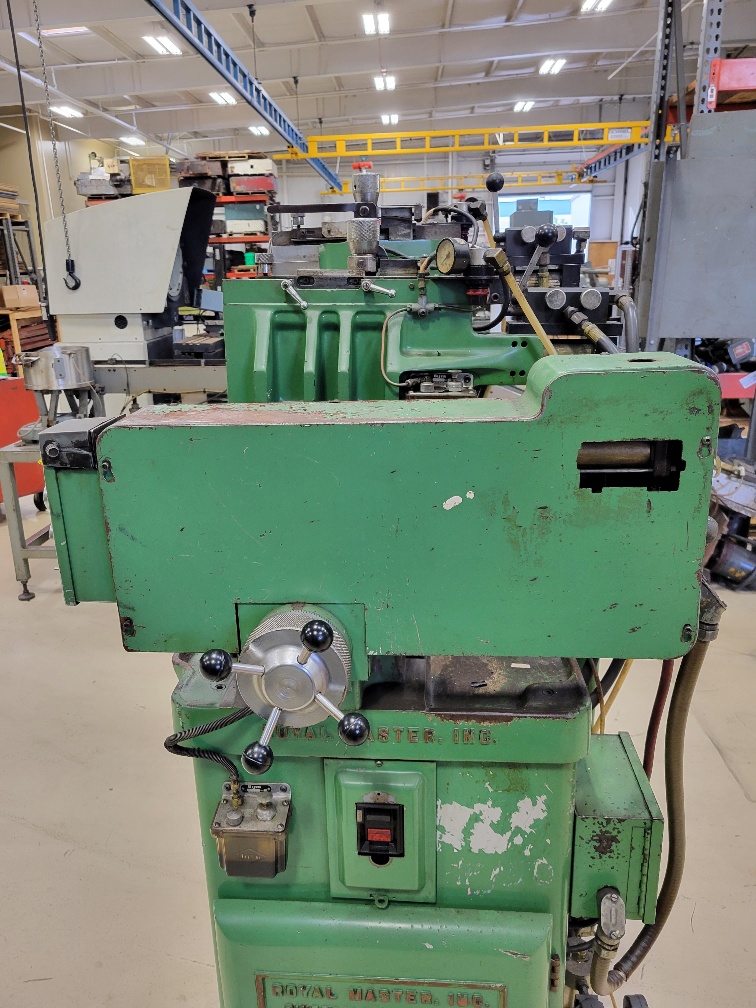

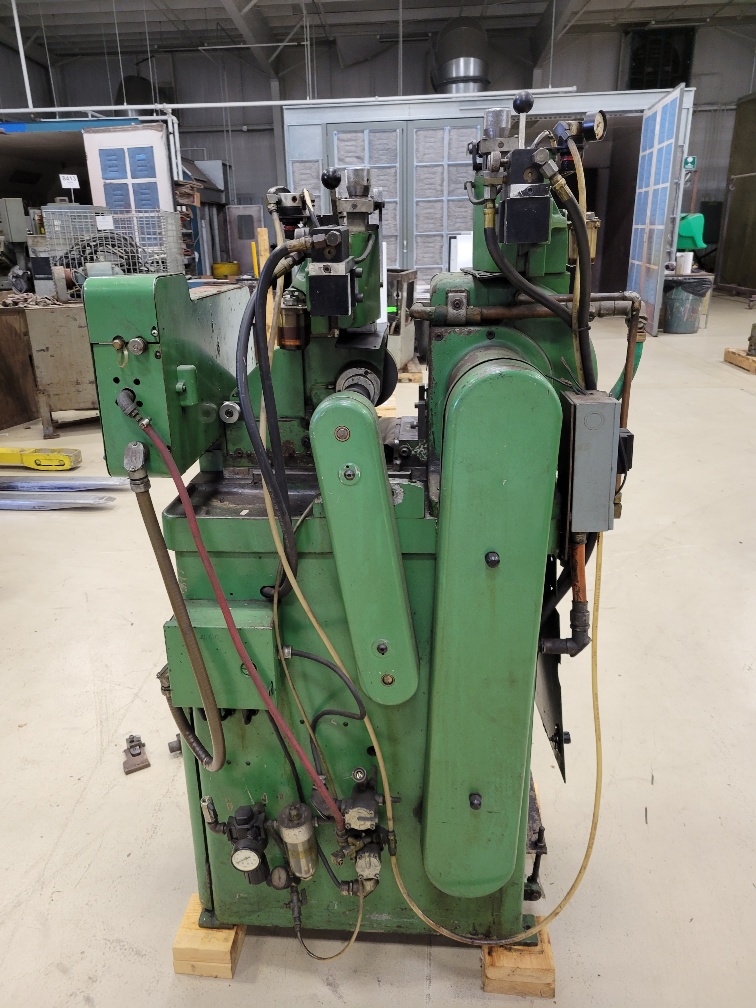

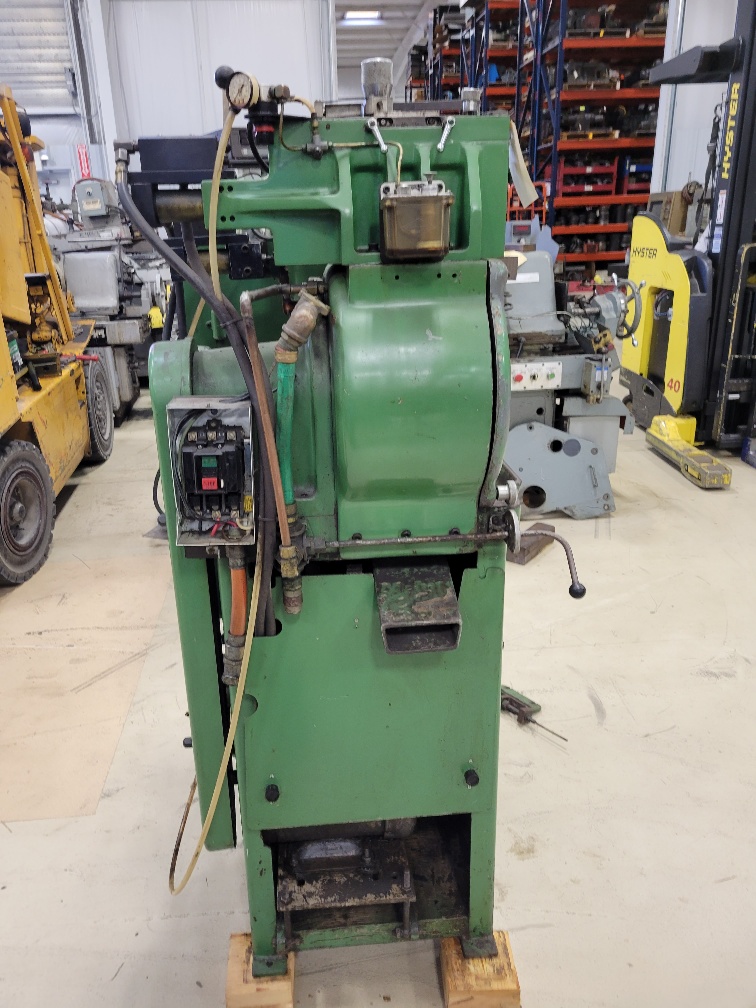

 ROYAL MASTER TG12X3 CENTERLESS GRINDER
 WITH AUTO CYCLE OPTION, RBUILT BY
 ROYAL MASTER IN 1998

S/N: 409


CAPACITY:
INFEED AND THRUFEED ........ 0.004" TO 1.5" DIA.
LENGTH ..................... 12' ON 0.5" DIA.

MAXIMUM GRINDING WHEEL ..... 12" DIA. x 3.5" WIDE
MINIMUM GRINDING WHEEL ..... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL ... 6" DIA. x 3.5" WIDE
MINIMUM REGULATING WHEEL ... 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL ............. CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ........... INF. VARIABLE 25 TO 480 RPM


REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR THRUFEED
GRINDING ......................... 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING ... 5 DEGREES

  APPROXIMATE FLOOR SPACE ........ 24" X 48"
APPROXIMATE WEIGHT ............... 2,800 LBS


EQUIPPED WITH:

AUTOMATIC CYCLE OPTION .... PROVIDES AUTOMATIC INFEED
 OF THE REGULATING WHEEL
INFINITELY VARIABLE REGULATING WHEEL SPEEDS

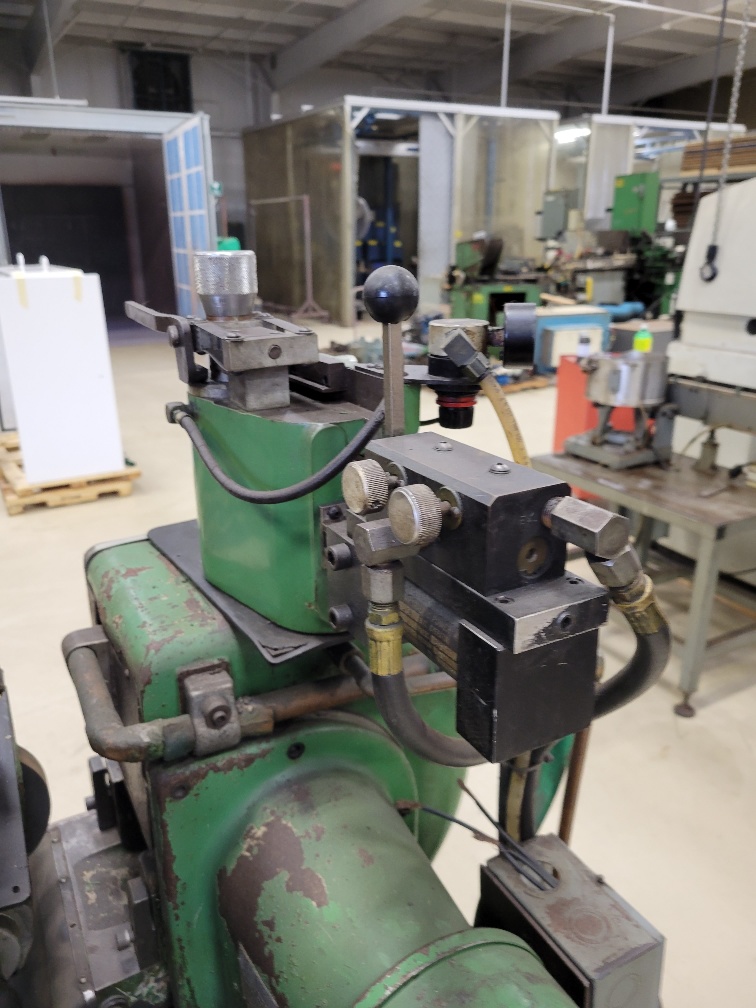

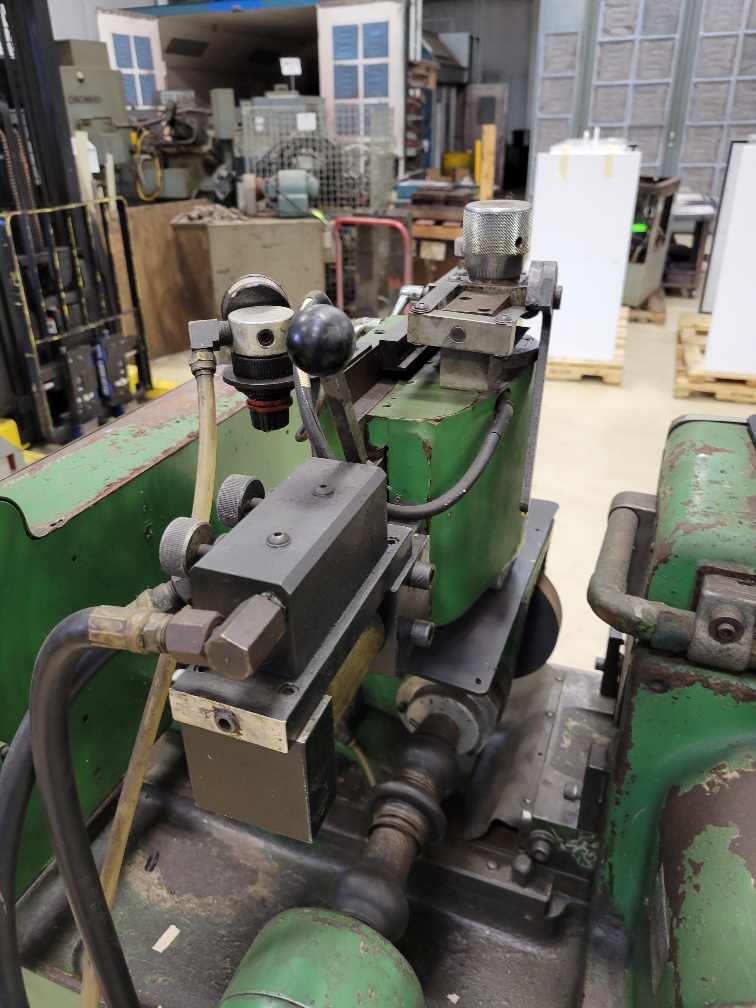

AIR-SENSING HYDRAULIC DRESSER FOR THE GRINDING WHEEL
AIR-SENSING HYDRAULIC DRESSER FOR THE REGULATING WHEEL

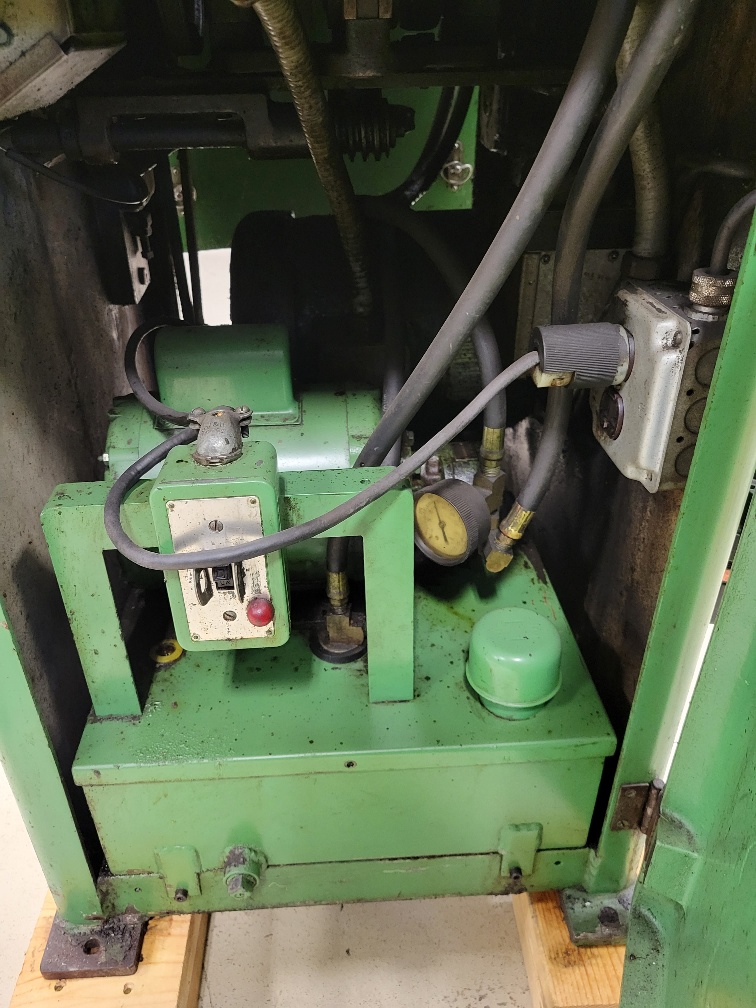

SELF CONTAINED HYDRAULIC SYSTEM
COOLANT SYSTEM

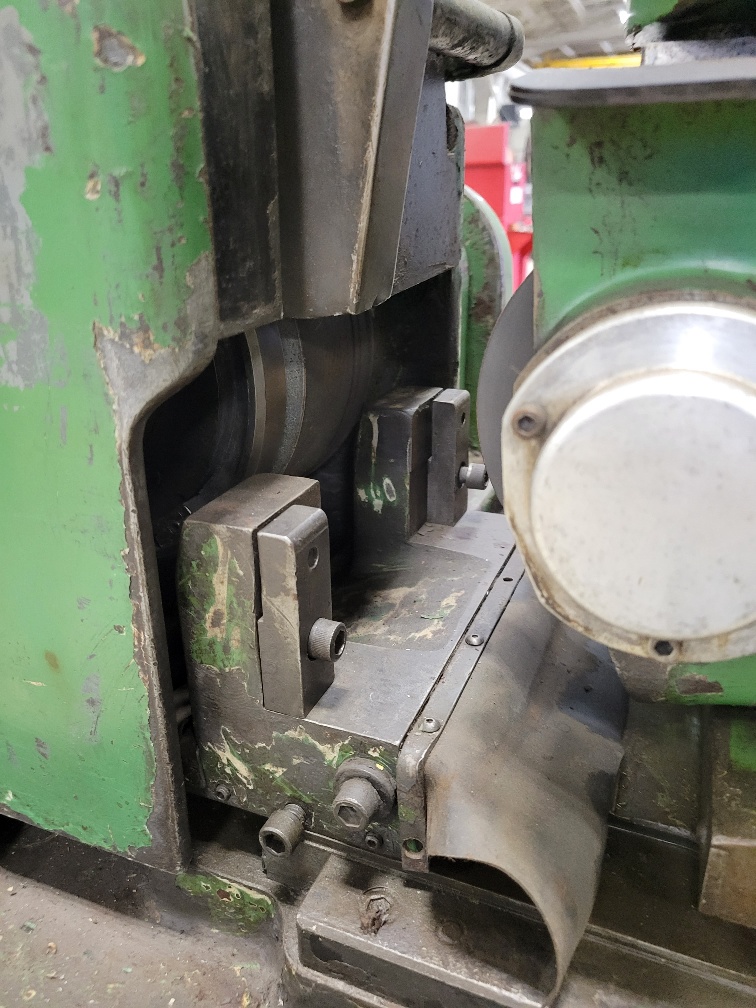

WORK REST
DIAL INDICATOR FOR REG HOUSING
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS




** IN STOCK, LOCATED IN OUR HARRISON, NJ WAREHOUSE **
** APPEARNCE IS QUITE NICE - ORIGINAL PAINT **
** AS NOTED, FACTORY REBUILT BY RMG IN 1998 **
** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
