Cincinnati 2 OM, LONG BAR ATTACHMENT, THRUFEED WKRST, CENTERLESS GRINDERS

Price on Request

Make:: Cincinnati

Model:: 2 OM, LONG BAR ATTACHMENT, THRUFEED WKRST,

Year:

Ref #:: 178074

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

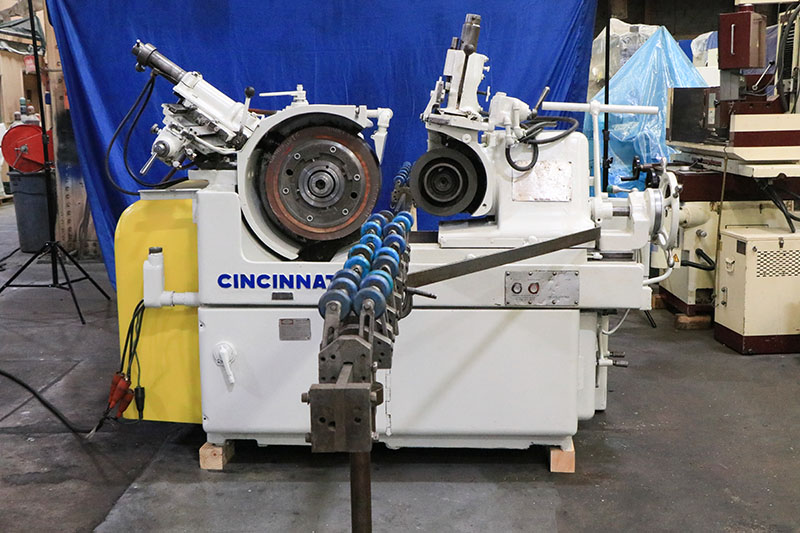

             CINCINNATI No. 2 "OM"
           CENTERLESS GRINDER
     ** WITH "LONG BAR" ATTACHMENT **


           S/N: 2M2H1W-295R


DIAMETER CAPACITY, NORMAL .......... 1/16" TO 3"
GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 15 H.P.
REGULATING WHEEL DIAMETER, MIN. .... 9.5"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"
REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 8,000 LBS.
FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:
HYDRAULIC DRESSER FOR GRINDING WHEEL
HYDRAULIC DRESSER FOR REGULATING WHEEL
THRUFEED WORK REST WITH BLADES
"LONG BAR" ATTACHMENT
EXTERNAL COOLANT SYSTEM, TANK & PUMP
VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL
SWIVEL-TYPE REGULATING WHEEL UNIT - TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS
15 H.P./3/60/220-440 VOLT MOTOR FOR THE GRINDING WHEEL

** MADE IN USA CINCINNATI No. 2 OM **
** SHIPPING DIRECTLY FROM THE SHOP - PHILADELPHIA PA **
** AS TAKEN FROM SERVICE - SEE PHOTOS IN THE SHOP **
