Victor PFG-1020AH (7" wheel) NEW SURFACE GRINDERS

Price on Request

Make:: Victor

Model:: PFG-1020AH (7" wheel)

Year:: NEW

Ref #:: 147894

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

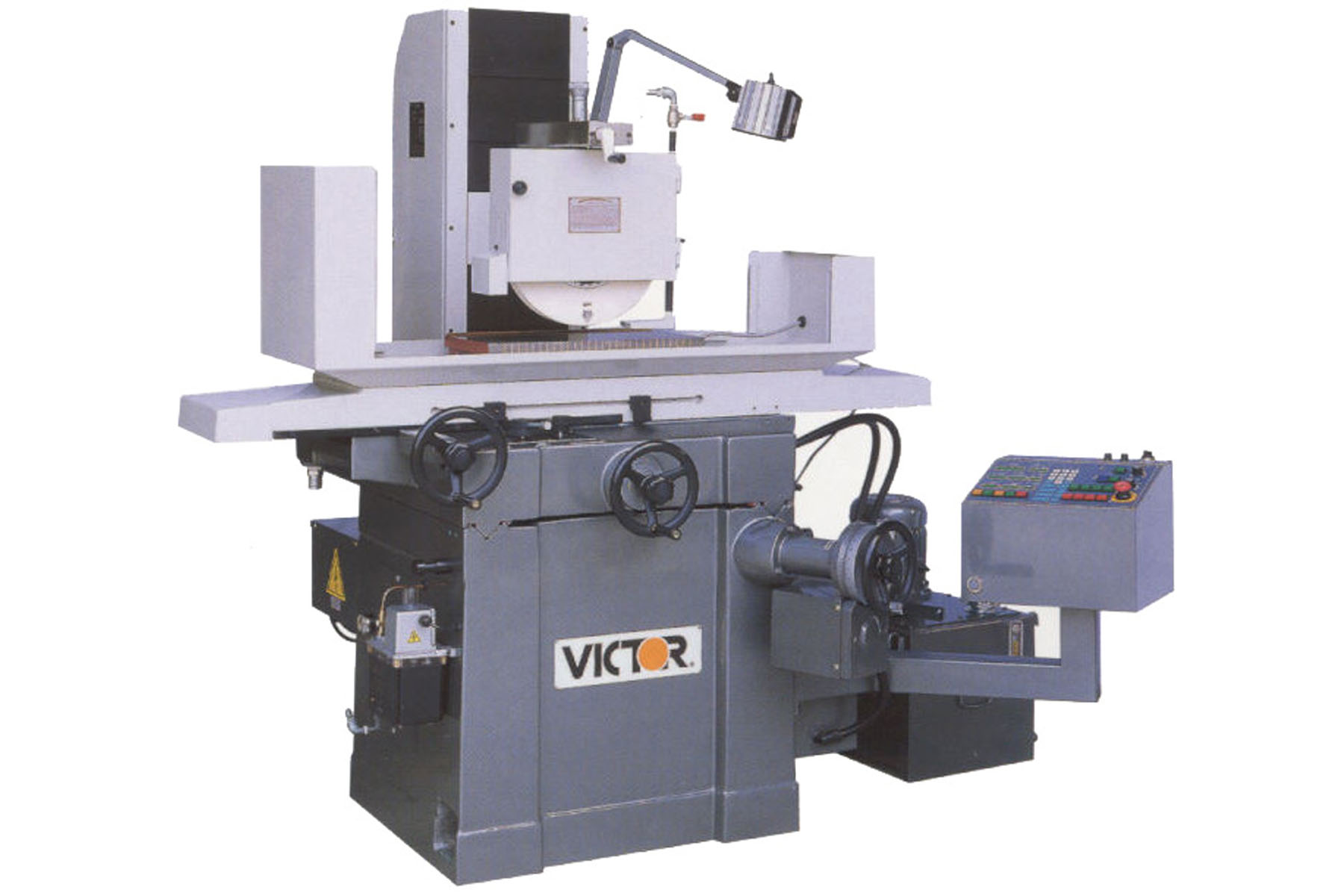

NEW VICTOR 10" X 20" HYDRAULIC SURFACE GRINDER
MODEL: PFG-1020AH (7" WHEEL)
*MADE IN TAIWAN*

SPECIFICATIONS:
TABLE SIZE: ...................... 10" X 20"
MAX. TABLE TRAVEL: ............... 10-3/4" X 22"
MAX. SURFACE GROUND: ............. 10" X 20"
MAX. DISTANCE FROM
-SPINDLE CENTER TO TABLE TOP: .... 20"

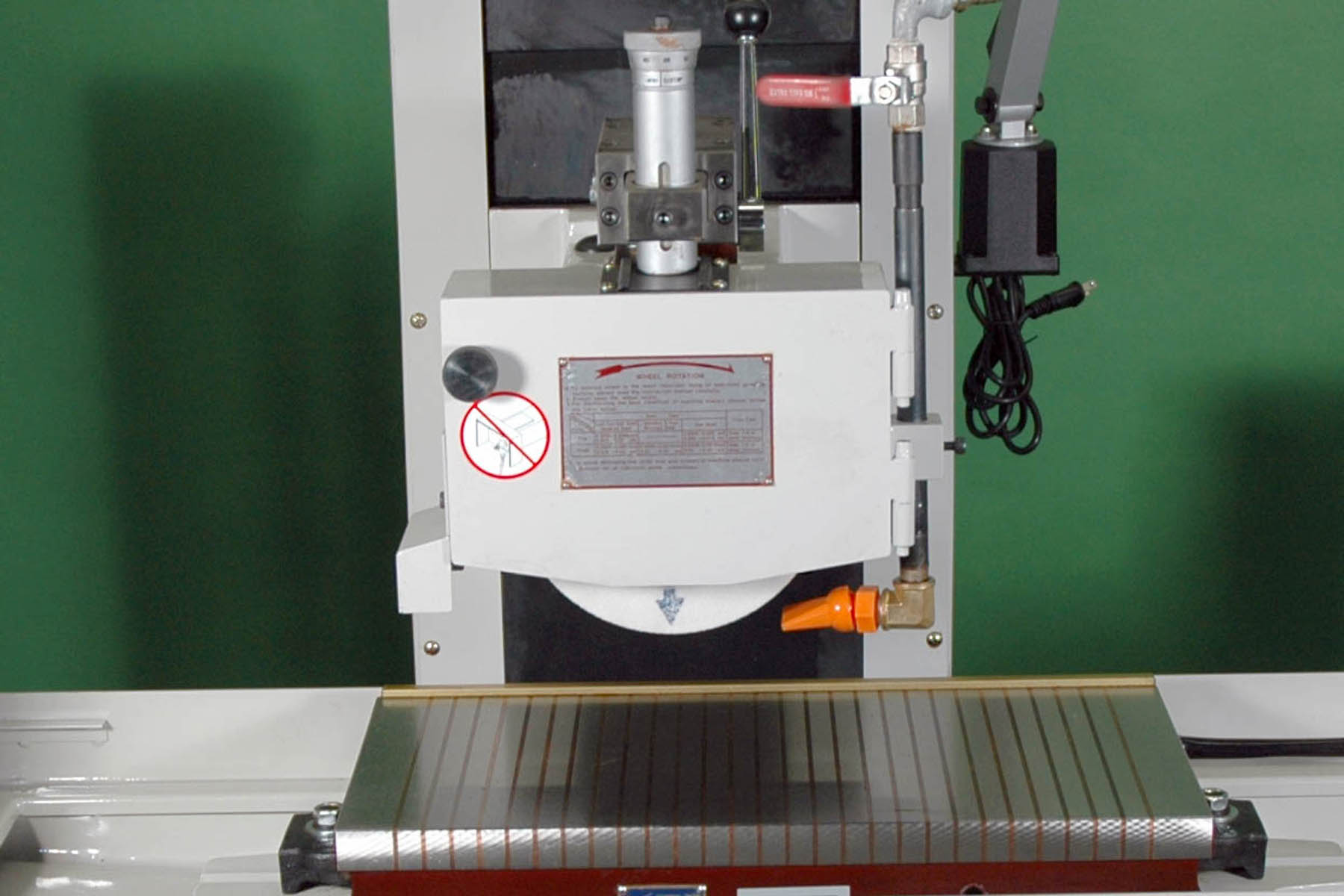

ELECTROMAGNETIC CHUCK SIZE: ...... 10" X 20"
TABLE SPEED: ..................... 200" - 1,000" / MIN
TABLE SLIDEWAY: .................. V & FLAT TURCITE WAY
AUTO CROSS FEED INCREMENT: ....... 0.004" - 0.47"
POWER CROSS FEED: ................ 44" / MIN

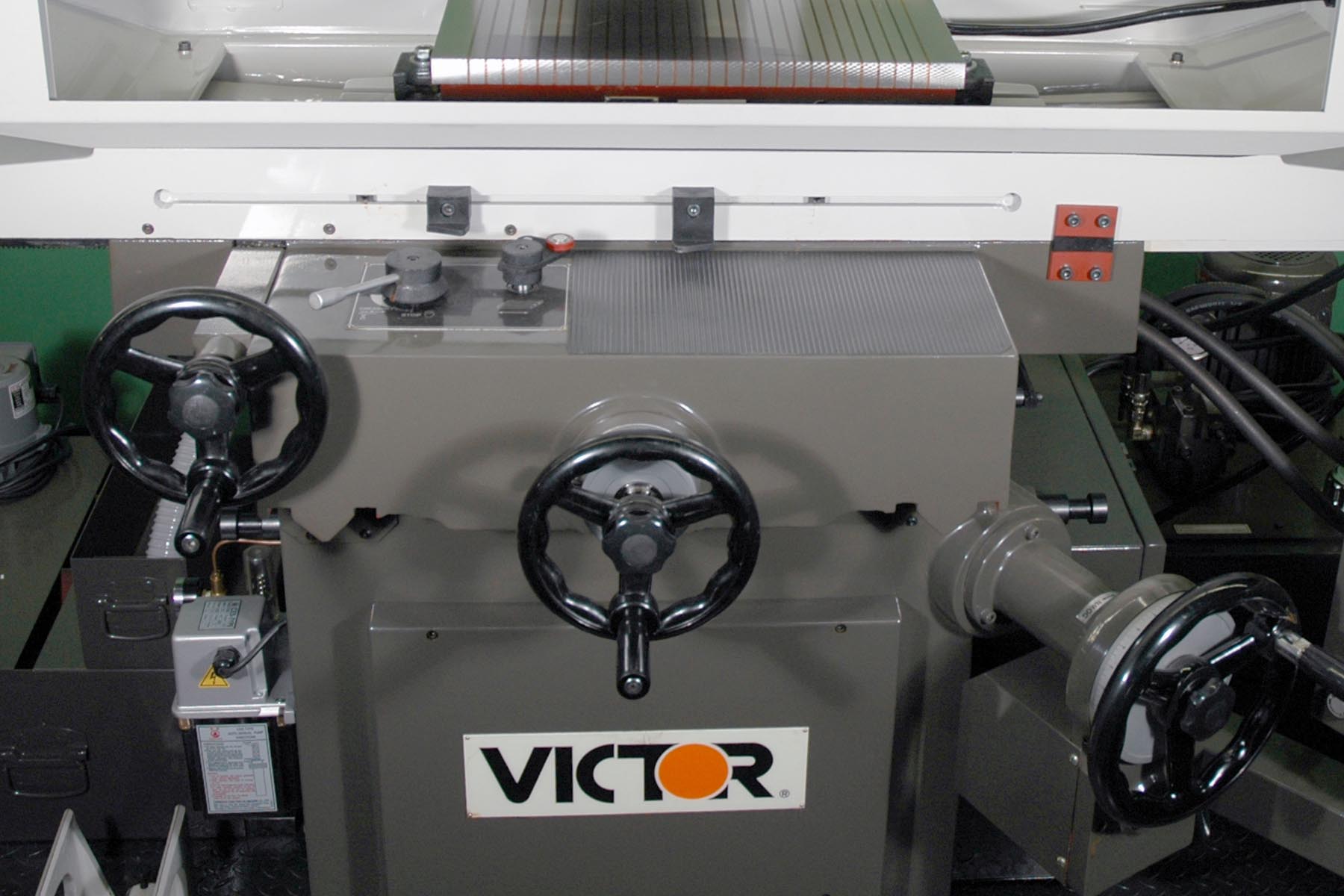

CROSS HANDWHEEL FEED
-PER GRADUATION: ................. 0.001"
CROSS HANDWHEEL FEED
-PER REVOLUTION: ................. 0.2"
RAPID POWER HEAD ELEVATION (OPT'L) 13" / MIN
AUTO DOWN FEED (OPT'L) ........... 0.0001" - 0.0999" / TIME OPTION
VERTICAL DOWN HANDWHEEL FEED
-PER GRADUATION: ................. 0.0001"
VERTICAL DOWN HANDWHEEL FEED
-PER REVOLUTION: ................. 0.05"
MAX WHEEL SIZE (O.D X T X I.D.): . 7" X 0.5" X 1.25"
SPINDLE WHEEL SPEED: ............. 3,500 RPM
SPINDLE DRIVE MOTOR: ............. 3 HP
HYDRAULIC PUMP MOTOR: ............ 1 HP
AUTO CROSS FEED MOTOR: ........... 1/5 HP
RAPID HEAD ELEVATION MOTOR (OPT'L) 1/5 HP
COOLANT PUMP MOTOR: .............. 1/8 HP
NET WEIGHT (APPROX.): ............ 2,970 LBS
GROSS WEIGHT (APPROX.): .......... 3,410 LBS
PACKAGING DIMENSIONS (L X W X H) . 84" X 59" X 79"

FEATURES:
* MEEHANITE CASTING OF BASE, COLUMN, SADDLE, AND TABLE WITH OUTSTANDING STRUCTURE DESIGNED AND THROUGH INTERNAL
STRESS ELIMINATION TO ENSURE GREATER RIGIDITY, ACCURACY, AND STABILITY
* PRECISION SPINDLE WITH P4 PRECISION ANGULAR CONTACT BEARINGS AND CARTRIDGE DESIGN THAT IS COMPLETELY SEALED AND LUBRICATED TO ENSURE HIGH ACCURACY, DURABILITY, AND SUPERIOR SURFACE FINISH
* HYDRAULIC DRIVEN LONGITUDINAL TABLE MOVEMENT
* LONGITUDINAL AND CROSS SLIDEWAYS ARE COATED WITH TURCITE-B TO PROVIDE STABLE MOVEMENT AND SUPERIOR ACCURACY.  IT'S SPECIALLY DESIGNED TO MAINTAIN LONG LIFE SPAN
* CROSS FEED CONTROL UNIT CONSISTS OF A SOLID STATE RELAY WHICH IS DESIGNED TO ENSURE A LONG SERVICE LIFE
* AUTOMATIC LUBRICATION TO ALL SLIDE WAYS WHEN HYDRAULIC SWITCH IS "ON"
* OPTIONAL AUTOMATIC DOWN FEED WITH ELEVATING MICRO-FEED MOTOR AND INTUITIVE CONTROL PANEL TO ADD MORE CONVENIENCE TO GRINDING OPERATIONS

MACHINE INCLUDES:
GRINDING WHEEL
WHEEL FLANGE
FLANGE EXTRACTOR
WHEEL BALANCING ARBOR
WHEEL BALANCING BASE
WHEEL DRESSER WITH DIAMOND
LEVELING SCREW AND PLATES
WORK LIGHT

OPTIONS(CALL FOR PRICES!):
ELECTROMAGNETIC CHUCK
ANGLE FORMING ATTACHMENT
RADIUS FORMING ATTACHMENT
SINE BAR
TOOL MAKERS VISE
PUNCH FORMER
EXTRA WHEEL FLANGE
AUTO DEMAGNETIZER
DUST SUCTION SYSTEM
DUST SUCTION SYSTEM WITH COOLANT SYSTEM
MAGNETIC SEPARATOR WITH COOLANT
AUTO PAPER STRIP FILTER
AUTO PAPER STRIP FILTER WITH MAGNETIC SEPARATOR AND COOLANT SYSTEM
AUTO DOWN FEED SYSTEM
