Victor PFG-1632AH 14" Wheel w/ Auto Down Feed NEW SURFACE GRINDERS

Price on Request

Make:: Victor

Model:: PFG-1632AH 14" Wheel w/ Auto Down Feed

Year:: NEW

Ref #:: 147901

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

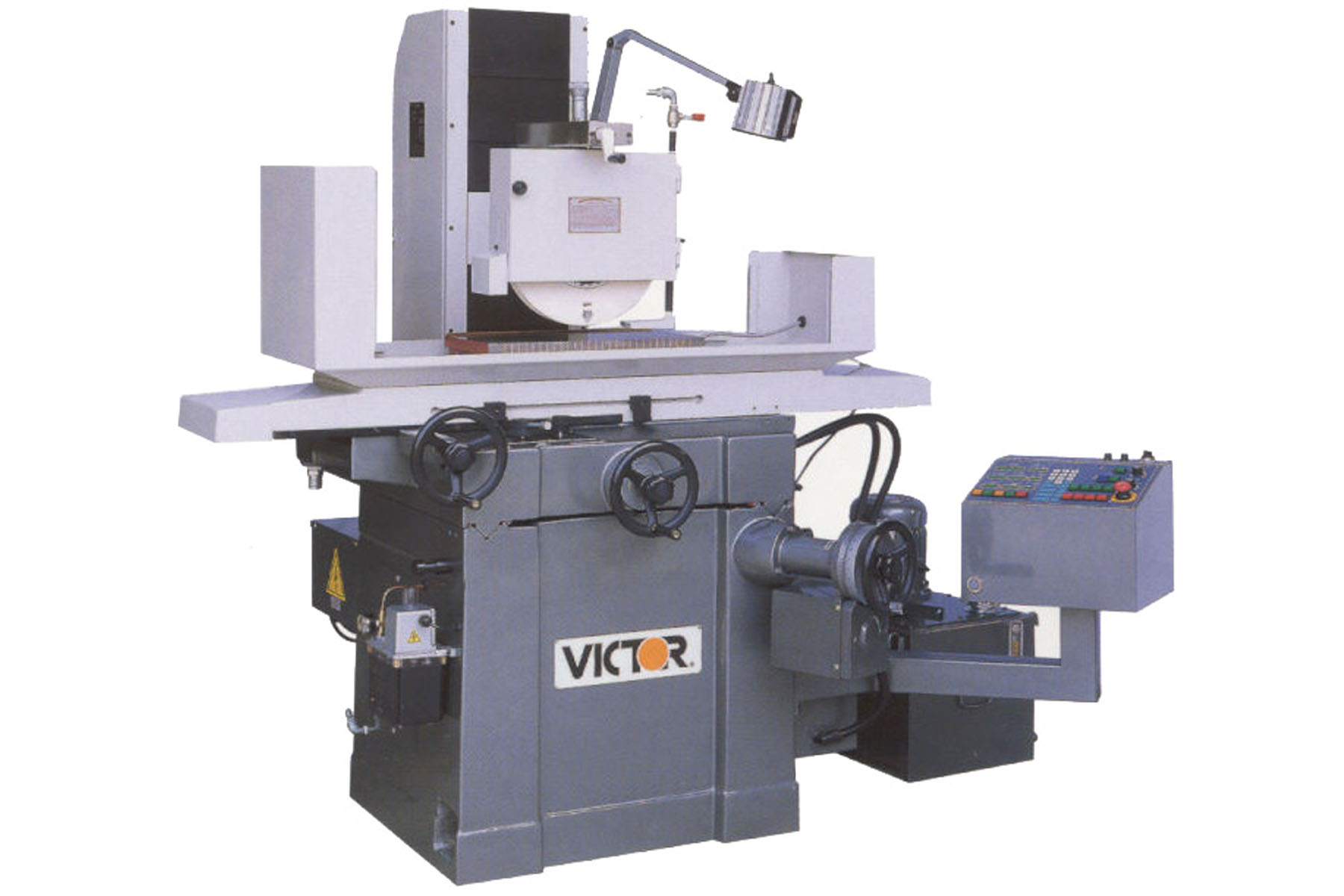

										NEW VICTOR 16" x 32" HYDRAULIC SURFACE GRINDER
 MODEL: PFG-1632AH W/ AUTO DOWN FEED
 *MADE IN TAIWAN*


 FEATURES:

  *   Meehanite casting of base, column, saddle, and table

  with outstanding structure designed and through internal

 stress elimination to ensure greater rigidity, accuracy,

 and stability

  *  Precision spindle with P4 precision angular contact

 bearings and cartridge design that is completely sealed

 and lubricated to ensure high accuracy, durability, and

 superior surface finish

  *   Hydraulic driven longitudinal table movement

  *   Longitudinal and cross slideways are coated with

 Turcite-B to provide stable movement and superior

 accuracy.  It's specially designed to maintain long life

 span

  *   Cross feed control unit consists of a solid state relay

 which is designed to ensure a long service life

  *   Automatic lubrication to all slide ways when hydraulic switch is "On"

 *  Optional automatic down feed with elevating micro-

 feed motor and intuitive control panel to add more

 convenience to grinding operations

 MACHINE INCLUES:

 Automatic Down Feeder
 Grinding wheel
 Wheel flange
 Flange extractor
 Wheel balancing arbor
 Wheel balancing base
 Wheel dresser with diamond
 Leveling screw and plates
 Work light

 SPECIFICATIONS:

 Table size: 16" x 32"
 Max. table travel: 18" x 34"
 Max. surface ground: 16" x 32"
 Max. distance from spindle center to table top: 22"
 Electromagnetic chuck size: 16" x 32"
 Table speed: 200" - 1,000" / min
 Table slideway: V & Flat Turcite Way
 Auto cross feed increment: 0.004" - 0.8"
 Power cross feed: 44" / min
 Cross handwheel feed per graduation: 0.001"
 Cross handwheel feed per revolution: 0.2"
 Rapid power head elevation (Optional): 13" / min
 Auto down feed (including rapid) ( Optional): 0.0001" - 0.0999" / Time option
 Vertical down handwheel feed per graduation: 0.0001"
 Vertical down handwheel feed per revolution: 0.05"
 Max wheel size (O.D x T x I.D.): 14" x 2" x 5"
 Spindle wheel speed: 1,750 RPM
 Spindle drive motor: 5 HP (7.5 HP Optional)
 Hydraulic pump motor: 2 HP
 Auto cross feed motor: 1/5 HP
 Rapid head elevation motor (Optional): 1/5 HP
 Coolant pump motor: 1/8 HP
 Net weight (Approx.): 5,830 lbs
 Gross weight (Approx.): 6,380 lbs
 Packaging dimensions (L x W x H): 90" x 90" x 85"

 OPTIONS (Call for prices!):

 Electromagnetic chuck
 Angle forming attachment
 Radius forming attachment
 Sine bar
 Tool makers vise
 Punch former
 Extra wheel flange
 Auto demagnetizer
 Dust suction system
 Dust suction system with coolant system
 Magnetic separator with coolant
 Auto paper strip filter
 Auto paper strip filter with magnetic separator and coolant system
