Victor PFG-1632AH NEW SURFACE GRINDERS

Price on Request

Make:: Victor

Model:: PFG-1632AH

Year:: NEW

Ref #:: 147900

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

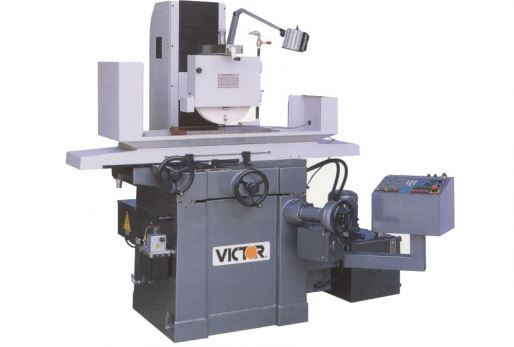

NEW VICTOR 16" x 32" HYDRAULIC SURFACE GRINDER
MODEL: PFG-1632AH
*MADE IN TAIWAN*

Saddle type surface grinder with longitudinal by hydraulic, cross feed by solid state relay, and vertical feed by manual. Optional auto downfeed system with elevating micro-feed motor is available.
FEATURES:

 Meehanite casting of base, column, saddle, and table with outstanding structure designed and through internal stress elimination to ensure greater rigidity, accuracy, and stability
Precision spindle with P4 precision angular contact bearings and cartridge design that is completely sealed and lubricated to ensure high accuracy, durability, and superior surface finish
Hydraulic driven longitudinal table movement
Longitudinal and cross slideways are coated with Turcite-B to provide stable movement and superior accuracy. It's specially designed to maintain long life span
Cross feed control unit consists of a solid state relay which is designed to ensure a long service life
Automatic lubrication to all slide ways when hydraulic switch is "On"
Optional automatic down feed with elevating micro-feed motor and intuitive control panel to add more convenience to grinding operations

CAPACITY
Table size:16" x 32"
Max. table travel:18" x 34"
Max. surface ground:16" x 32"
Max. distance from spindle center to table:22"
Chuck size:16" x 32" (Electromagnetic chuck)

TABLE
Table speed:200" ~ 1,000" / min
Table slideway:V & Flat Turcite Way

CROSS FEED
Auto cross feed increment:0.004" ~ 0.8"
Power cross feed:44" / min
Cross handwheel feed per graduation:0.001"
Cross handwheel feed per revolution:0.2"

DOWN FEED
Rapid power head elevation:13" / min (Auto down feed model)
Auto down feed (including rapid):0.0001" ~ 0.0999" / Time (Auto down feed model)
Vertical handwheel feed per graduation:0.0001"
Vertical handwheel feed per revolution:0.05"

WHEEL
Max. wheel size (O.D. x T x I.D.):14" x 2" x 5"
Spindle wheel speed:1,750 rpm

POWER
Spindle drive motor:5 HP
Hydraulic pump motor:2 HP
Auto cross feed motor:1/5 HP
Rapid head elevation motor:1/5 HP (Auto down feed model)
Coolant pump motor:1/8 HP

WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH):90" x 90" x 85"
Net weight (Approx.):5,830 lb.Gross weight (Approx.):6,380 lb.

STANDARD ACCESSORIES:

 Grinding wheel
Wheel flange
Flange extractor
Wheel balancing arbor and base
Wheel dresser with diamond
Leveling screws and pads
Halogen work light



MACHINE INCLUDES:

 Electromagnetic chuck
Auto demagnetizer for chuck
Parallel dresser (manual)
Coolant system
