Victor PFG-2440AHR w/16" Wheel NEW SURFACE GRINDERS

Price on Request

Make:: Victor

Model:: PFG-2440AHR w/16" Wheel

Year:: NEW

Ref #:: 147913

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

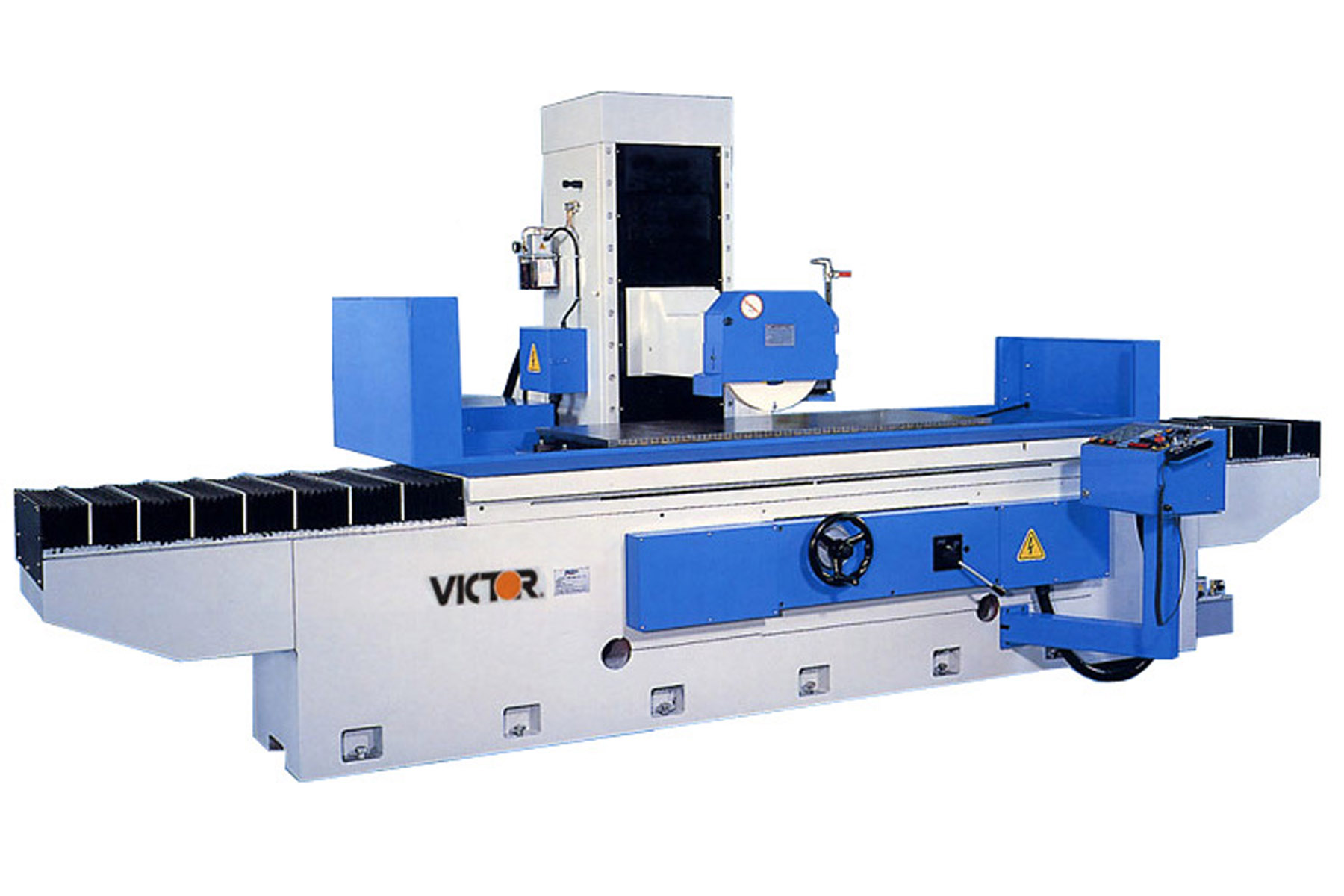

										NEW VICTOR 24" x 40" HYDRAULIC SURFACE GRINDER
 MODEL: PFG-2440AHR
 *MADE IN TAIWAN*


 FEATURES:

 *    Vertical travel driven by AC servo motor

 *    Vertical travel operated by MPG function handwheel with 3 graduation selections

 *    One piece base design to provide greater rigidity and

 free twist deformation to ensure superior surface finish

 and higher accuracy

 *   Column, base, and table adopt double wall

 construction casting to ensure greater rigidity, accuracy,

 and stability during heavy grinding.  And through internal

 stress elimination assures rigidity, stability, and accuracy

 *    High precision and heavy pre-compression ballscrews

 on vertical and cross feeds to provide powerful and

 precise grinding force

 *    Hydraulic driven longitudinal table movement

 *   Automatic cross feed powered by AC motor

 transmitting through MCU.  The travel distance set by

 cam and limit switch installed on right side of machine

 base.  The feed volume can be adjusted by panel switch

 *    Optional automatic down feed with elevating micro-

 feed and intuitive control panel to add more convenience

 to grinding operations

 MACHINE INCLUES:

 Grinding wheel
 Wheel flange
 Flange extractor
 Wheel balancing arbor
 Wheel balancing base
 Wheel dresser with diamond
 Leveling screw and plates
 Work light

 SPECIFICATIONS:

 Table size: 23" x 39"
 Max. table travel: 26" x 45"
 Max. surface ground: 24" x 40"
 Max. distance from spindle center to table top: 24"
 Electromagnetic chuck size: 24" x 39"
 Table speed: 200" ~ 985" / min
 Table slideway: V-Flat Way
 Auto cross feed increment: 0.004" ~ 0.8"
 Power cross feed: 44" / min
 Cross handwheel feed per graduation: 0.001"
 Cross handwheel feed per revolution: 0.2"
 Rapid power head elevation (Optional): 31" / min
 Auto down feed (including rapid) ( Optional): 0.0001" ~ 0.0999" / Time option
 Vertical down handwheel feed per graduation: (x1) 0.0001", (x5) 0.0005", (x10) 0.0010" by MPG
 Vertical down handwheel feed per revolution: (x1) 0.01", (x5) 0.05", (x10) 0.1" by MPG
 Max wheel size (O.D x T x I.D.): 16" x 2" x 5"
 Spindle wheel speed: 1,750 RPM
 Spindle drive motor: 10 HP
 Hydraulic pump motor: 3 HP
 Auto cross feed motor: 1/5 HP
 Rapid head elevation motor: AC servo motor
 Coolant pump motor: 1/8 HP
 Net weight (Approx.): 13,900 lbs
 Gross weight (Approx.): 15,700 lbs
 Packaging dimensions (L x W x H): 148" x 90" x 101"

 OPTIONS(Call for prices!):

 Electromagnetic chuck
 Angle forming attachment
 Radius forming attachment
 Sine bar
 Tool makers vise
 Punch former
 Extra wheel flange
 Auto demagnetizer
 Dust suction system
 Dust suction system with coolant system
 Magnetic separator with coolant
 Auto paper strip filter
 Auto paper strip filter with magnetic separator and coolant system
 Auto down feed system
