Victor PFG-2480AHR w/ Auto Down Feed NEW SURFACE GRINDERS

Price on Request

Make:: Victor

Model:: PFG-2480AHR w/ Auto Down Feed

Year:: NEW

Ref #:: 147918

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

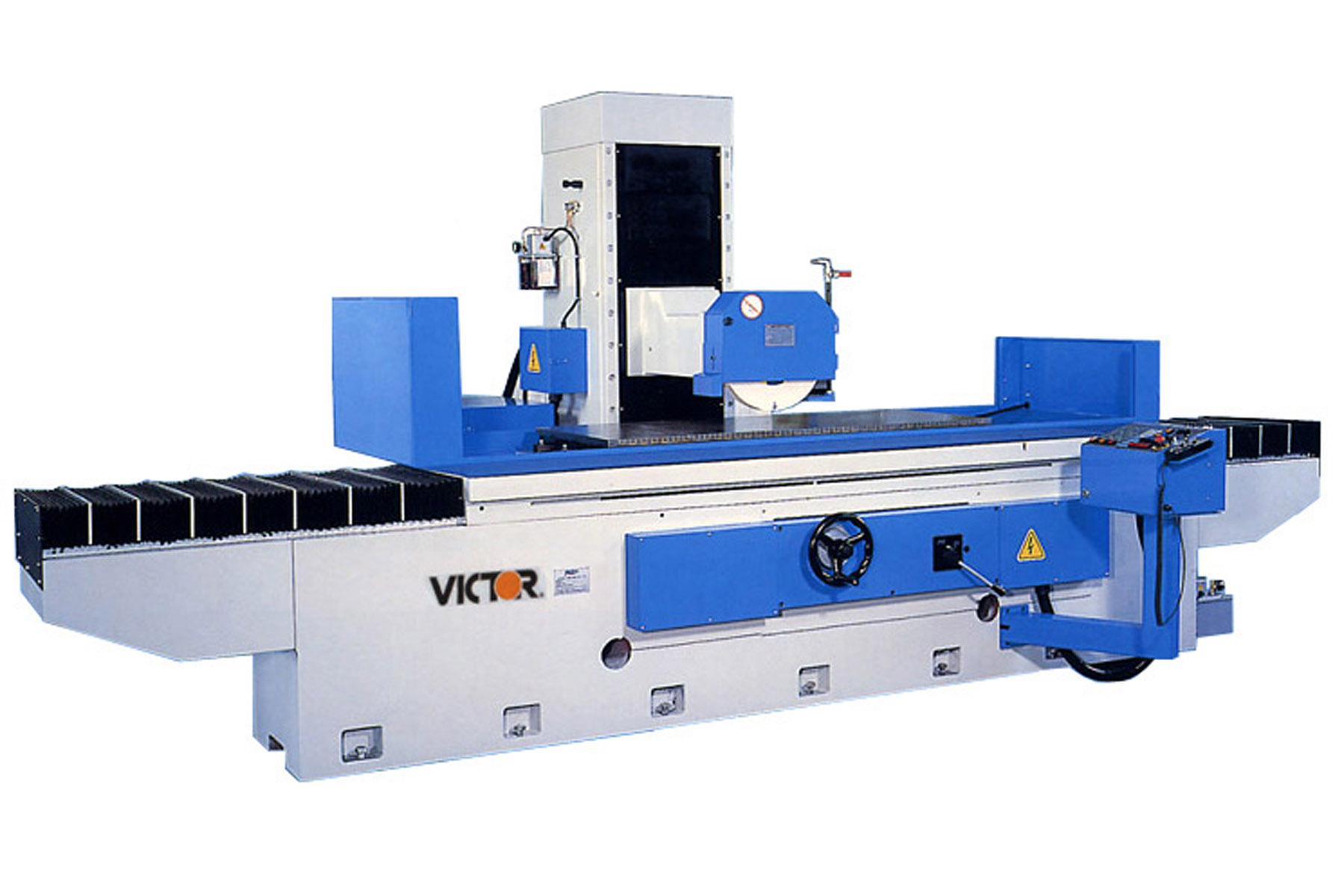

NEW VICTOR 24" X 80" HYDRAULIC SURFACE GRINDER
MODEL: PFG-2480AHR W/AUTO DOWN FEED
*MADE IN TAIWAN*

SPECIFICATIONS:
TABLE SIZE: .......................... 24" X 79"
MAX. TABLE TRAVEL: ................... 26" X 85"
MAX. SURFACE GROUND: ................. 24" X 80"
MAX. DISTANCE FROM
..SPINDLE CENTER TO TABLE TOP: ....... 24"
ELECTROMAGNETIC CHUCK SIZE: .......... 24" X 79"
TABLE SPEED: ......................... 200" ~ 985" / MIN
TABLE SLIDEWAY: ...................... V-FLAT WAY
AUTO CROSS FEED INCREMENT: ........... 0.004" ~ 0.8"
POWER CROSS FEED: .................... 44" / MIN
CROSS HANDWHEEL FEED PER GRADUATION: . 0.001"
CROSS HANDWHEEL FEED PER REVOLUTION: . 0.2"
RAPID POWER HEAD ELEVATION/OPTIONAL: . 31" / MIN
AUTO DOWN FEED (INCL RAPID)/OPTIONAL:. 0.0001" ~ 0.0999" / TIME OPTION
VERTICAL DOWN HANDWHEEL
..FEED PER GRADUATION: (X1) .......... 0.0001", (X5) 0.0005", (X10) 0.0010" BY MPG
VERTICAL DOWN HANDWHEEL
..FEED PER REVOLUTION: (X1) .......... 0.01", (X5) 0.05", (X10) 0.1" BY MPG
MAX WHEEL SIZE (O.D X T X I.D.): ..... 16" X 2" X 5"
SPINDLE WHEEL SPEED: ................. 1,750 RPM
SPINDLE DRIVE MOTOR: ................. 10 HP
HYDRAULIC PUMP MOTOR: ................ 5 HP
AUTO CROSS FEED MOTOR: ............... 1/5 HP
RAPID HEAD ELEVATION MOTOR: .......... AC SERVO MOTOR
COOLANT PUMP MOTOR: .................. 1/8 HP
NET WEIGHT (APPROX.): ................ 19,200 LBS
GROSS WEIGHT (APPROX.): .............. 21,400 LBS
PACKAGING DIMENSIONS (L X W X H): .... 188" X 90" X 101"

MACHINE INCLUDES:
GRINDING WHEEL
WHEEL FLANGE
FLANGE EXTRACTOR
WHEEL BALANCING ARBOR
WHEEL BALANCING BASE
WHEEL DRESSER WITH DIAMOND
LEVELING SCREW AND PLATES
WORK LIGHT

FEATURES:
* AUTO DOWN FEED SYSTEM
* VERTICAL TRAVEL DRIVEN BY AC SERVO MOTOR
* VERTICAL TRAVEL OPERATED BY MPG FUNCTION HANDWHEEL WITH 3 GRADUATION SELECTIONS
* ONE PIECE BASE DESIGN TO PROVIDE GREATER RIGIDITY AND FREE TWIST DEFORMATION TO ENSURE SUPERIOR SURFACE FINISH AND HIGHER ACCURACY
* COLUMN, BASE, AND TABLE ADOPT DOUBLE WALL CONSTRUCTION CASTING TO ENSURE GREATER RIGIDITY, ACCURACY, AND STABILITY DURING HEAVY GRINDING.  AND THROUGH INTERNAL STRESS ELIMINATION ASSURES RIGIDITY, STABILITY, AND ACCURACY
* HIGH PRECISION AND HEAVY PRE-COMPRESSION BALLSCREWS ON VERTICAL AND CROSS FEEDS TO PROVIDE POWERFUL AND PRECISE GRINDING FORCE
* HYDRAULIC DRIVEN LONGITUDINAL TABLE MOVEMENT
* AUTOMATIC CROSS FEED POWERED BY AC MOTOR TRANSMITTING THROUGH MCU.  THE TRAVEL DISTANCE SET BY CAM AND LIMIT SWITCH INSTALLED ON RIGHT SIDE OF MACHINE BASE.  THE FEED VOLUME CAN BE ADJUSTED BY PANEL SWITCH
* 2 SINGLE-ACTING HYDRAULIC CYLINDERS TO MAXIMIZE STABLE TABLE MOVEMENT BY PREVENTING TABLE FLOATING
* OPTIONAL AUTOMATIC DOWN FEED WITH ELEVATING MICRO-FEED AND INTUITIVE CONTROL PANEL TO ADD MORE CONVENIENCE TO GRINDING OPERATIONS

OPTIONS:
ELECTROMAGNETIC CHUCK
ANGLE FORMING ATTACHMENT
RADIUS FORMING ATTACHMENT
SINE BAR
TOOL MAKERS VISE
PUNCH FORMER
EXTRA WHEEL FLANGE
AUTO DEMAGNETIZER
DUST SUCTION SYSTEM
DUST SUCTION SYSTEM WITH COOLANT SYSTEM
MAGNETIC SEPARATOR WITH COOLANT
AUTO PAPER STRIP FILTER
AUTO PAPER STRIP FILTER WITH MAGNETIC SEPARATOR AND COOLANT SYSTEM
