Webb 17"GX59" ENGINE LATHES

$8,950

Make:: Webb

Model:: 17"GX59"

Year:: 1981

Ref #:: 173505

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

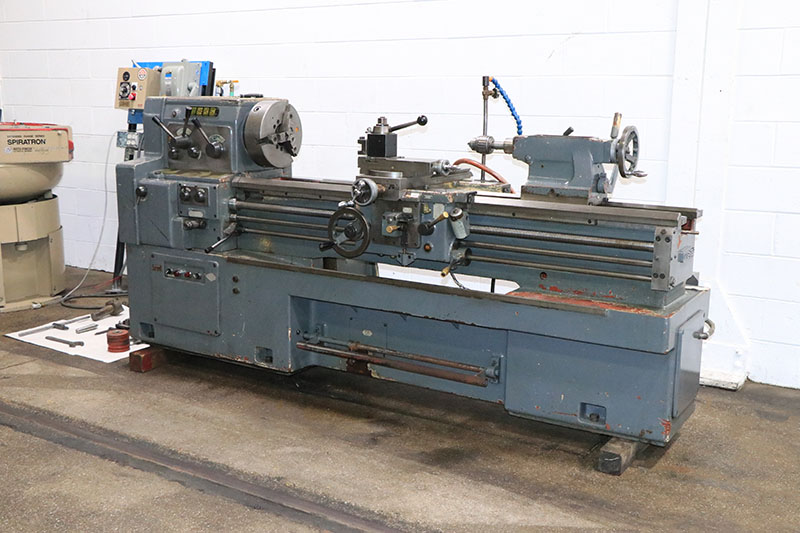

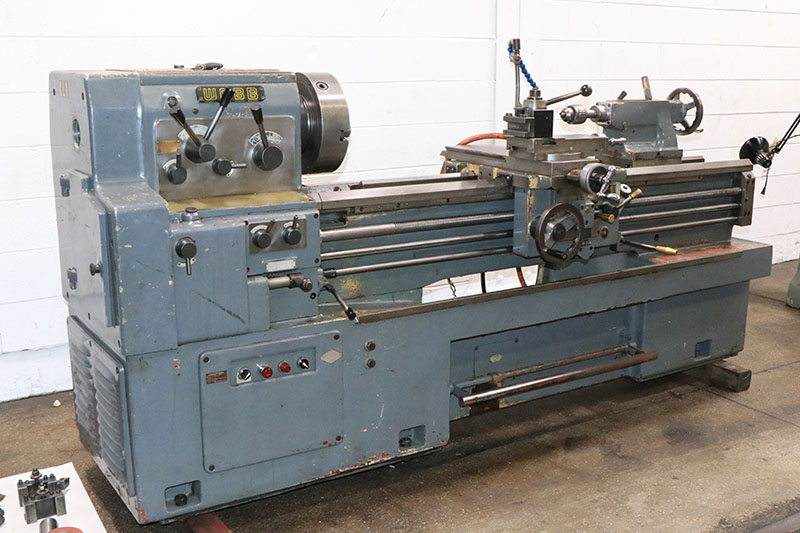

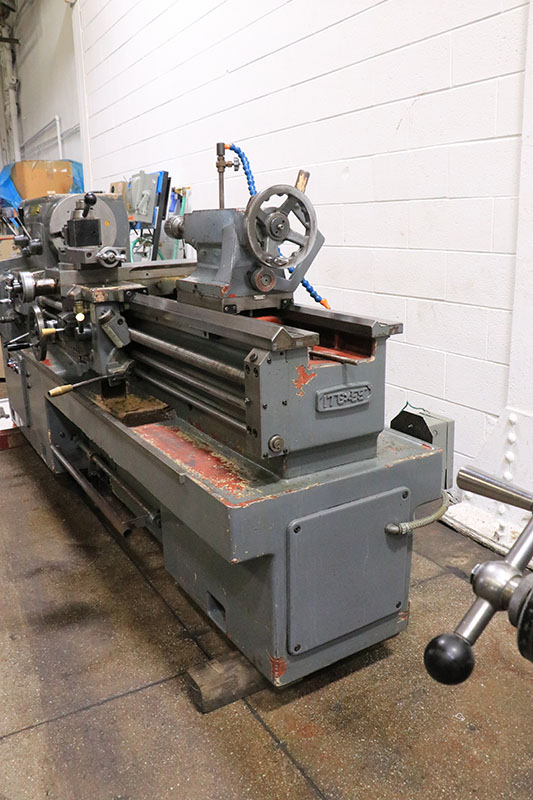

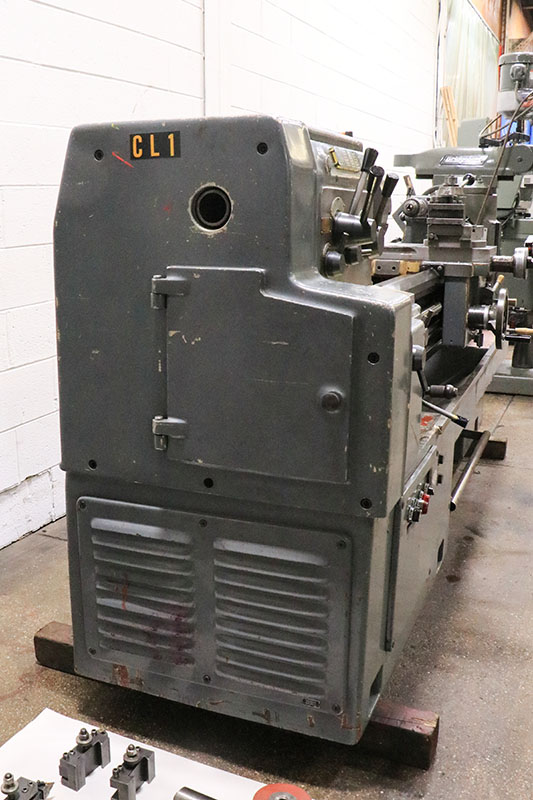

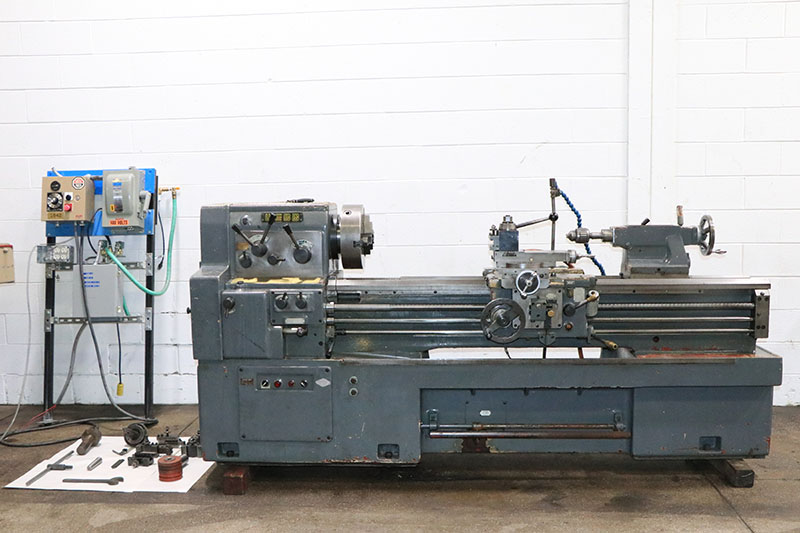

17"/25-1/2" x 59" WEBB GAP BED ENGINE LATHE

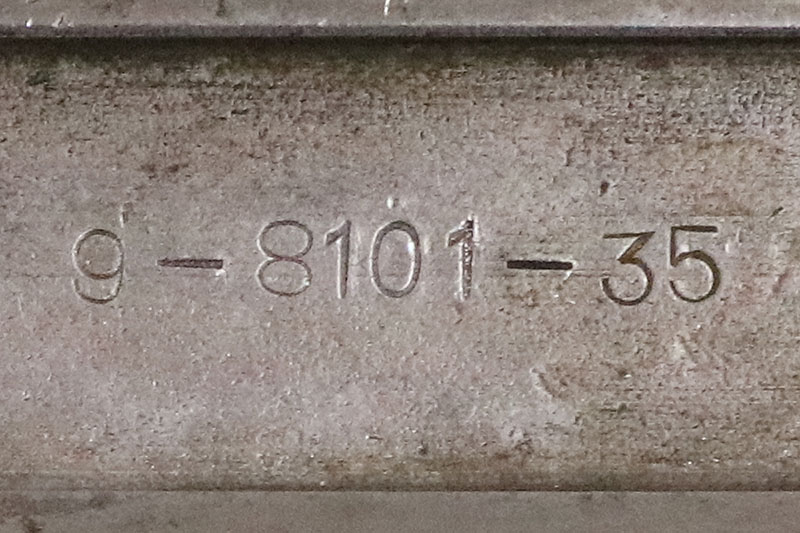

MODEL: 1759G, S/N: 9-8101-35, YEAR: 1981

SPECIFICATIONS:
SWING OVER BED ....................... 17-1/8"
SWING IN REMOVEABLE GAP .............. 25-9/16"
SWING OVER CROSS SLIDE ............... 9-3/4"
HOLE THRU SPINDLE .................... 2-3/64"
DISTANCE BETWEEN CENTERS ............. 59"
SPINDLE NOSE ......................... ASA A1-6
BED WIDTH ............................ 13-3/4"

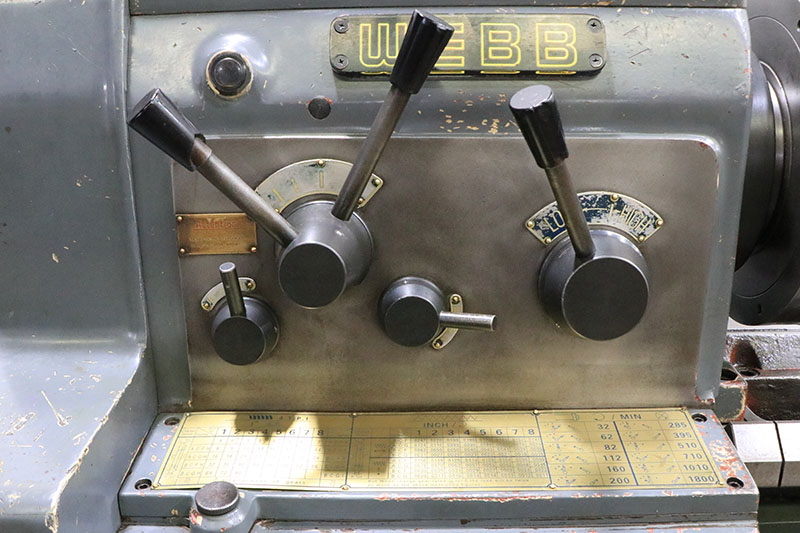

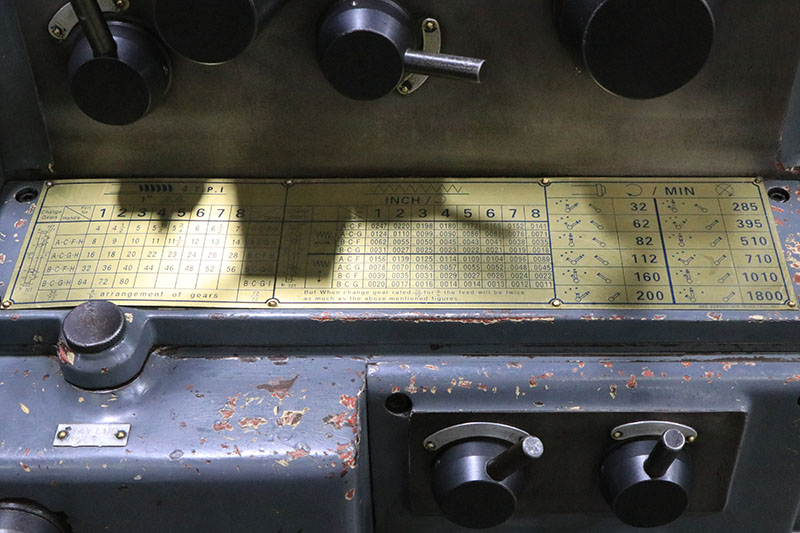

SPINDLE SPEED RANGE (12) ............. 32 - 1800 RPM
LONGITUDINAL FEED RANGE  ............. .0018 - .0247 IPR
CROSS FEED RANGE ..................... .00156 - .011 IPR
ENGLISH THREADING RANGE  ............. 4 - 80 TPI
METRIC THREADING RANGE ............... .25 -7mm

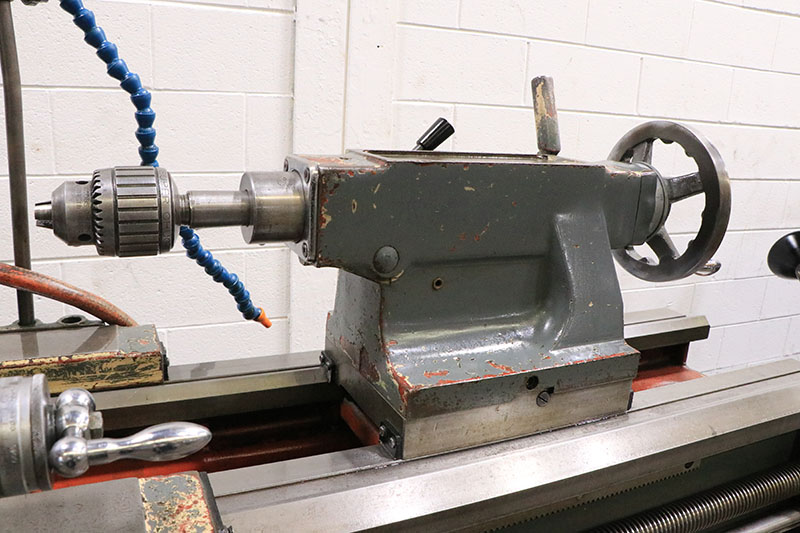

TAILSTOCK SPINDLE TRAVEL ............. 6"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROX WEIGHT ........................ 5,000 LBS

EQUIPPED WITH:
INCH/METRIC THREADING CAPABILITY

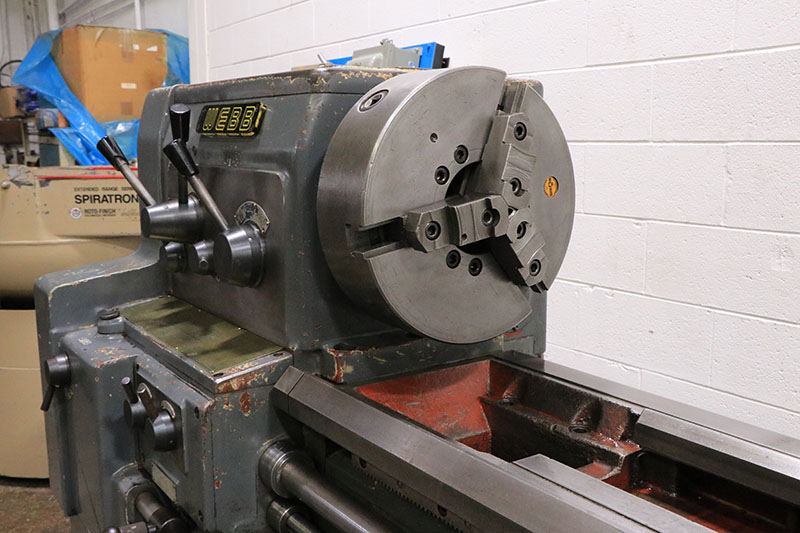

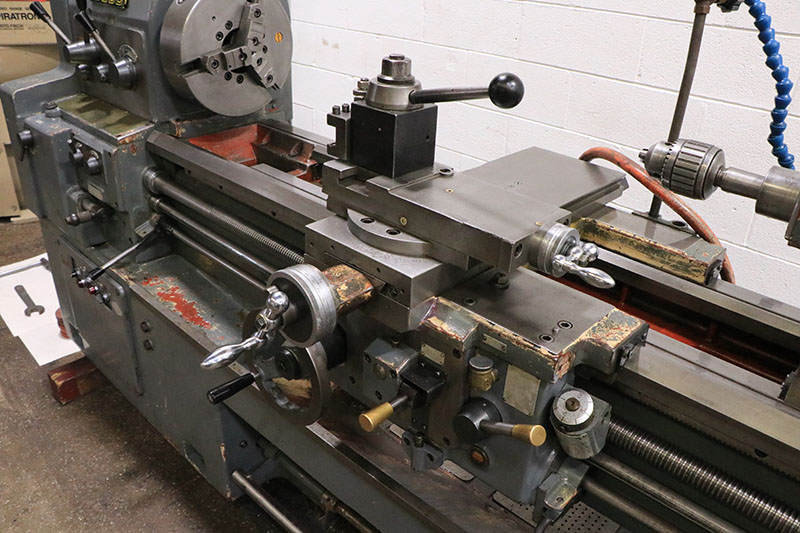

12" ROHM 3-JAW CHUCK

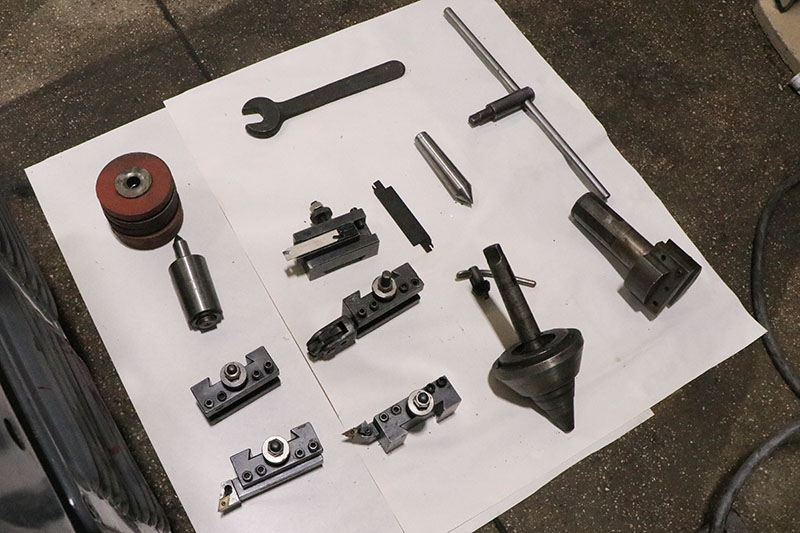

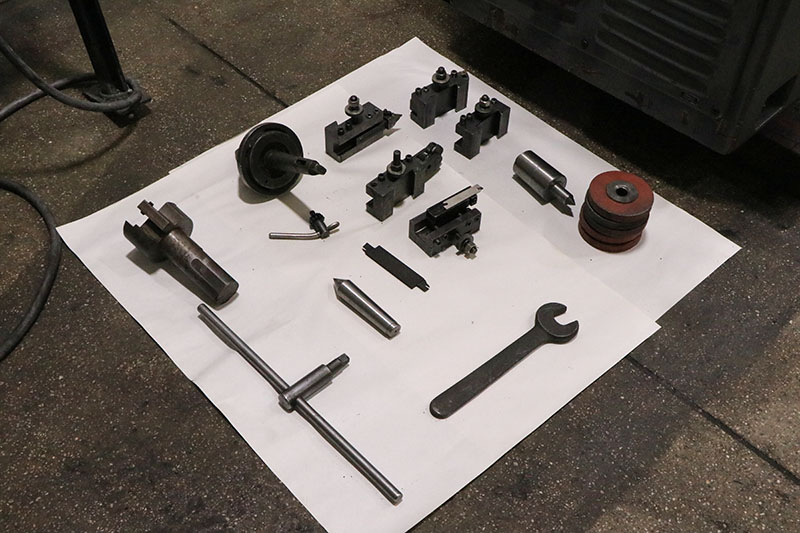

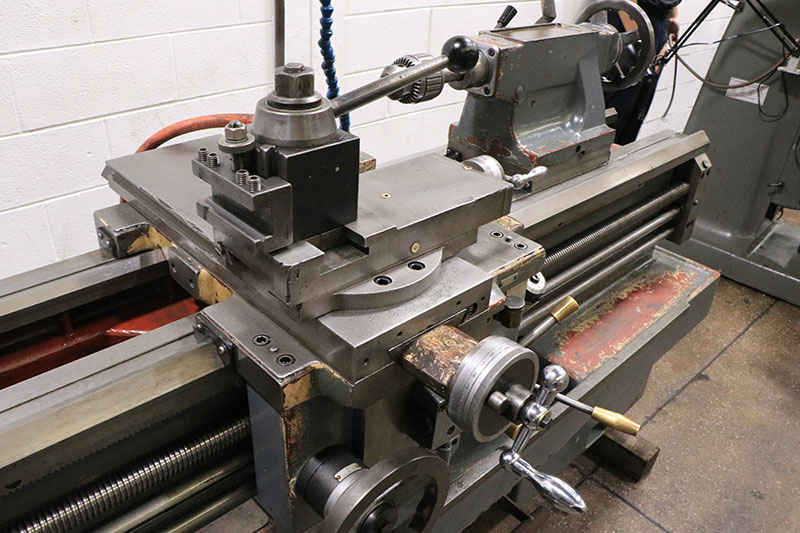

ALORIS MODEL: CA QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR

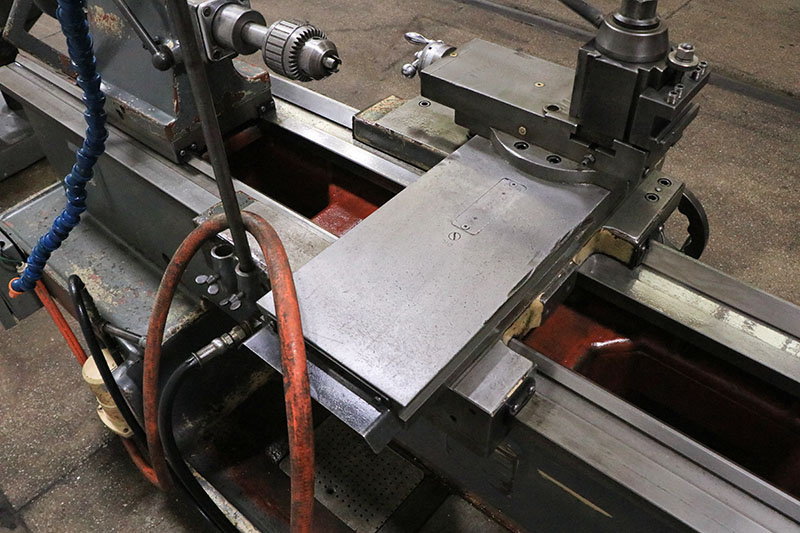

COOLANT SYSTEM
FOOTBRAKE
HARDENED & GROUND BEDWAYS
5 HORSE POWER MAIN MOTOR - 220/440 VOLT 3 PHASE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
