Yama Seiki GA-2000 CNC TURNING CENTERS - CNC LATHES

$32,500

Make:
Yama Seiki
Model:
GA-2000
Year:
2011
Ref #:
163889

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

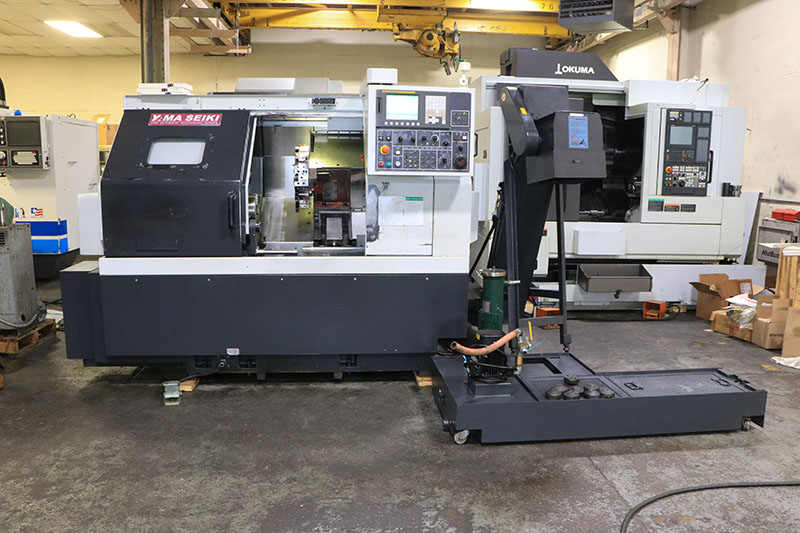

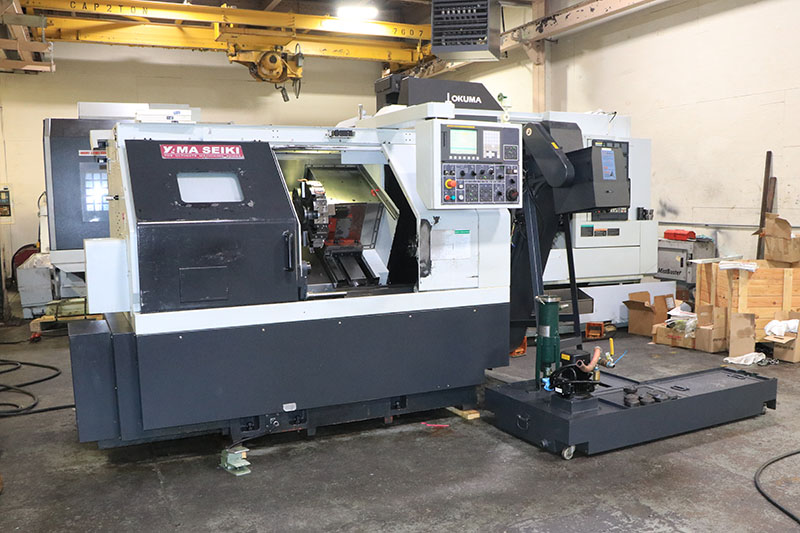

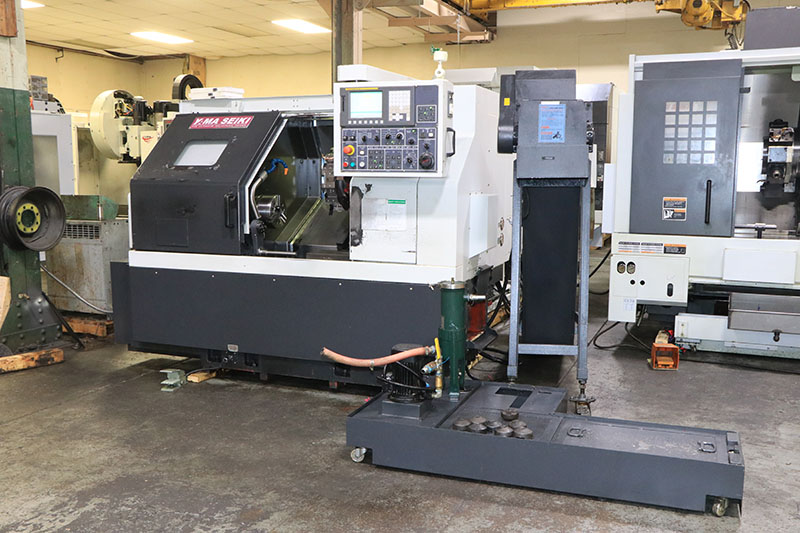

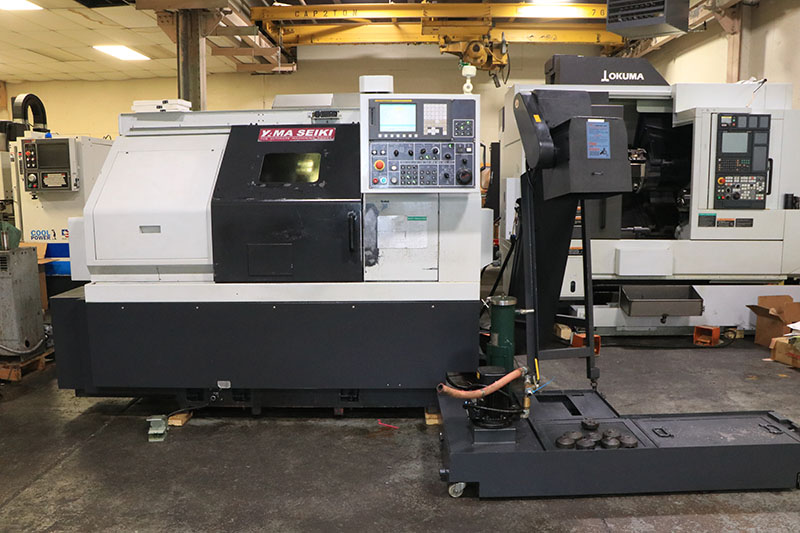

Yama Seiki GA-2000 CNC TURNING CENTER
NEW: 2011

SPECIFICATIONS:
SWING OVER BED .............. 22.83"
SWING OVER SADDLE ........... 15.75"
MAX. TURNING DIA. ........... 13.78"
MAX. TURNING LENGTH ......... 23.6"
MAX. WORKPIECE WEIGHT ....... 517.6 lbs. w/TAILSTOCK

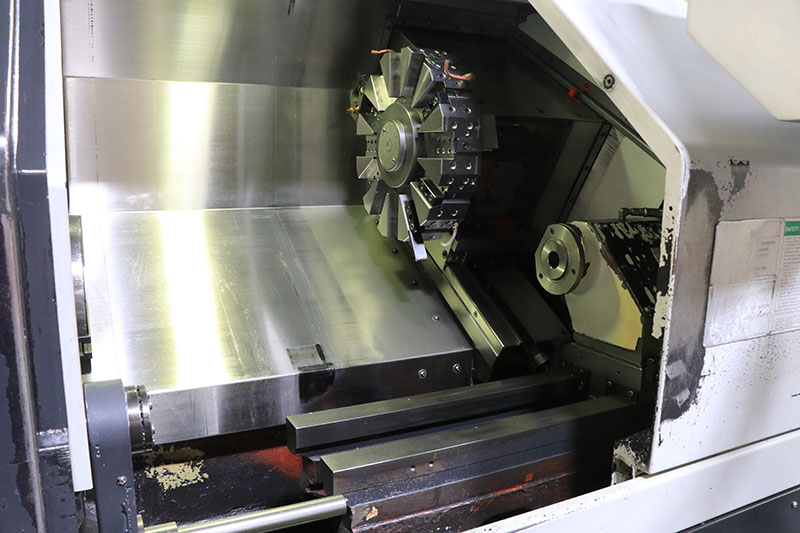

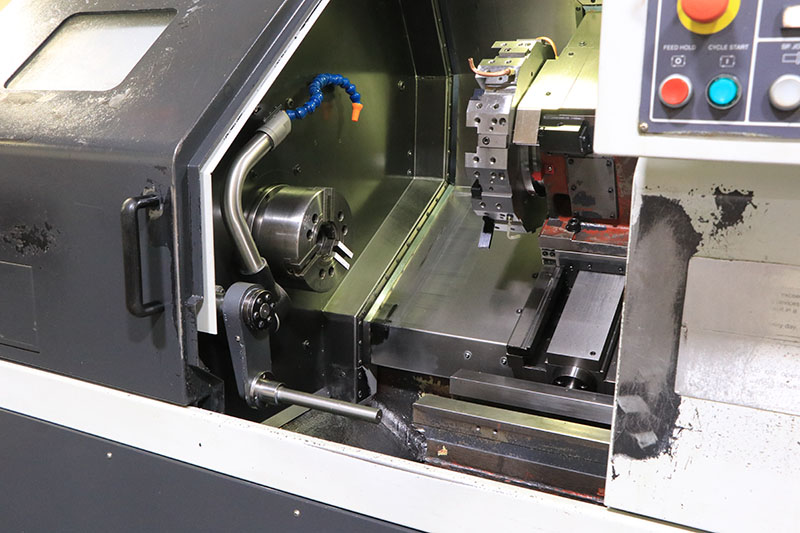

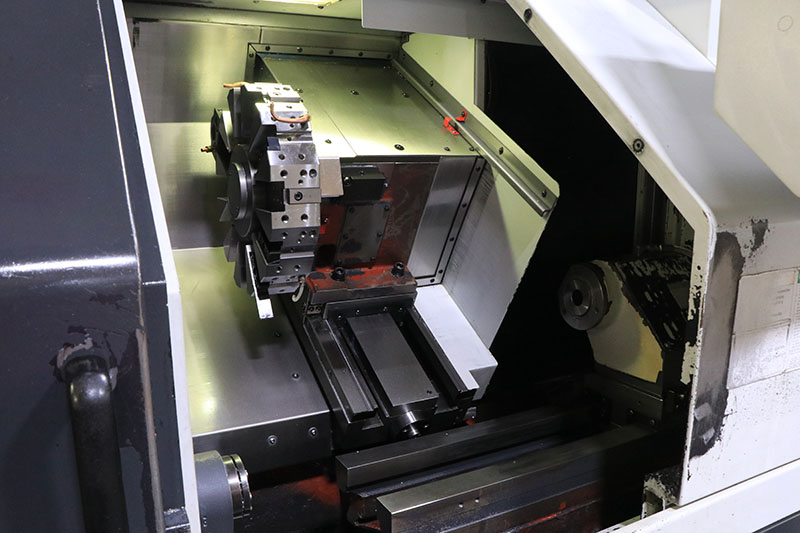

TURRET HEAD TYPE ............ DRUM
NO. OF TOOL STATIONS ........ 12
TOOL SIZE, SQUARE ........... 1"
TOOL SIZE, ROUND ............ 1.5"
SPINDLE SPEED ............... 4800 RPM
SPINDLE DRIVE MOTOR ......... 20/15 HP
BAR CAPACITY ................ 2.0"
SPINDLE NOSE ................ A2-6
X-AXIS TRAVEL ............... 8.07"
Z-AXIS TRAVEL ............... 24.4"
TAILSTOCK QUILL CENTER ...... MT#4
TAILSTOCK QUILL STROKE ...... 5.91"
TAILSTOCK QUILL DIA. ........ 2.76"
APPROX. MACHINE WEIGHT ...... 8,900 lbs.

EQUIPPED WITH:

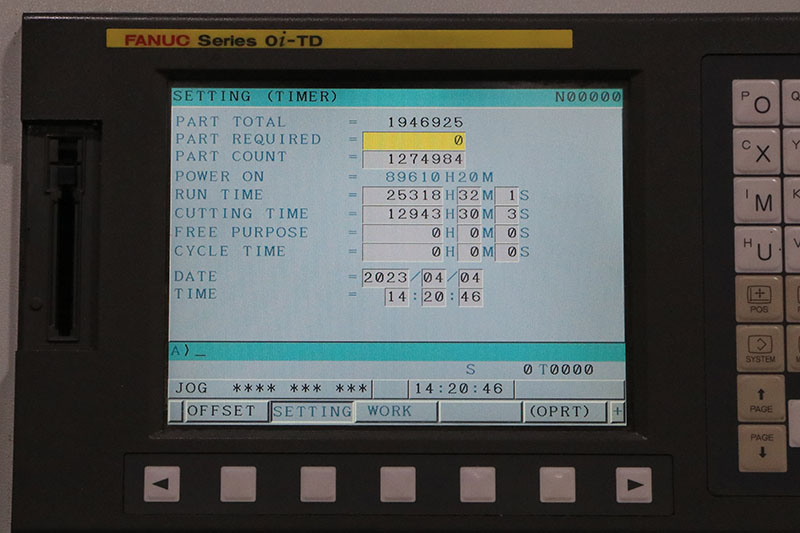

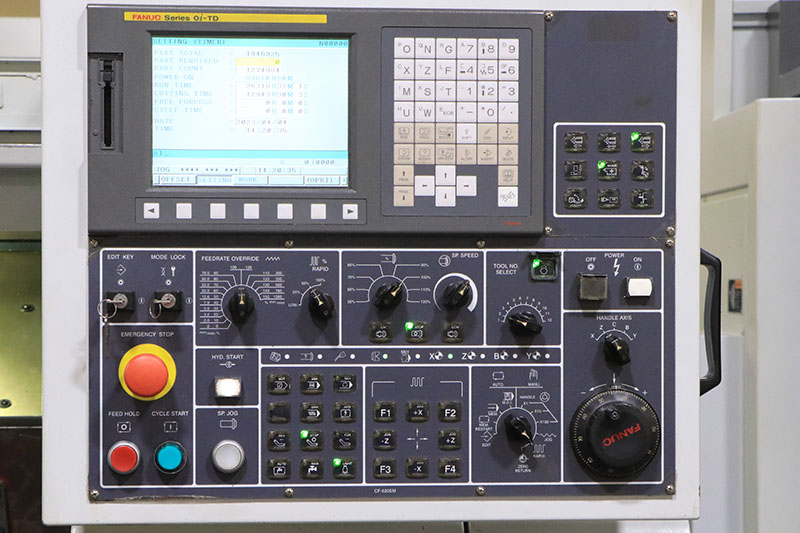

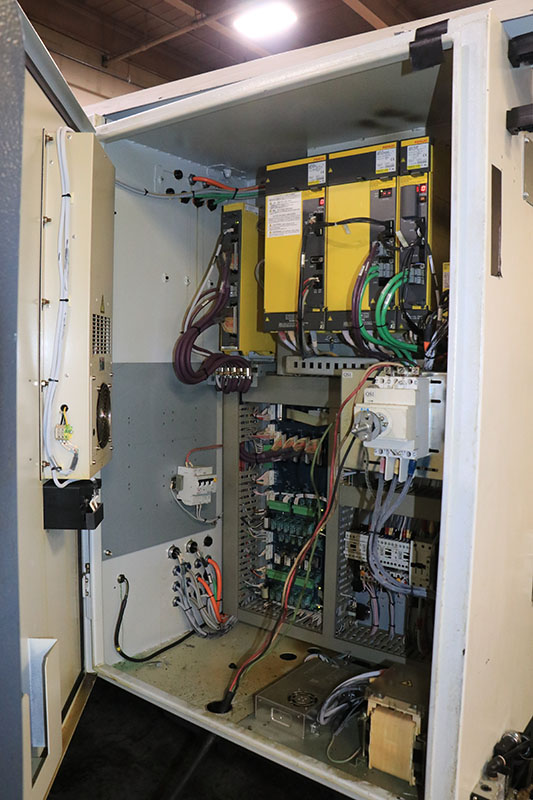

FANUC 0iTD CNC CONTROL

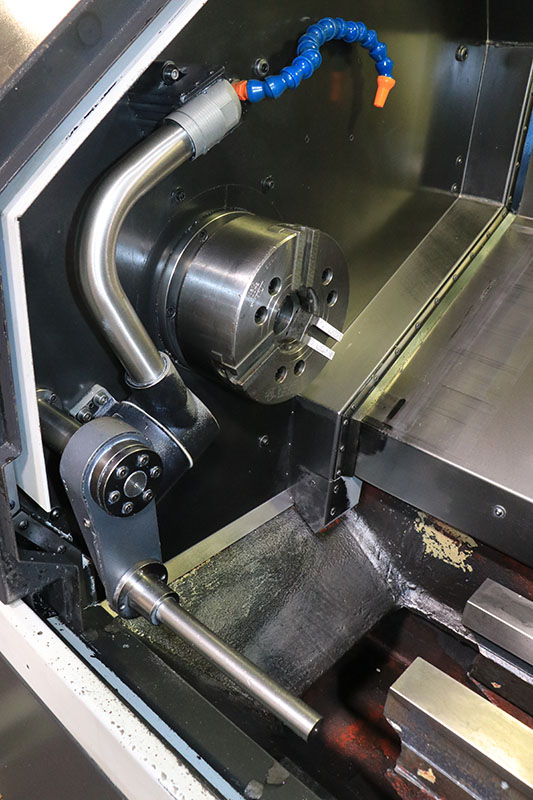

8" 3-JAW HYDRAULIC CHUCK
PARTS CATCHER ARM (Missing Basket)
TAILSTOCK

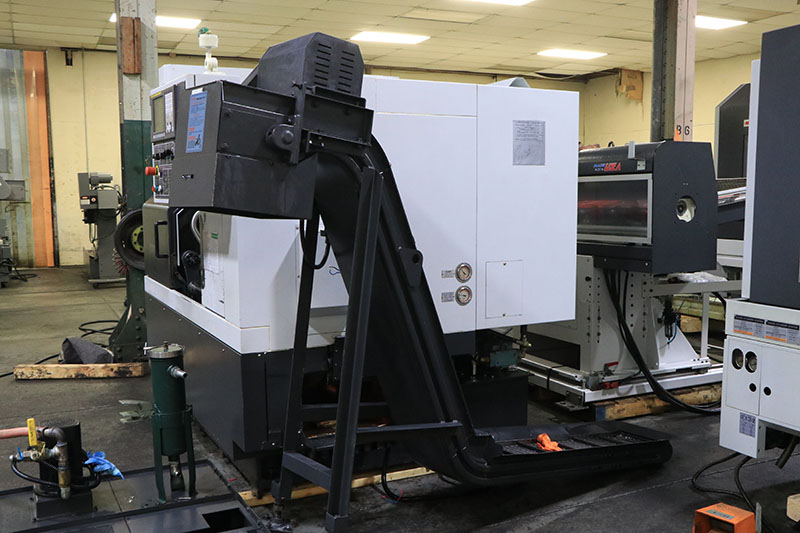

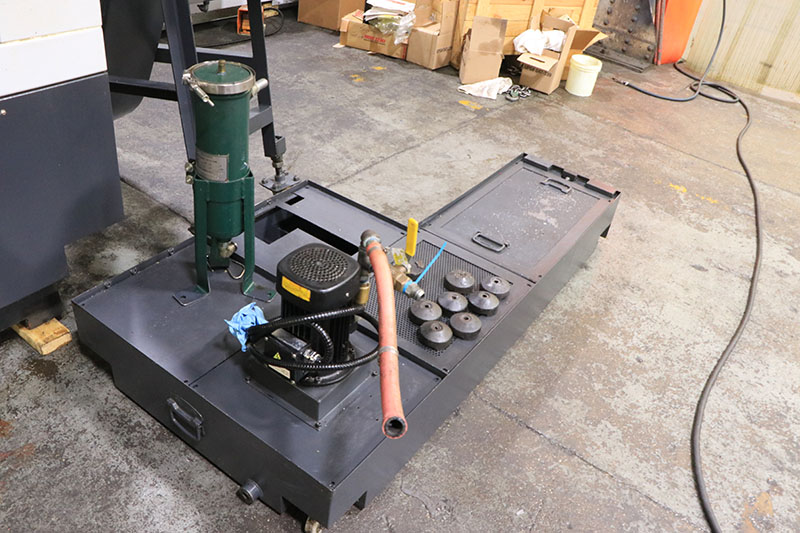

CHIP CONVEYOR
