Yama Seiki GV-780M - LIVE TOOL CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Yama Seiki

Model:: GV-780M - LIVE TOOL

Year:: 2015

Ref #:: 177756

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

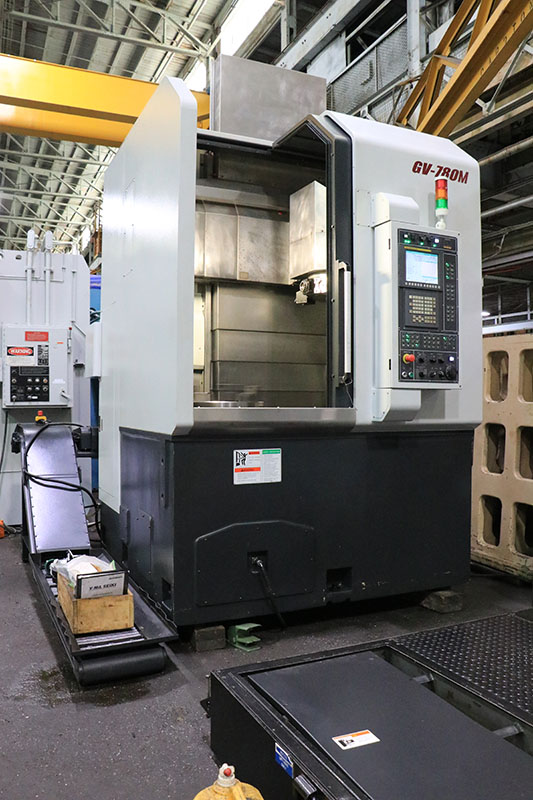

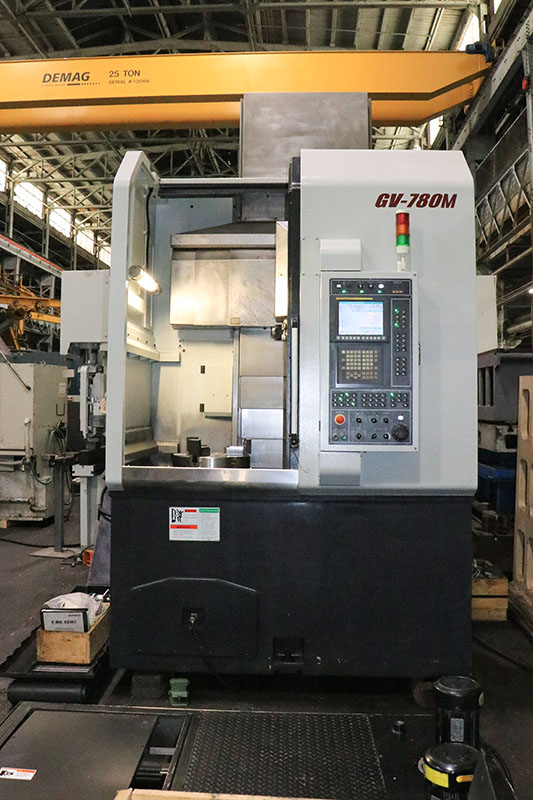

Yama Seiki GV-780M CNC Vertical Turning Center w/ Live Milling
New: 2015

VIDEO LINK: https://youtube.com/shorts/IpjxYpDXZIQ?si=gmg3jOewkMTW8HYu

Specifications:

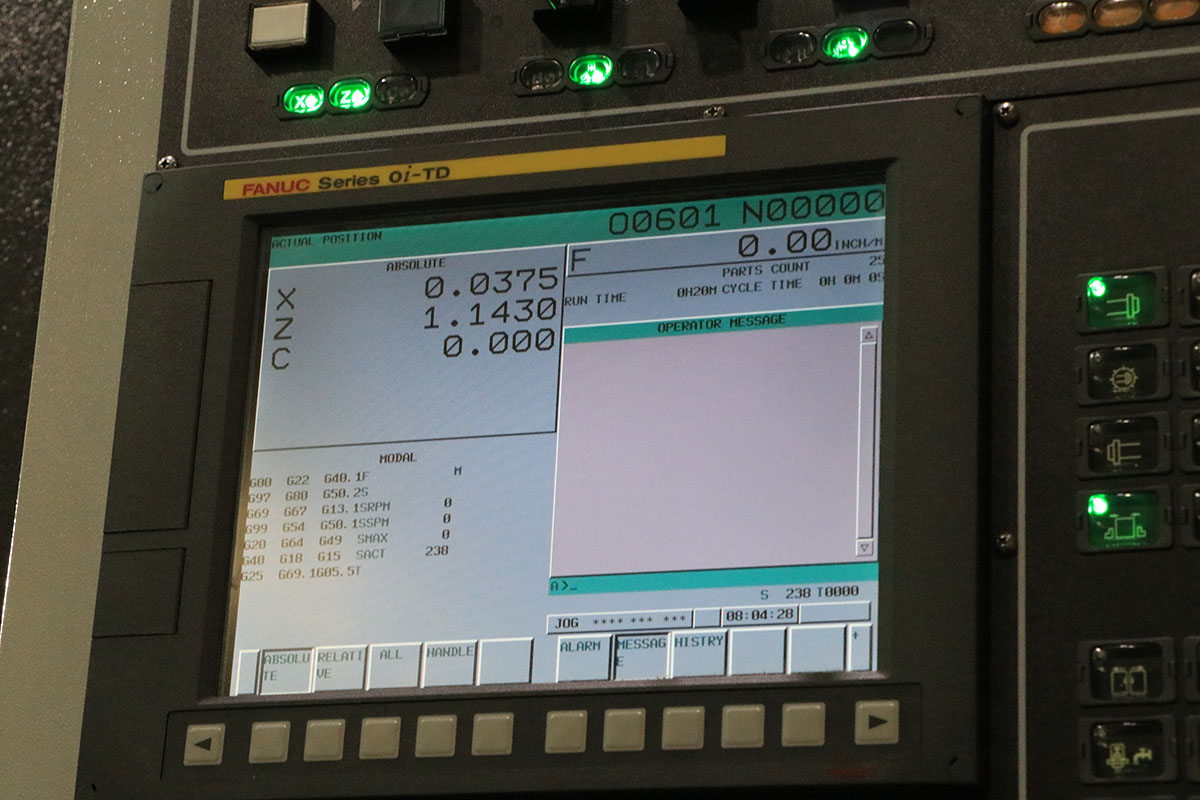

Machine Control                 Fanuc 0i-TD

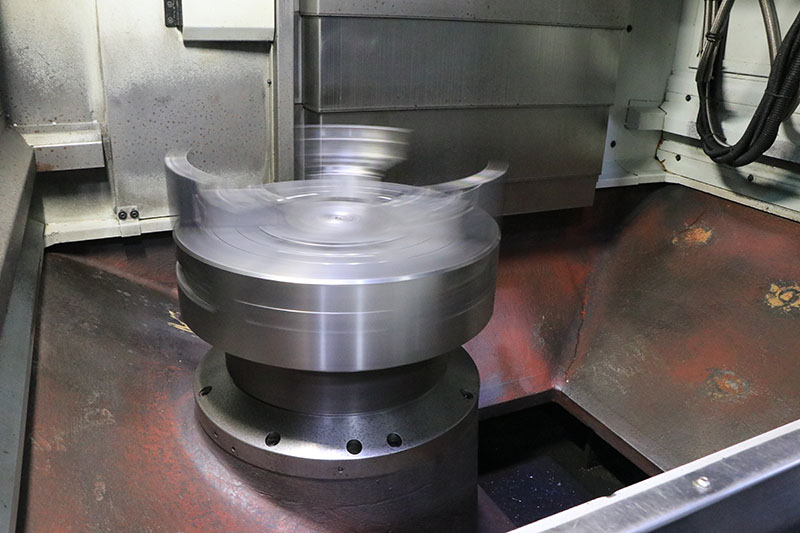

Chuck size                      18" 3 Jaw Hydraulic Chuck
Maximum swing                   33.5"
Maximum turning diameter        32.3"
Maximum cutting height          25.9"
X axis travel                   19.7"
Z axis travel                   26.4"
Spindle Nose                    A2-11"
Spindle Speed                   2,000 RPM
Spindle Motor                   30 HP
Table Torque                    540 ft./lbs
Live Tooling Speed              40 - 4,000 RPM
Live Tooling Motor              9 HP
Number of turret positions      12 Station Turret
Machine dimensions              75" x 133" x 141"
Machine weight                  19,850 lbs.

Equipped With:

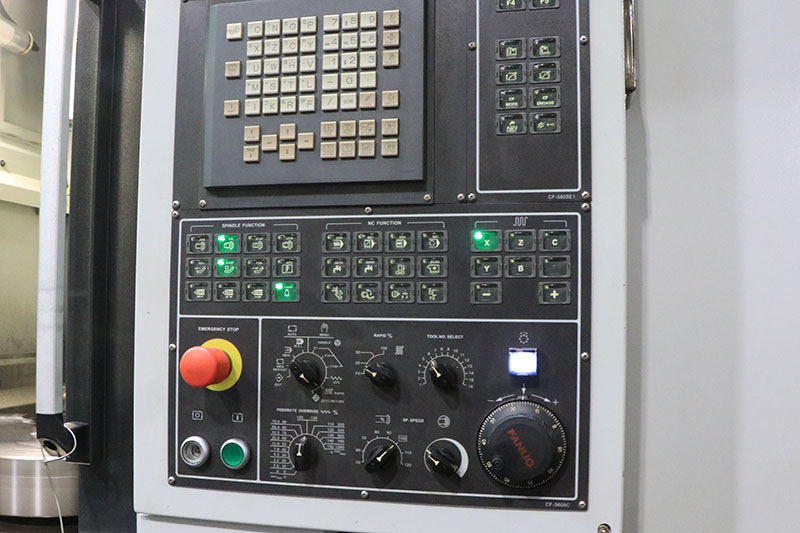

 - Fanuc 0i-TD CNC Control

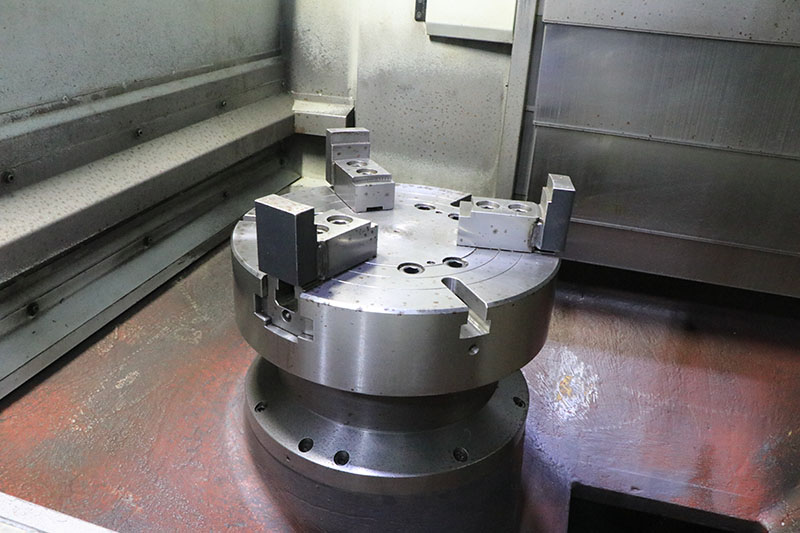

 - 18" Chuck

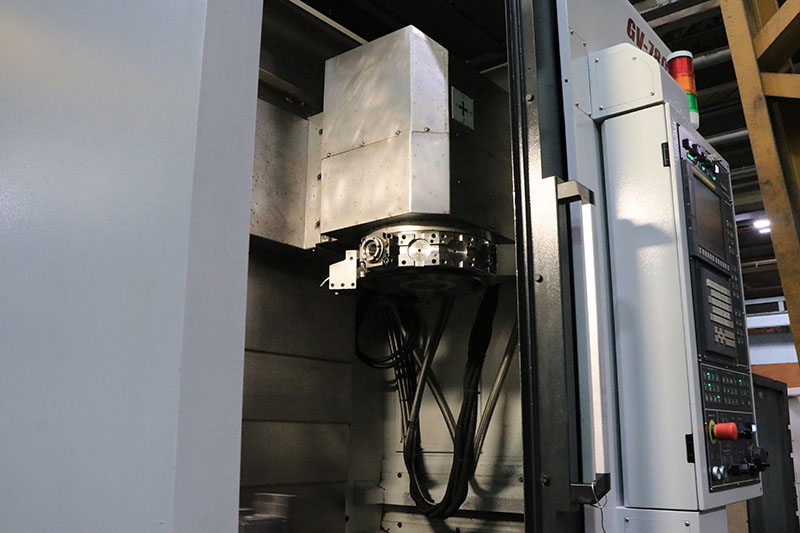

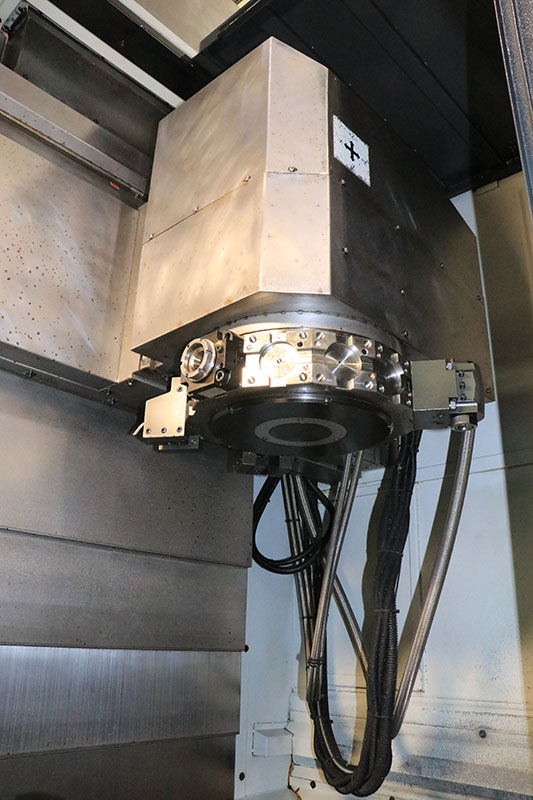

 - 12 Station Servo Turret
 - C-Axis

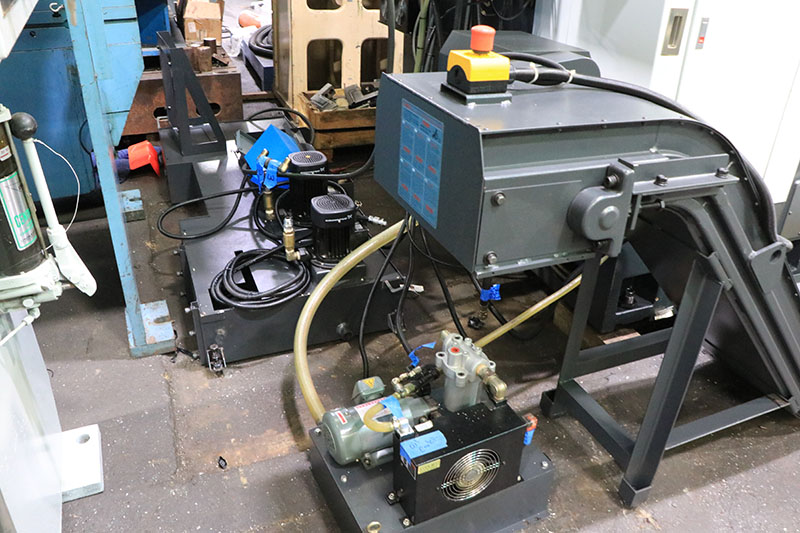

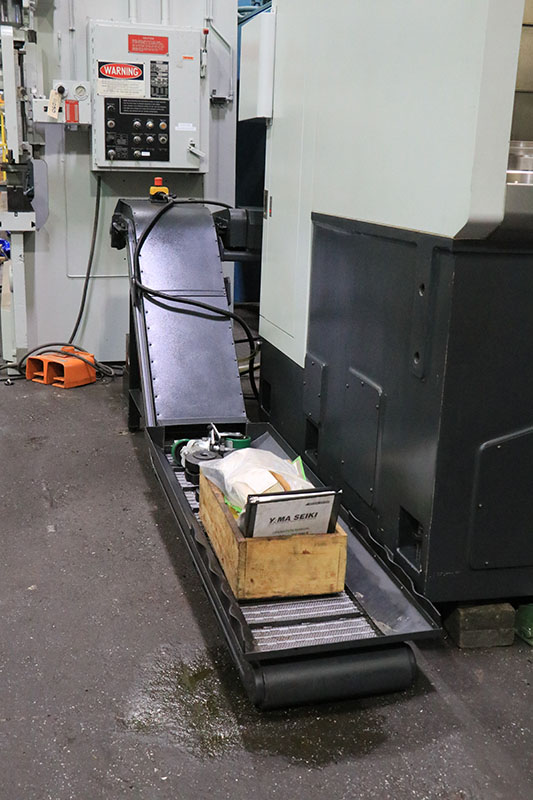

 - Chip Conveyor

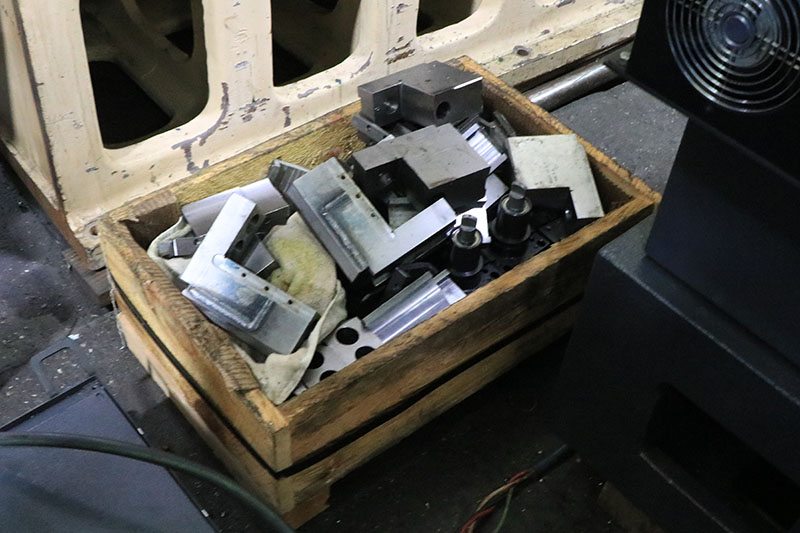

 - All Available Static and Live Toolholders
