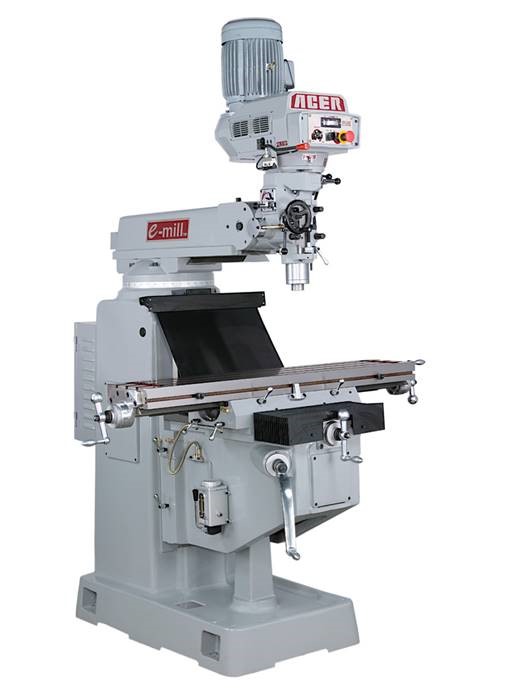

Acer E-Mill 3VKH NEW VERTICAL MILLS

Price on Request

Make:

Acer

Model:

E-Mill 3VKH

Year:

Ref #:

159531

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

NEW ACER MODEL: E-MILL 3VKH



FEATURES:

• 3 HP inverter motor with fan cooling system dissipates heat efficiently.
• Grease fitting for lubricating the bull gear.
• One piece quill pinion & shaft.
• Precision hand scraped contact surfaces between turret and column.
• X, Y & knee axes hardened & ground to HRC 52.
• Vector-type AC frequency inverter drive.
• Hardened & ground table top to HRC 52.
• Licensed "MEEHANITE" casting.
• Dish-in coolant base.
• Extra oiler lubricates the high-low moving device.
• Extra oiler to lubricate the quill.
• Precision ground ram ways within 0.0004" accuracy.
• Precision ground finished lead screws.
• Precision ground table guide line to 0.0002" over 20".
• Standard accordian type way cover.
• Turcite-B coated saddle ways.





SPECIFICATIONS



Table:

Working surface: 50" x 10"

Longitudinal travel: 32-1/2"

Cross travel: 17"

Vertical knee travel: 19"

Ram travel: 20"

T-slot number, size; 3, 5/8"



HEAD:

Main motor: 3 hp

Head moves right to left: 90 deg

Head tilts front to back: 45 deg



SPINDLE:

Spindle drive: Variable

Spindle speed: 60 ~ 4,500

Spindle taper: R-8



QUIILL:

Power quill feeds (In/Rev): 0.0015", 0.003", 0.006"

Quill diametere (Chromed): 3-3/8"

Quill travel: 5"

Weight approxiated: 3,300 lbs.



NOTE:The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
