Acer E-Mill 3VS-II NEW VERTICAL MILLS

Price on Request

Make:: Acer

Model:: E-Mill 3VS-II

Year:: NEW

Ref #:: 137456

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

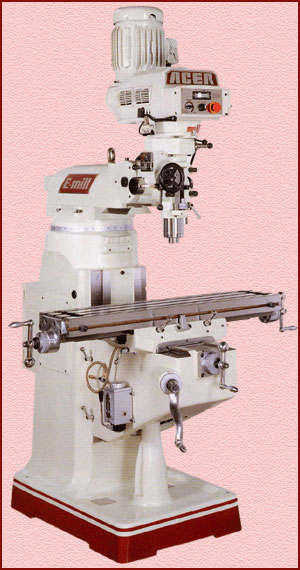

"NEW" ACER VERTICAL MILLING MACHINE
MODEL: E-MILL 3VS-II



SPECIFICATIONS:
TABLE SIZE: 9" x 49"
LONGITUDINAL TRAVERSE: 34"
CROSS TRAVERSE: 12"
RAM TRAVERSE: 12"
VERTICAL TRAVERSE: 16"
QUILL TRAVEL: 5"
QUILL DIAMETER CHROMED: 3-3/8"
QUILL POWER RATE: 0.0015", 0.003", 0.006"/REV.
SPINDLE TAPER: R-8 with ABEC-7 Bearings
SPINDLE MOTOR: 3 HP INVERTER MOTOR
SPINDLE SPEED: VARIABLE SPEED (0 ~ 500 ~ 4500 RPM)
STANDARD VOLTAGE: 220V / 1-PH OR 220V / 3-PH (PLEASE SPECIFY)
NET WEIGHT: 2,380 LBS.


Safety Features:
Large Easy-to-Read Digital Spindle RPM Display
Spindle is designed not to turn on automatically when the power is restored after power failure.

Other Features:
Chrome Plated & Precision Ground Quill
Hardened & Ground X, Y, and Z axes
Dovetail Ways & Table Surfaces to HRC 52
Rigid Meehanite GA-50 Casting
Precision Grinding Head Housing; Electronic Brake
One Shot Manual Lubricator

Optional Accessories (Call for Pricing):
Newall  2-Axis DRO (12" x 30" travel, 0.0002" Res.Scale)
Longitudinal/Cross/Knee Power Feed
Servo Longitudinal Feed (M-9121-140 / M-9108-150X)
Servo Cross Feed (M-9521-140/M-9521-150)
Servo Knee Feed (M-9811-200)
12" Rotary Table (Vertical & Horizontal)
Coolant System (Not Installed)
Chip Pan (52 ' x 31" x 6"; 49 lbs)
Clamping Kits (52 pieces.)
R-8 Collets (11 pcs/set with 1/8" increment; 1/8" ~ 3/4")
6"  Angle Lock Milling Vise
Horizontal Milling Attachment
"Maxi-Torque" Auto-Air Power Draw Bar (Not Installed)
N.S.T. #30 SPINDLE Taper (Replace R-8 Spindle)
Riser Block (4"/6"/8")
Upgrade Frequency Inverter (3-PH / 380V - 520V)
Halogen or LED-L95 Work Light
Upgrade to UL Conformity Electric Cabinet

SPECIAL PACKAGE:
Includes: 3VS-II E-mill, Newall 2-Axis DRO (12"x30" Travel, 0.0002" Scale) and Acer Longitudinal Power Feed Installed at ACER Warehouse....................CALL FOR PRICING
