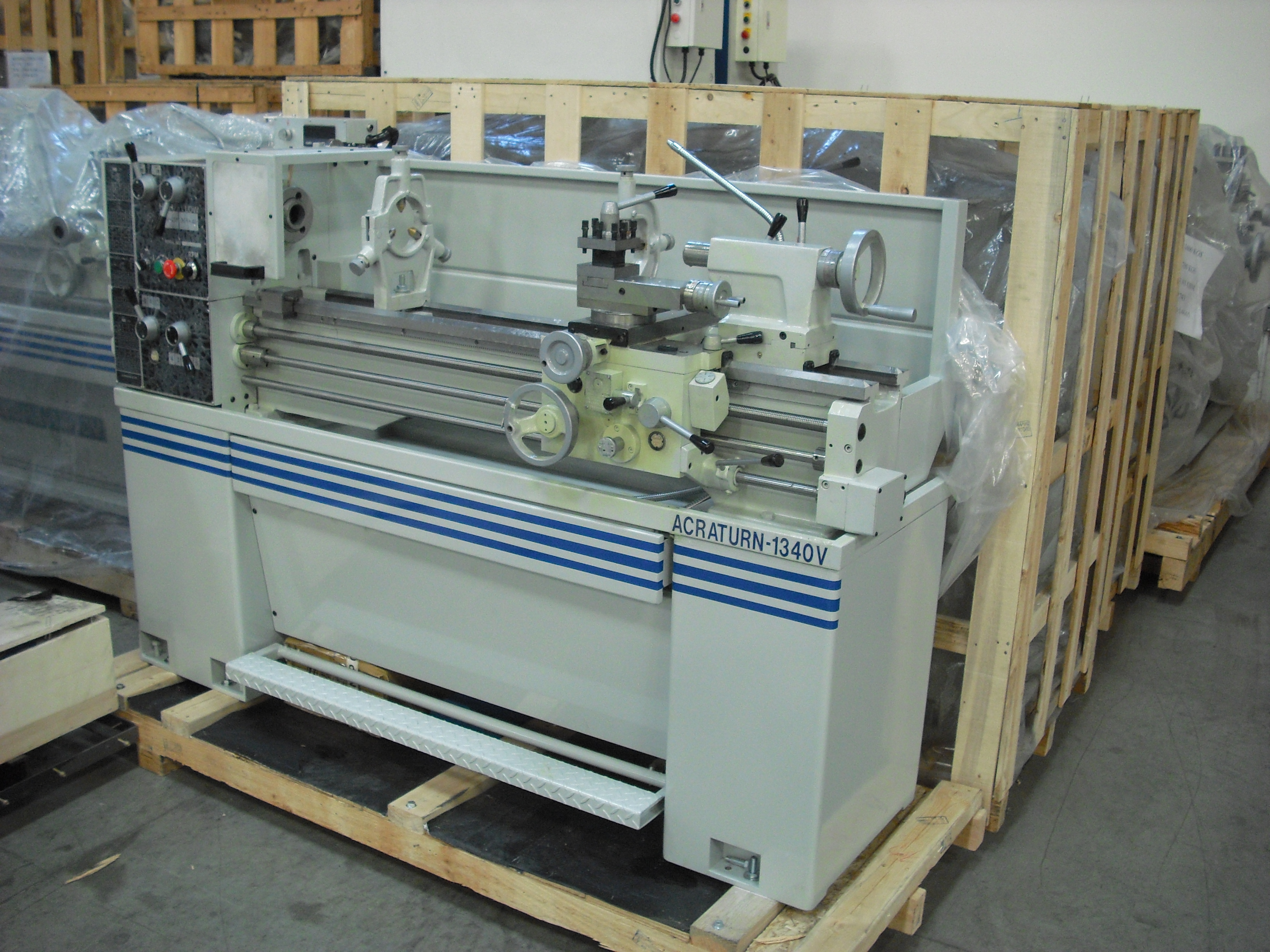

Acra 1340BV NEW LATHES

Price on Request

Make:: Acra

Model:: 1340BV

Year:: NEW

Ref #:: 163575

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

NEW ACRA PRECISION PRECISION VARIABLE SPEED
GAP BED ENGINE LATHE
MODEL: 1340BV

SPECIFICATIONS:
SWING OVER BED: ........................ 13″
SWING OVER CROSS SLIDE: ................ 8-1/4″
DISTANCE BETWEEN CENTERS: .............. 40″
CENTER HEIGHT: ......................... 6-1/2″
BED WIDTH: ............................. 7-1/2″
SWING IN GAP: .......................... 18-1/2″
LENGTH OF GAP: ......................... 9-1/2″
WIDTH OF FRONT OF FACE PLATE: .......... 6″
SPINDLE BORE: .......................... 1-9/16″
SPINDLE NOSE: .......................... D1-4
SPINDLE RPM: ........................... 40 – 2, 000 (VARIABLE SPEED)
TAPER OF SPINDLE NOSE: ................. MT#5
CROSS SLIDE TRAVEL: .................... 6-3/4″
TOP SLIDE TRAVEL: ...................... 3-1/2″
MAXIMUM CUTTING TOOL SIZE: ............. 1/2″
TAILSTOCK TRAVEL: ...................... 4″
TAILSTOCK TAPER: ....................... MT#3
DIAMETER OF TAILSTOCK: ................. 1-9/16″
THREADS:
LEAD SCREW DIAMETER AND PITCH: ......... 1″ DIA., 4MM PITCH
INCH THREADS(8): ....................... 3~24 TPI
METRIC THREADS(21): .................... 0.50~10MM
FEEDS:
FEED ROD DIAMETER: ..................... 3/4″ DIA.
LONGITUDINAL FEEDS(21): ................ 0.040~0.800MM/REV.
CROSS FEEDS(21): ....................... 0.020~0.400MM/REV.
MOTOR:
SPINDLE MOTOR: ......................... 3 HP
COOLANT PUMP MOTOR: .................... 1/8 HP
VOLTAGE: ............................... 230V AC~1 PHASE OR 3 PHASE
WEIGHT: ................................ 1,600 LBS
DIMENSIONS: ............................ 72 X 29 X 47 IN.

STANDARD EQUIPMENT:
6″ 3 JAW CHUCK
8″ 4 JAW CHUCK
STEADY/FOLLOW REST
COOLANT SYSTEM
4 WAY TOOL HOLDER
FULL LENGTH SPLASH GUARD
MICRO BED STOP
HALOGEN LIGHT
FOOT BRAKE
CHUCK GUARD

EQUIPPED WITH AN ELECTRONICALLY CONTROLLED VARIABLE SPEED INVERTER CONTROL.
⦁ 2 SPEED CHANGE 40-365 R.P.M. & 218-2000 R.P.M.
⦁ CLOSE TYPE HEADSTOCK, GEARBOX AND APRON HAVE INNER OIL RESERVOIR IN WHICH LUBRICATION WORKED BY SPLASHING LUBRICANT.
⦁ HARDENED AND GROUND GEAR IN HEADSTOCK. 40MM, (1-9/16″) HOLE THROUGH SPINDLES.
⦁ SPINDLE SUPPORTED WITH 2 PRECISION TAPER ROLLER BEARINGS.
⦁ WITH LONGITUDINAL AND CROSS AUTOMATIC FEEDING SYSTEMS.
⦁ THE FEED ROAD AND HAND-WHEEL FOR APRON ARE EQUIPPED WITH ADJUSTABLE SAFETY OVERLOAD SLIPPING CLUTCH TO ENSURE PROPER CUTTING LOAD.
⦁ LATHE BED MADE OF HIGH TENSILE CAST IRON IN RIGID STRUCTURE IS HARDENED AND GROUND.
⦁ LATHE IS EQUIPPED WITH A ELECTRIC BRAKE AND FOOT BRAKE GIVING RAPID BRAKING.
⦁ TOOL CABINET MOUNTED BETWEEN TWO FLOOR STANDS ACCOMPANIED WITH LOCK CAN BE PUT IN ALL ACCESSORIES AND TOOLS, SAFE AND ADMINISTRATE CONVENIENTLY.
⦁ OUTSIDE SHAPE DESIGNED UNDER ENTIRELY CONSIDERATION, NEAT AND BEAUTIFUL OUTLOOK.
⦁ ALL CONTROL KNOBS ARE LOCATED ON THE FRONT OF HEADSTOCK, CONTROL EASILY.

OPTIONAL ACCESSORIES (ADD'L):
- FACE PLATE
- TAPER ATTACHMENT
- TAPER ATTACHMENT INSTALLATION
- LEVER TYPE 5C COLLET CLOSER JFK
- IMPORT COLLET CLOSER (TAIWAN)
- NEWALL DIGITAL READ OUT 8”X40” DP700
- NEWALL DIGITAL READ OUT 8”X40” NMS300
- ACU-RITE DIGITAL READ-OUT 8" X 40" 203
- ACU-RITE DIGITAL READ-OUT 8" X 40" 303
- SONY OR FAGOR OR MITUTOYO DIGITAL READ-OUT
- D.R.O. INSTALLATION
- ALORIS TOOL POST SET (BXA) 5 PC
- IMPORT QUICK CHANGE TOOL HOLDER
- LIVE CENTER MT3
- EVS 460V
