Baileigh PL-1236E NEW LATHES

$6,195

Make:
Baileigh
Model:
PL-1236E
Year:
NEW
Ref #:
151156

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com


NEW BAILEIGH 110V/220V 1-PHASE DUAL VOLTAGE LATHE
MODEL: PL-1236E




FEATURES:

6" three jaw chuck
8" four jaw chuck
Face plate
Steady rest

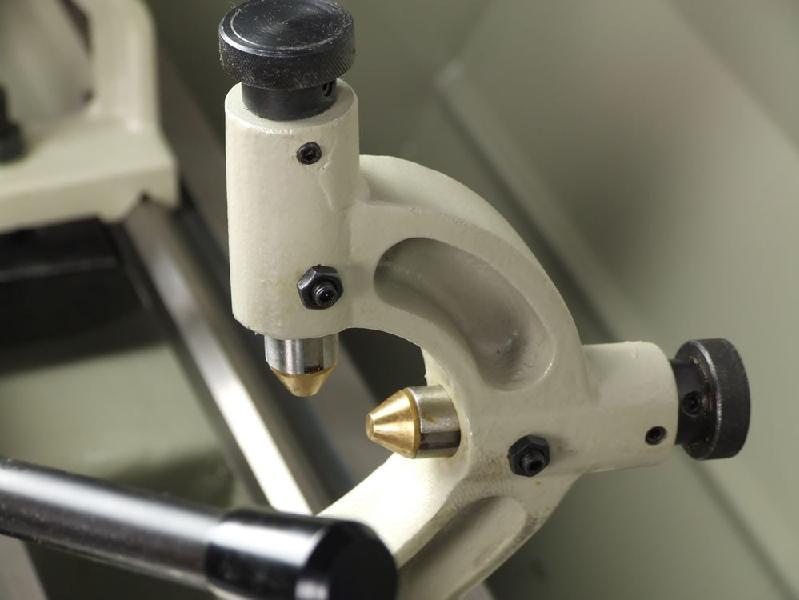

Follow rest
Live center

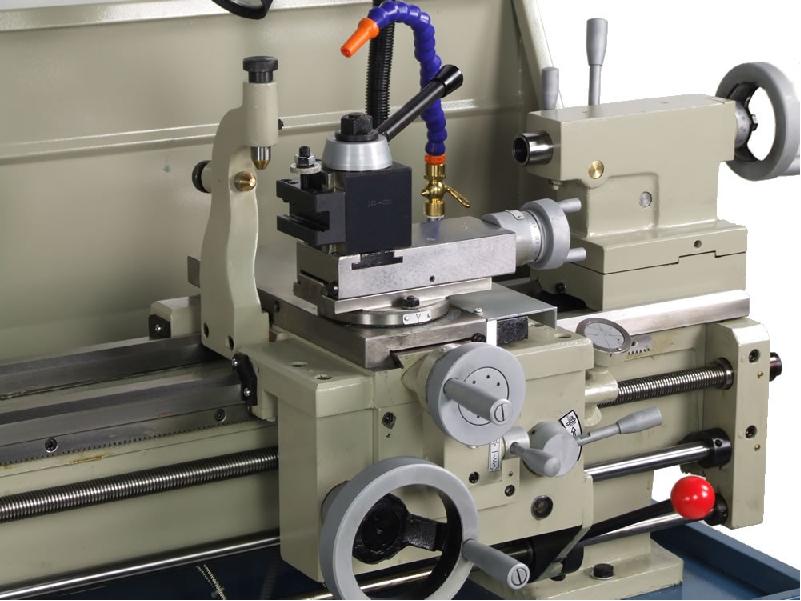

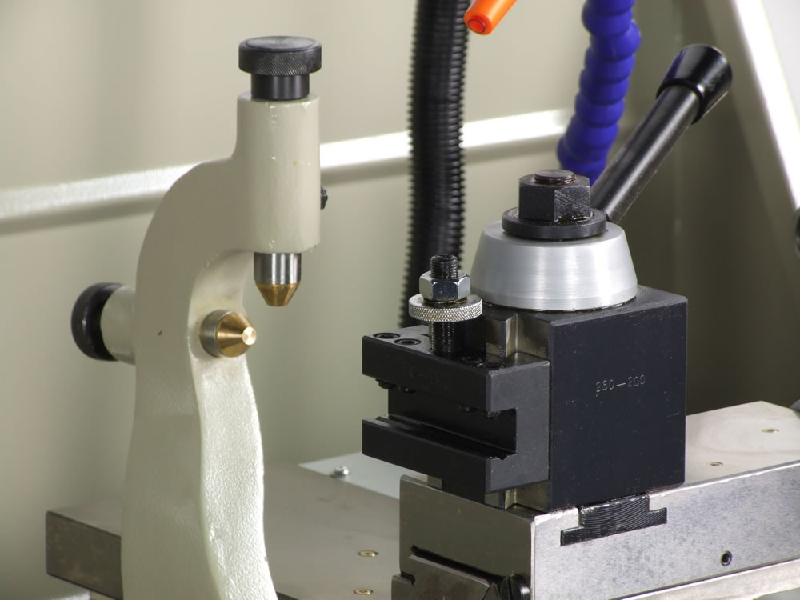

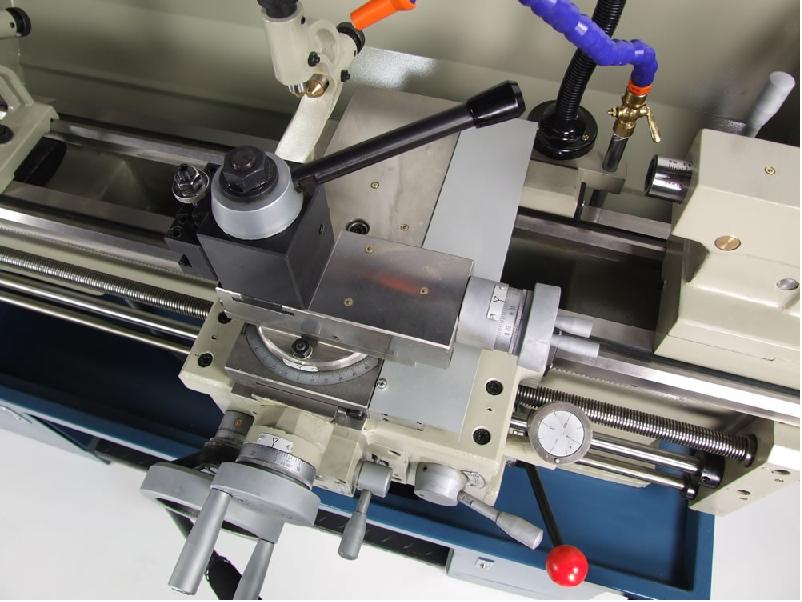

Quick change tool holder
Foot brake
Coolant system with splash guard
Removable chip tray
110v/220v dual voltage


SPECIFICATIONS:

Swing over bed:  12"
Swing over cross slide:  7.625"
Swing in gap:  17"
Distance between centers:  36"
Length of gap:  6"
Width of bed:  7.125"
Spindle nose:  D1-4"
Spindle bore:  1.50"
Spindle bore taper:  Morse #5

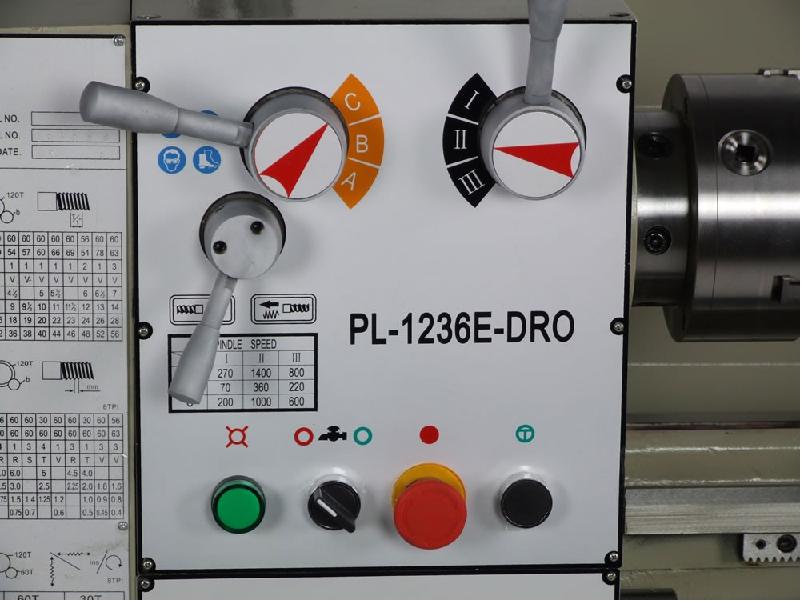

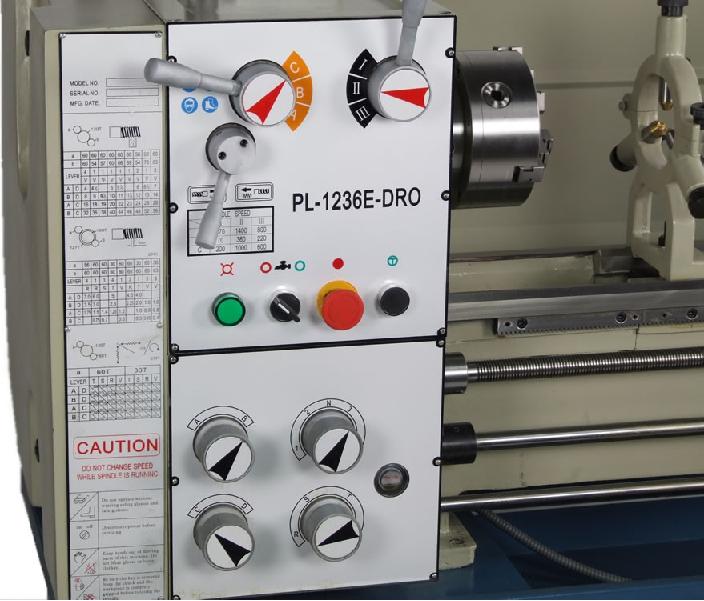

Spindle speeds:  9 (70-1400 rpm)
Travel of top slide:  3.25"
Travel of cross slide:  5.312"
Max. tool selection:  .625" x .625"
Leadscrew thread pitch:  8 T.P.I.
Longitudinal feed range:  0.002"-0.0548"/rev
Cross feed range:  0.007"-0.0187"/rev
Metric thread range:  0.4-7 mm

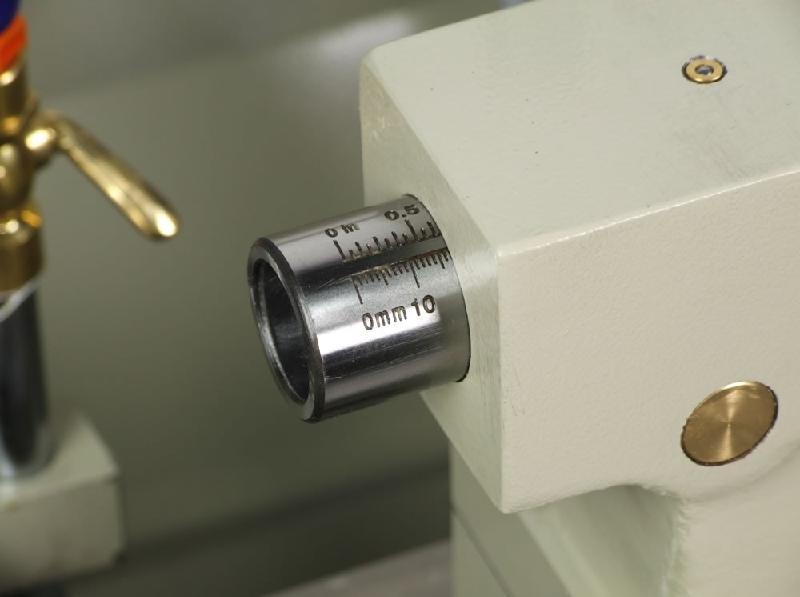

Sleeve diameter:  1.25"
Sleeve travel:  4"
Sleeve taper:  Morse #3
Power requirements:  110V, 1-phase
Horsepower:  1.5
Shipping dimensions (LxWxH):  67" x 31" x 60"
Shipping weight:  1,232 lbs.


OPTIONS (call for pricing):

Available with 2-axis DRO



DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
