Acra Acraturn 1640 ENGINE LATHES

$7,950

Make:: Acra

Model:: Acraturn 1640

Year:: 1992

Ref #:: 178070

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

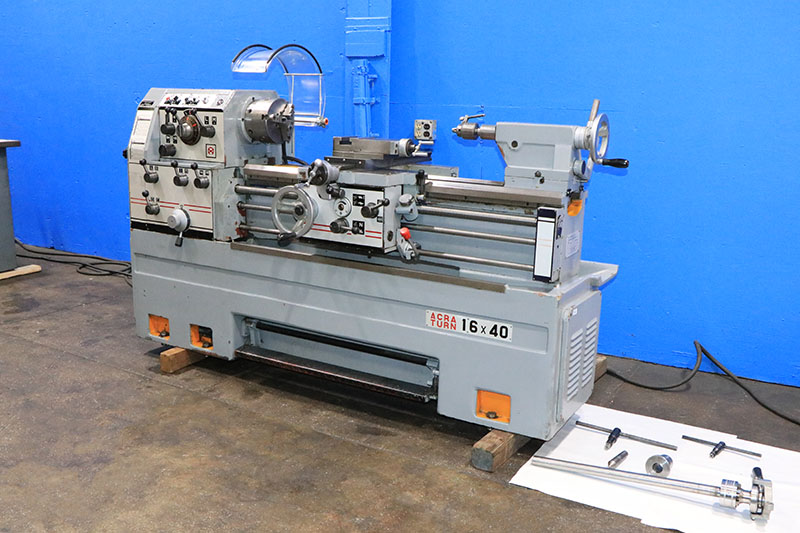

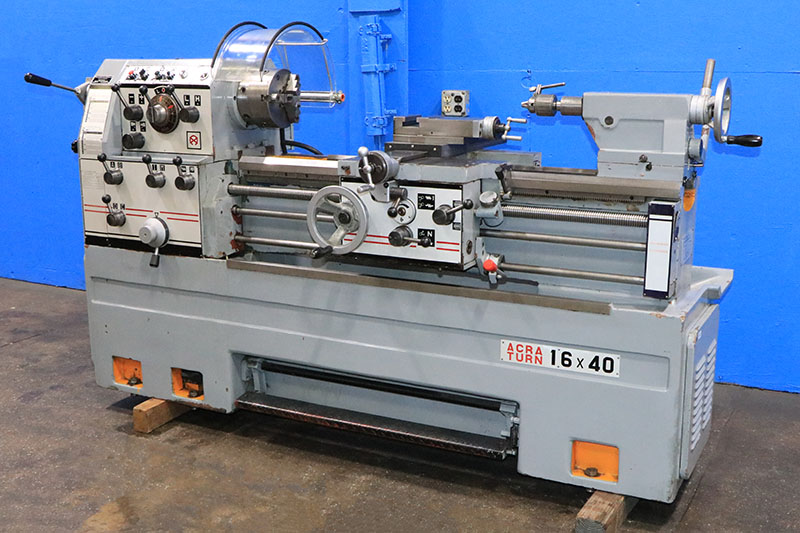

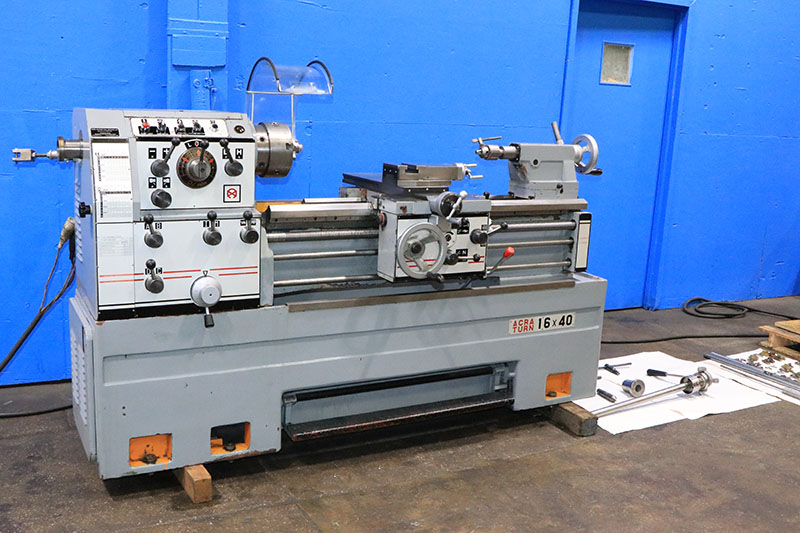

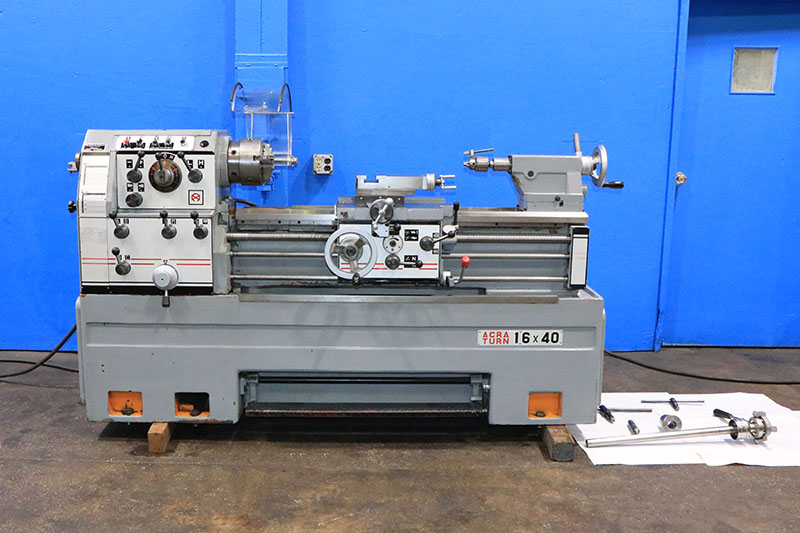

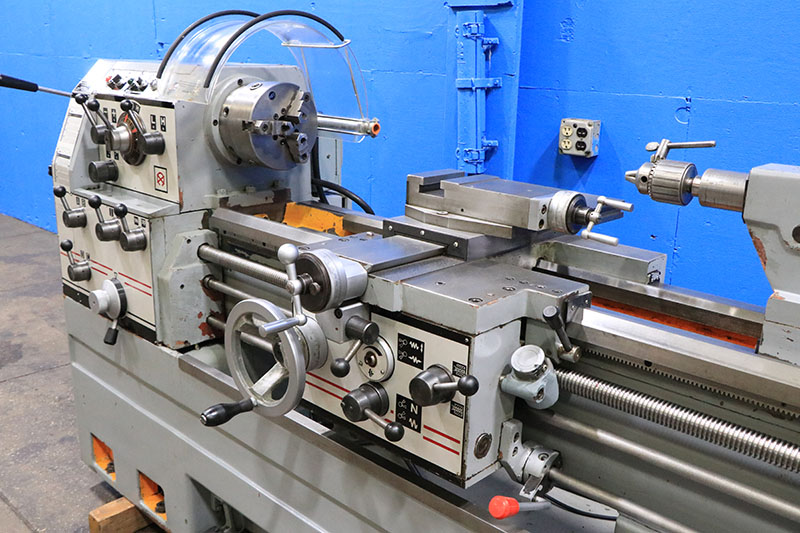

16"/24" X 40" ACRA-TURN
REMOVABLE GAP BED ENGINE LATHE,
MODEL: 1640,  NEW: 1992

SPECIFICATIONS:
SWING OVER BED ......................... 16"
SWING OVER SADDLE ...................... 9.3"
SWING IN GAP ........................... 24"
DISTANCE BETWEEN CENTERS ............... 40"
HOLE THROUGH SPINDLE ................... 2.04"
SPINDLE NOSE, CAMLOCK, SIZE ............ D1-6"

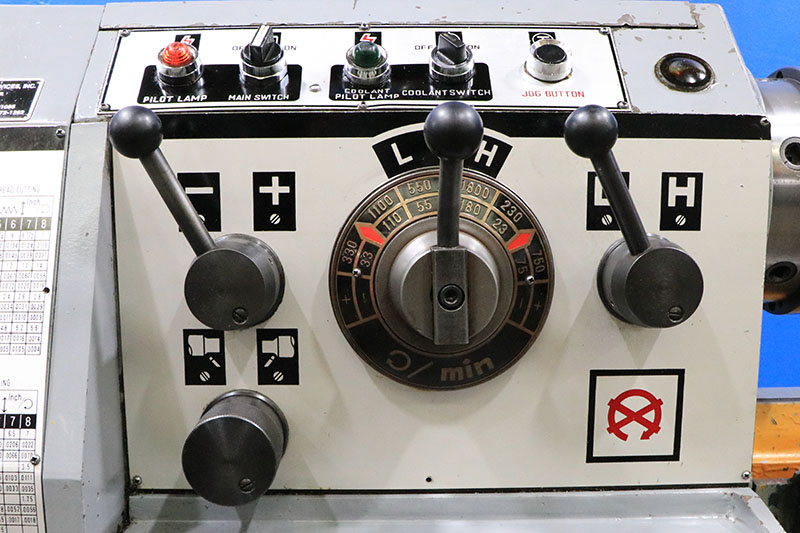

SPINDLE SPEED RANGE(12) ................ 23 - 1,800 R.P.M.
LONGITUDINAL FEED RANGE (32) ........... .0014 - .0213 IPR
CROSS FEED RANGE (32) .................. .0005 - .0079 IPR

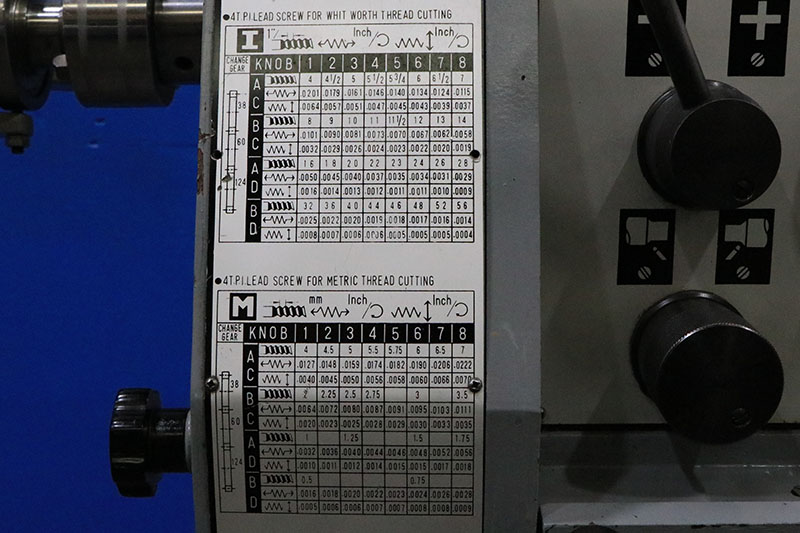

THREAD RANGE:
INCH (32) ........................ 4 TO 56 T.P.I.
METRIC (21) ...................... .5 TO 7 MM
TAILSTOCK SPINDLE DIAMETER ............. 2.2"
TAILSTOCK SPINDLE TAPER ................ #4MT
TAILSTOCK SPINDLE TRAVEL ............... 5"
APPROXIMATE FLOOR SPACE ................ 86" X 36"
APPROXIMATE WEIGHT ..................... 4,000 LBS.

EQUIPPED WITH:

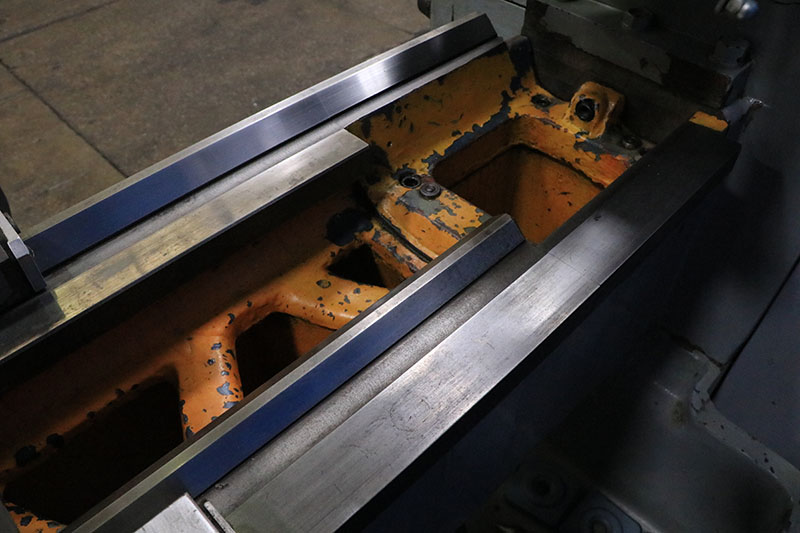

- REMOVABLE GAP BED

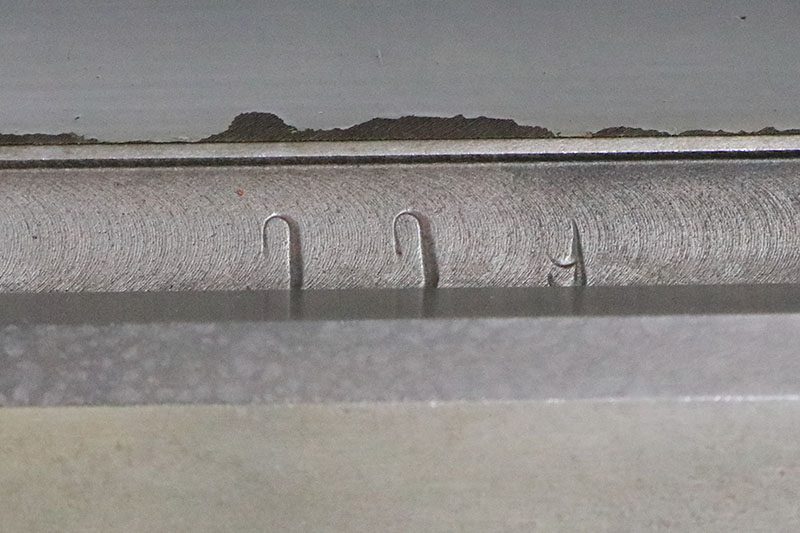

- HARDENED BED WAYS
- INCH/METRIC THREADING CAPABILITY

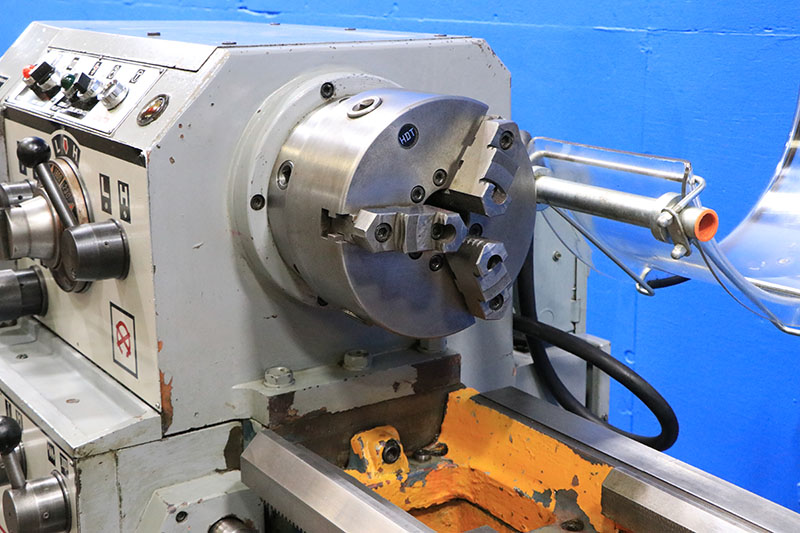

- 8" DIAMETER 3-JAW CHUCK

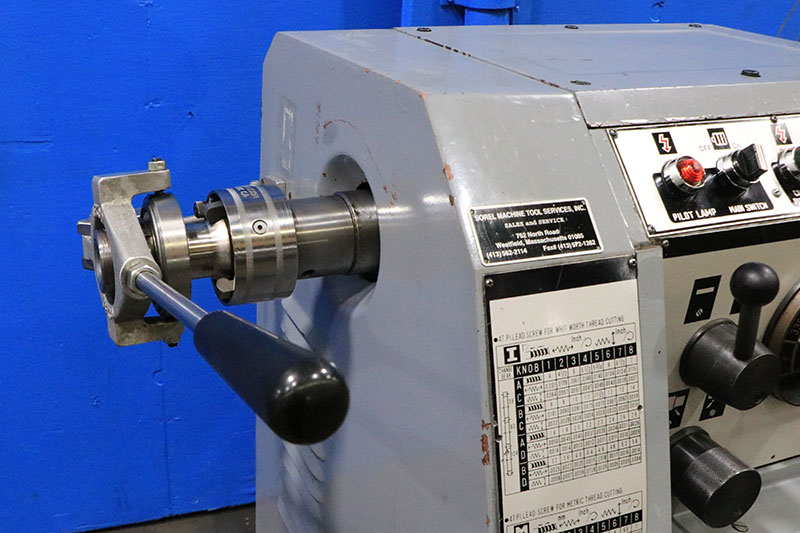

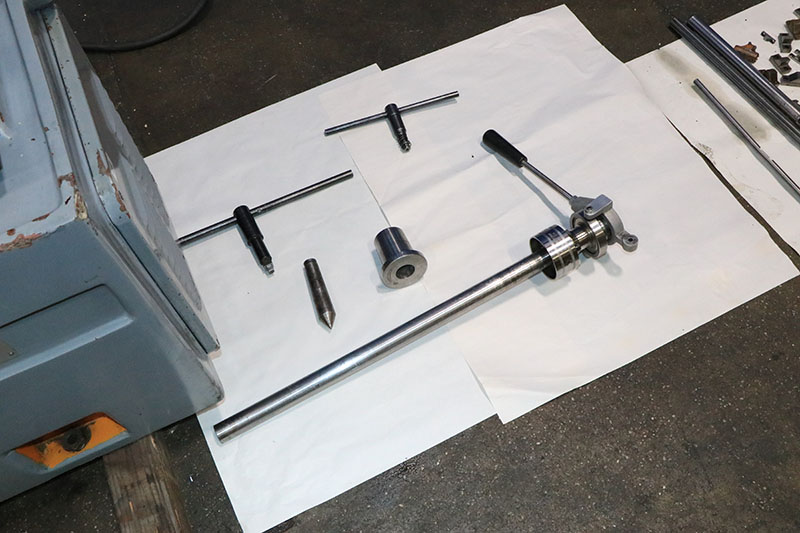

- 5C LEVER-TYPE COLLET CLOSER & NOSE PIECE

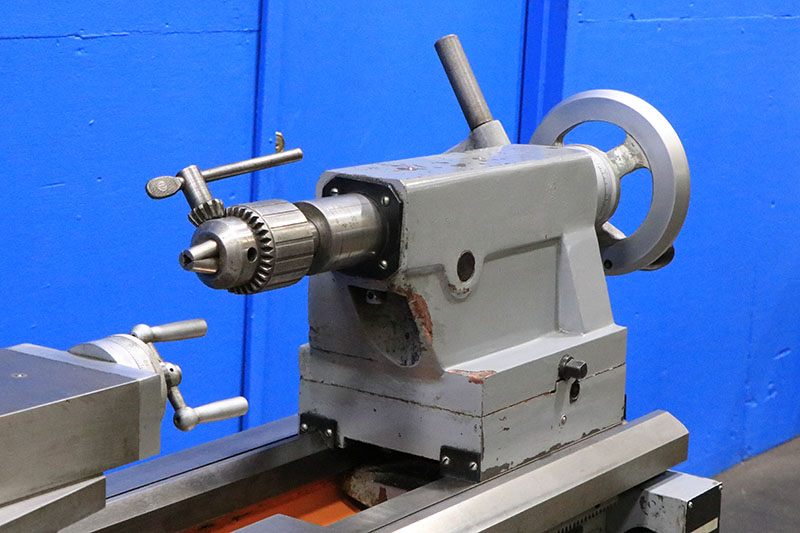

- JACOBS DRILL CHUCK FOR TAILSTOCK
- DEAD CENTER FOR TAILSTOCK
- FOOT TREADLE OPERATED SPINDLE BRAKE

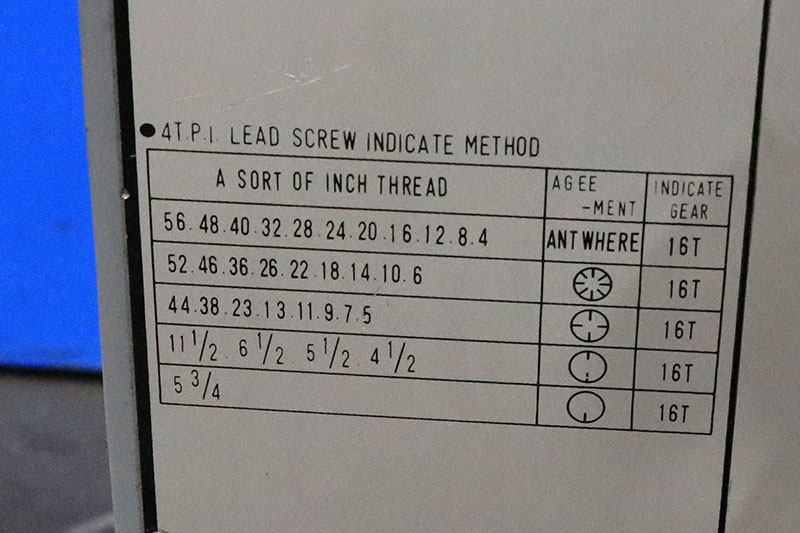

- THREADING DIAL
- ADJUSTABLE LONGITUDINAL CARRIAGE STOP
- SELF-CONTAINED COOLANT SYSTEM
- 5 HP MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
